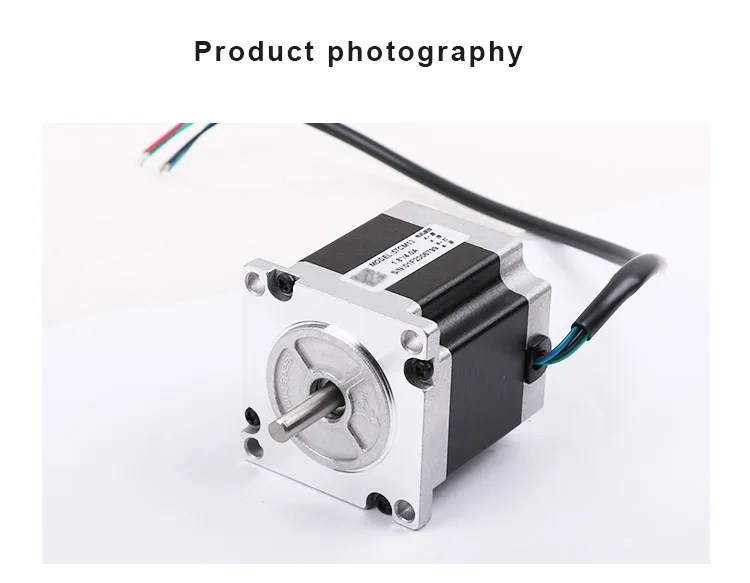

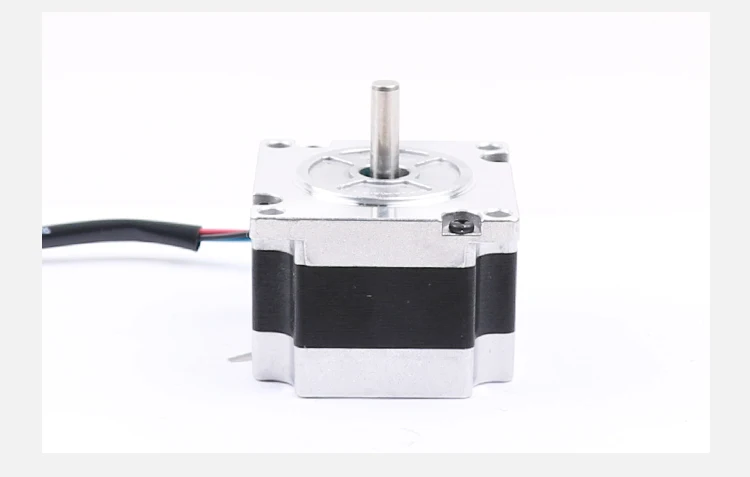

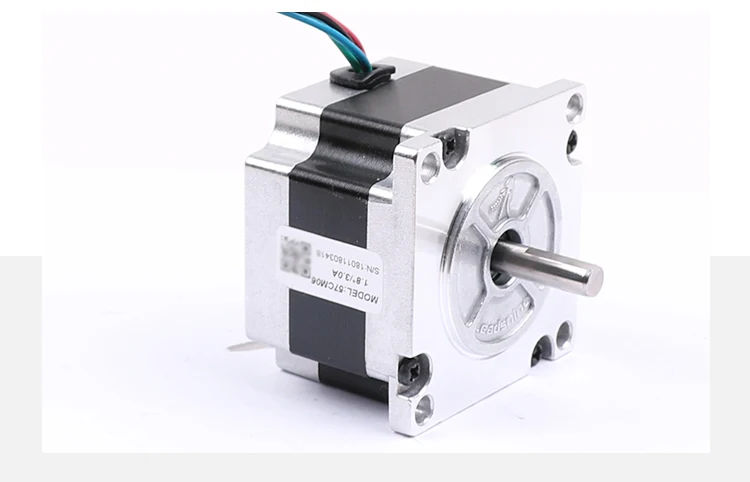

57CM06 Шаговый двигатель NEMA 23 Leadshine с удерживающим моментом 0,6 Нм (85 унций-дюйм) 2 фазы, 4 провода, диаметр вала 6,35 мм.

57CM06 Шаговый двигатель NEMA 23 Leadshine с удерживающим моментом 0 6 Нм (85 унций-дюйм) 2 фазы 4 провода диаметр вала 35 мм.

2 phase, NEMA 23 frame size
41 mm (1.61 inch) long
3 A phase current
0.6 N.m (85 oz-in) holding torque
6.35 mm (0.25 inch) shaft size
Built with high quality materials including bearings and shaft made by Japanese manufacturers
High precision, low motor heating, and low vibration

The 57CM06 is a 2 phase NEMA 23 stepper motor with 0.6 N.m (85 oz-in) holding torque. It can be implemented in many Industrial motion control applications. Built with premium quality materials including bearings and shaft made by Japanese manufacturers, this 57CM06 stepper motor can move the attached load at high precision and with very low motor heating & vibration.
