Features:

Programmable temperature controller: the ability to write settings procedure through the thermostat to let the thermostat work according to the setting rules.

For modbus is a communications protocol, the thermostat connected to the computer management main board, through a computer host controller, manages a number of thermostat and undertakes whole or a single switch, adjust temperature

Touch screen thermostat, one-touch temperature control over-ride. pre-set temperatures maintained within +/-0.5℃

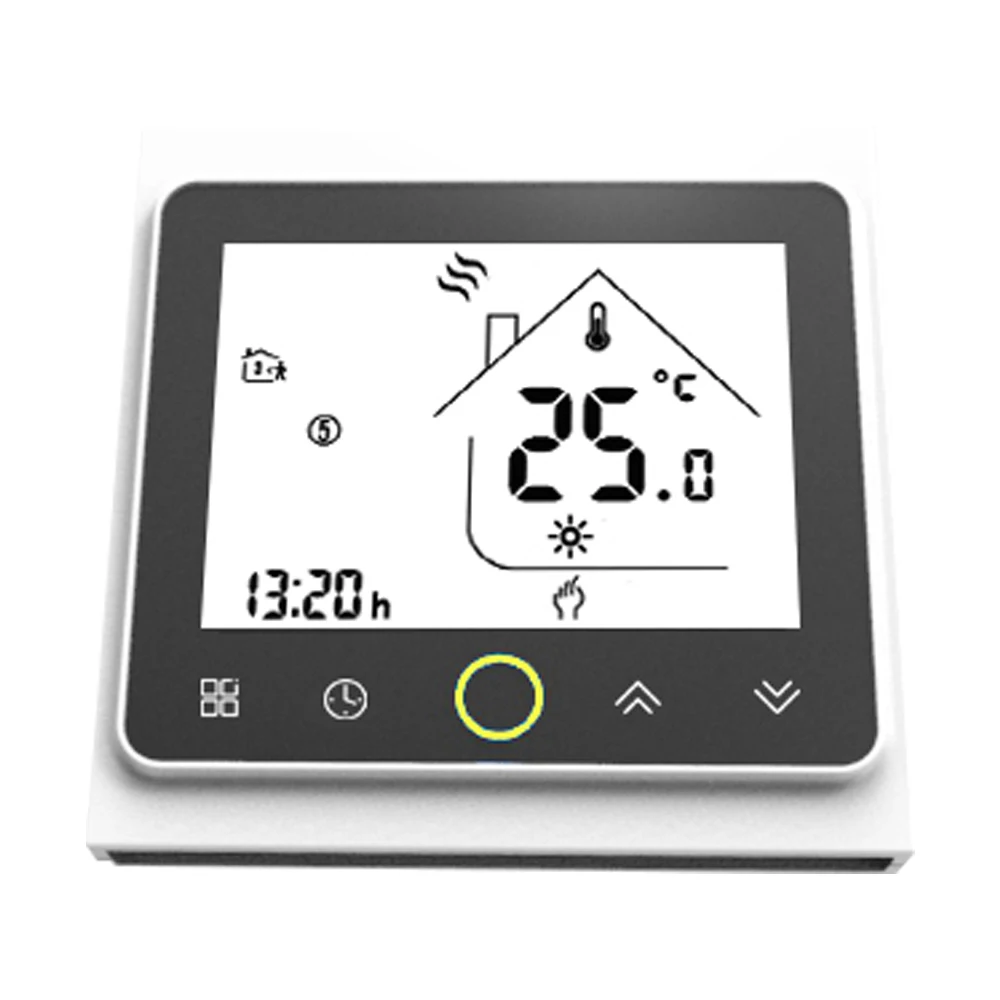

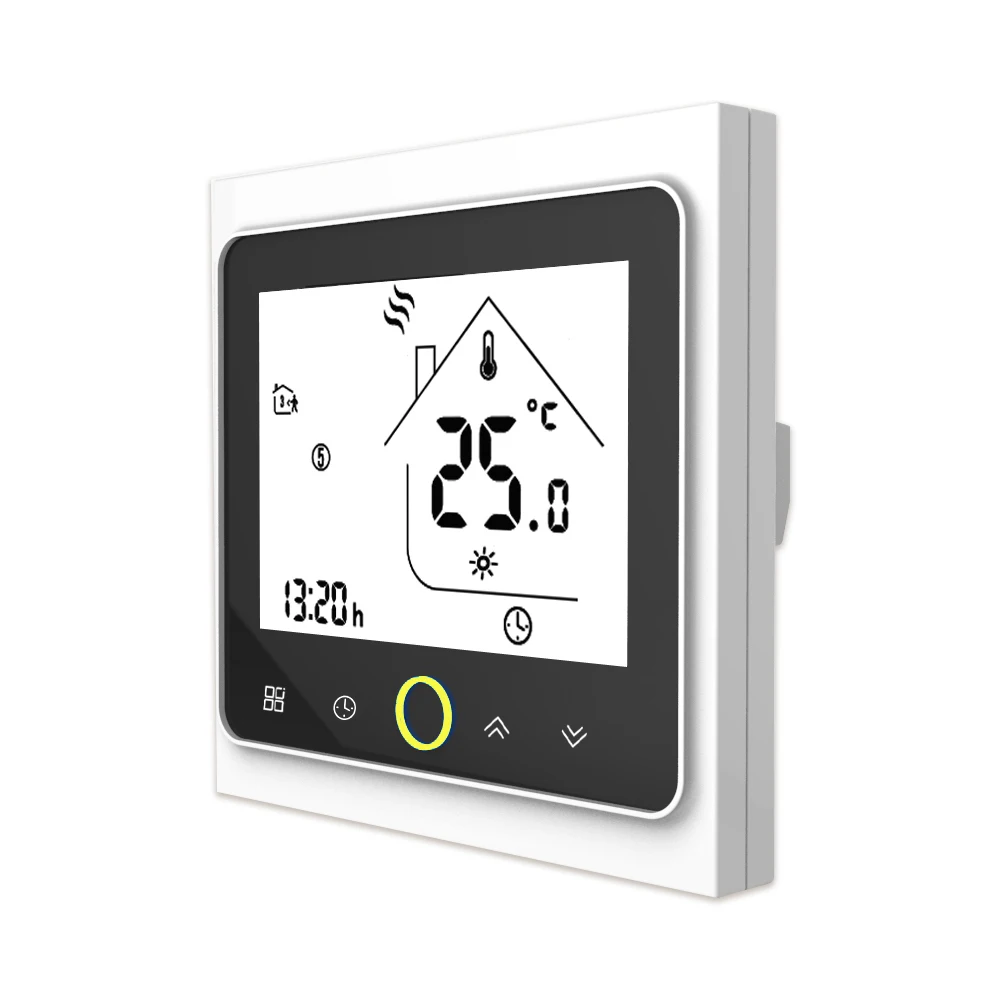

LCD display thermostat with touch button and ultra thin large LCD screen display, simple to operate and easy to read even in the dark

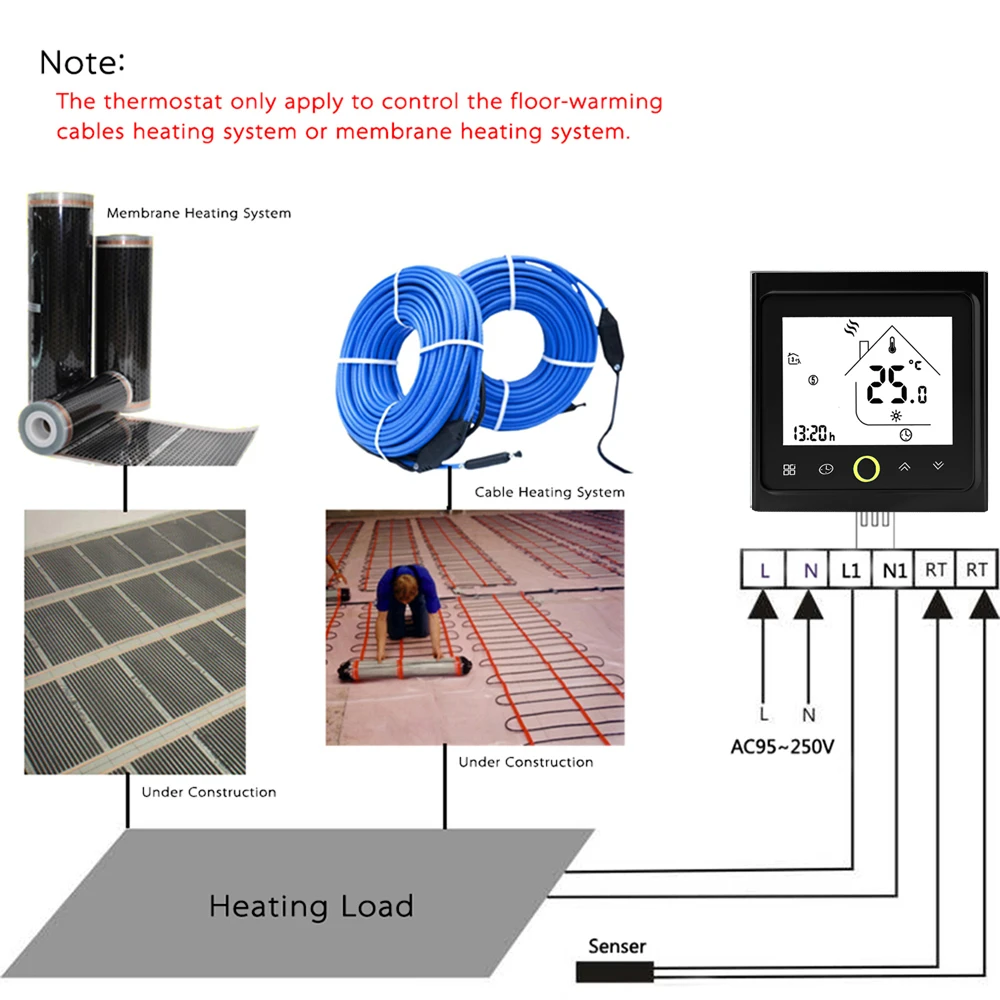

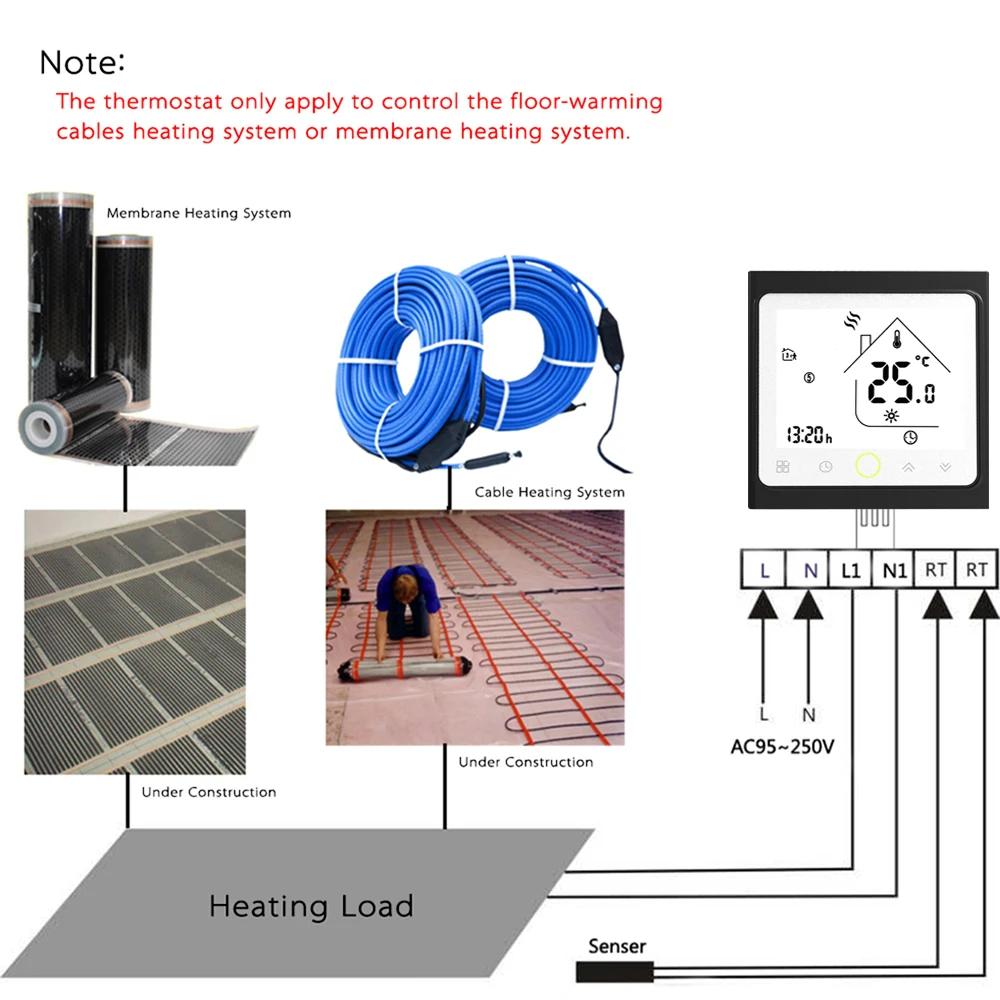

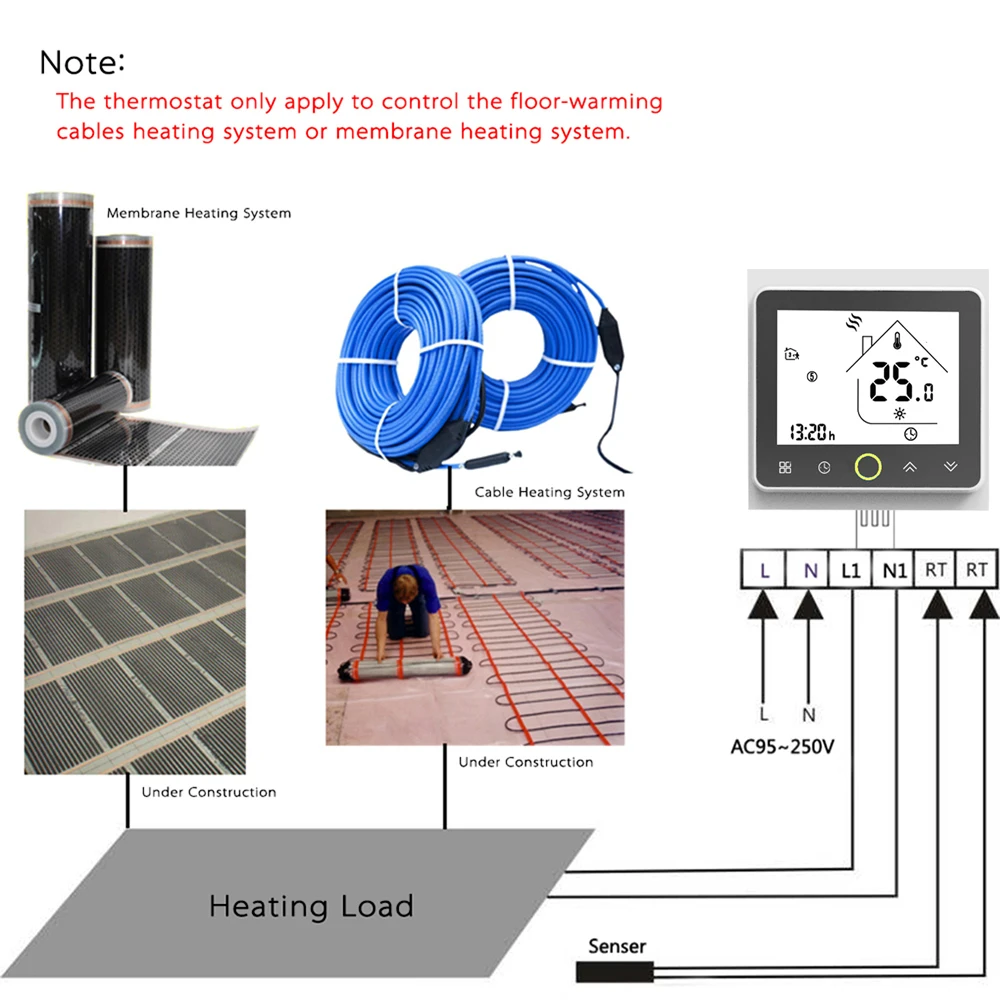

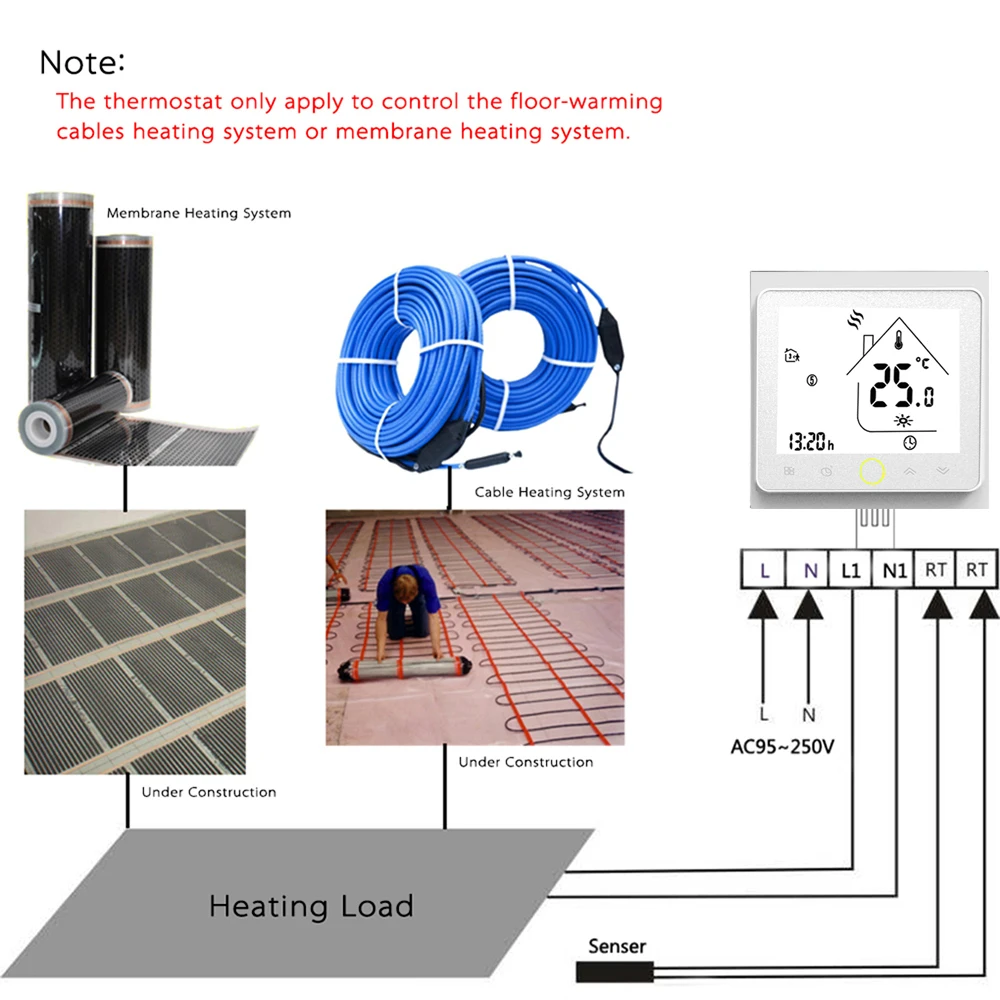

NTC sensor room temperature controller, internal and external sensor allow control of both air and/or floor temperatures

Description：

Simple installation

Acrylic face plate

Large, backlit display

Sleek, contemporary design

Elegant chrome frame

Feather touch control panel

5+2 six period per day programming

Simple, one-touch temperature control over-ride .

Pre-set temperatures maintained within +/- 0.5°C

Internal and external sensors allow control of

both air and/or floor temperatures

Suitable for installation in a standard single bespatters

box or European 60mm round box

RS485/MODBUS communication

Specification:

Sensor：NTC

Accuracy：±0.5℃

Power Consumption：< 1.5W

Timing Error：<1％

Power Supply：95 ~ 240VAC, 50 ~60Hz

Current Load：16A（electric heating)

Shell material：PC+ABS (flame retardant)

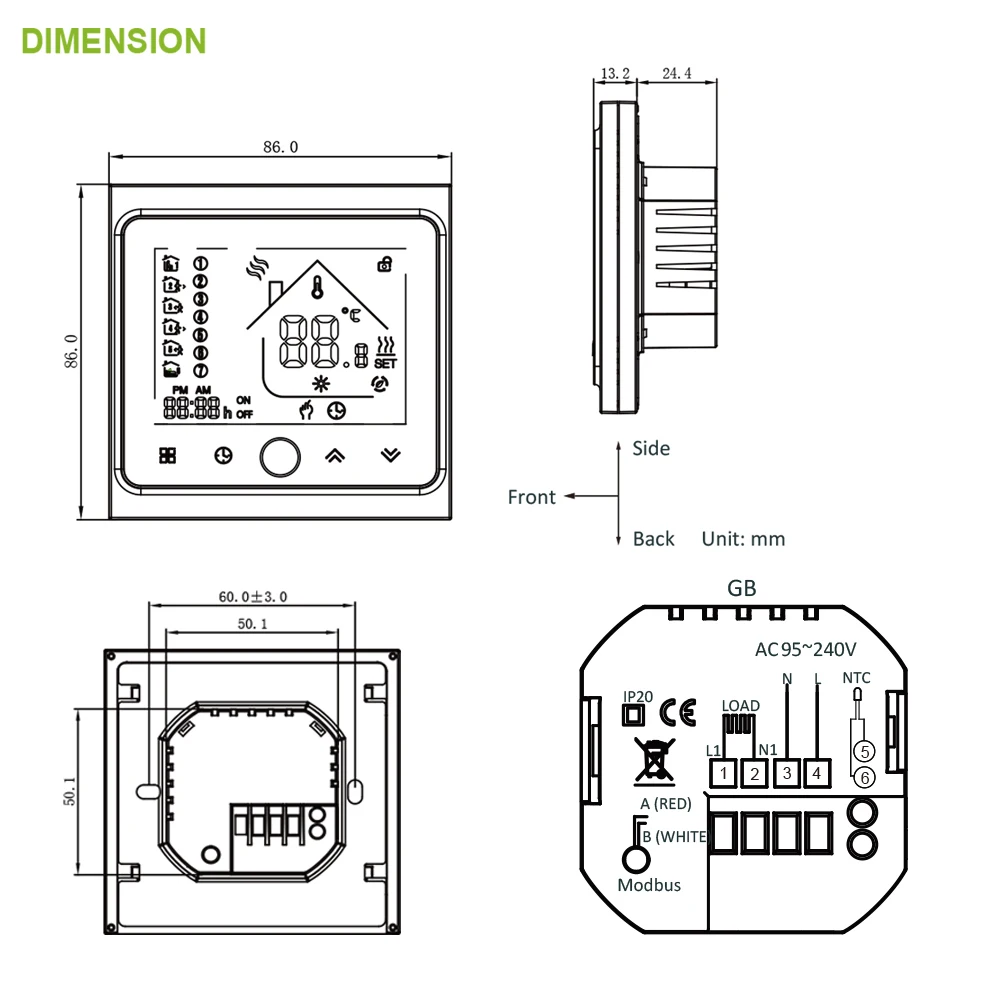

Dimension：86x86x13.3mm

Ambient Temp.：0-45℃，5-95％RH

（Non-condensing）

Storage Temp.：-5-55℃

Installation Hole distance: 60mm

Set Temp. Range：5-35℃

Room Temp. Range：5-99℃

Package Include:

1*Thermostat

2*Screws

1*2.5m External (Floor) Sensor

1*User Guide
