TOP-862EV / TOP-864EV compatible remote control 868 3MHz CLONE Duplicator | Автомобили и мотоциклы

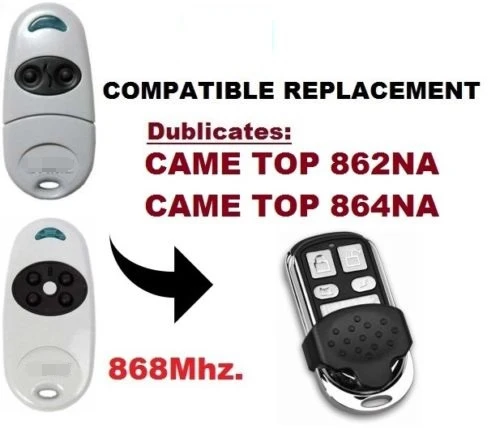

CAME TOP 862NA, 864NA 868Mhz. Garage Door/Gate Universal 4-Channel Remote Control Replacement Cloning/Duplicator Remote Control Key Fob



Description


This Remote Control Compatible With:

CAME TOP 862NA
CAME TOP 864NA
CAME TOP 862EV
CAME TOP 864EV


Specifications


Brand new and high quality. Third party remote control. NOT made by CAME Frequency - 868.35Mhz. Your original remote must be 868mhz. Not any other. Material - Metal and PVC Operating voltage - 12V DC 27A (Battery included) Transmit distance - 50-100m (Open space) Decoder IC - Copy Code. Can copy all learning/fixed code. (All manufacturers) Rolling code and special fixed code can not be cloned.


How to Program





Step-1 Clear the history code from duplicator

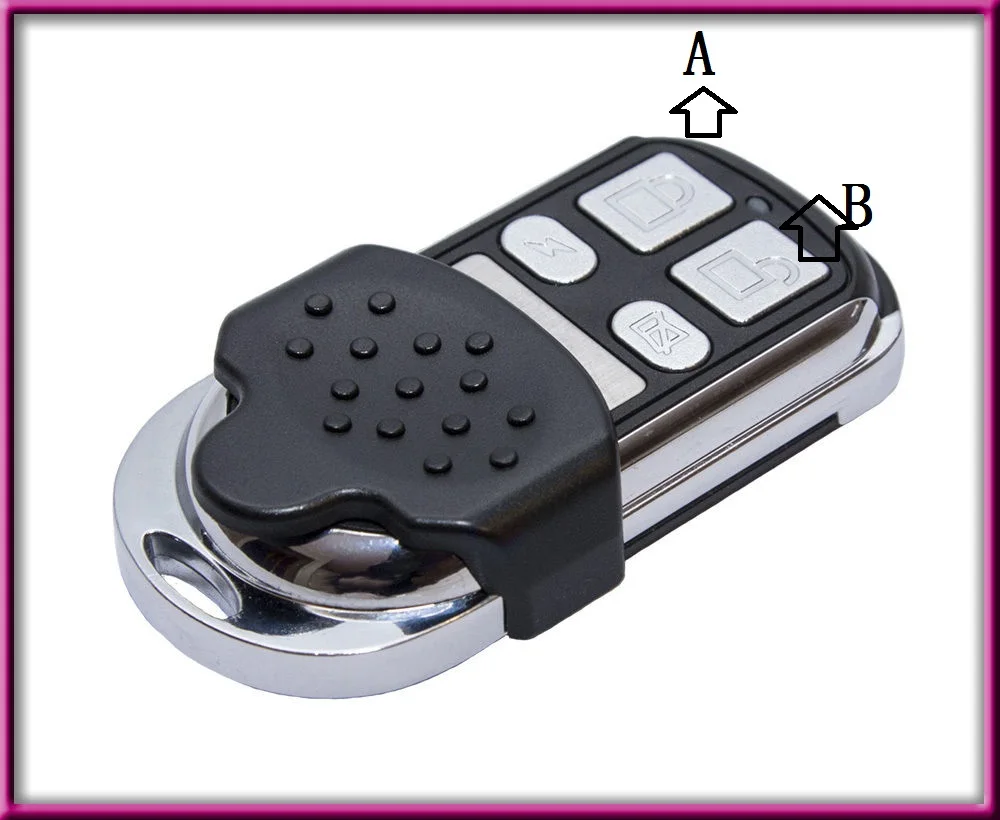

1. Press button A and B continuously until LED flash 3 times
2. Release button B (Keep pressing button A),and press button B Slowly for 3 times, LED flash
3. Release button A,finish code clearance.
If code clearance done properly, short press any button. Light won't flash at all.
If light flash when short press any button clearance process done wrong. Please repeat clearance process again.

Step-2 Copy code from original transmitter
Place the cloner remote and the original remote close together side by side. Make sure they are touching.
1. Simultaneously press a button on your original remote and one of the buttons on the clone remote and hold until the LED on the clone remote flashes steadily. The LED will first flash 3 times quick, then stops for a second, then flashes steadily.
2. Release both buttons. Programming is successful. Copy other buttons in same way.
Even if everything done correct sometimes copying process failed. Repeat all programing process again and use different remotes position face to face, side to side, back to back, like T Position. In most cases back to back cloning position is the best.


Troubleshooting

  After many tests remote control won't cloning, or cloning successful, but not operate the gates.
Can be few reasons:
1. Your original remote control battery is low power. (even if working fine)
Solution - Change new battery. (If you got multimeter check voltage. If voltage less than 1 Volt battery no good even if new. For example Battery must be 12V you got 11V)

2. Please make sure factory testing code is deleted, before start cloning.
If code clearance done properly, short press any button. Light won't flash at all.
If light flash when short press any button clearance process done wrong. Please repeat clearance process again.

3. When cloning led blink twice and no more.
868Mhz frequency remotes controls match harder clone, than any other frequency remote controls. Please be patient. Don't decide remote is faulty. All remotes deep tested before despatch and 100% working order.
You must find the best cloning position. In most cases the best position is back to back. But not always. On different models may be you need use other positions (face to face, side to side, like T position and etc.) Please watch video bellow. As you see on video first button clone ok, second button not (video time 0.22s) led blink twice and no more. Only when i moved remote down just a little cloned successfully.





You will get:

1 x New  4-Channel Remote Control (with battery)
Securely packed in padded envelope.
