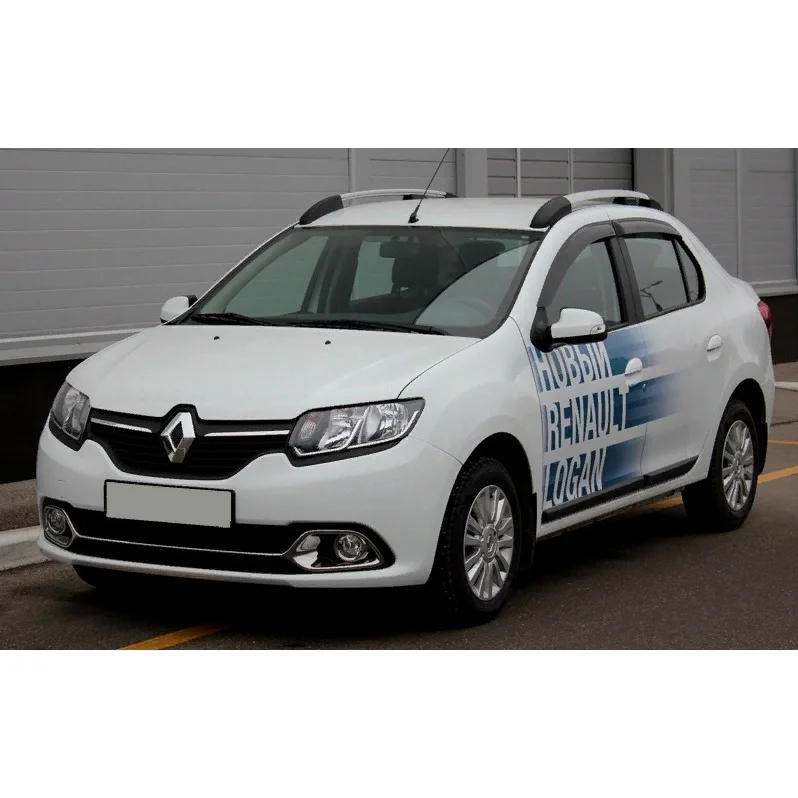

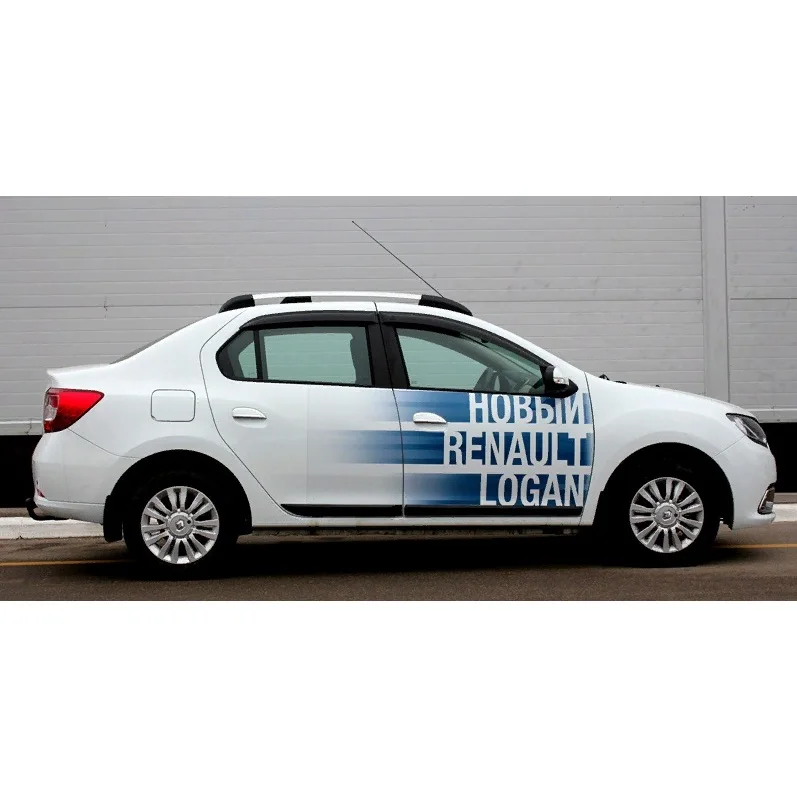

The rails are designed for installation on the Renault-Logan II car (Renault-Logan 2 second generation), which has been produced since 2014 on Avtovaz, or DACHINA lo. produced outside Russia since 2012.

For carRenault-Logan I (release from 2004 to 2015) rails data are not suitable. DThe Renault Logan rails are designed for him. These models are not interchangeable!

Original design, designed specifically for this car.

Materials and Components of high quality-Toughened aluminum profile with protective-decorative anode coating, and ABS plastic with protective layer, preventing burning out and discoloration.

Aluminum profile rails have trademark engravingAnd two kinds of coating:

1. anode Gray.Is a colorless anodized-oxide high-strength coating. This is the most reliable way to protect aluminum and its alloys from corrosion and other aggressive environmental impacts. The electrolytic-derived oxide layer has a density of hundreds of times the density of the natural oxide film. In comparison with other ways of coating (dyeing, varnishing, coating with polymeric films, etc.), anodizing excludes the problem of subfilm corrosion and separation. This coating has high decorative and operational properties. Due to the transparency of the anode film, the profile has a natural metal color. Before the coating, the profile is subjected to special processing, which creates a velvety surface sparkling in the sun.

2. polymer black.This kind of aluminum profile coating is double layer.

Installation method-Mounting in regular places in the car body with a screw connection, without gluing to the roof surface. The kit includes a special system for protecting the LKP body-protector (self-adhesive backing made of transparent high-strength plastic).

Load capacity-50 kg., In accordance with the recommended vehicle manufacturer, the maximum permissible load on the car roof.

Static carrying capacity of rails is not less than 100 kg. High load capacity is provided by the rigidity of the metal structure of rails. However, the recommended load of 50 kg is selected taking into account the following parameters:

1. vehicle body (roof) handling according to the manufacturer's technical requirements.

2. Strength of the fastening elements installed in the car body.

3. inertial and aerodynamic forces arising from the movement of the vehicle with the cargo placed, and significantly increasing the load on the structure.

Recommendations when using rails as a trunk (subject to the installation of cross-sections):

1. small and heavy cargo place as close to the rails as possible.

2. when placing several cargoes on rails at the same time, distribute them evenly over the cross surface. And heavier things need to be placed closer to the rails, and lighter to the center.

3. securely fix the cargo to the transverse and the rails themselves.

4. Additionally fix the drop ends of the long cargoes to the car body, to exclude their rocking during the transport process.

5. choose the most optimal mode of movement with reduced speed, avoiding sharp overclocking and braking.

Reyng-1415 mm.

Crossing Mount-Screw connection in the longitudinal groove of the aluminum railing profile.

Width of crossing installation-Floating, fixing cross sections is possible anywhere in the aluminum railing profile, maximum width900mm.

Dimensions of the green.

Categorically prohibited:Independently finalize, complete or repair the purchased goods, as this results in loss of consumer and operational properties of the goods, as well as loss of warranty.
