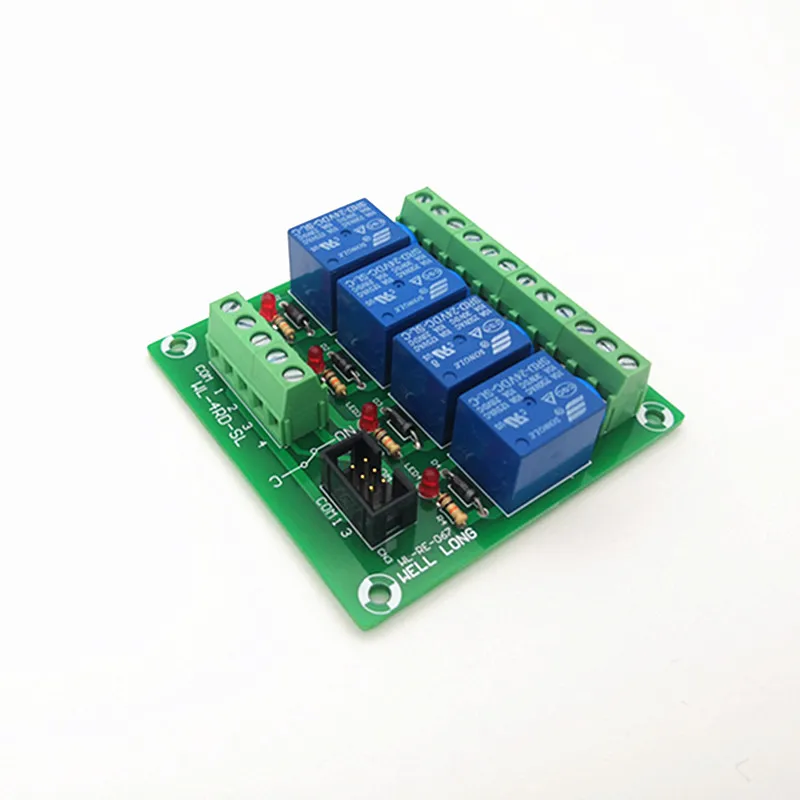

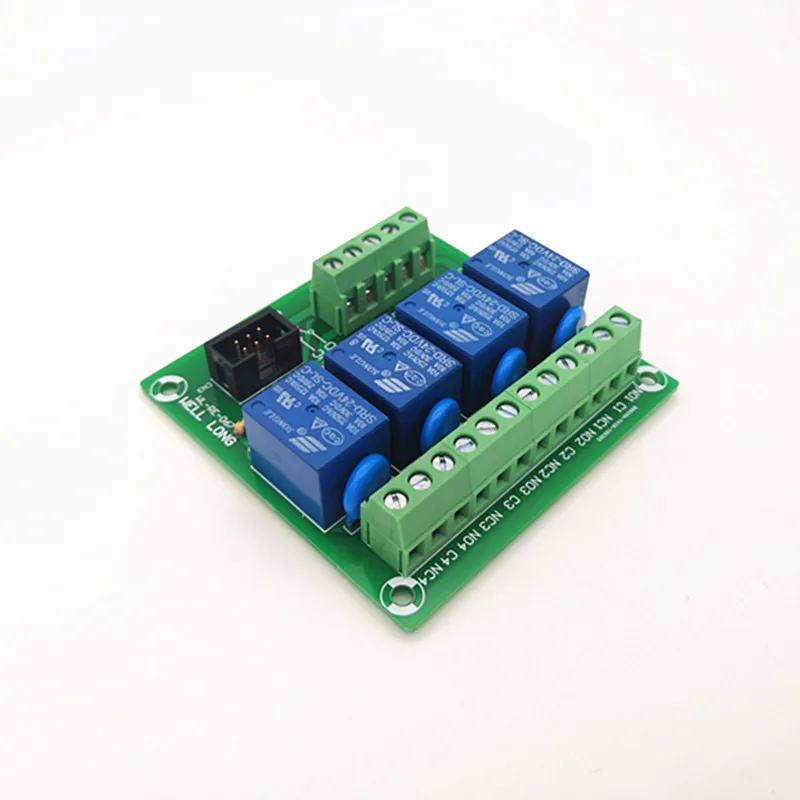

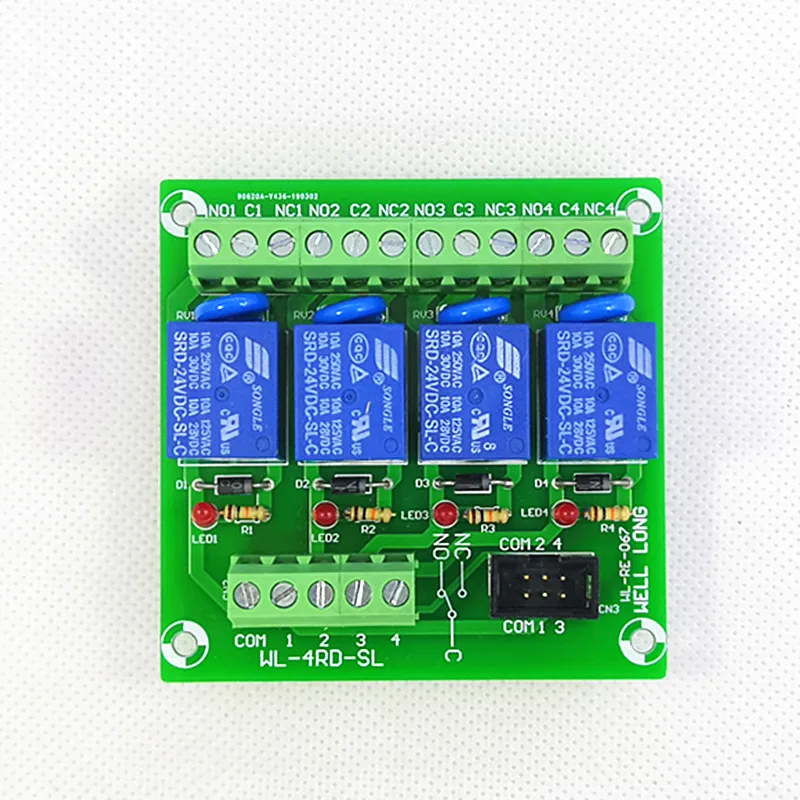

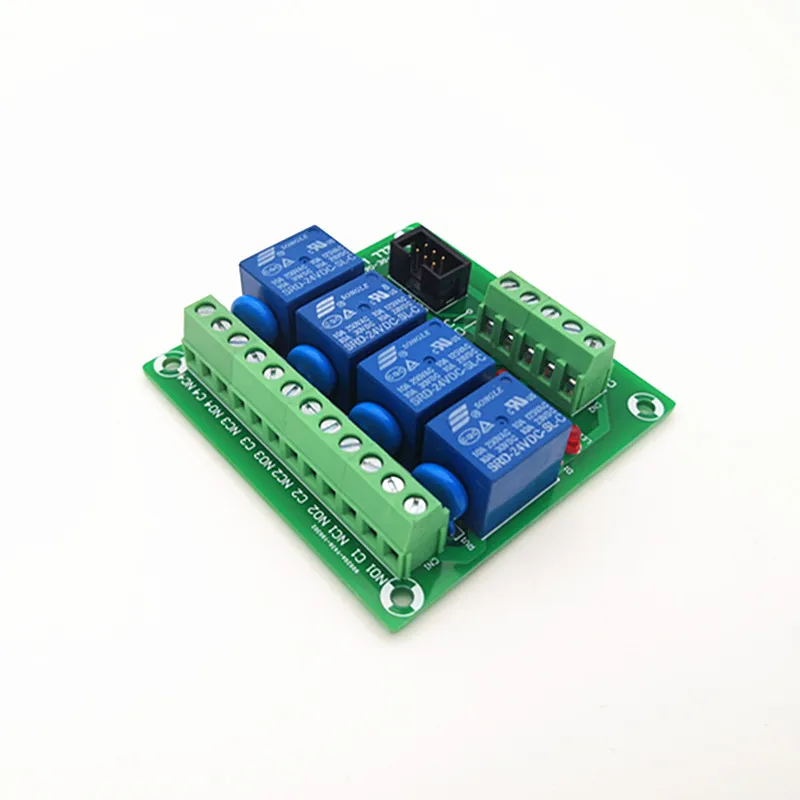

4 Channel PNP Type 9V 10A Power Relay Interface Module,SONGLE SRD-9VDC-SL-C Relay( Show Picture is 24V ).
The use of SONGLE original relays, traditional electronic components, stable and reliable performance.
9V Version, SONGLE SRD-9VDC-SL-C Relay.
Switching current upto 15A at 250VAC (or 30VDC).
Each channel has an LED indicator.
Each channel is protected by surge absorption.
FR-4 fiber glass PCB, dual copper layers.

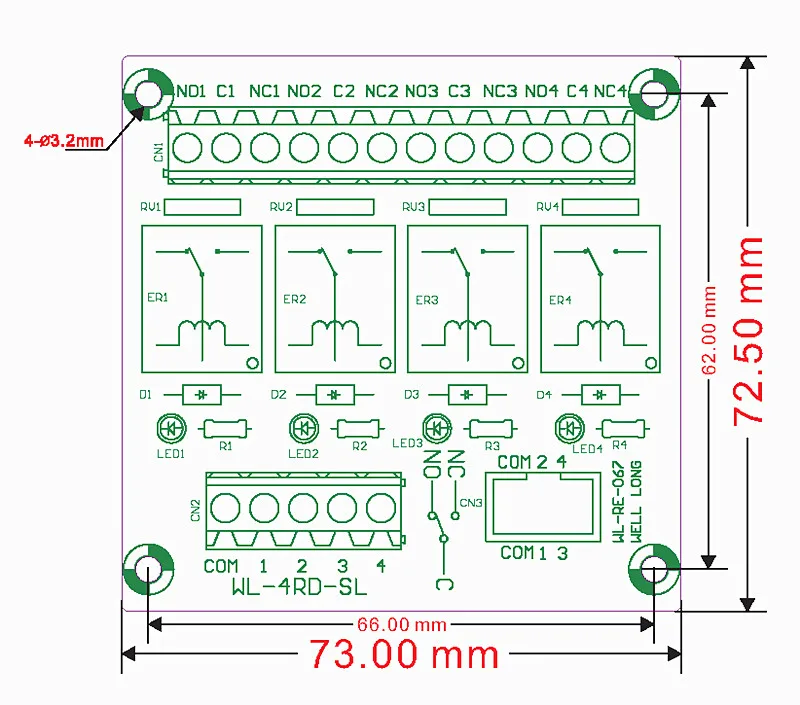

PCB dimensions: 73*72.5mm( L x W ).
100% new, never used.
RELAY COIL DATA:
Nominal Voltage:9VDC
Coil Resistance:180 Omega(plusmn10%)
Rated Current:10A
RELAY CONTACT DATA:
Contact Form: 1Fom C(SPDT)
Max Switching Voltage:10A 250VAC/28VDC
Max Switching Current:15A
Max Switching Power:2500VA/300W
Contact Resistance:400mOmega
Electrical Life:100,000 Operations.
Mechanical Life:10,000,000 Operations.
CN1/CN2 Terminal Block Parameter :
Pitch 5.08mm/0.2"
Wire range 24AWG ~ 12AWG / 2.5mm2
Rated voltage 400V, rated current 24Amp.
Strip length 7mm.
Screws - M3,steel,Cr3+ Zn plated.
CN3:The use High-Quality DC3 6Pin 2.54mm socket for easy connection.
