Kuulee Satellite Tv Receiver Tuner Dvb T2 Wifi Usb2.0 Full-HD 1080P Dvb-t2 Tuner TV Box Dvbt2 Built-in Russian Manual Antenna

Description:

Item type:Dvb-T2 TV Tuner Receiver

CPU: MSTAR-MSD7T01 (128 pin) MIPS 34Kf@600MHz

Memory: MSD7T01 built-in (32X16Mbit DDR2 Frequency1066)

Flash: 32M bytes

Demodulator Type: MSD7T0 built-in Demodulator

TUNER:Rafael R836

Front Panel:USB 2.0 Embedded One Host

4-digit LED display on front panel

red LED Standby,green LED Lock

Panel KEY, POWER, CH+ ,CH-

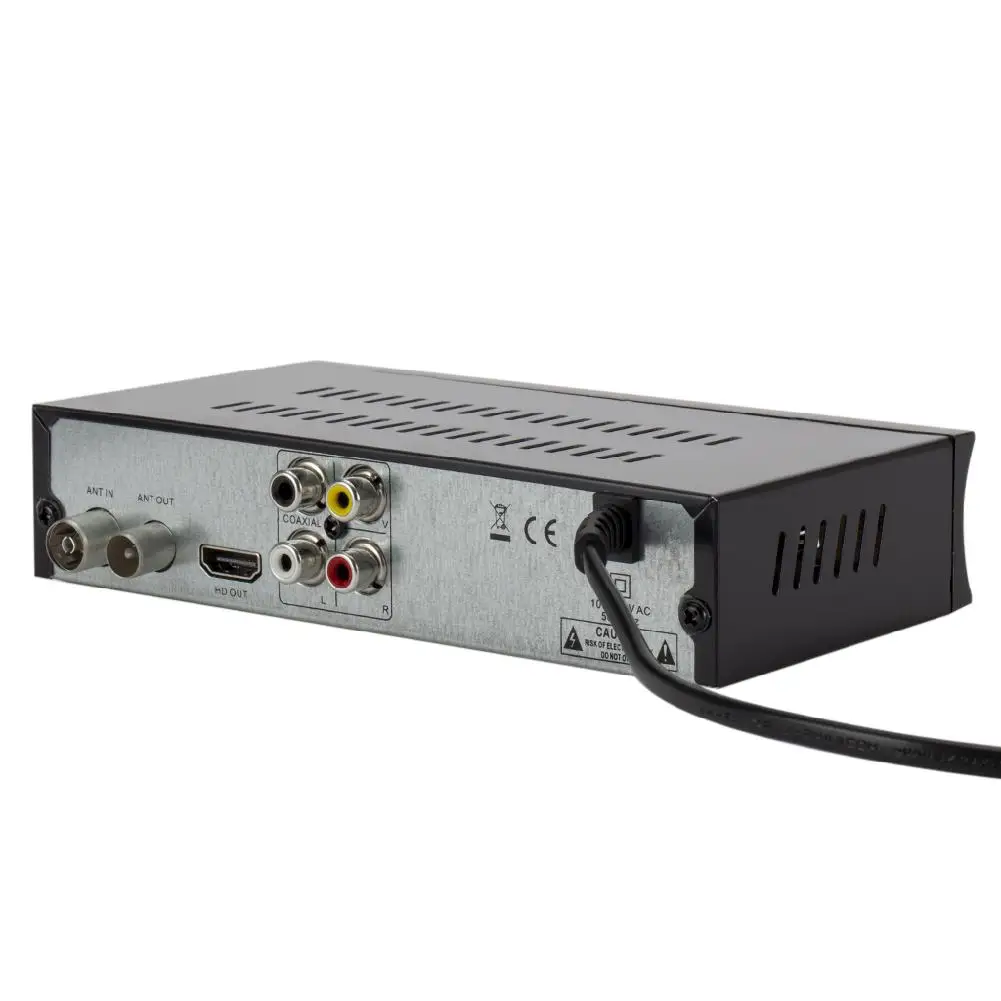

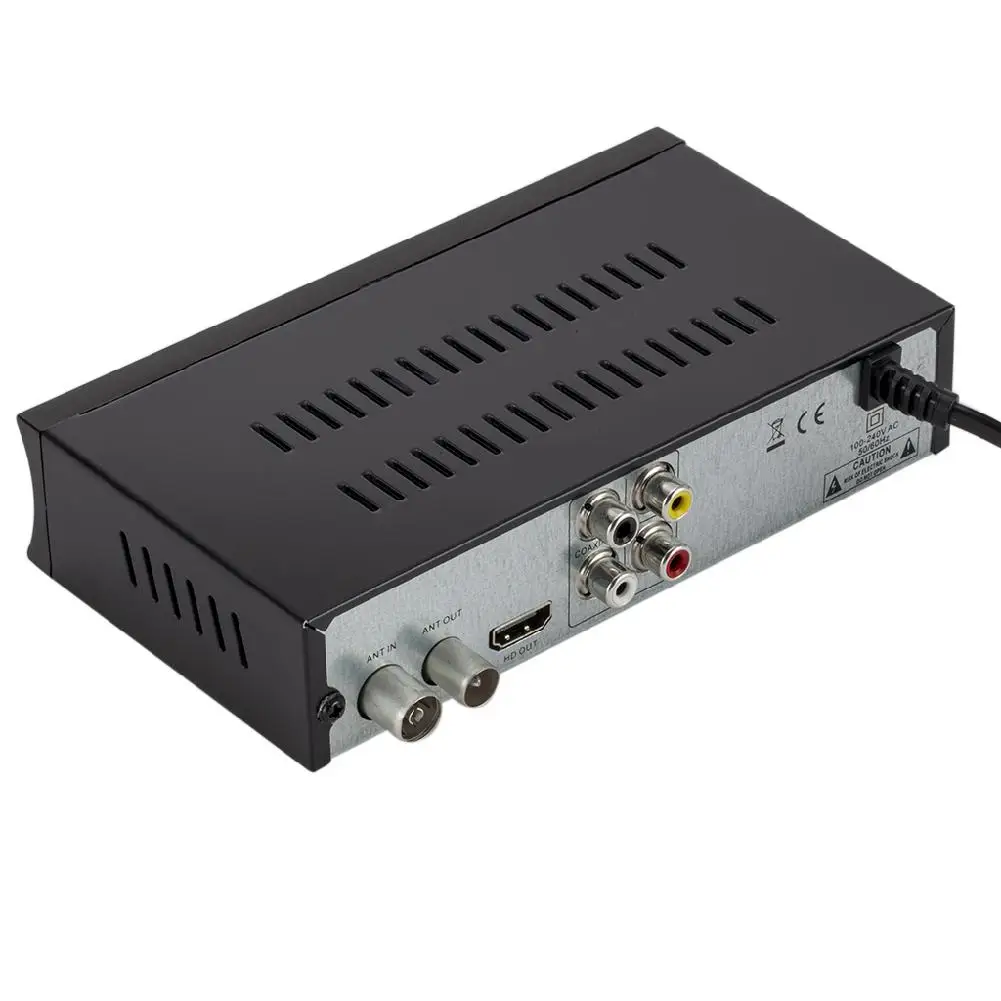

Rear Panel:Tuner RF input connector IEC-162-2( Female)

Tuner RF Loop through connector IEC-162-2( Male)

HDMI:V1.3/V1.4

RCA : CVBS AL AR Connector x1

Ypbpr RCAx1

Coaxial x1

Power :AC100~240V 50Hz/60Hz

Terrisal Receiver Standard: DVB-T2/T(EN_302755 V1.3.1/EN 300744)

Input RF Frequency: 48~866MHZ

Bandwidth: 6MHz,7MHz,8MHz

Constellation: QPSK 16-QAM 64-QAM and 256-QAM

FEC: 1/2, 3/5,2/3, 3/4,4/5,5/6

Guard Interval: 1/128 1/32 1/16 19/256 1/8 19/128 1/4

FFT Mode:2K/ 8K/32K

Support: Single and multiple PLPS

Input level:-83 - -5dBm

Video Decoder: Compliant with: MPEG-4 part10/MPEG-2 ISO/IEC 13818

MPEG-4 Simple/Main/Advanced Profile@LEVEL3(10Mbps)

MPEG-2 Main Profile# Main Level(15Mbps)

H.264 MP#L3(10Mbps).H.264 HP L4.1(25Mbps)

Audio Decoder MPEG-1, MPEG-2 (Layer I/II), MP3, AC-3 (Dolby Digital), AAC-LC, WMA

E-AC-3 (Dolby Digital Plus) decoding HE-AAC 5.1 multi-chhannel decoding

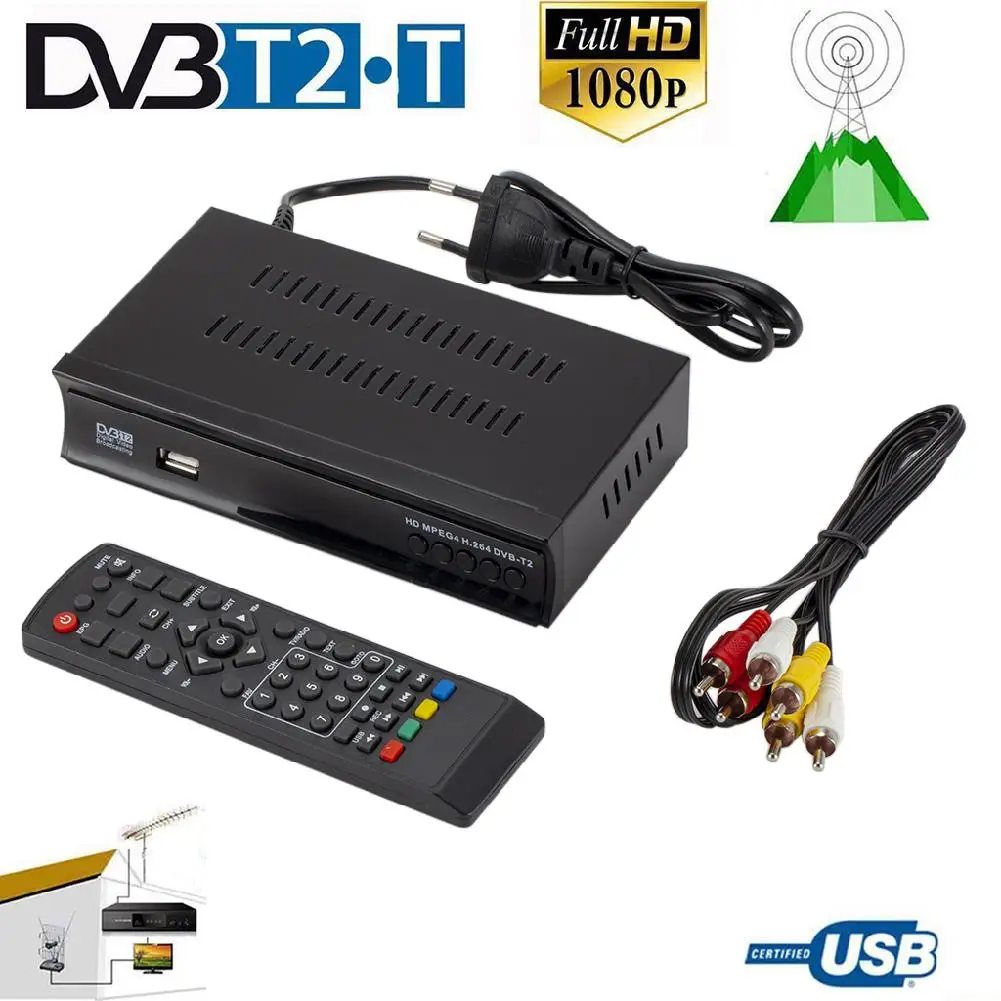

Package Include:

1X Dvb-T2 TV Tuner Receiver

1X gift box

1X AV cable

1X IR remote control

1X User Manual

Note:

The colors deviation might differ due to different monitor settings.
