CM-8856 Film Coating Thickness Gauge with memory function FN Type magnetic induction (F) and eddy current(N) | Инструменты

Сохраните в закладки:

Цена:54 626,25RUB*

Количество:

Доставка в Эль-Монте, по России и СНГ

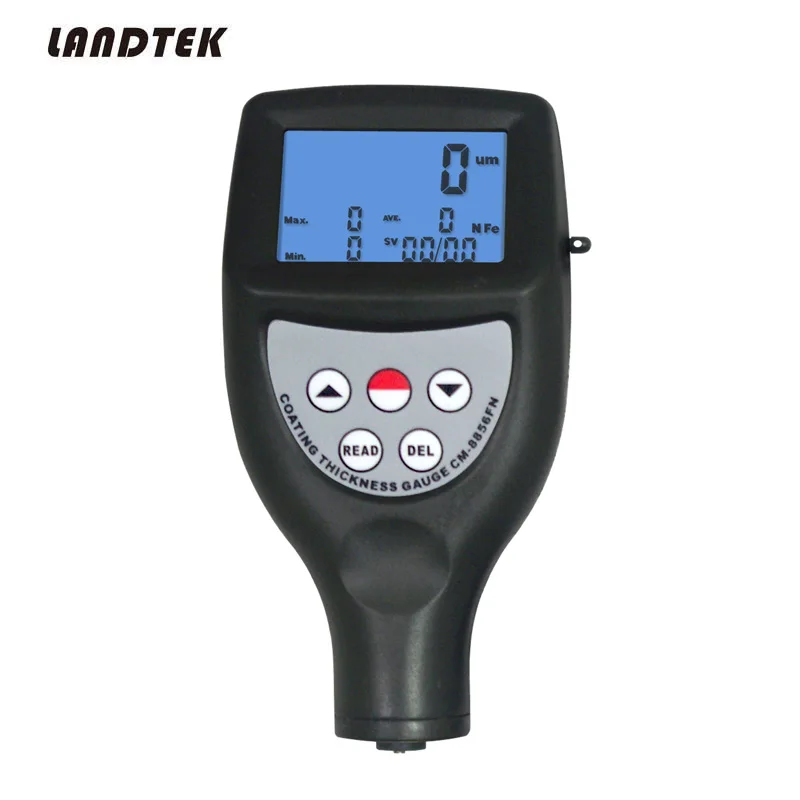

  • CM-8856 Film Coating Thickness Gauge with memory function FN Type magnetic induction (F) and eddy current(N) | Инструменты - Фото №1
  • История цены

    *История изменения цены! Указанная стоимость возможно, уже изменилось. Проверить текущую цену - >

    Месяц Минимальная цена Макс. стоимость Цена
    Jul-24-2026 65005.31 руб. 68255.89 руб. 66630 руб.
    Jun-24-2026 64459.66 руб. 67682.28 руб. 66070.5 руб.
    May-24-2026 54080.41 руб. 56784.90 руб. 55432 руб.
    Apr-24-2026 63366.96 руб. 66534.7 руб. 64950 руб.
    Mar-24-2026 55172.71 руб. 57931.98 руб. 56551.5 руб.
    Feb-24-2026 62274.42 руб. 65388.8 руб. 63831 руб.
    Jan-24-2026 61727.22 руб. 64813.89 руб. 63270 руб.
    Dec-24-2025 61181.13 руб. 64240.75 руб. 62710.5 руб.
    Nov-24-2025 60635.62 руб. 63667.34 руб. 62151 руб.

    Новые товары

    Характеристики

    CM-8856 Film Coating Thickness Gauge with memory function FN Type magnetic induction (F) and eddy current(N) | Инструменты

    Описание товара



    Applications & Features:

    Coating thickness gauge is a kind of portable testing instrument, can take fast, intact, precise measurement of coating thickness. It can be used in both engineering field, and laboratories, as an essential instrument in material protection industry.

    * Can store the new data in 99 groups.

    * Metric/imperial system selectable.

    * Manual or automatic power off.

    * Auto memory of calibration value, auto substrate recognition.

    * Use RS-232 data output to connect with PC.

    * Provide Bluetooth data output choice



    Principles:

    Principles Applications Examples F Type Magnetic Induction (Iron Base) Measure the thickness of non-magnetic materials on magnetic materials Galvanizing layer, lacquer layer, porcelain enamel layer, phosphide layer, copper tile, aluminium tile, some alloy tile, paper etc                  NF Type Eddy Current (Aluminium Base) Measure the thickness of non-conductive coatings on nonmagnetic metals Anodizing, varnish, paint, enamel, plastic coatings, powder, etc. Applied to aluminum, brass, non-magnetic stainless steel, etc



    Specifications:

    Operating Principle   Magnetic Induction / Eddy Current (F / NF)   Measuring Range   0~1250 um / 0~50 mil   Resolution   0.1 um / 1 um   Min. Radius Workpiece   F Type: convex 1.5 mm / concave 25 mm NF Type: convex 3 mm / concave 50 mm   Min. Measuring Area   6 mm   Min. Sample Thickness   0.3 mm   Accuracy   ± 1~3%n or ± 2.5 um   Auto Power Off     Metric / Imperial   Convertible   Battery Indicator   Low Battery Indicator   Operating Conditions   Temp. 0~40 °C, Humidity: 10~90 %RH   Power Supply   2 x 1.5 V AAA (UM-4) Battery   Dimensions   126 x 65 x 35 mm   Weight   81 g (Not Including Batteries)



    Standard Accessories:

     1. Main Unit

     2. Probe (F Type / NF Type)

     3. Calibration Base Set (F Type / NF Type) CTG-BS

     4. Calibration Foils CTG-CF (1 set, 4 pieces)

     5. Carrying Case

     6. Operation Manual



    Optional accessories:

     1. USB, RS-232C data cable with software
     2. Bluetooth data out put with software

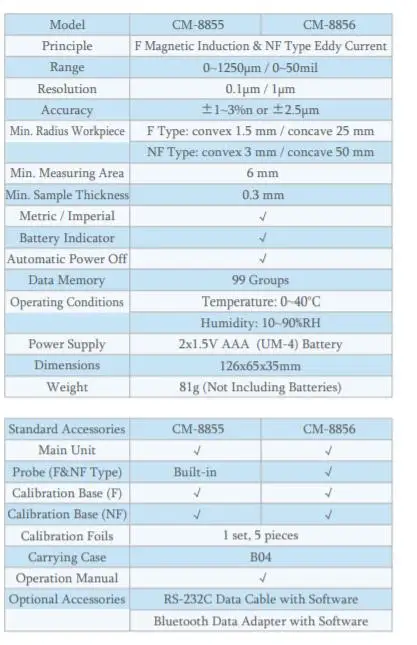

    Difference of CM-8855 and CM-8856:

    22

    11
