MEAN WELL LED driver HLG-120H-54A 54V Power Supply 110V/220V AC to DC 2.3A 120W waterproof IP65 Adjustable Transformer |

MEAN WELL LED driver HLG-120H-54A 54V Power Supply 110V/220V AC to DC 2.3A 120W waterproof IP65 Adjustable Transformer |

For your reference, please follow the steps below to check the validity of our products.

Step1: Open the official website of MeanWell at www.meanwell.com Step2: Click on the "Service" button at the top of the page and find the "Quality Control Inspection Report" Step3: Enter the serial number and click search

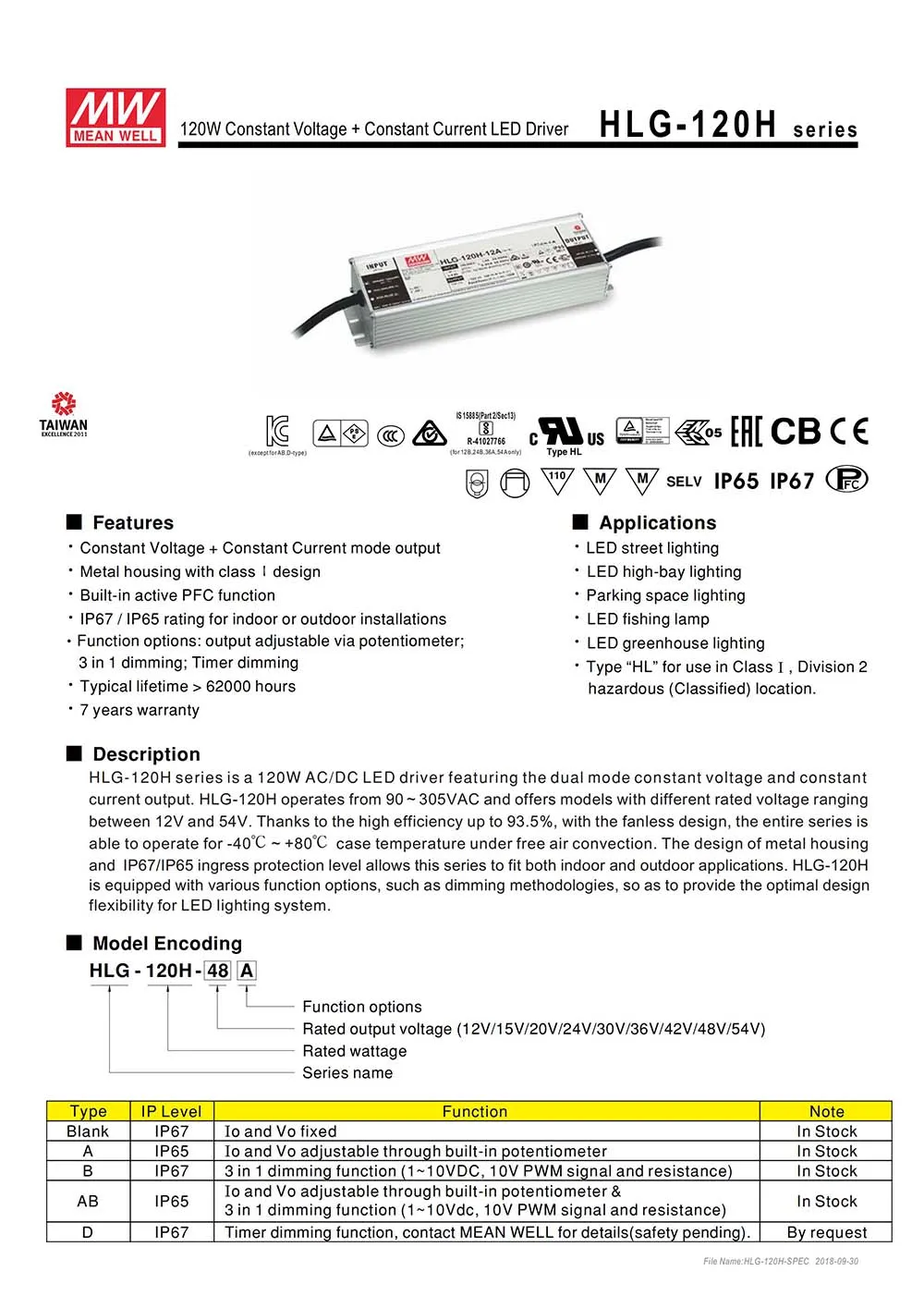

Features

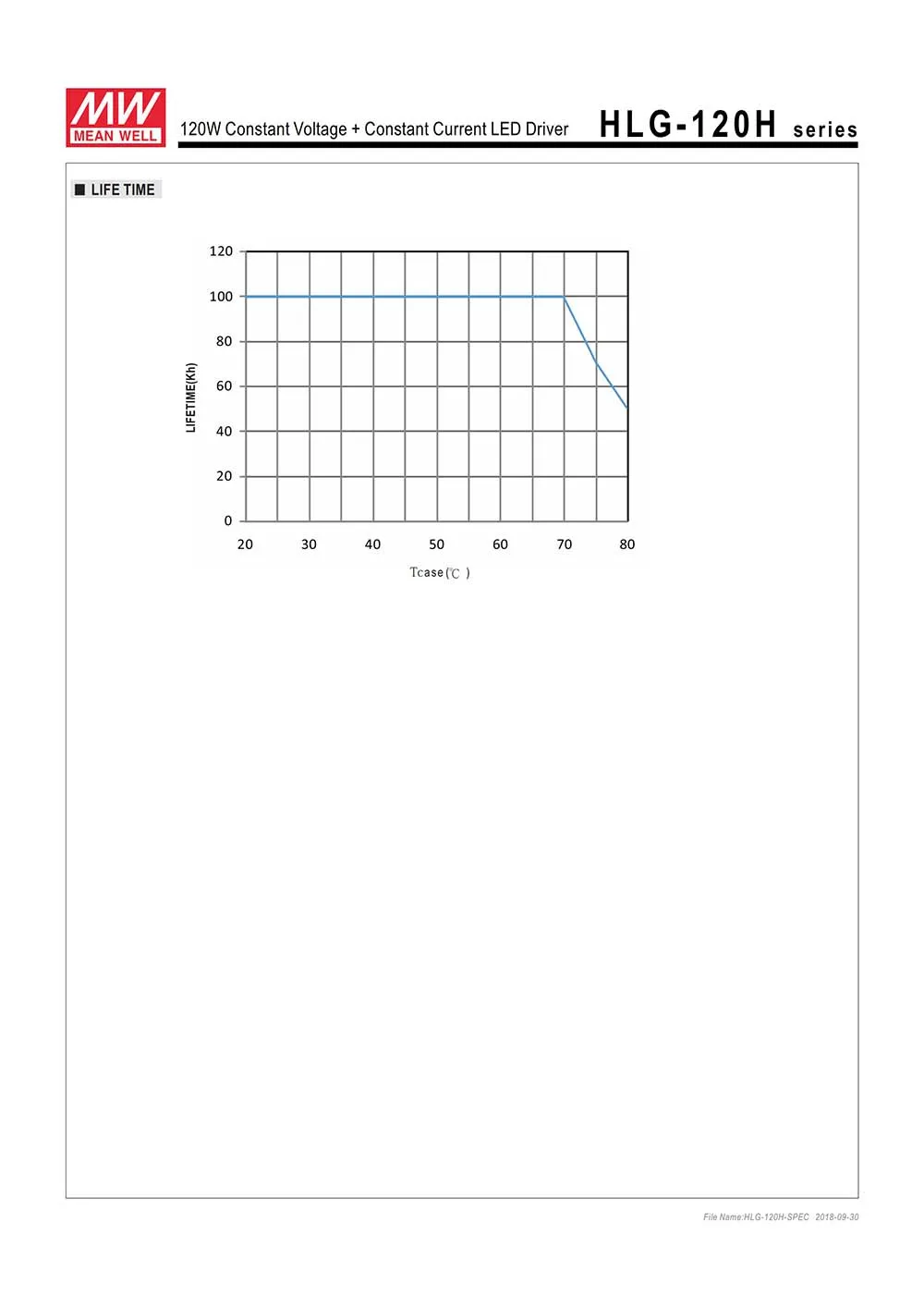

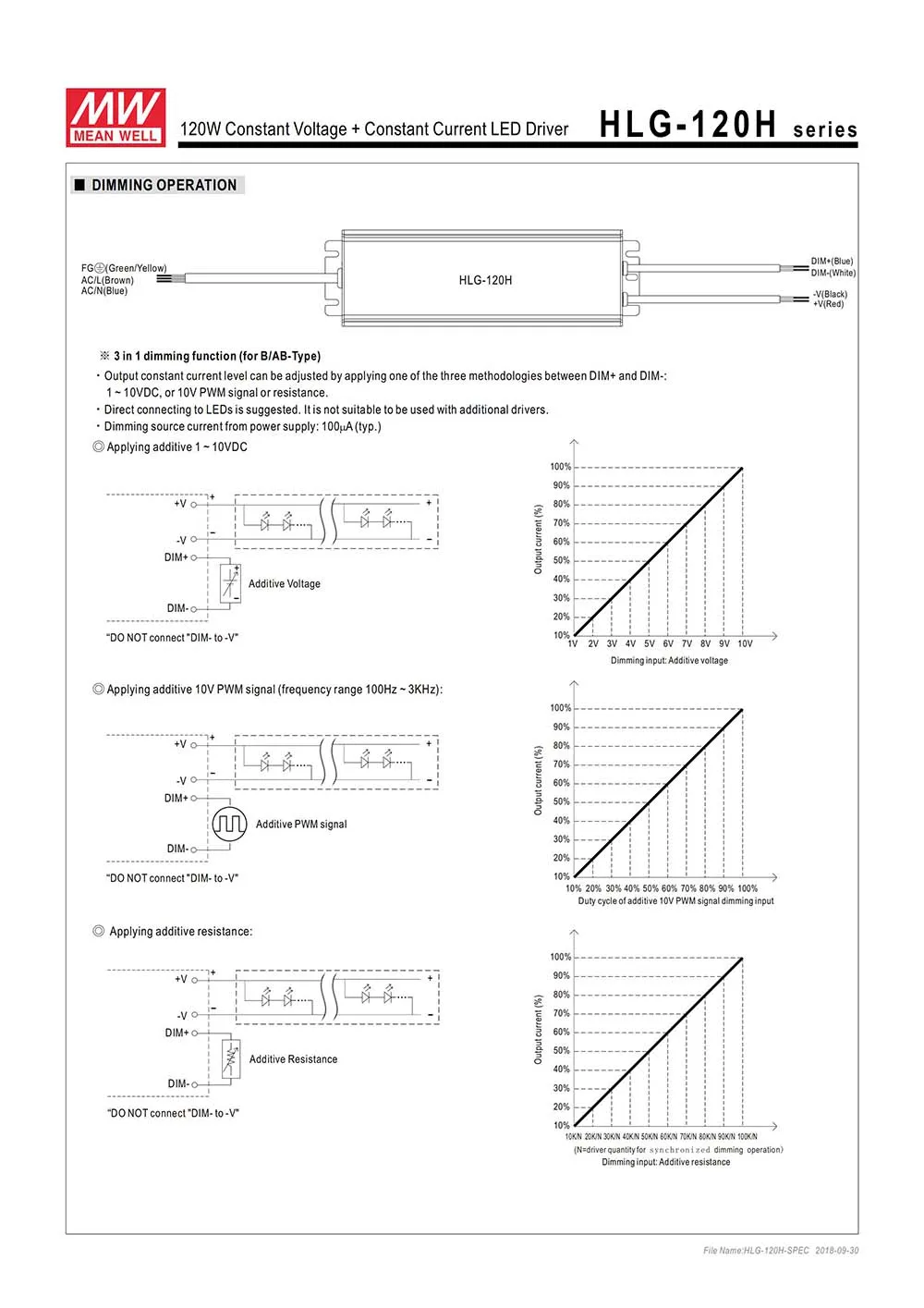

Constant Voltage + Constant Current mode output Metal housing with class I design Built-in active PFC function Class 2 power unit IP67 / IP65 rating for indoor or outdoor installations Function options: output adjustable via potentiometer;3 in 1 dimming; Timer dimming Typical lifetime> 62000 hours 7 years warranty

Applications

LED street lighting LED high-bay lighting Parking space lighting LED fishing lamp LED greenhouse lighting Type “HL” fo ruse in Class , Division 2Ihazardous (Classified) location

Description

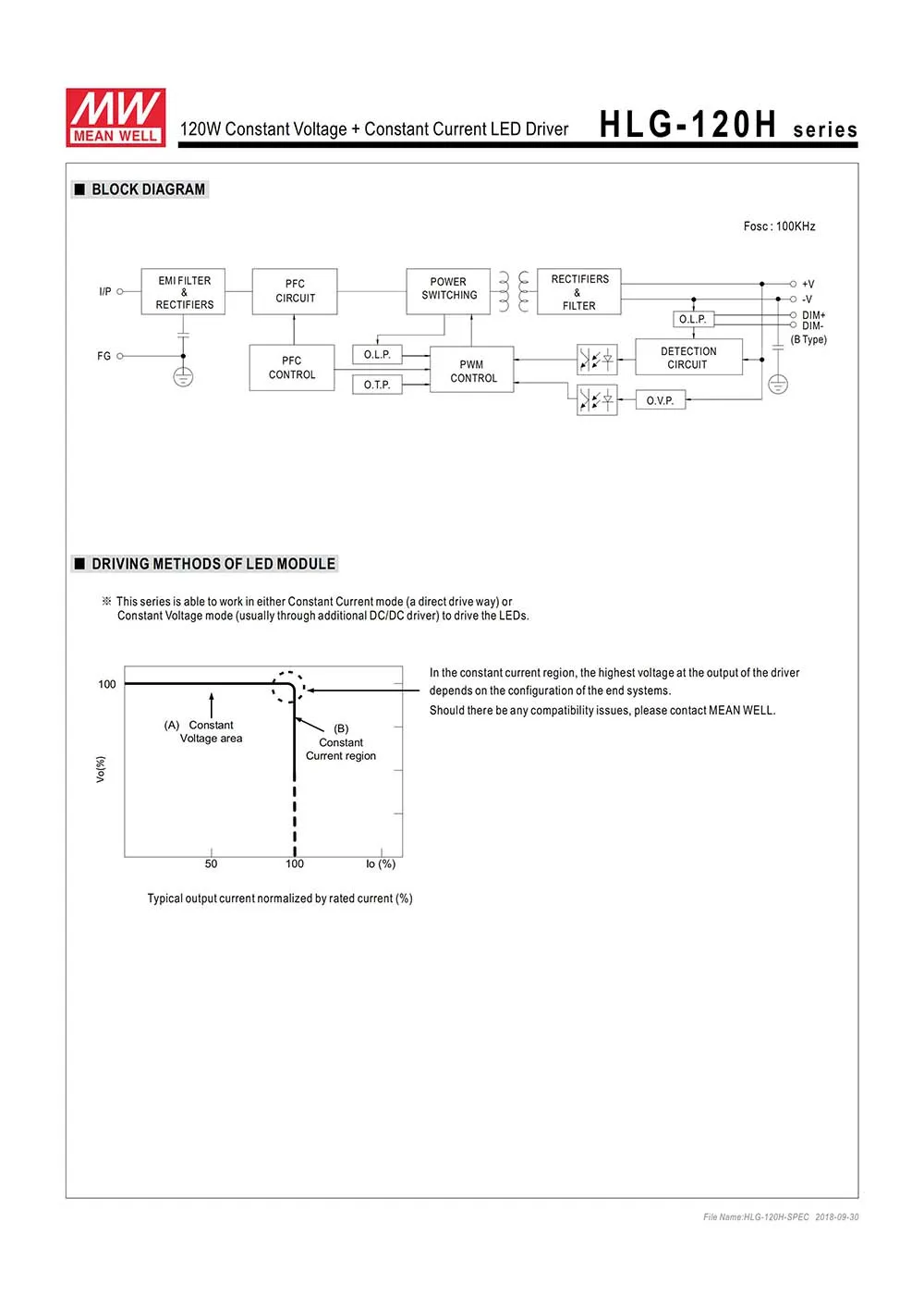

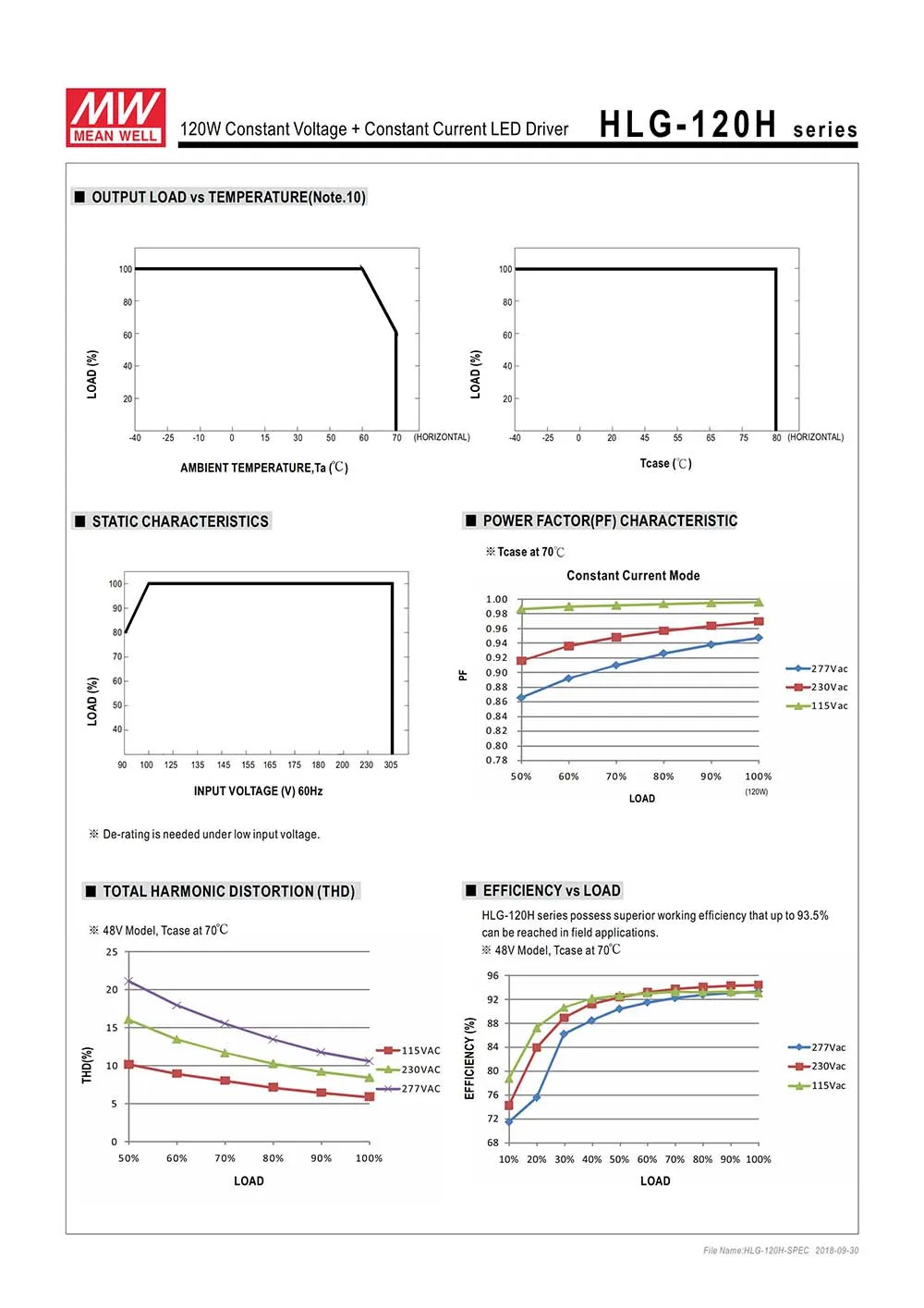

HLG-120H series is a 120W AC/DC LED driver featuring the dual mode constant voltage and constantcurrentoutput. HLG-120H operates from 90-305VAC and offers models with different rated voltage ranging between 12V and 54V. Thanks to the high efficiency up to 93.5%, with the fanless design, the entire series is able tooperate for -40~ +80°C case temperature under free air convection. The design of metal housing and IP67/IP65 ingress protection level allows this series to fit both indoor and outdoor applications.HLG-120H is equipped with various function options, such asdimming methodologies, so as to provide the optimal designflexibility for LED lighting system
