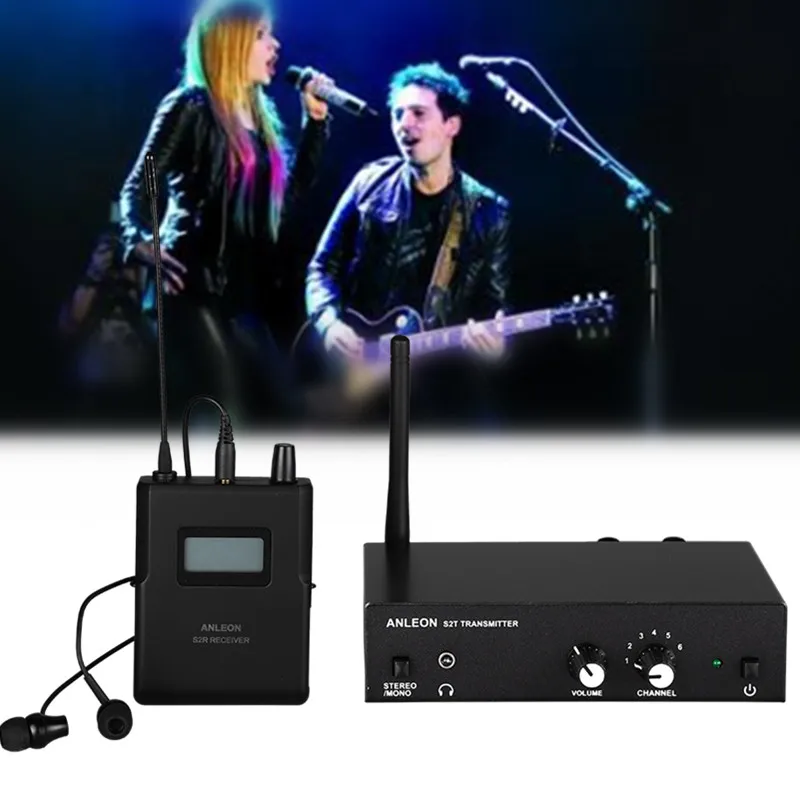

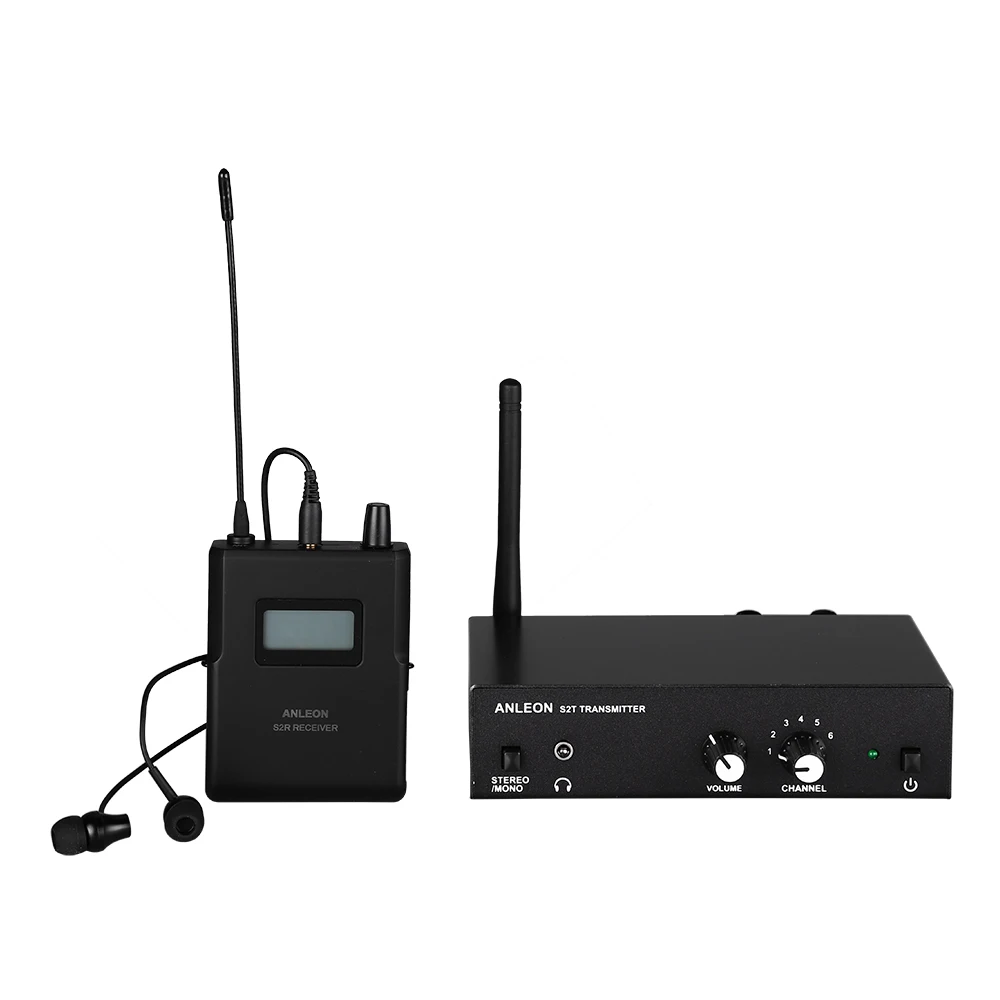

Беспроводная стереосистема ANLEON S2 UHF для мониторинга на сцене с частотами 670-680 МГц и 4 профессиональными цифровыми наушниками.

Беспроводная стереосистема ANLEON S2 UHF для мониторинга на сцене с частотами 670-680 МГц и 4 профессиональными цифровыми наушниками.

If you need buy extra receiver, please click here

Features:
• 6 selectable channels
• Powered by 2pcs AA batteries, low power consumption design for long play time up to 12 hours
• Multiple sets of receivers can be operated with a single transmitter within the
operating range
• Dynamic expansion circuitry for high S/N ratio
• Complex anti-interference circuit for using 6 sets at the same time without mutual
interference
• Receiver LCD displays frequency, channel and battery level
Long operating range up to 100m
Currier frequencies

US version

526-535MHz (526.3/527.6/529.2/531.1/533.3/534.2 MHz) click here to place order
561-568Mhz (561.5/562.7/563.9/565.1/566.7/567.5 MHz) click here to place order
670-680MHz (670.3/671.6/673.2/675.1/677.3/679.3 MHz)   click here to place order
913-917MHz (913.3/913.9/914.6/915.4/916.2/917.0 MHz)
EU version

863-865MHz (863.1MHZ/863.4/863.9/864.2/864.6/864.9 MHz) click here to place order

FCC ID: 2AGRX-S2

System:
ANLEON S2 is an IEM system designed for stage performance and broadcasting. High S/N ratio and dynamic range ensures optimal audio quality. The dual XLR inputs allow 2-channel, mono or stereo operation with a convenient mix function which allows you to run two sources into the S2.
Intended for drummers/keyboardist/guitar player/vocalist and other performers, the unit features a high-power headphone output that helps to ensure that as the band gets louder, you'll still be able to hear your performance.

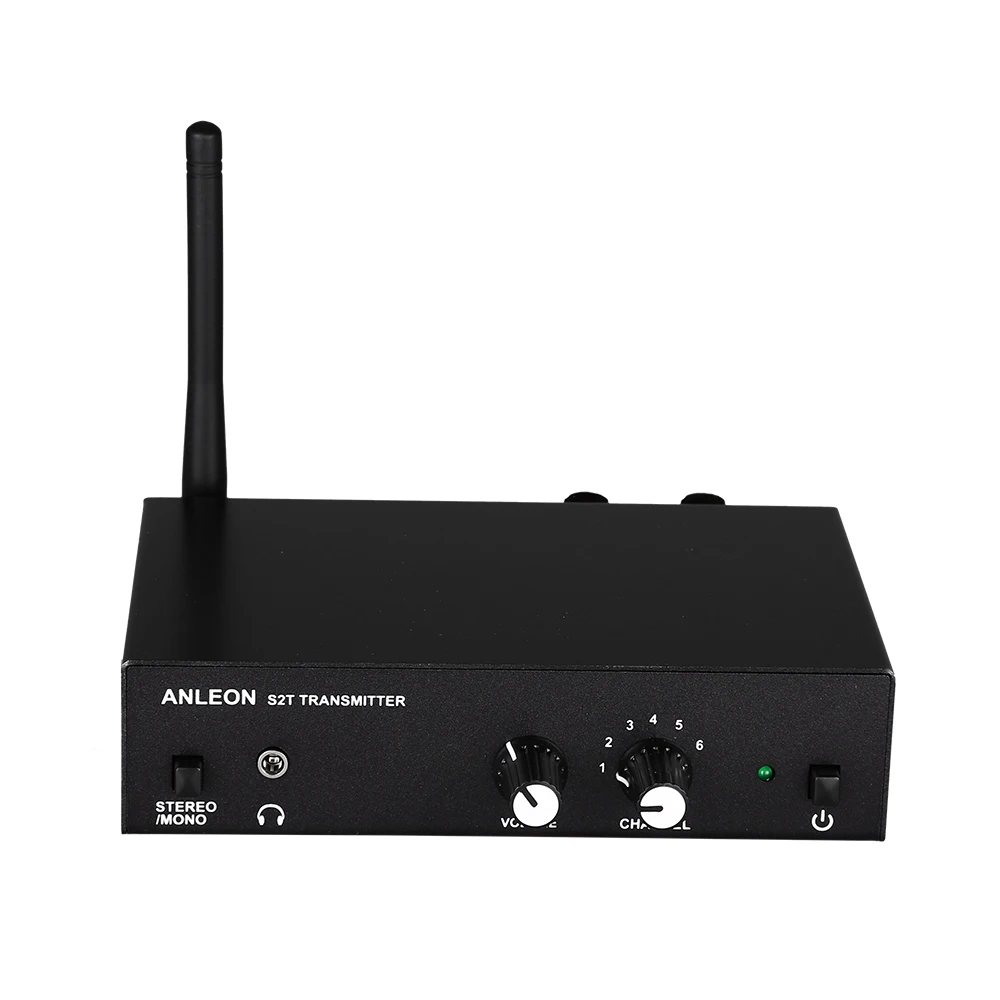

S2T UHF Stereo Transmitter:
Volume Control: Adjustment of the volume for both output channels.
Stereo/Mono switch: Stereo mode (the device outputs the signal fed into the left input to the left headphone and the right signal to the right headphone). Mono mode (Channel L and channel R are mixed and output to both headphones.)
Power Switch: Switches the unit on and off.

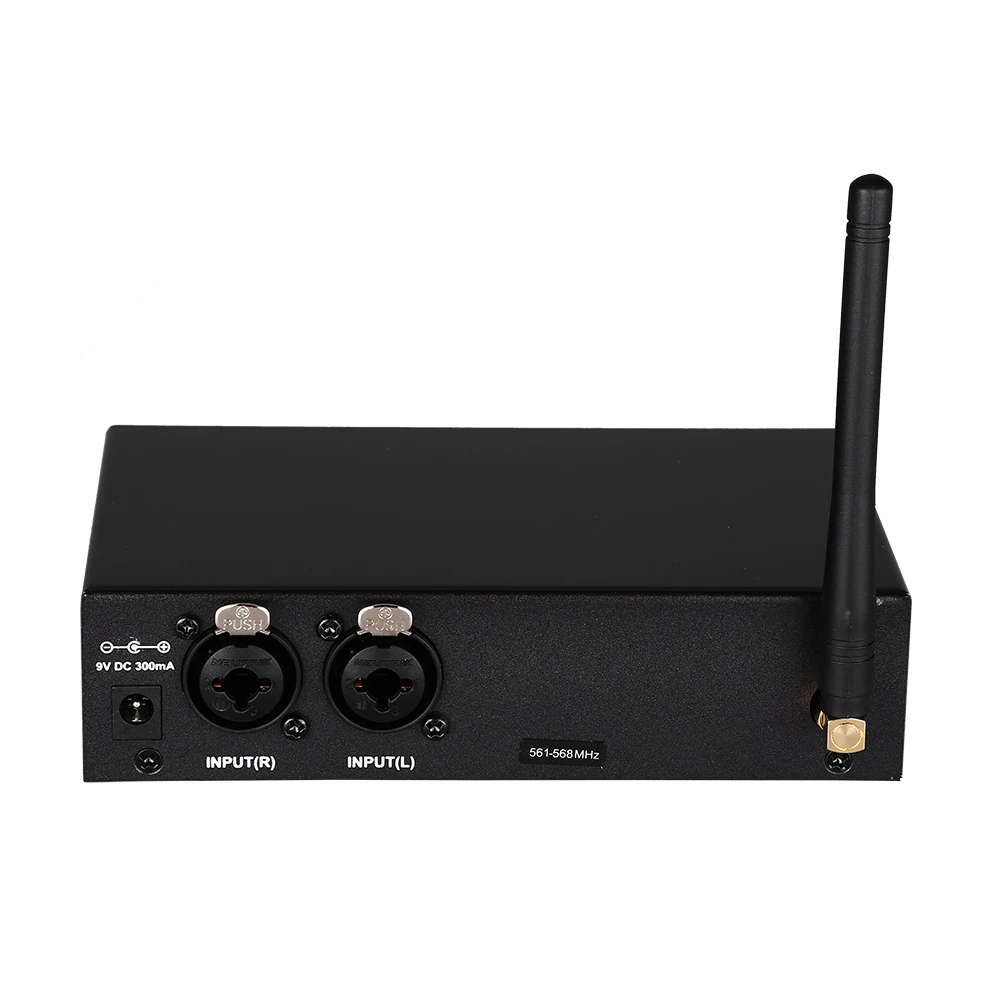

XLR INPUTS (L) and (R): Dual XLR balanced jacks connect to the input signal source.
9V DC socket:  Please use the included 9V 300mA adapter

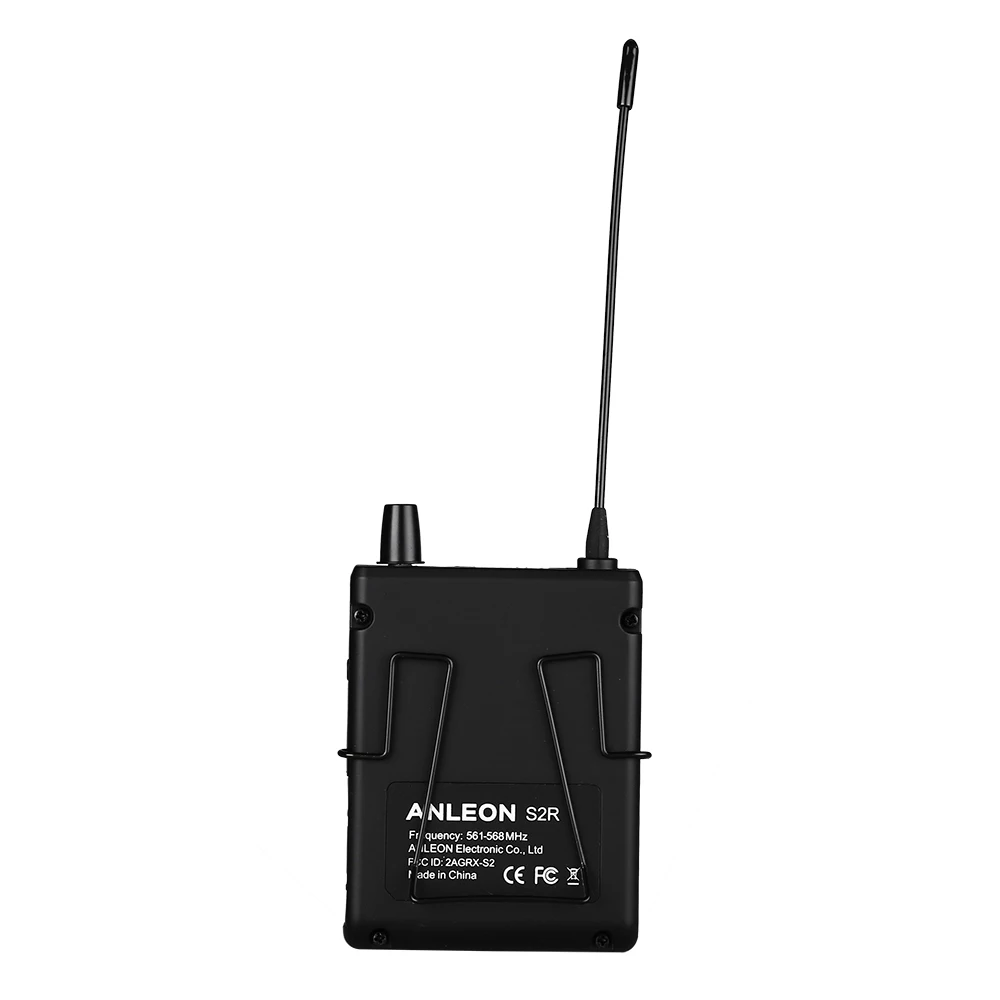

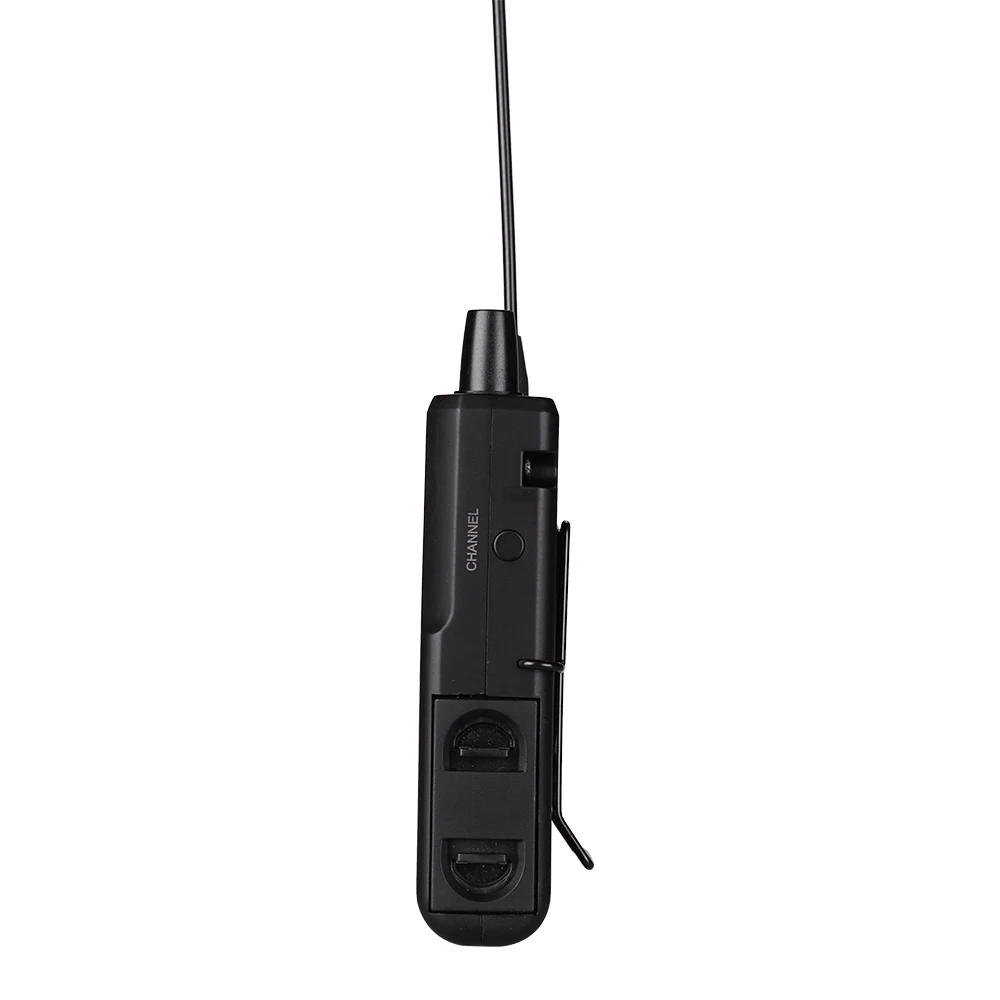

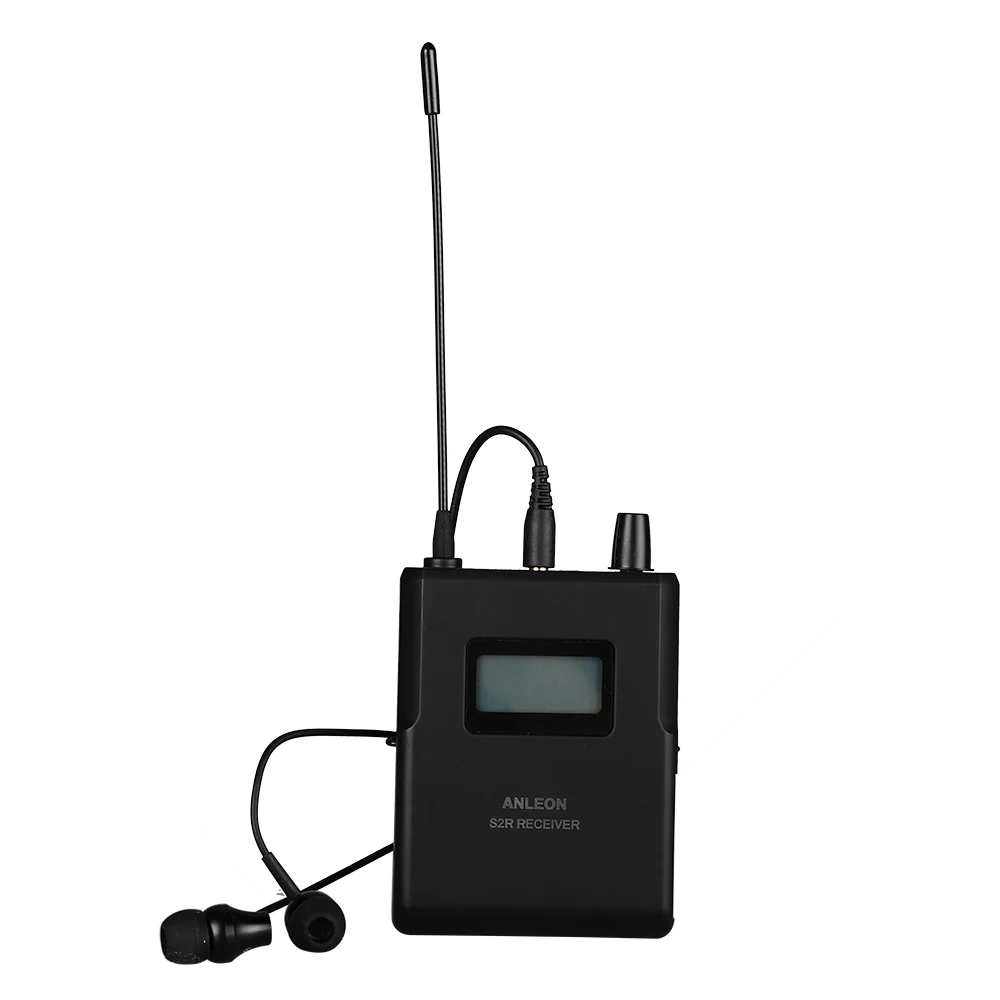

S2R UHF Stereo Receiver:
1, LCD screen: Displays frequency, channel and battery level.
2, Antenna: Receives RF signal from the transmitter.
3, Power indicator: Green indicates functioning battery.
4, Earphone socket
5, Power and volume knob
6, Frequency adjustment button
7, Battery compartment

Channel:6
Headphone output: 3.5mm jack socket
Transmitter Power Supply: DC9V/300mA
Receiver Operating Time: up to 12 hours, 2x 1.5V AA (Not Included)
Operating Range: 80m(environment dependent)
RF Output Power: <10mW
Signal-to-noise ratio(1 mv, peak deviation) typ. 70 db(A)
Frequency Response: 20Hz~18Hz

S2 Wireless Monitor System for:
Recording studio monitoring, on stage monitoring
Drummers
Keyboardist
Guitar player
Vocalist
Bass player

Cautions:
1.Using this system at excessive volumes can cause permanent hearing damage. Use as low volume as possiable.
2.When not using this system for a long time, please take out the batteries.

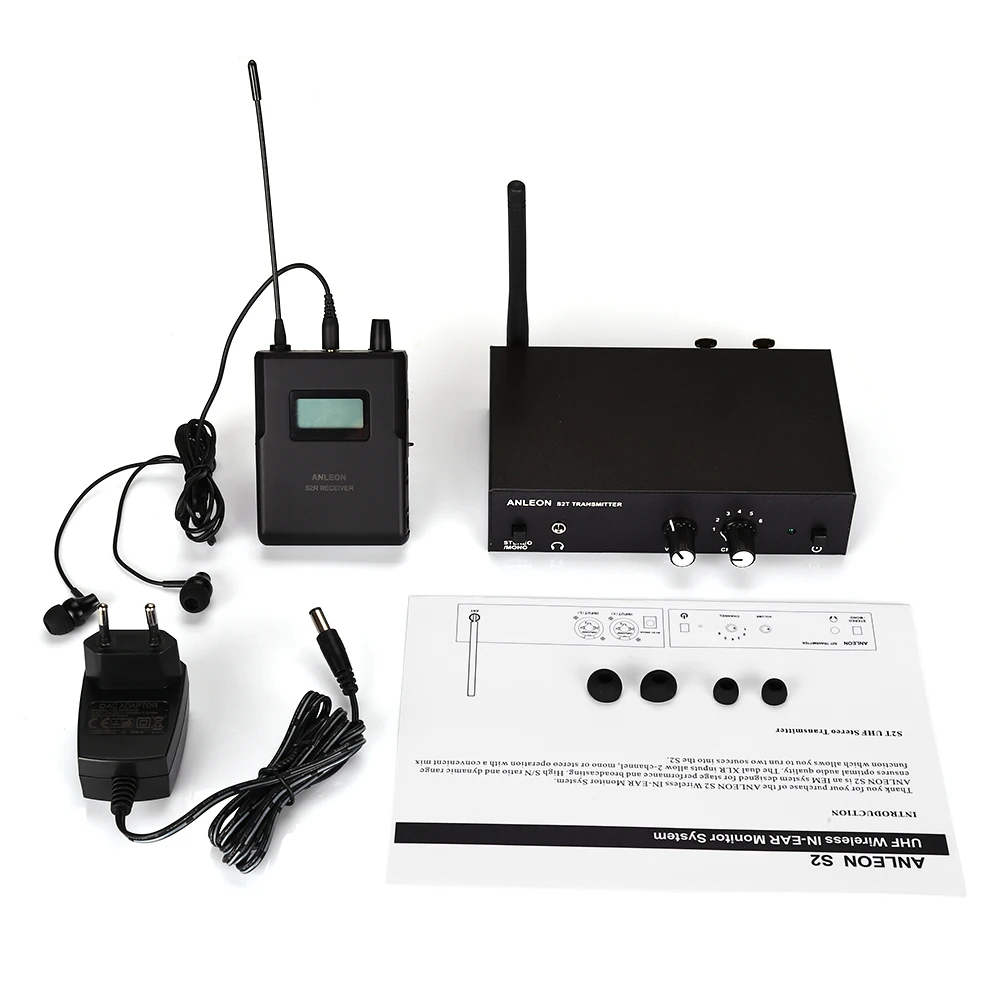

Package Included:
1x S2T Transmitter
3x S2R Receiver
3x Earphone
1x DC 9V/300ma Power Adapter
