body { font-size: 75%; color: #000; font-family: Open Sans,Arial,Helvetica,sans-senif,SimSun,"宋体"; line-height: 1.3; } dl { margin: 0px; width: 480px; float: left; } dt { width: 100px; height: 15px; float: left; } dd { width: 240px; height: 15px; float: left; } dl dt { margin: 0px; line-height: 22px; color: #474747; font-size: 14px; font-family: tahoma; } #product-desc { width: 100%; height: 209px; } #description { width: 100%; height: 50%; } #details { width: 100%; height: 50%; } .ui-box-title { height: 30px; font-size: 15px; font-family: tahoma; font-weight: bold; background-color: #ddd; text-anchor: inherit; padding-top: 8px; margin: 0px; } .ui-box-body { margin: 0px; } #tbspecifics { border-right: 1px solid black; border-bottom: 1px solid black; } #tbspecifics tr { height: 30px; } #tbspecifics td { width: 100px; border-left: 1px solid black; border-top: 1px solid black; } 6-degree-of-freedom manipulator (waist, boom, arm, arm rotation, wrist, wrist rotation), all-metal manipulator, bottom joint high-quality all-steel large bearing fixed, more stable operation, different arm sizes from batch Sometimes there will be very subtle changes.baby design concept is derived from ABB palletizing robot, the principle structure is the same, the range of motion is greater than other arms of the same level.

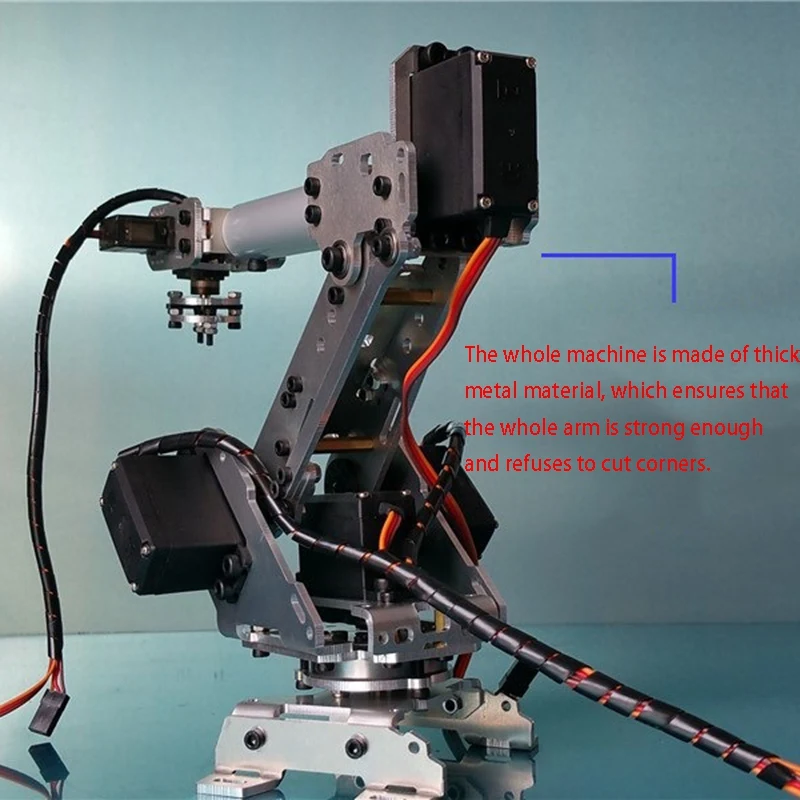

Mechanical physicality is not comparable to 1.5mm stainless steel.The whole arm uses 4 MG996R metal gear steering gears and 2 MG90S metal gear steering gears to ensure more lasting power.All sports joints use high quality bearing links for better performance.
According to the general servo load, accurately calculate the arm size and improve the mechanical performance of the arm.
The size and precision of the 6 baby designs are especially suitable for teaching and experimentation.The arm base is fixed by high-quality all-steel large bearing, the base fixed arm movement is no longer shaken, and the load-bearing performance is better.

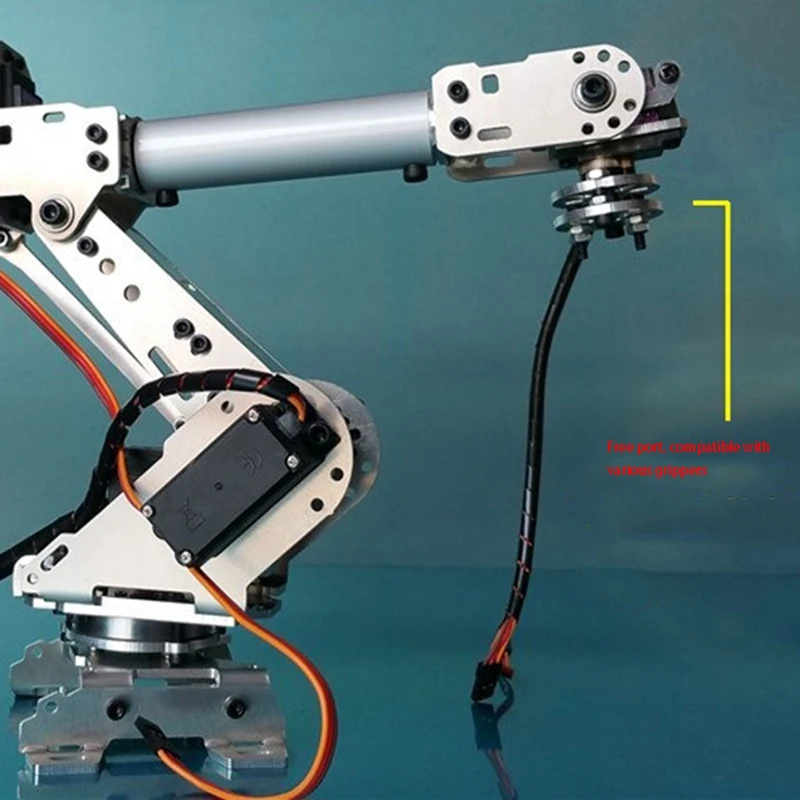

products come standard with fixture fixing plate, users can continue DIY suction cup, electromagnet, fork, claw, holder, etc. according to the characteristics of raw materials
The length of the arm is not as long as possible. The longer the load on the steering gear is, the greater the impact on the life of the steering gear. If the load is too large, the steering gear circuit will burn out and damage the steering gear. The performance of the manipulator has a direct influence on the certainty. The longer the arm is, the smaller the load can be. The arm is calculated to the size based on the gear load of the universal metal steering gear and the servo circuit load, and the performance to the steering gear is achieved.
The arm includes 4 MG966R double-bearing metal gear steering gears and2 MG90S metal gear steering gears. The arm joints are all connected by bearings.
colour:Silver + black
Material:metal

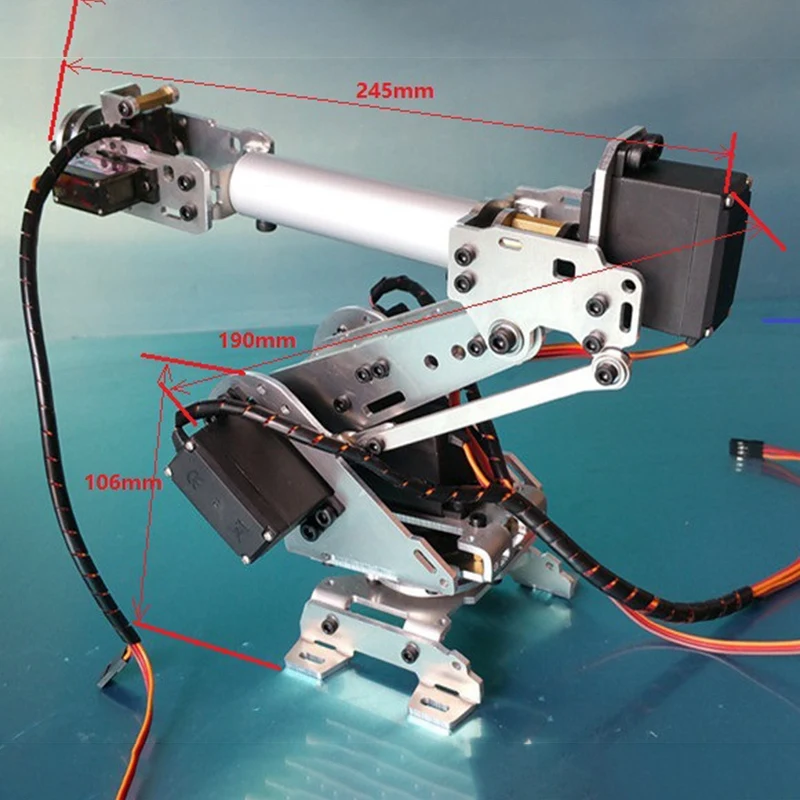

size:Length: 245mm
Package Contents:
1*set 6-degree-of-freedom manipulator (Bulk, need to be assembled)
Note
requiring user self-assembly and debugging
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
