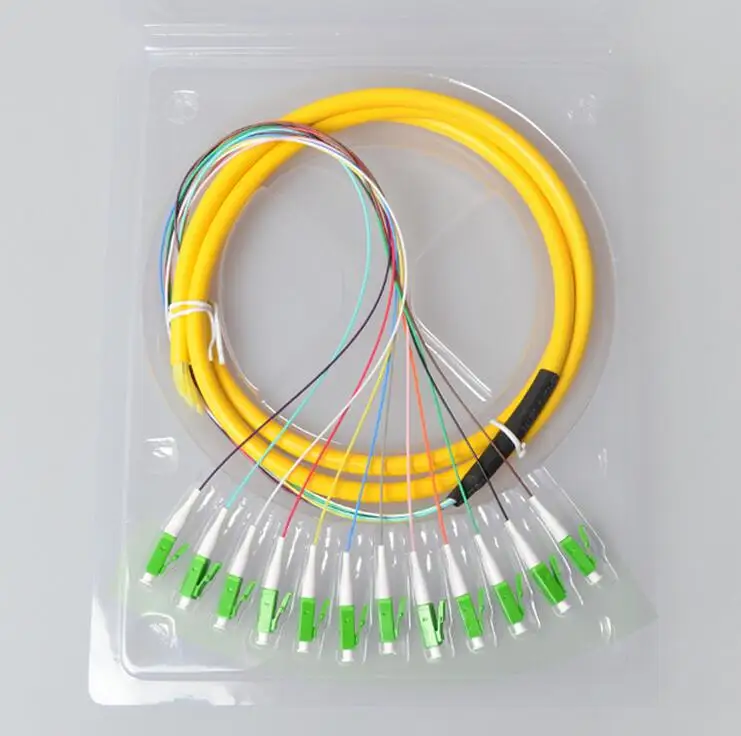

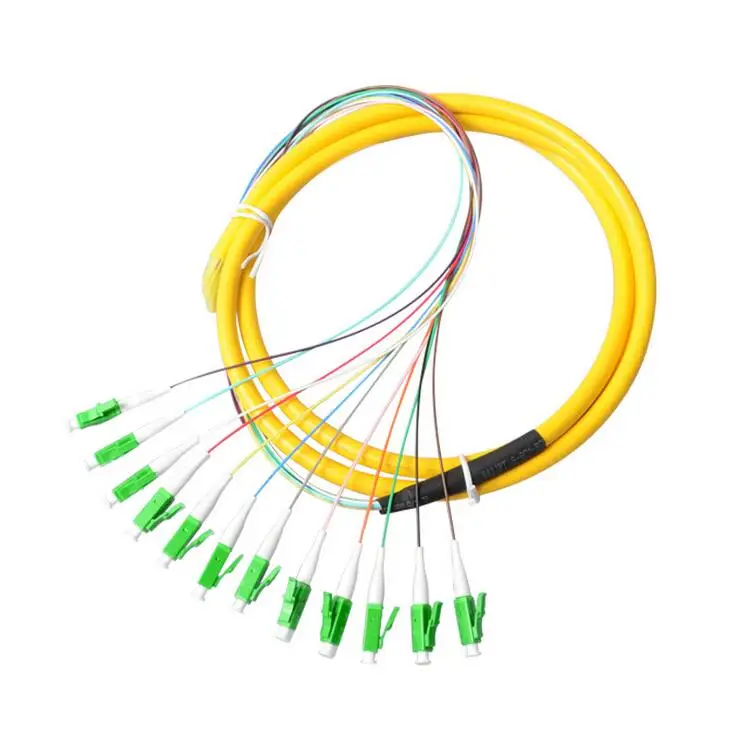

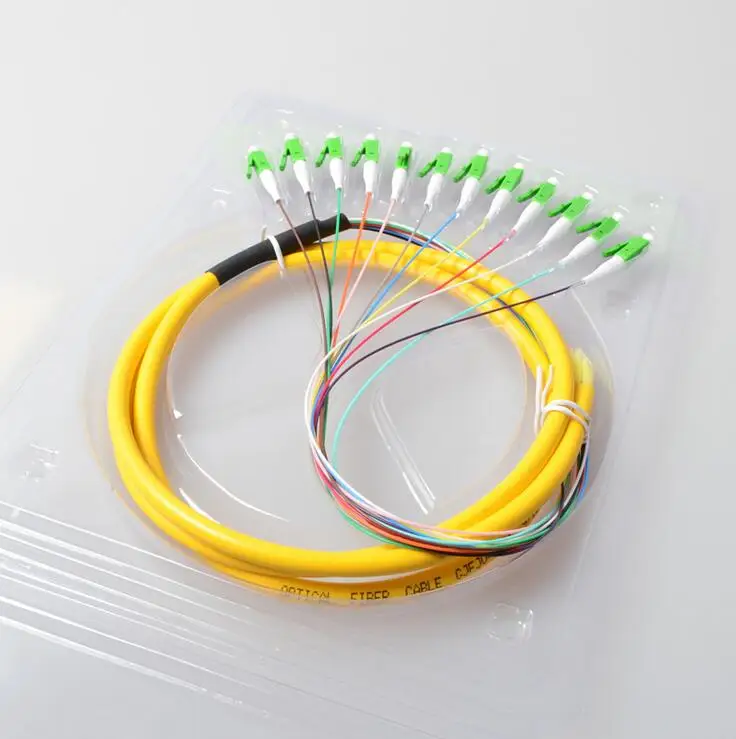

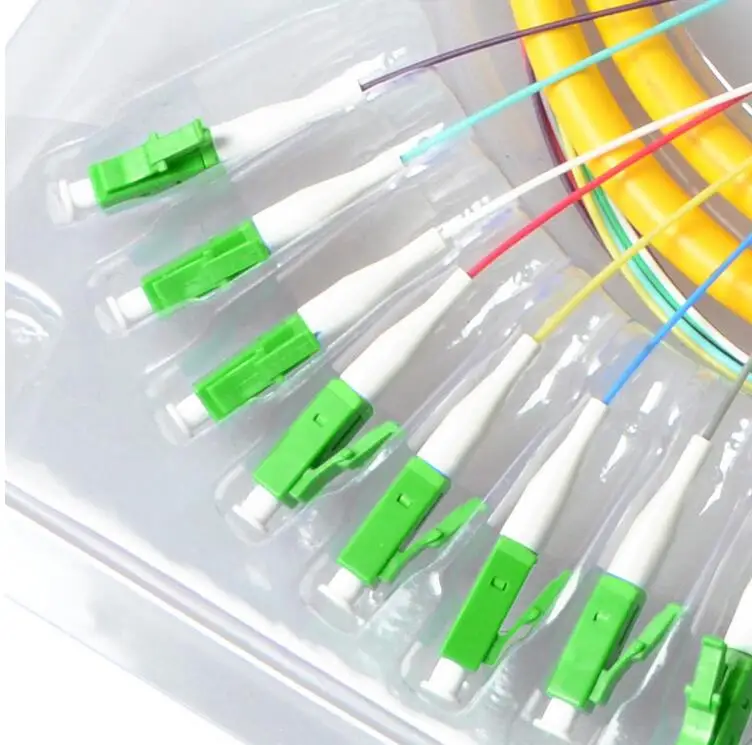

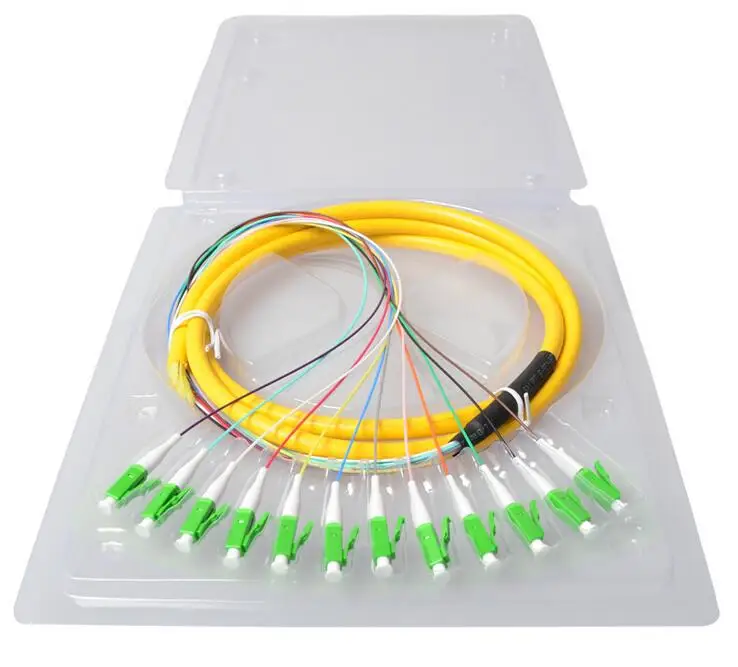

Fiber Optic Bundle Pigtail LC Single Mode 12 Core Pigtail LC APC CATV 1.5m Patch Cord Free Shipping

Fiber pigtails are a great solution for fusion splicing inside of a fiber optic enclosure. The ribbon fan-out fiber pigtails come with a partial outer jacket to help protect the tight buffer fibers from being damaged. If space is a premium, the outer jacket can easily be removed, allowing the pigtails to have a tighter bend radius and take up less space.

12 Strand 9/125 Fiber Optic Pigtail 1.2m SC/APC Single Mode,12 fiber pigtail

Note: If you need customization solution either LC,ST,FC With different size jut message us. Support wholesale, if you have larger order,we can offer you factory price, contact us.

These Single mode 12 fiber pigtails with 900 micron buffer are ready for splicing.

Each fiber strand in the kit has a color-coded buffer for easy identification and the colors are industry standard.

In this 12-pack, twelve strands of fiber are terminated on one end with SC connectors.

Connectors are ceramic with physical contact (APC) finish. Each cable comes with test results and a lifetime guarantee.

Parameter:

Single mode

Multi mode(optional)

Insertion Loss

≤0.3dB

≤0.20dB

Return Loss

≥45 dB (PC)

≥50 dB (UPC)

≥60 dB (APC)

≥35 dB (PC)

≥45 dB (UPC)

Wavelength

1310nm,1550nm

850nm,1310nm

Repeatability

≤0.1

Durability

≤0.2 dB typical change, 1000 matings

Interchangeability

≤0.2dB

Cord diameter

3.0mm

Connector Available

SC,FC,ST,LC,MU,MTRJ

Fiber core available

4,6,8,12,24 fiber…

Features:

High Return Loss

Low Insertion Loss

Good reliability and stability

Polishing type: PC, UPC, and APC

Various interfaces: FC, SC, ST, LC…

Core of cable: 4, 6, 8, 12, 24…
