7 inch Record Wired Video Door Phone Doorbell Intercom System with  Fingerprint RFID AHD 1080P Camera and 2CH Security Camera

Products Introduction:

Easy installation by yourself with the adapter and cable we provided in this kit,outdoor unit  can connect to indoor monitor by wired 4P cable,then monitor also can  record video or open the door etc.Widely used in villas, apartments, houses, hotels, offices,  public buildings and so on.

1. Full-view 7" HD digital IPS monitor,can take picture and video record automatically after call

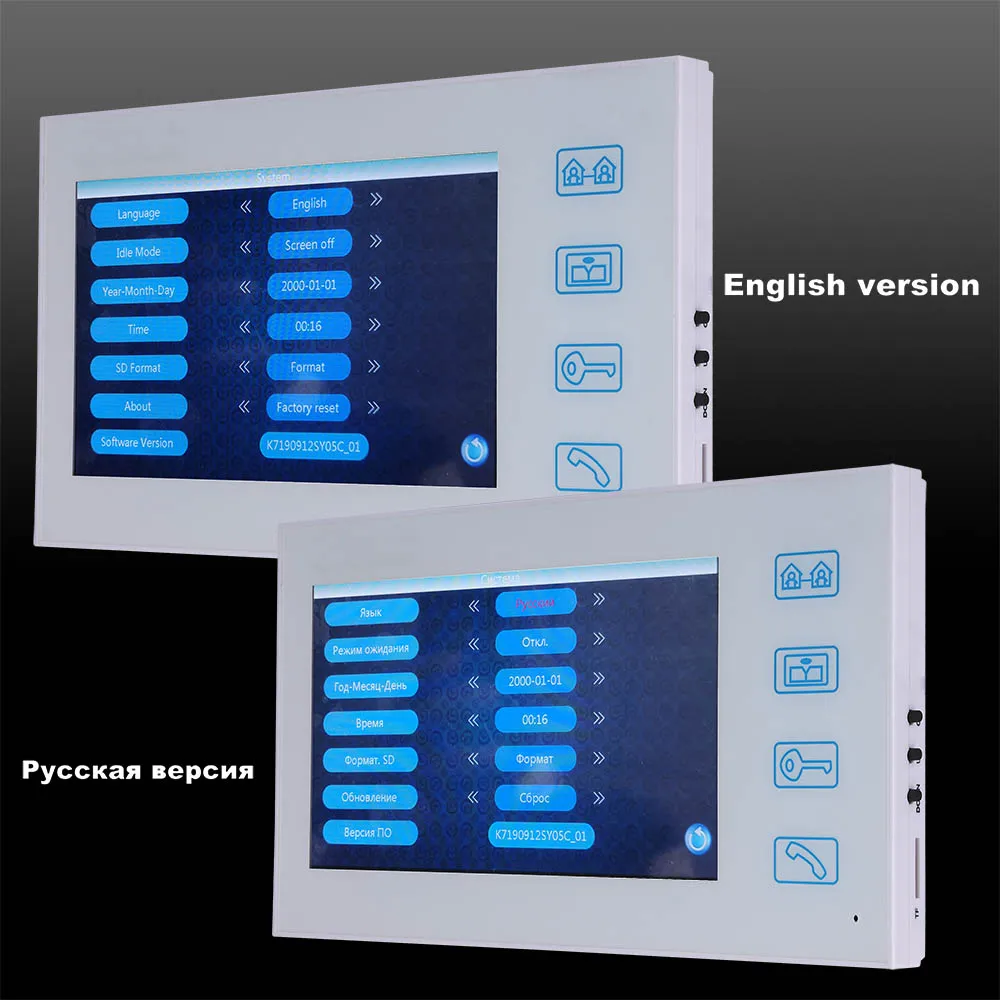

2. Chinese/English/Russian language optional,with clock and manual video recording function,max to support 32G TF card.

3.Indoor monitor with monitor,intercom,unlock,hands-free and Don’t disturb function.

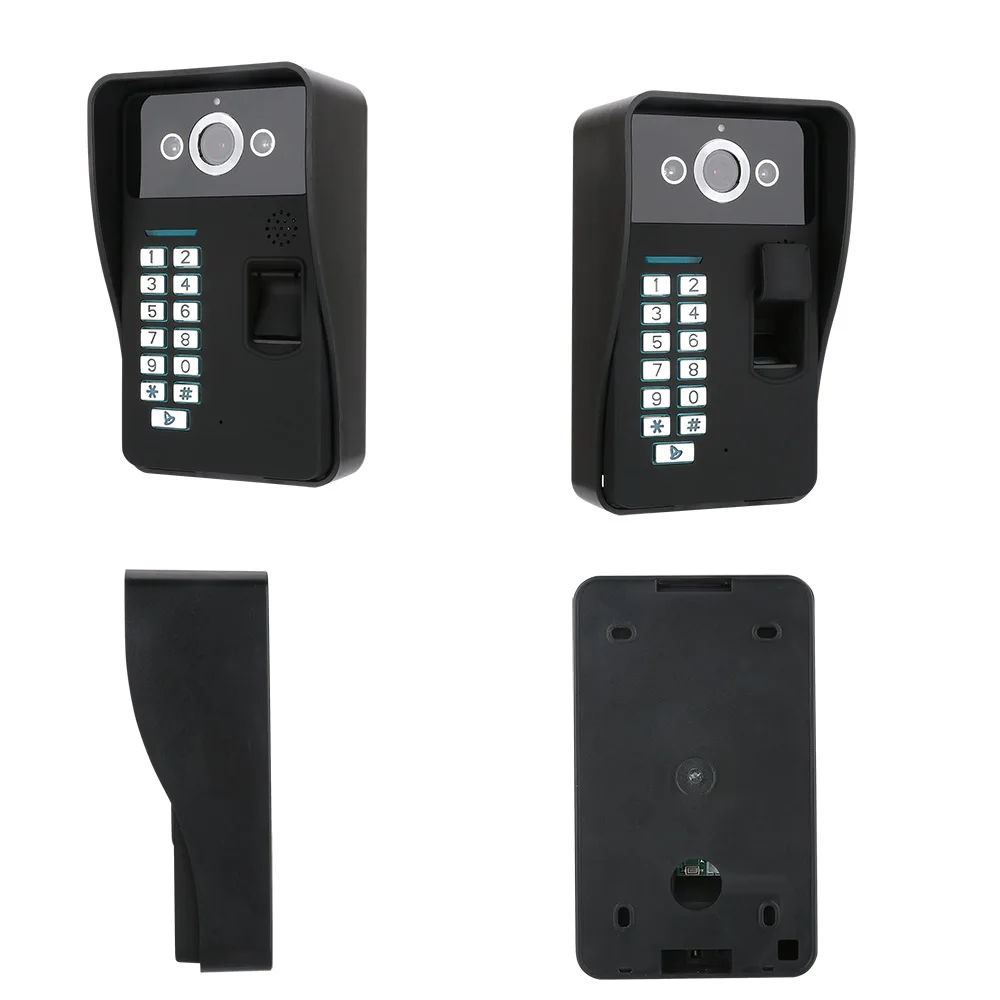

4.Weatherproof，antioxidation,Wear-resistant aluminum panel ,with weatherproof cover,support wall mount.  AHD 1080P  camera,with IR-CUT.

5.Indoor Monitor Support AHD 1080P camera input,support 2CH AHD doorbell and 2CH AHD security camera.

6.Fingerprint type：Support 1000 fingerprint,1000 ID cards unlock,password unlock,99 pcs remote controls to unlock.

Features:

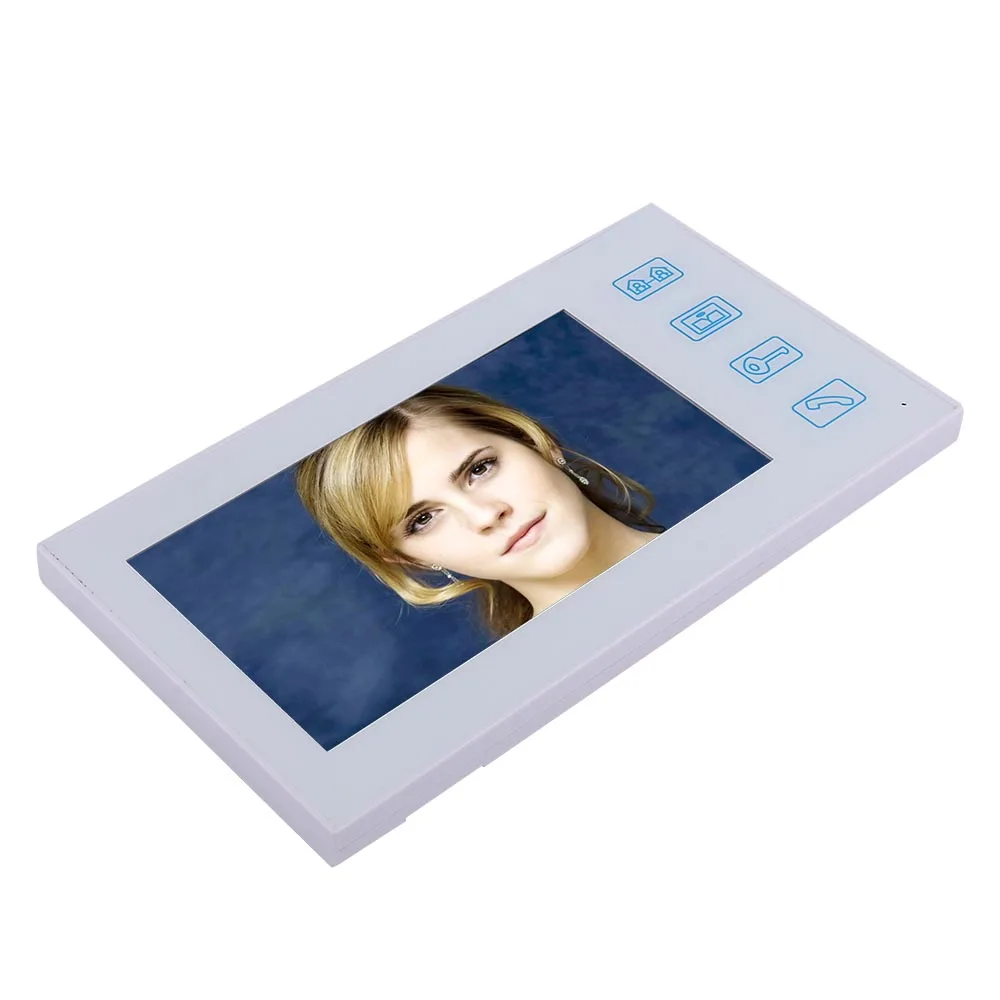

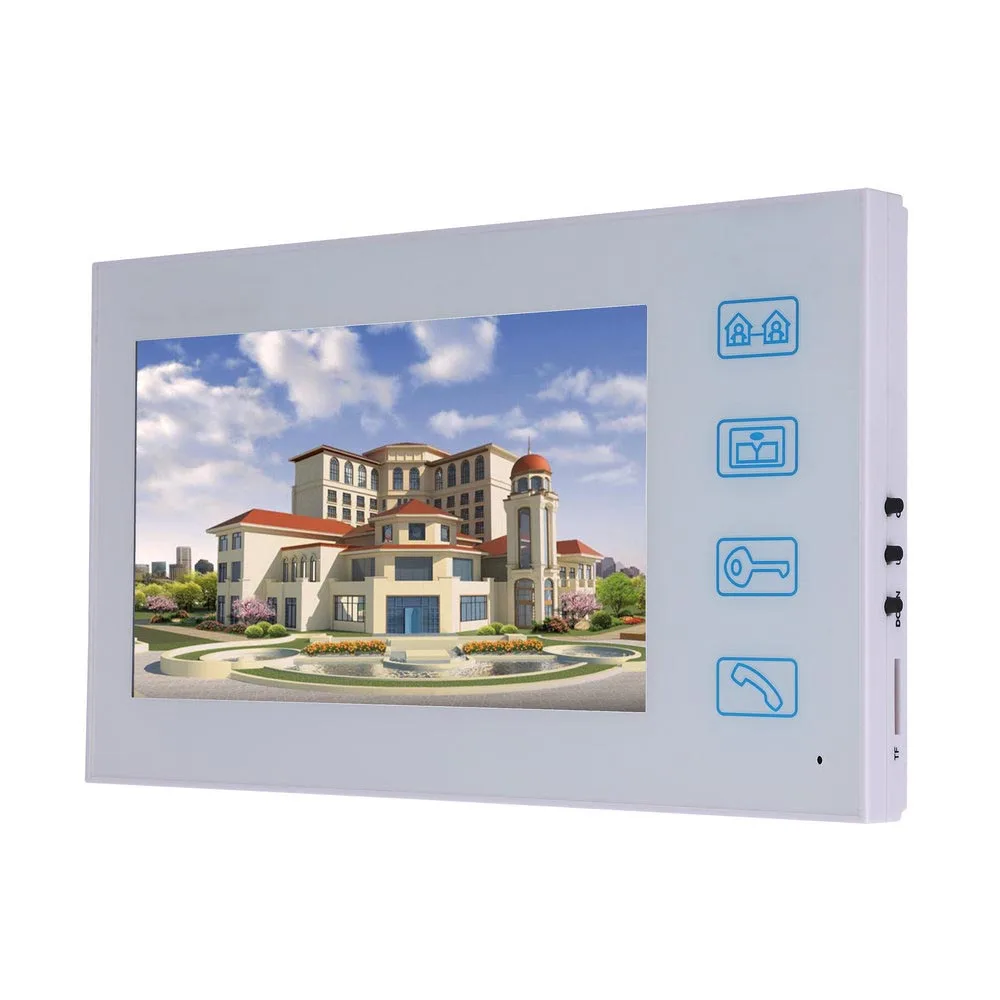

Monitor:

 Display:7" IPS(16:9)

 Resolution: 1024(H)X600(V)

 Support :Images / Videos record

 Adjust ring / volume /AHD 1080P camera connected/ Doorbell  camera / CCTV Camera preview/Chinese/English/Russian language optional

 External memory card (up to 32 GB)

 Power supply: DC15V  2A

 Installation: Surface mount

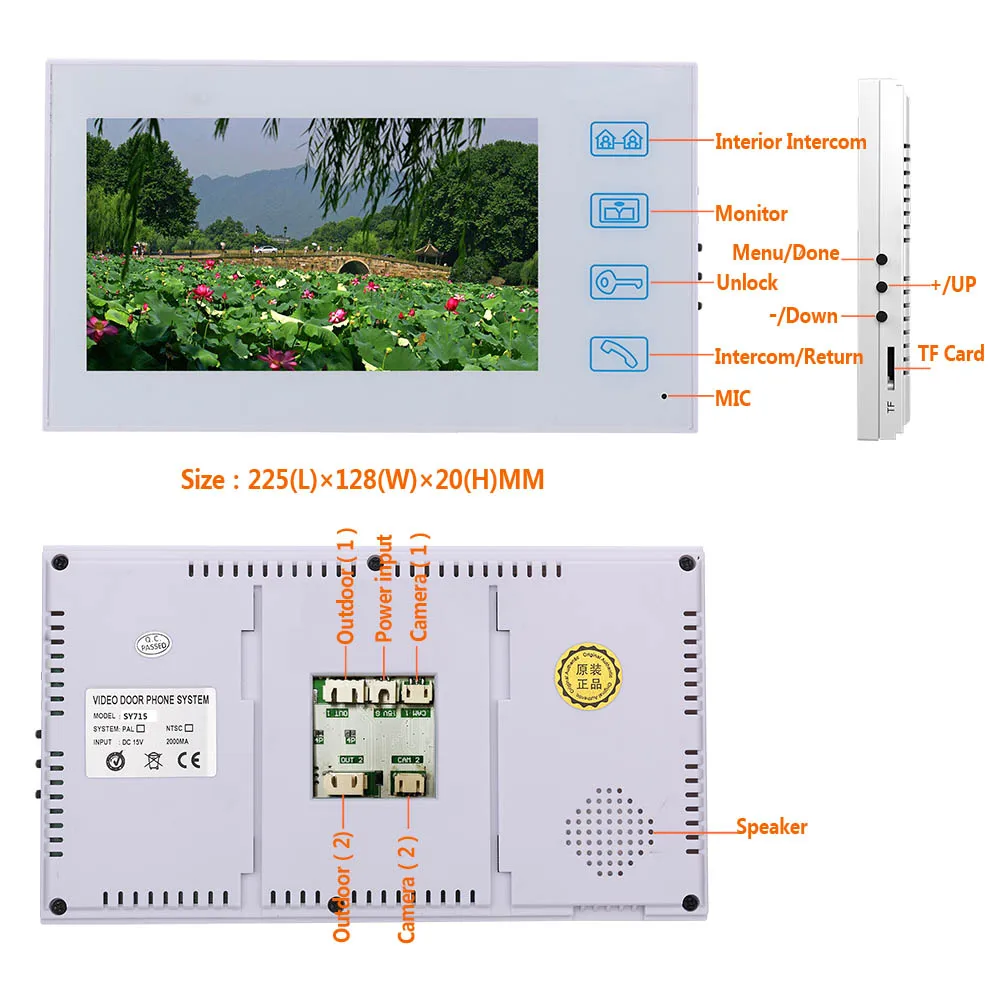

 Size:225(L)×128(W)×20(H)MM

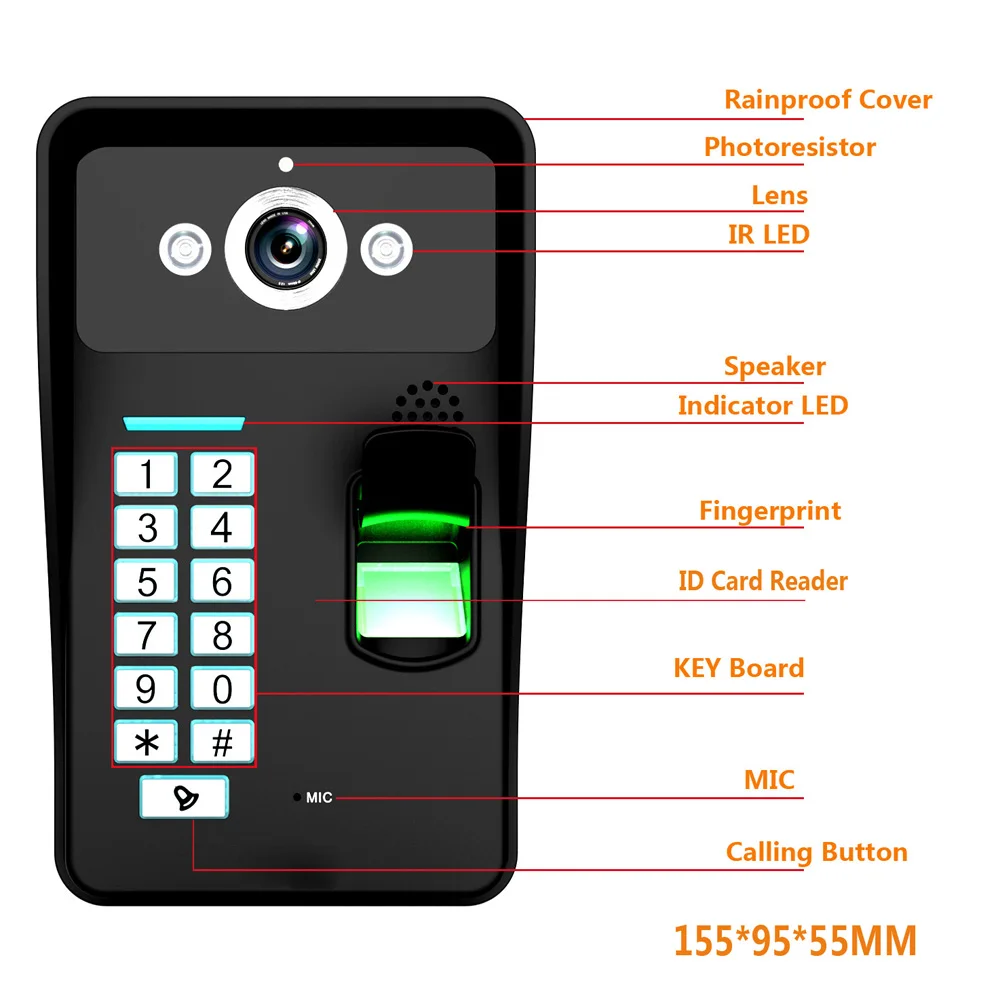

Camera:

 Camera sensor: 1/3 inch AHD

 View angle: 92°

 Definition: 1080P

 LEDs for night: IR LEDs (80°)

 Fingerprint type：Support 1000 fingerprint,1000 ID cards unlock,password unlock,remote controls unlock

 Installation: Surface

 Size:155*95*45mm

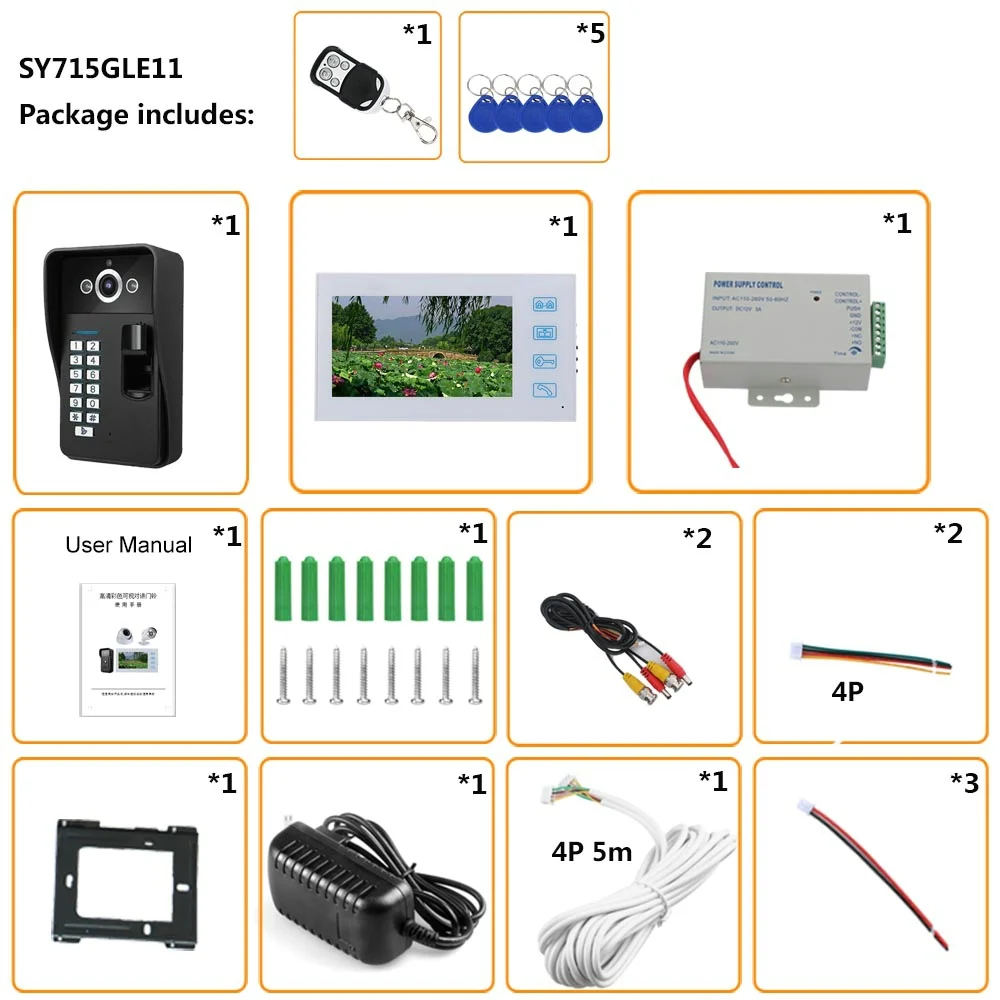

SY715GLE11 Accessory:

1*Indoor Monitor

1*Outdoor Unit (Fingerprint RFID)

1*15V 2A Power Supply

1*12V 3A Access Control Power Supply

1*4-core terminal wire (5m)

2*BNC connection cable

5 *IC Cards

1*remote controls

3*unlock terminal wire

1*Manual

1*Mounting plate

1*Screws

1*Color package

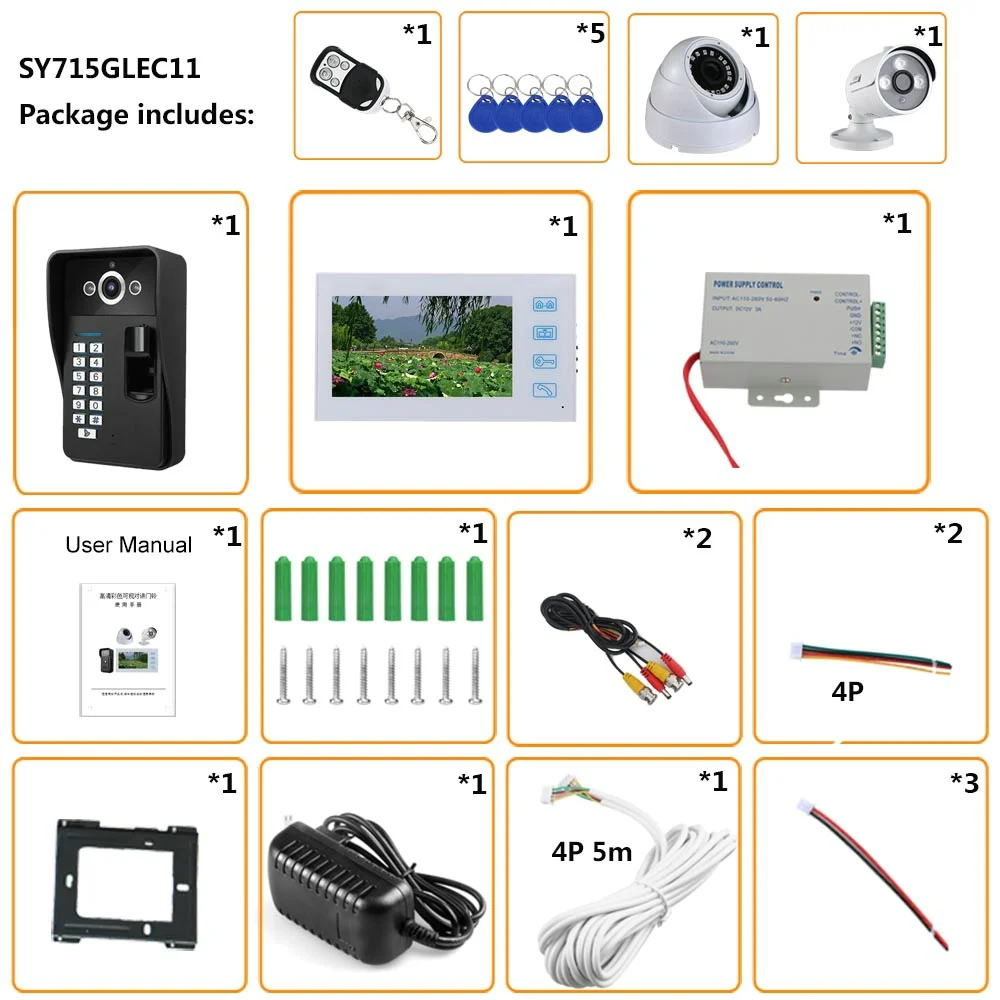

SY715GLEC11 Accessory:

1*Indoor Monitor

1*Outdoor Unit (Fingerprint RFID)

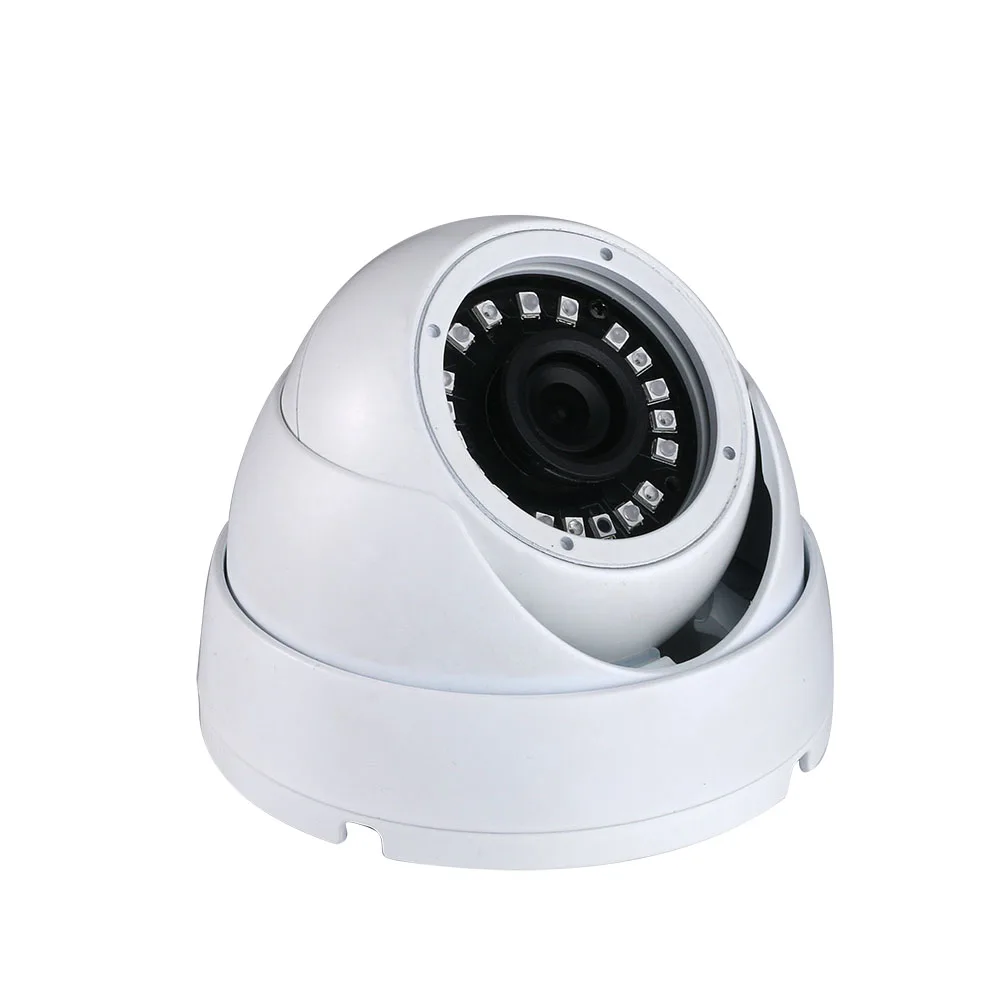

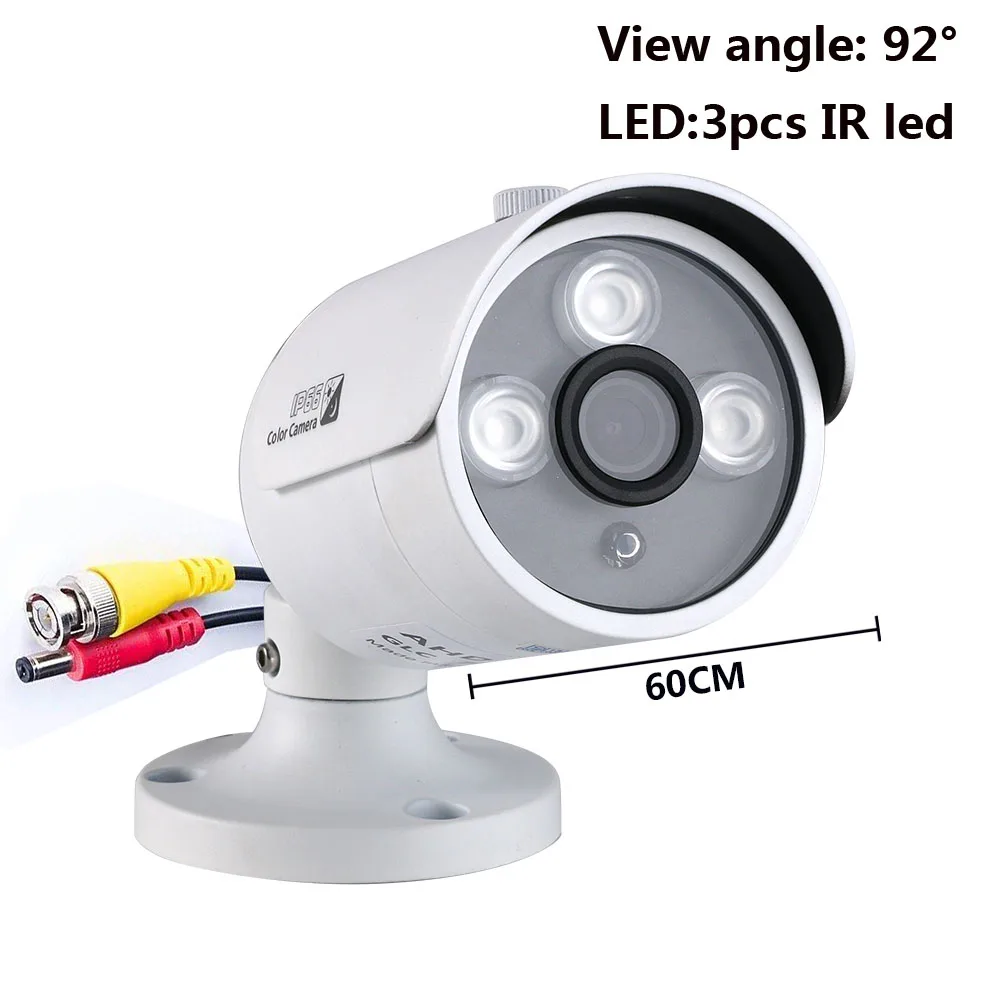

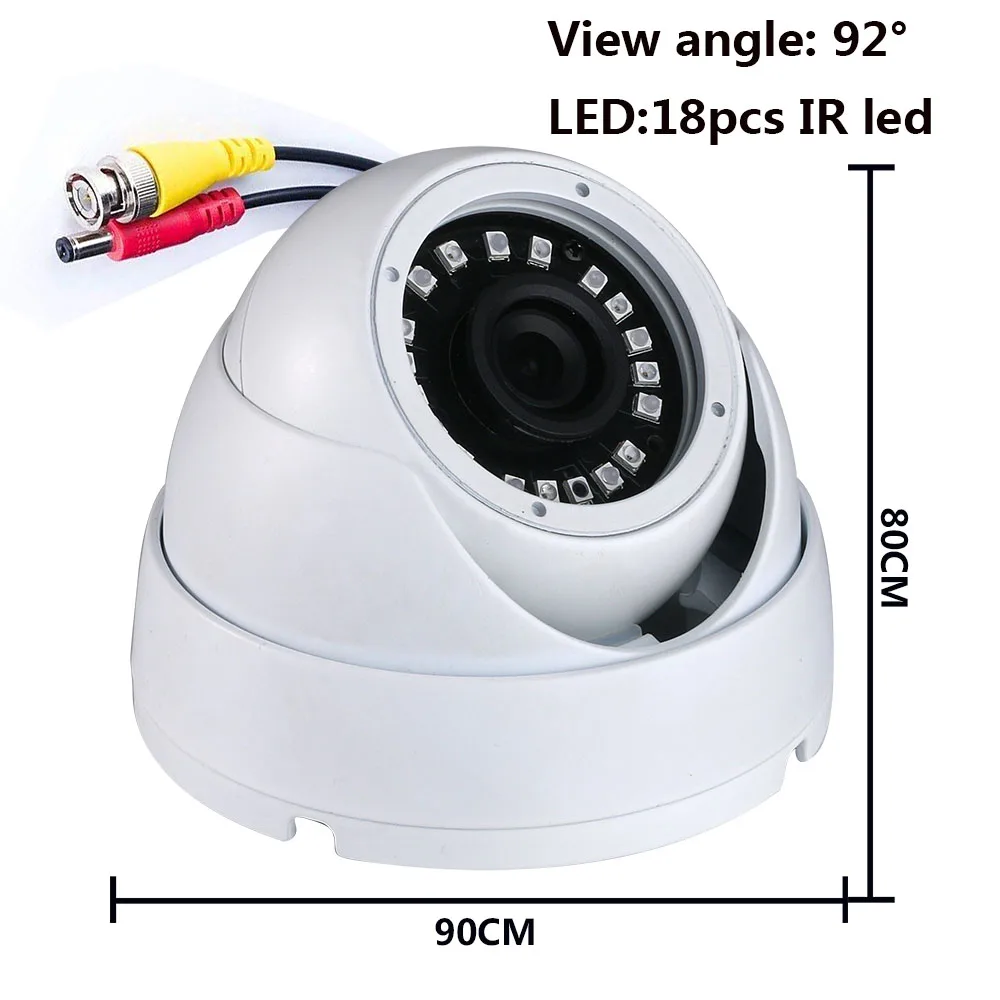

2* CCTV  Camera (aluminium alloy )

1*15V 2A Power Supply

1*12V 3A Access Control Power Supply

1*4-core terminal wire (5m)

2*BNC connection cable

5 *IC Cards

1*remote controls

3*unlock terminal wire

1*Manual

1*Mounting plate

1*Screws

1*Color package

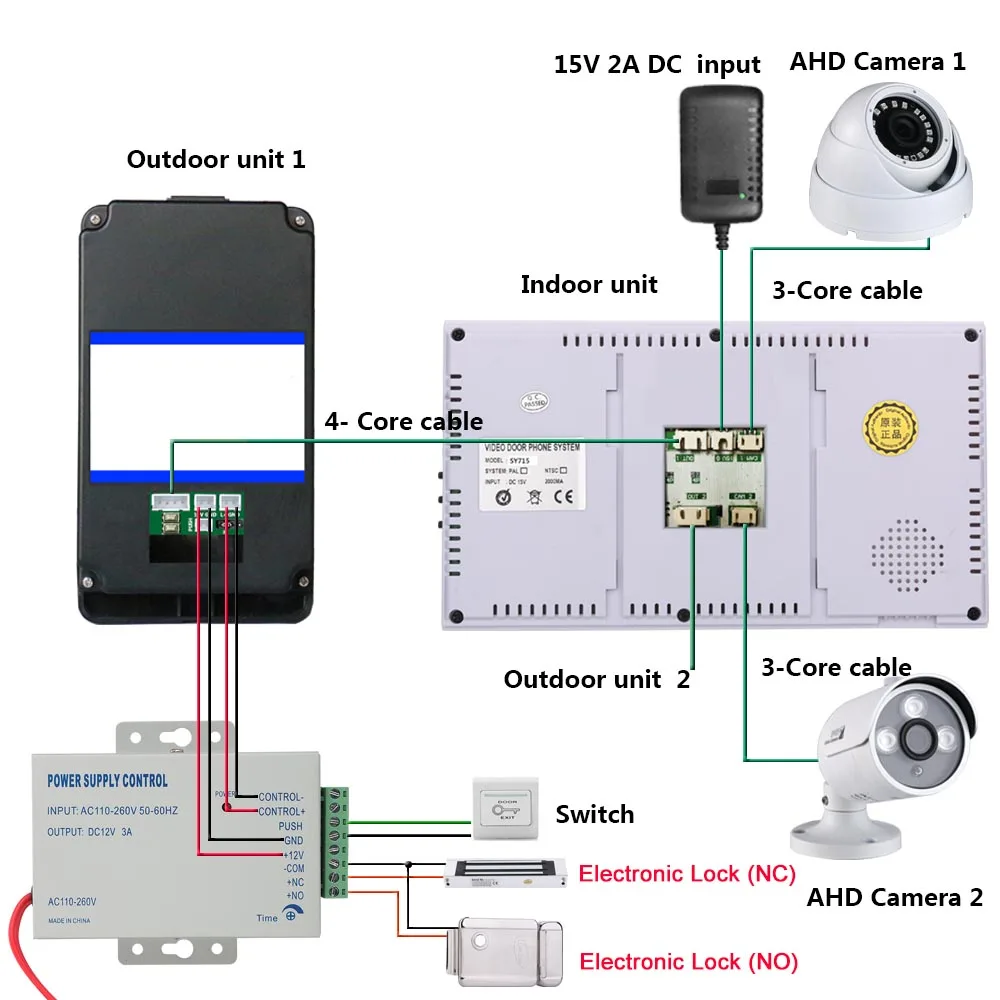

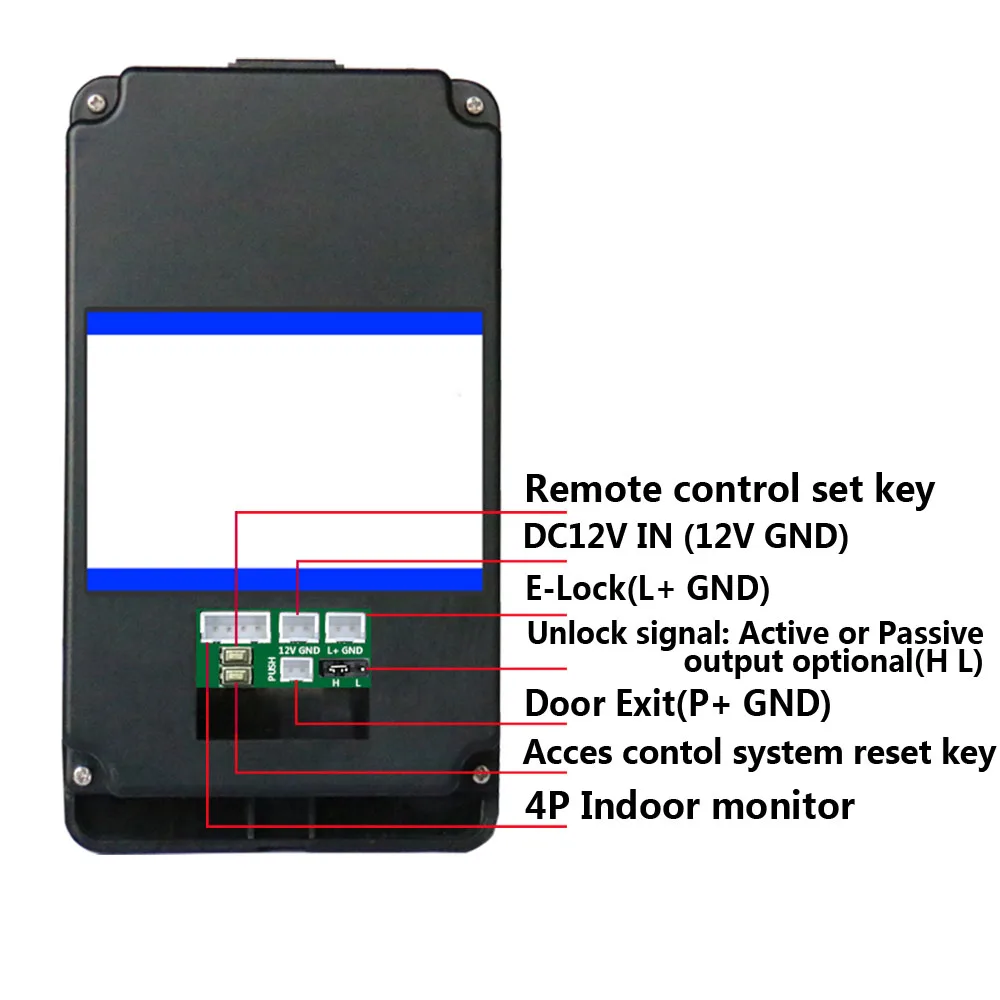

Wire Diagram:

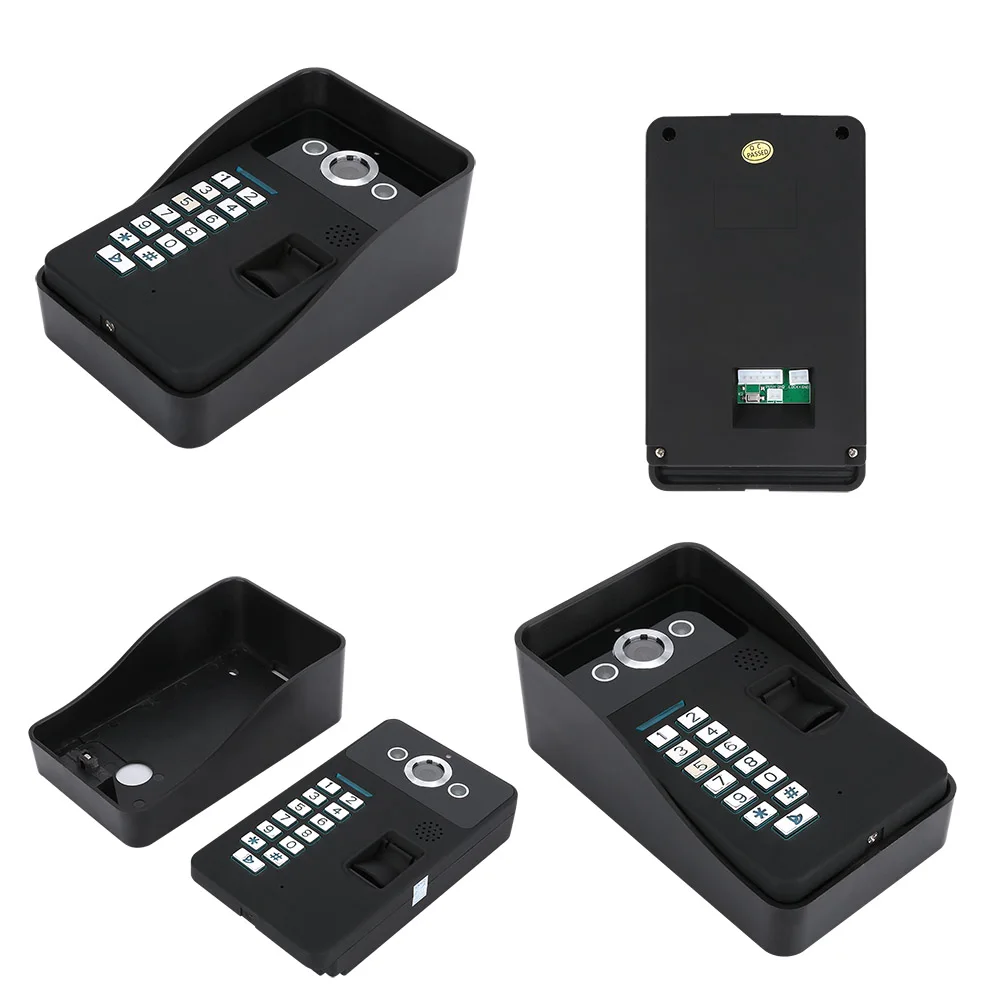

Real picture:
