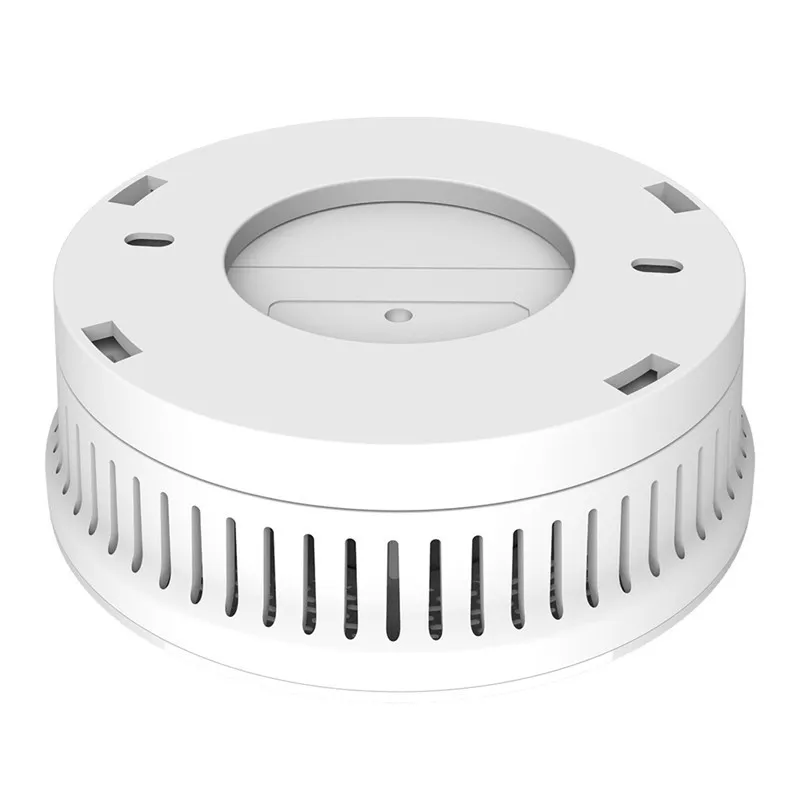

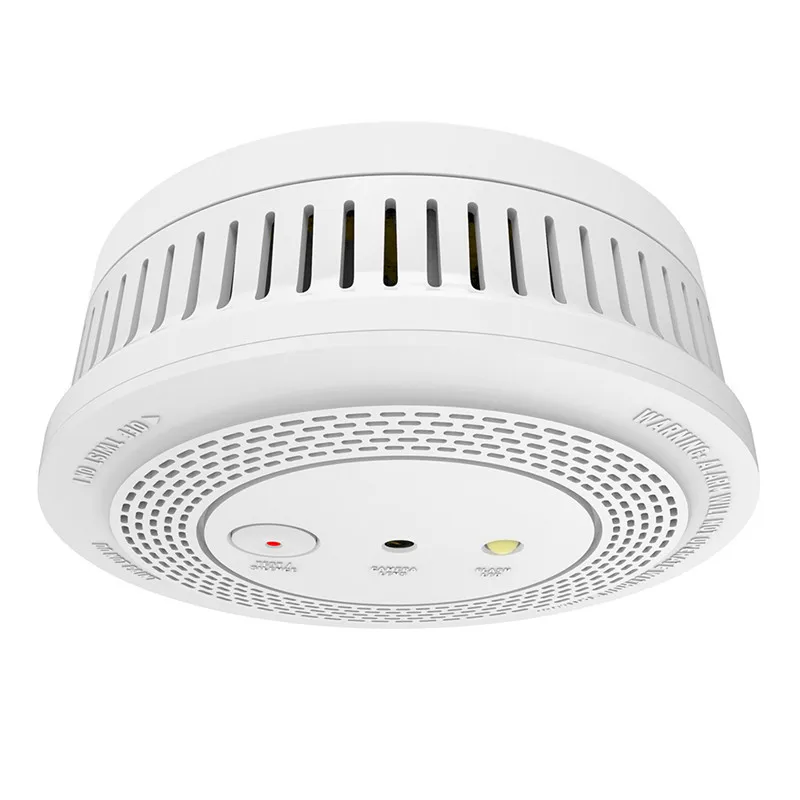

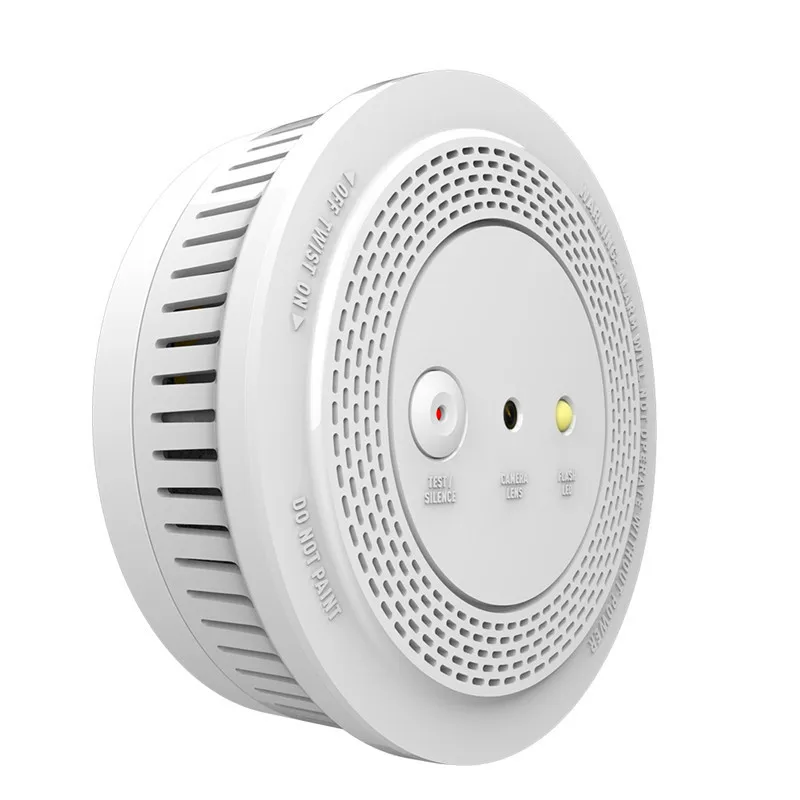

WM2 Honeywell Fire Alarm Sensor Smoke Detector Work With Multifunction Gateway 2 Smart Home Security APP Remote video monitoring |

WM2 Honeywell Fire Alarm Sensor Smoke Detector Work With Multifunction Gateway 2 Smart Home Security APP Remote video monitoring |

features

Function remote alarm, timely know the danger at home

Sound and light alarm reminder

Take photos when calling the police and push the photos to the APP

Ultra-low power consumption, standby for up to 5 years

Free cloud storage

95 decibels alarm

Device self-check, low battery alert

Easy installation

Product parameters

Photo resolution 800×600

Photo JPEG

Image sensor 2 MP 1/4 inch OV CMOS image sensor

Lens 100 degree, F2.2 aperture

Transmission mode wi-fi 2.4g (IEEE 802.11b/G /n)

Distribution network Bluetooth distribution network

Transmission distance 30m

Night vision mode support (1 supplementary light)

Power supply mode CR123A 3V

Alarm 85 db or higher

The alarm detection range is 20m2

Standby current ≤10uA

Alarm current ≤200mA

Operating temperature -10℃ ~ +55℃

size 11.5*11.5*4.2CM

Functional specifications

When the battery is installed, it will start up automatically, and the siren will sound

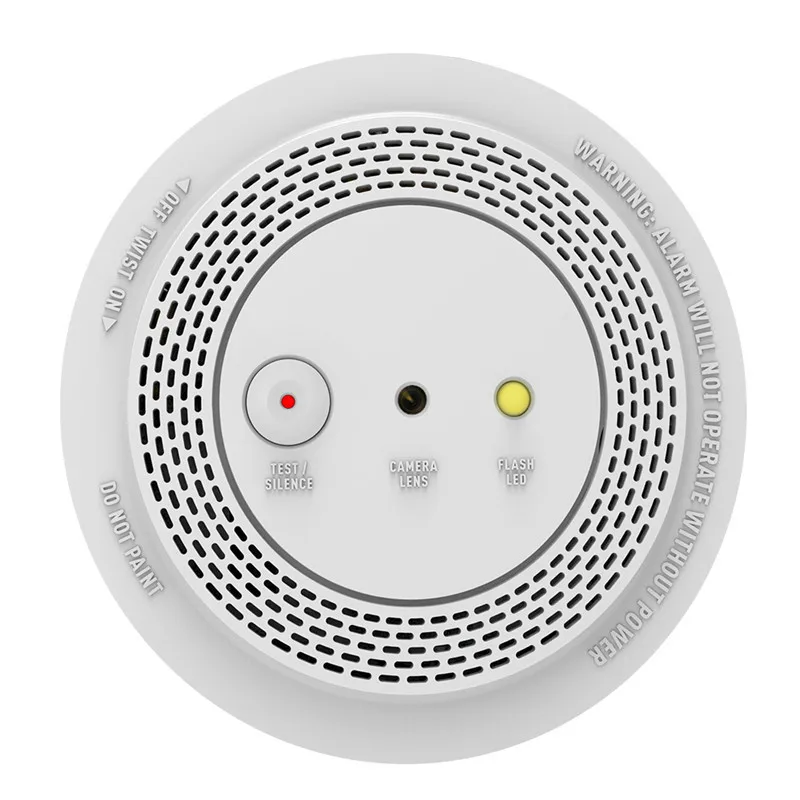

When the system sleeps, press the button to trigger Test alarm, take a photo and push it once, and the alarm siren/red LED flashes

When the system is working, short press to trigger Test alarm (siren alarm/red LED flashing). Short press once, siren alarm/red LED flashing will stop, take photos and continue to push photos to complete.After triggering the smoke alarm for 3S, press the button once to stop the alarm (if the smoke continues to be detected, press the button to turn off the alarm sound once, for about a few seconds, and when the smoke alarm is detected again, it will sound again and keep circulating until the smoke concentration is lower than the alarm value).

Long press 5S to clear WIFI information and restore factory Settings

Smoke alarm detection frequency: 1 time /10s (after smoke detection, the detection frequency will be accelerated until the alarm)

Sound and light alarm: the siren continues to sound, the red LED flashes continuously, and the photo is pushed to the APP

The supplementary light is on for 5S when the photo is started, and off when the photo is finished

1. On the power on: blue light flash

2. Waiting for the matching net: the blue light turns on and off the breath every 1S

3. Network interruption: the blue light turns on every 3S

4. Internet connection: blue light off

5.Test push: blue light flash, change after network status detection, and red LED flash

6. Smoke alarm trigger: the red light flashes continuously until the next detection

When the low power alarm battery is lower than 2.3v, the APP will push low power alarm every 24 hours until the battery is replaced.When the battery is lower than 2.1v, the buzzer will ring every 43S until the battery is replaced.

Push the ignore smoke trigger alarm. After the APP receives the push, press the ignore button on the push interface. After pressing the ignore button, no push will be conducted within 2 minutes.

OTA 1.APP displays version information, and users manually detect and upgrade.
