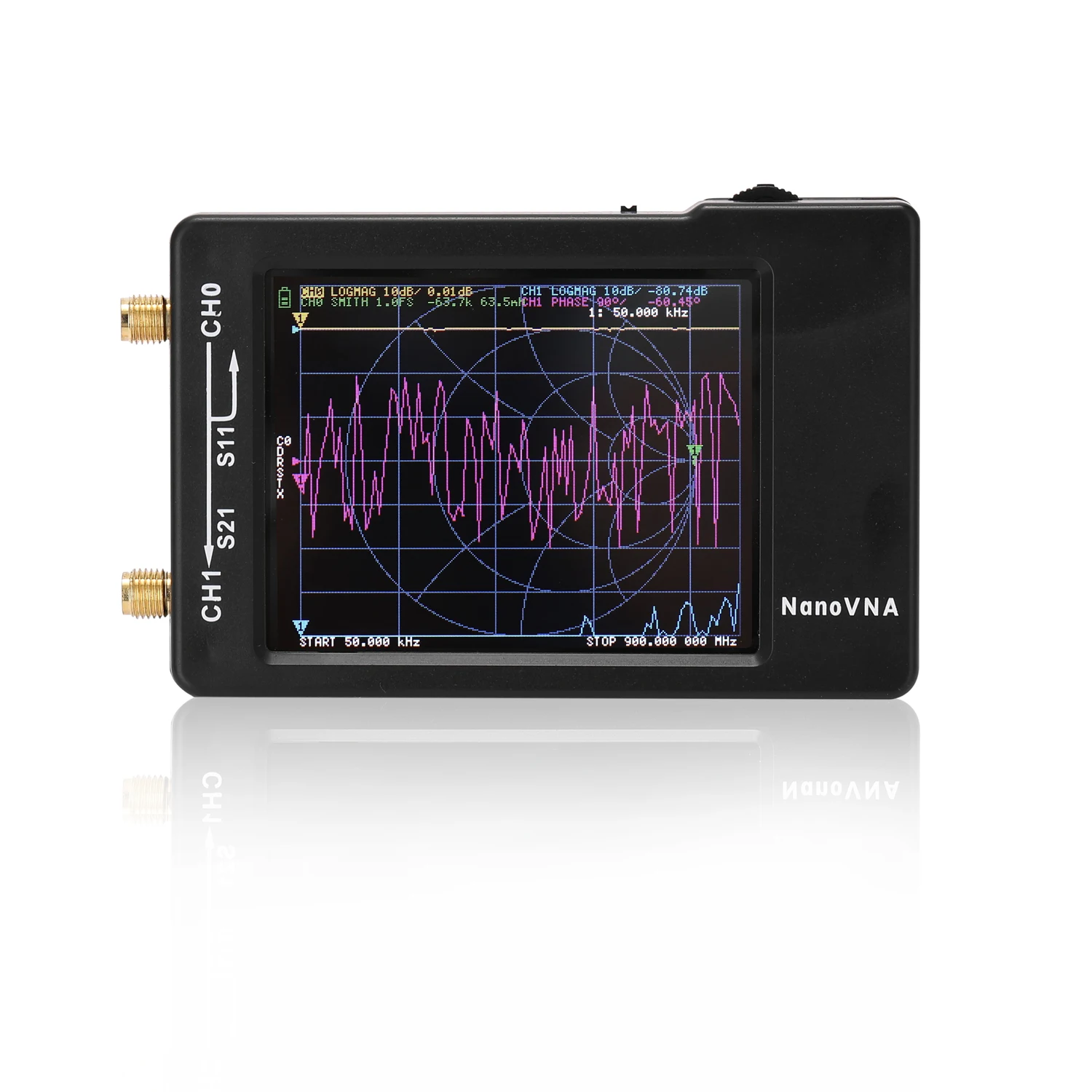

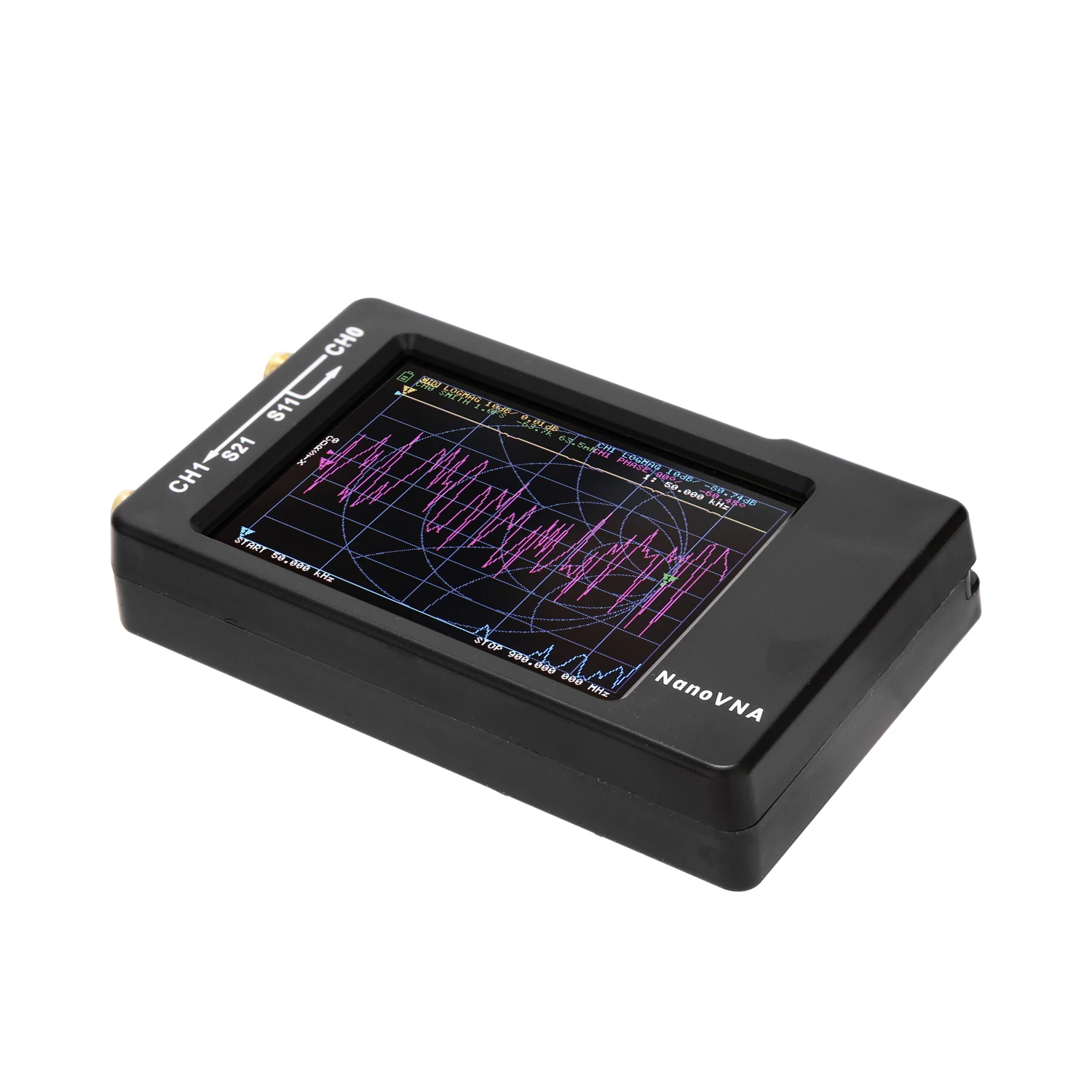

This is a DIY product with vector network measurement function. It includes a 2.8-inch touching screen, TX/RX measurement, can determine the complete S11 and S21 parameters, if you need to get S12 and S22, you need to manually replace the transceiver port wiring.

Features:
The PC control software can export Touchstone (snp) files, which can be used for various radio design and simulation software.

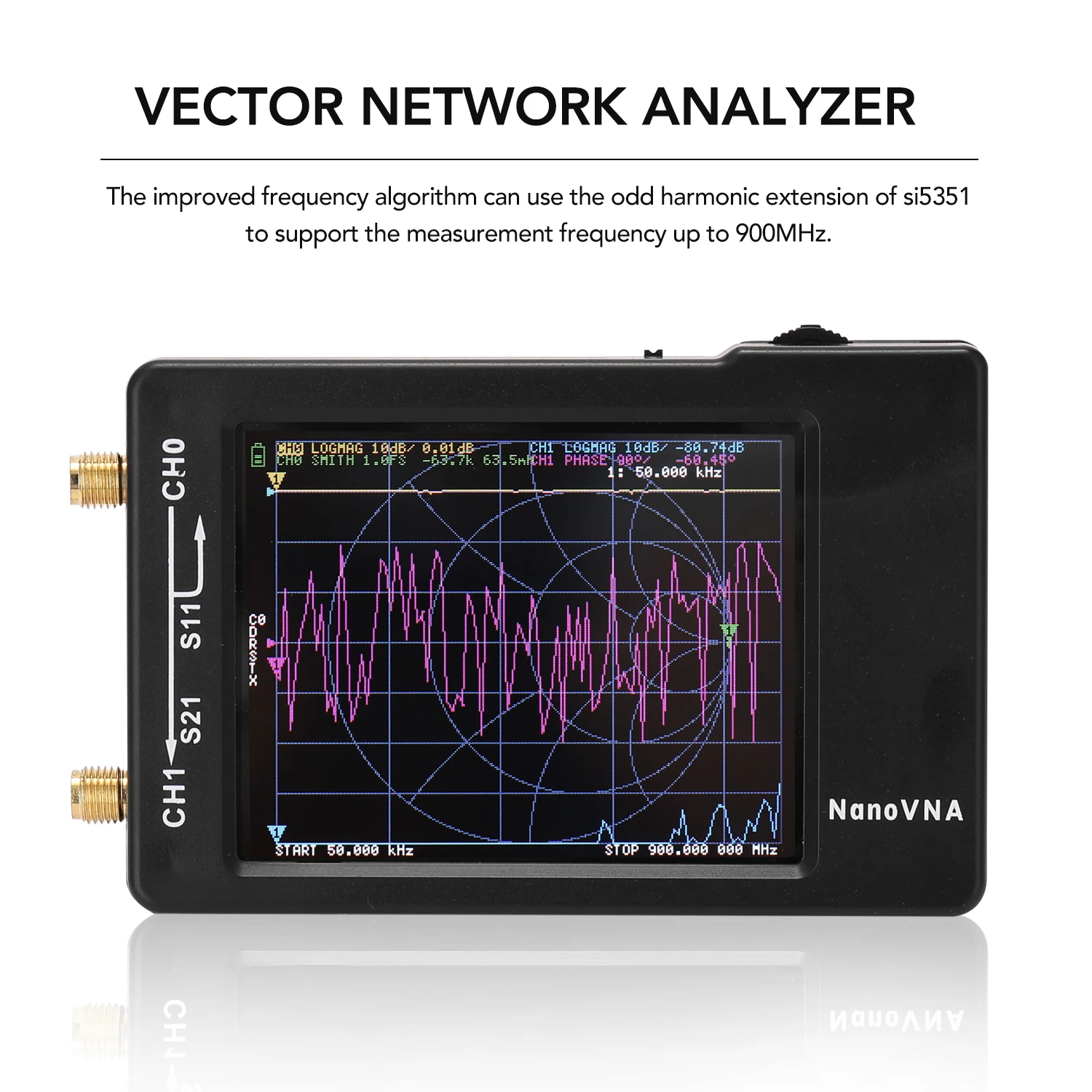

The improved frequency algorithm can use the odd harmonic extension of si5351 to support the measurement frequency up to 900MHz.
The metal shield is designed to reduce the external interference and improve the measurement accuracy.
The 50k-300MHz frequency range of the si5351 direct output provides better than 70dB dynamic.
The extended 300M-600MHz band provides better than 50dB of dynamics, and the 600M-900M band is better than 40dB of dynamics.
Small and portable, easy to use, this project aims to provide an RF gadget but useful instrument for enthusiast.
Metal housing for easier and safer use and more beautiful.
With a touching screen pick, you can easily perform a variety of operations.

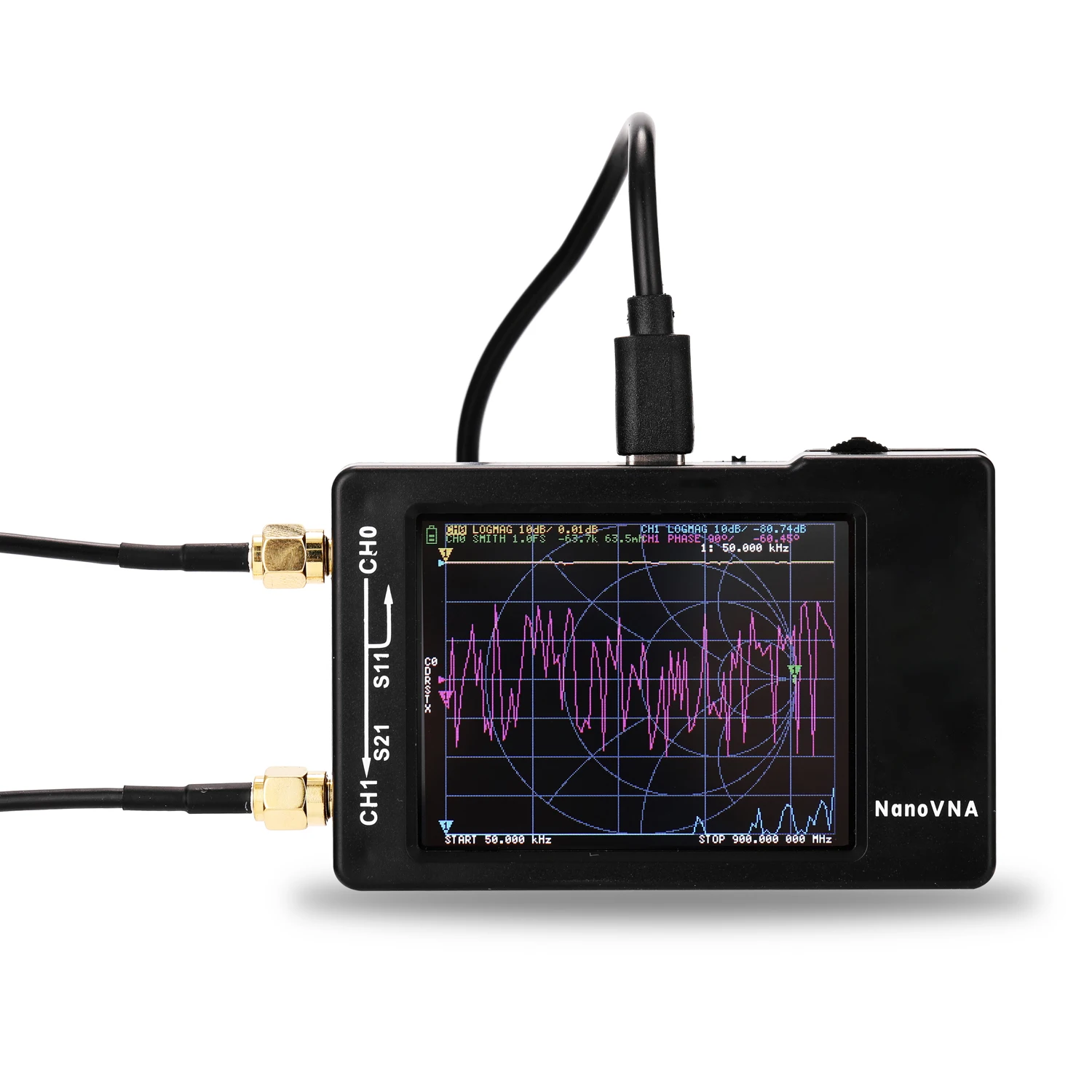

Support for connecting mobile phones using Type C-Type C data cable (included).
Built-in rechargeable lithium battery for easier use.

Specifications:
Material: metal
Color: black
Measurement frequency: 50KHz~300MHz (50KHz~900MHz, enable extended firmware)(the products will be updated with the latest firmware before shipping, the actual measurement frequency is 50KHz~900MHz)
RF output: -13dbm (maximum -9dbm)
Frequency accuracy: <0.5ppm
Measurement range: 70dB (50KHz-300MHz), (50dB (300M-600MHz), 40dB (600M-900MHz) enable extended firmware)
Port SWR: <1.1
Display: 2.8 inch TFT (320*240)

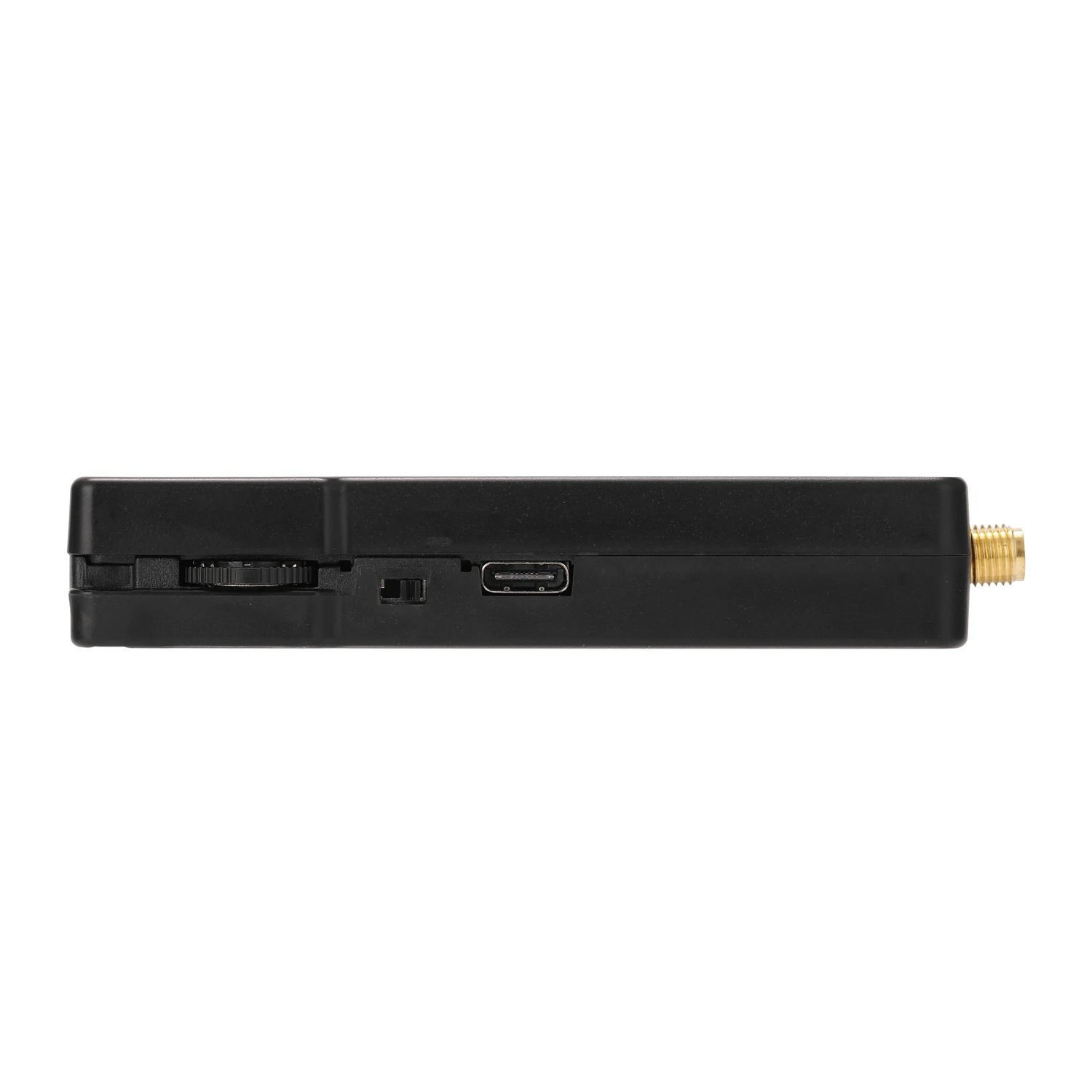

USB interface: USB type-C
Communication mode: CDC (serial)
Power: USB 5V (1A Max.)
Battery: 1 * lithium battery, 400mAh (included)
Number of calibration points: 101 (fixed)
Number of scanning points: 101 (fixed)
Display tracking: 4, Marking: 4, Setting save: 5

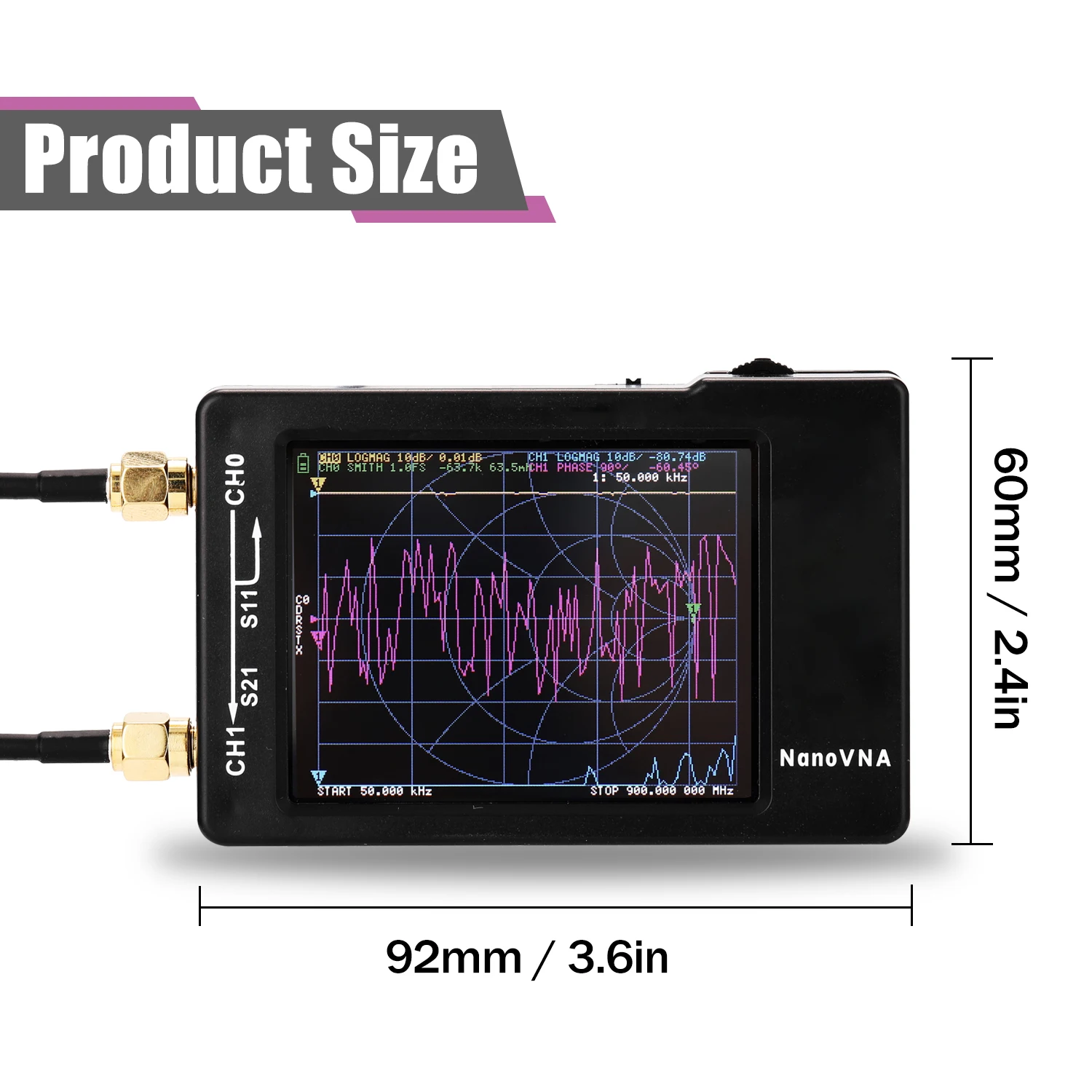

Item size: 92 * 60 * 18mm / 3.6 * 2.4 * 0.7in (without connectors and switches)
Item weight: 80g / 2.8ounce
Package size: 195 * 127 * 27mm / 7.7 * 5.0 * 1.1in
Package weight: 250g / 8.8ounce

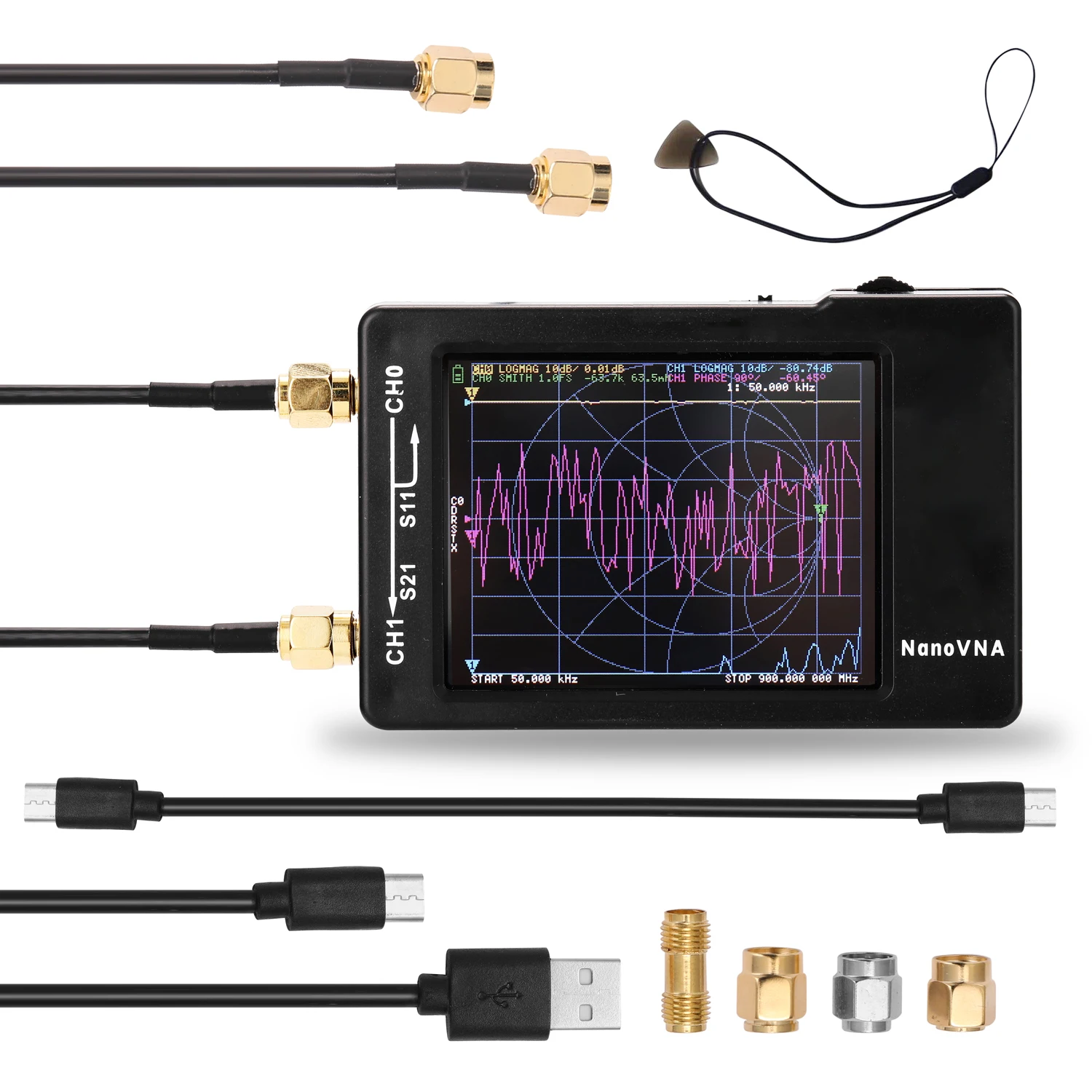

Package list:
1 * Host
1 * USB Type-C Data Cable

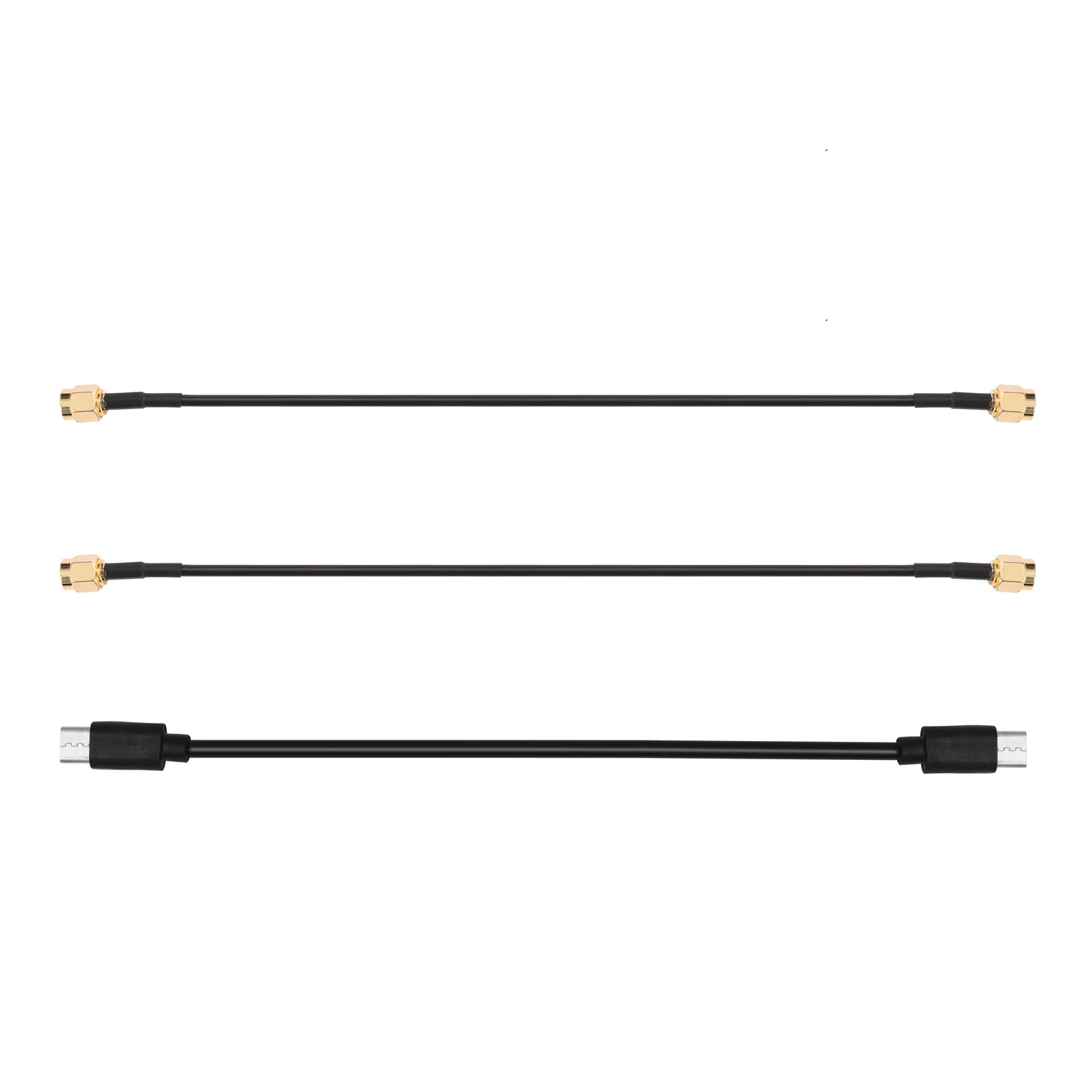

1 * 250mm USB Type C-Type C Data Cable
2 * 200mm SMA Male to Male RG174 RF Cable

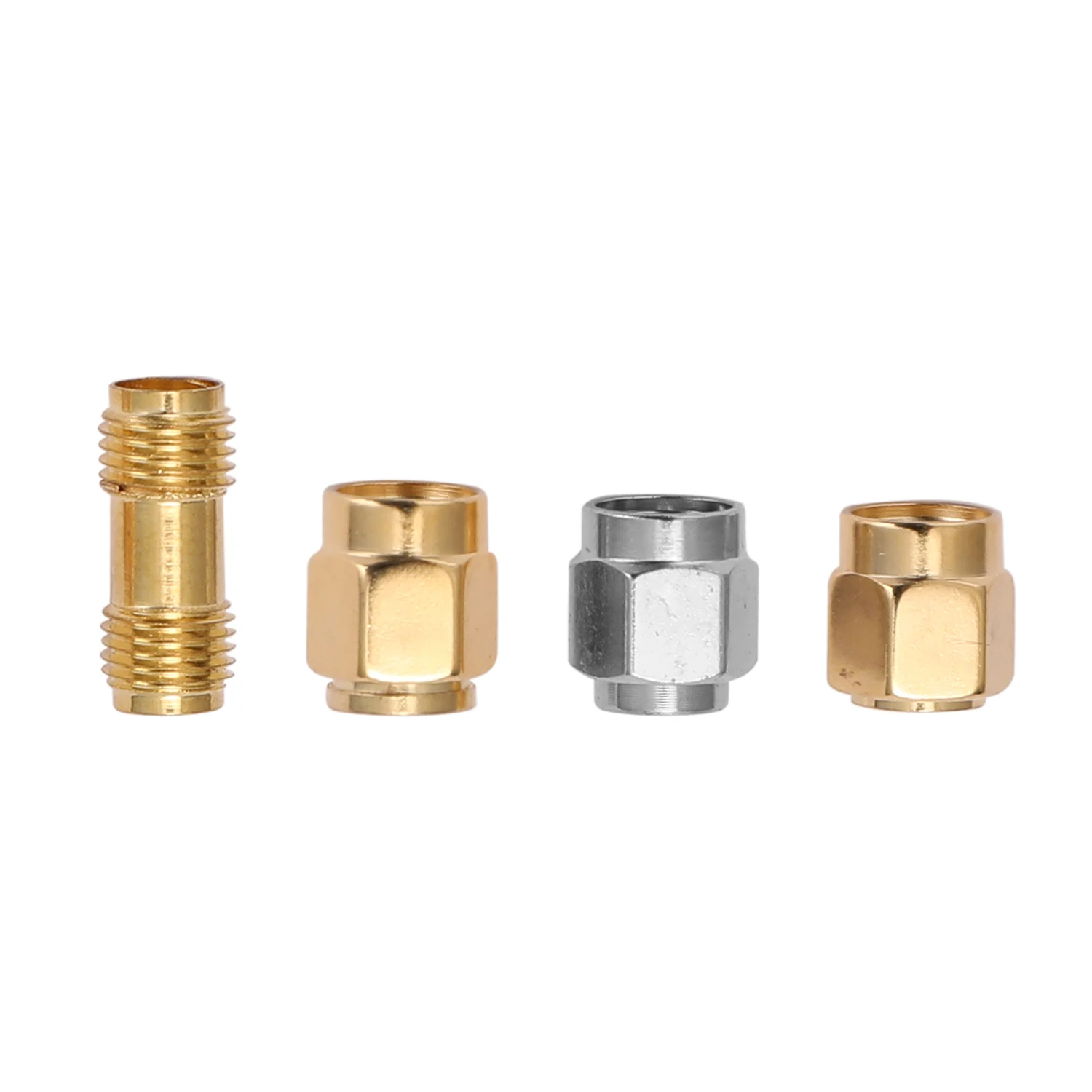

1 * Set of SMA Calibration Parts (O/S/L)
1 * SMA Female to Female Connector

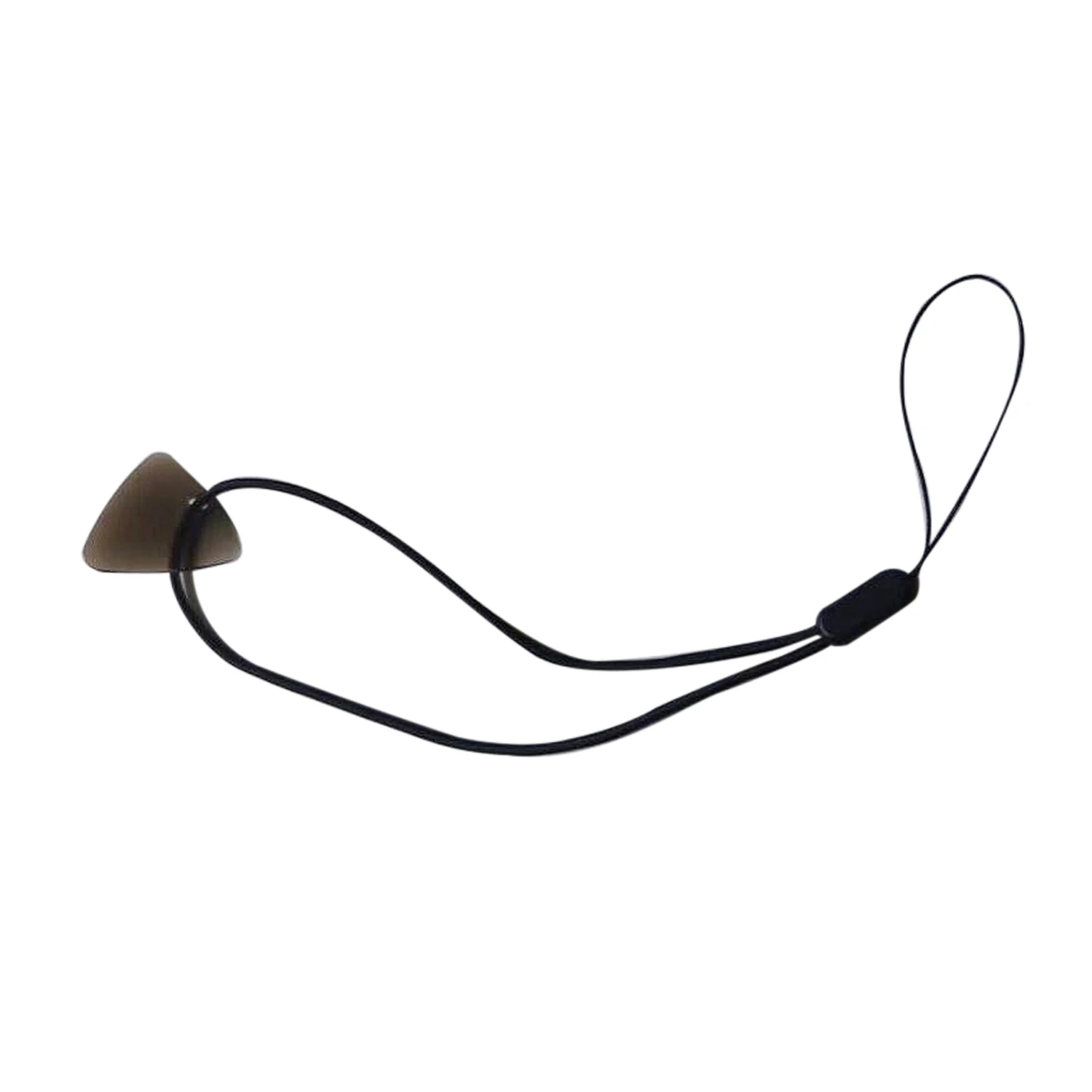

1 * Touching Screen Pick
1 * Lanyard
