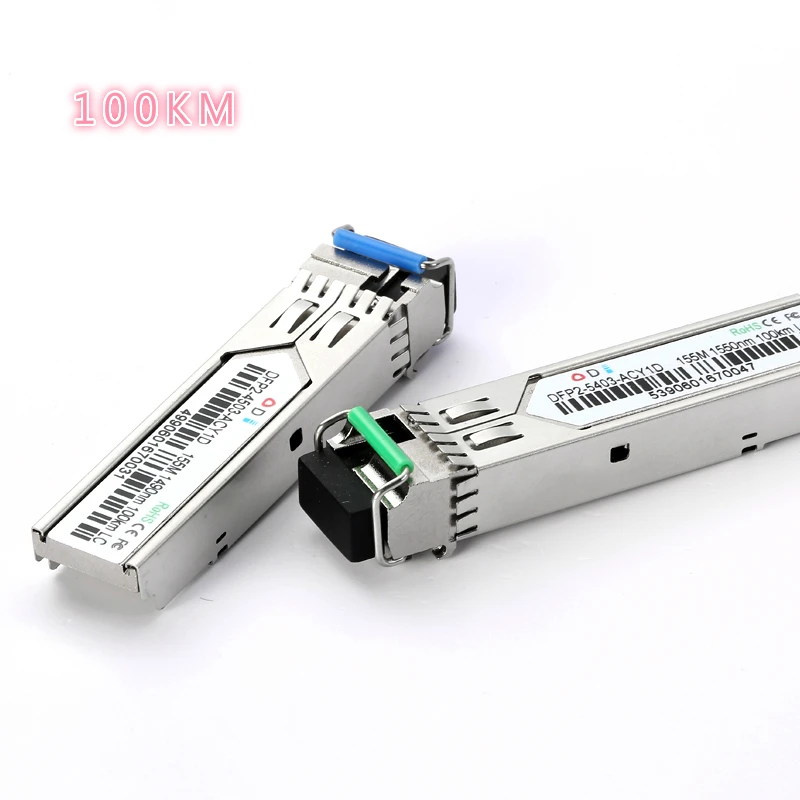

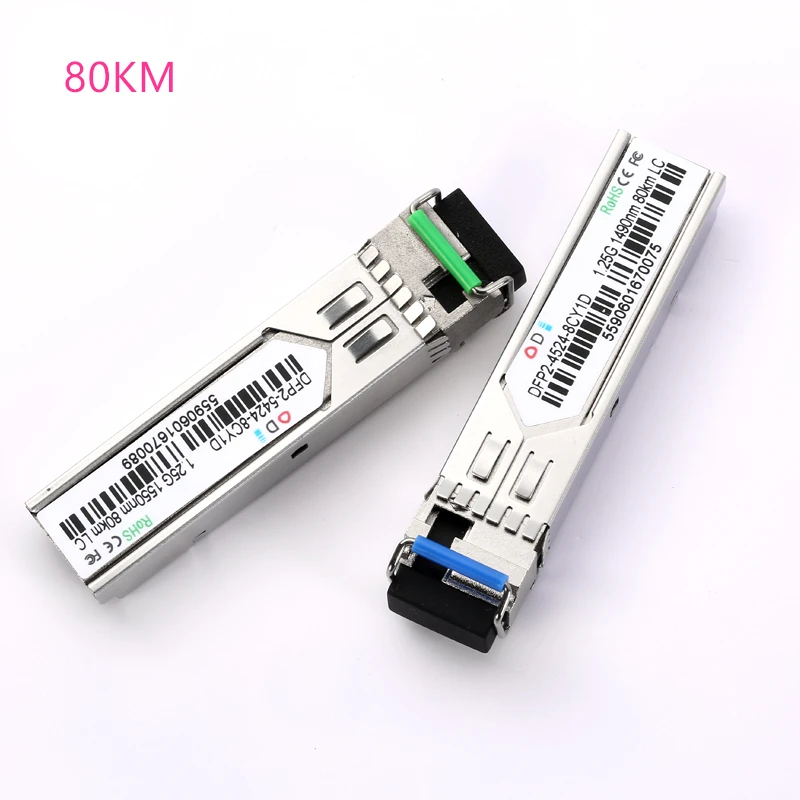

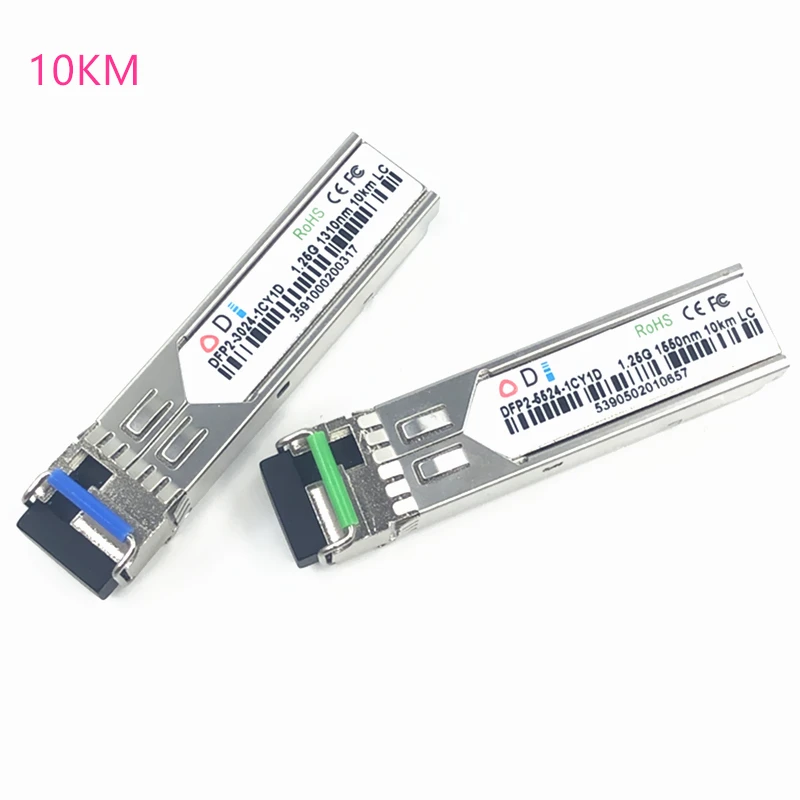

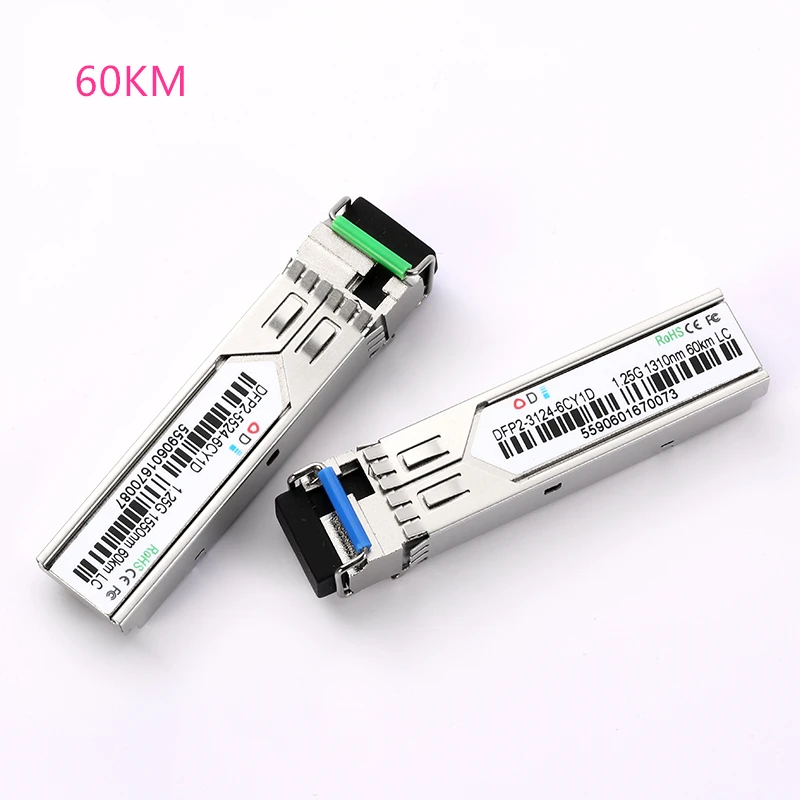

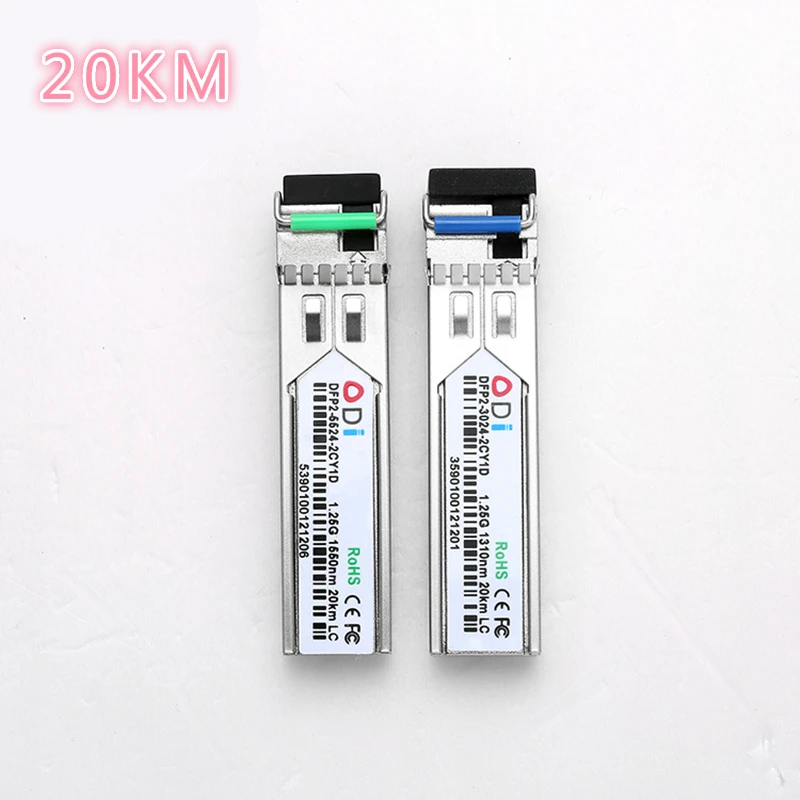

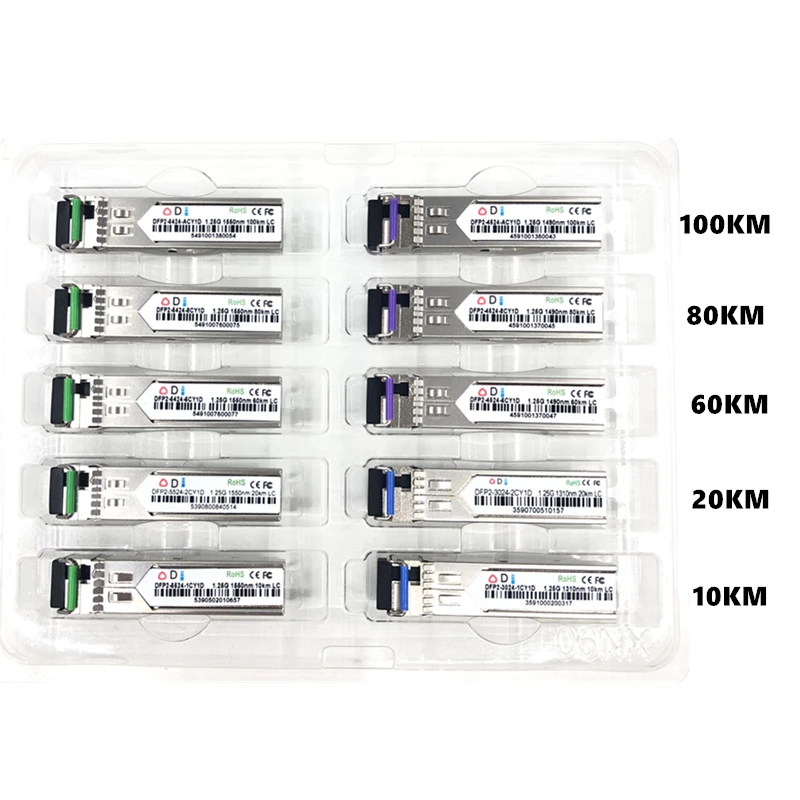

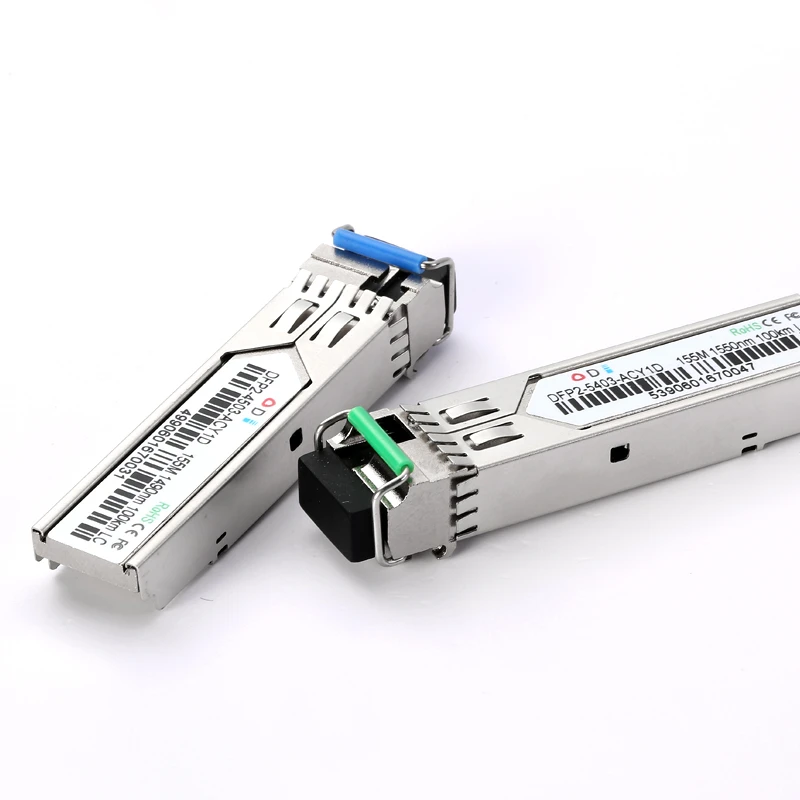

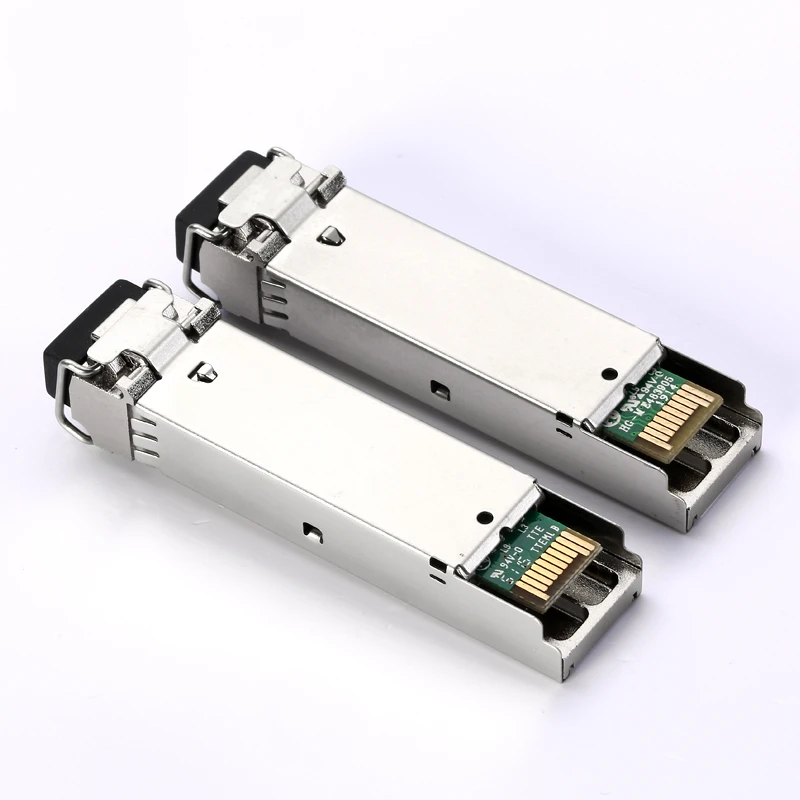

1.25G  LC 10/20/60/80/100KM 1310/1490/1550nm Single Fiber SFP Optical Module SFP Transceiver

Please leave us a message about which brand your switch is compatible. We  Will send compatible SFP modules as your request.

1. Data Rate:1.25Gb/s

2. Transmission Distance:3KM/20KM/40KM/80KM/120KM (on 9/125μm SMF Fiber Optic Patch Cord)

3. Wave Length: 1310nm/1490nm/1550nm

4. Fiber Type: Single Mode Single Fiber (SMF)

5. With DDM/DOM: Internal or External Calibration

6. Low power dissipation

7. ROHS compliant and Lead Free

8. Hot-pluggable ,Plug and Play

9. Brand-New, High Quality,





Switch to Switch interface

Switched backplane applications

Router/Server interface

Other optical transmission systems

sfp media converter

Product Features
Uncooled Laser Diode with MQW Structure
InGaAs PIN-TIA Photodiode Receiver
Reach 100 km Transmission Distance on 9/125µm SMF

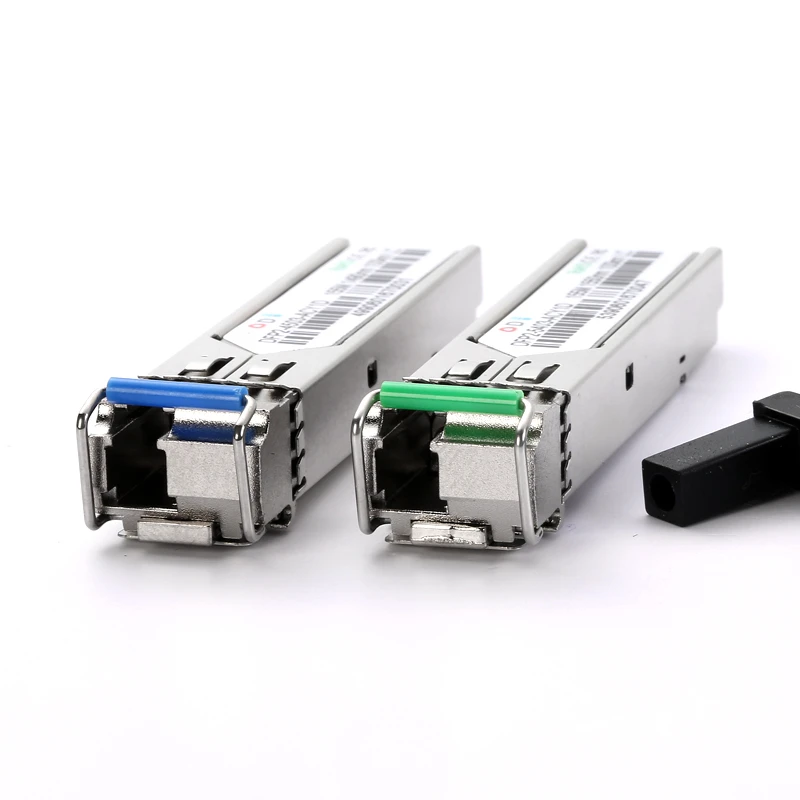

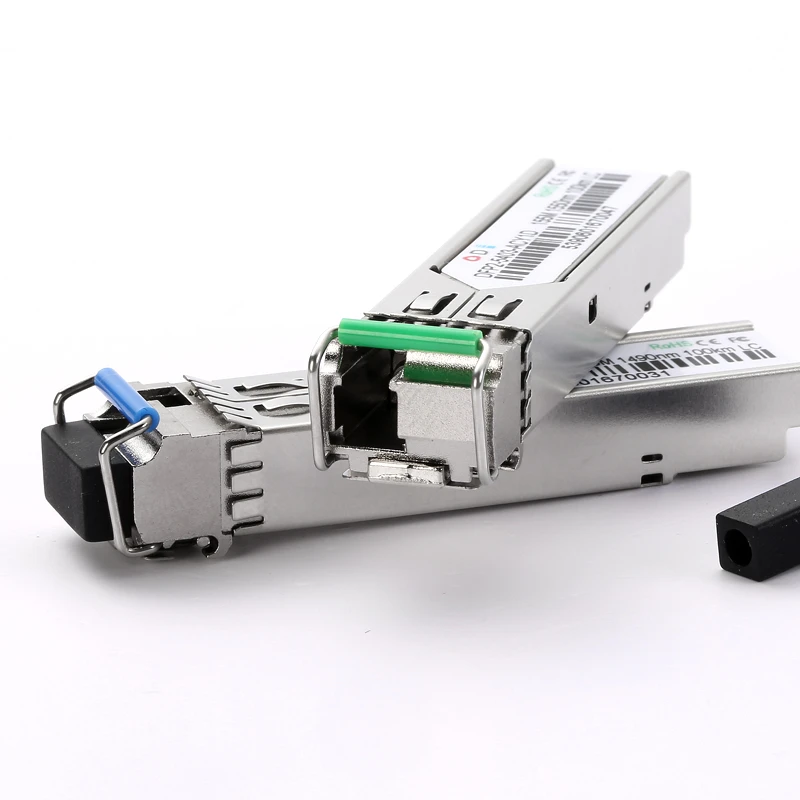

DUAL Single Mode Transceiver SFP Footprint LC Optical Interface
Compliant With SFP MSA and SFF-8472
Digital Diagnostic Monitoring Interface
Single +3.3V Power Supply
LVPECL Differential Inputs and Outputs
LVTTL Signal Detection Output
Compliant With ITU-T G.957
Compliant With RoHS and Lead Free
Metal Enclosure for Lower EMI
Operating Case Temperature:
Standard: 0 to +70°C
Extend: -20 to +85°C
Industrial: -40 to +85°C Product Description

 Absolute Maximum Ratings

Parameter

Symbol

Min

Typ

Max

Unit

Storage Temperature

Tst

-40

-

+85

°C





Operating Case Temperature





TC

OFP2

0

-

+70

°C









-



°C









-



°C

Power Supply Voltage

VCC

3.1

3.3

3.5

V

Power Supply Current

ICC

-

-

300

mA

Data Rate

DR

0.05

1.25

1.3

Gbps

RECOMMENDED OPERATING ENVIRONMENT Parameters Symbol Min. Typical Max Unit Power Supply Voltage VCC 3.135 3.3 3.465 V Power Supply Current Icc     350 mA Operating Case Temperature TI -40 25 85 ℃
