  4 Ports Selector USB KVM Switch USB2.0 VGA/SVGA PC Sharing Monitor Switch Box Splitter Up to 1920 x1440 4 host 1 Keyboard 1 Mouse 1 HDMI

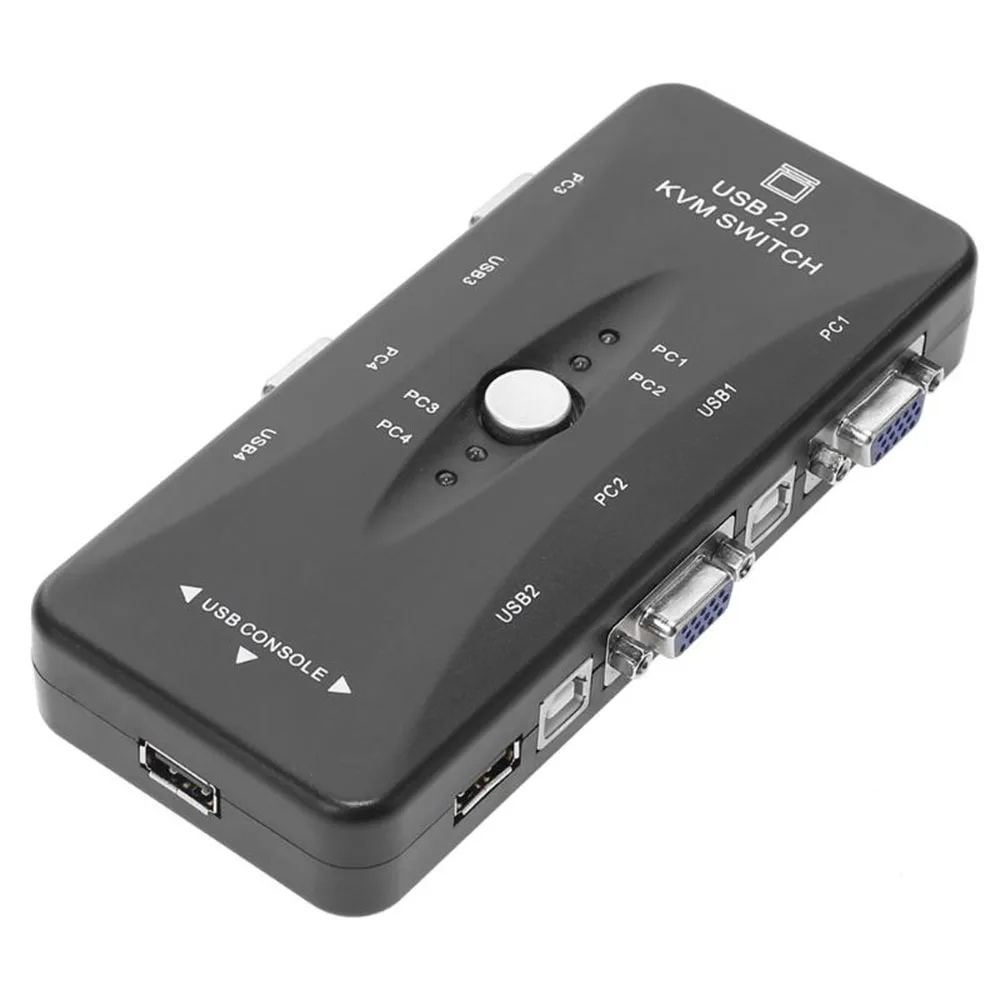

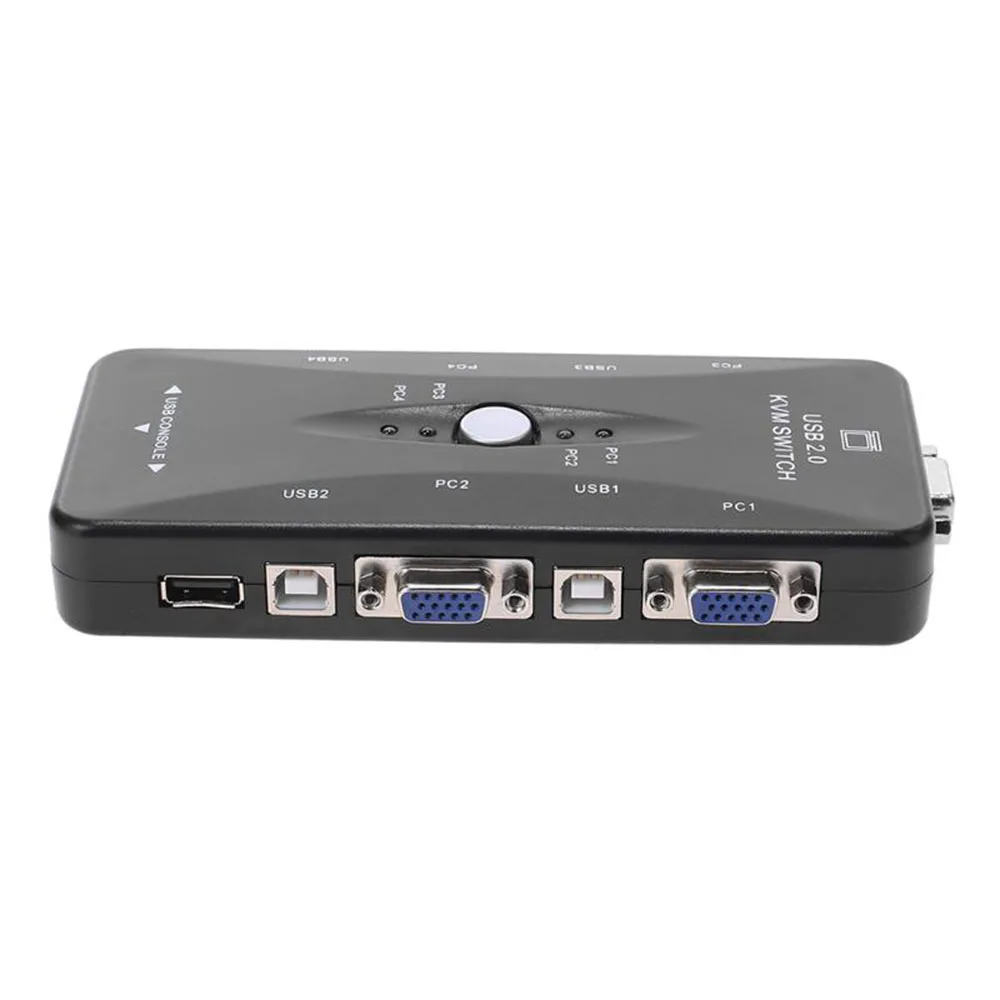

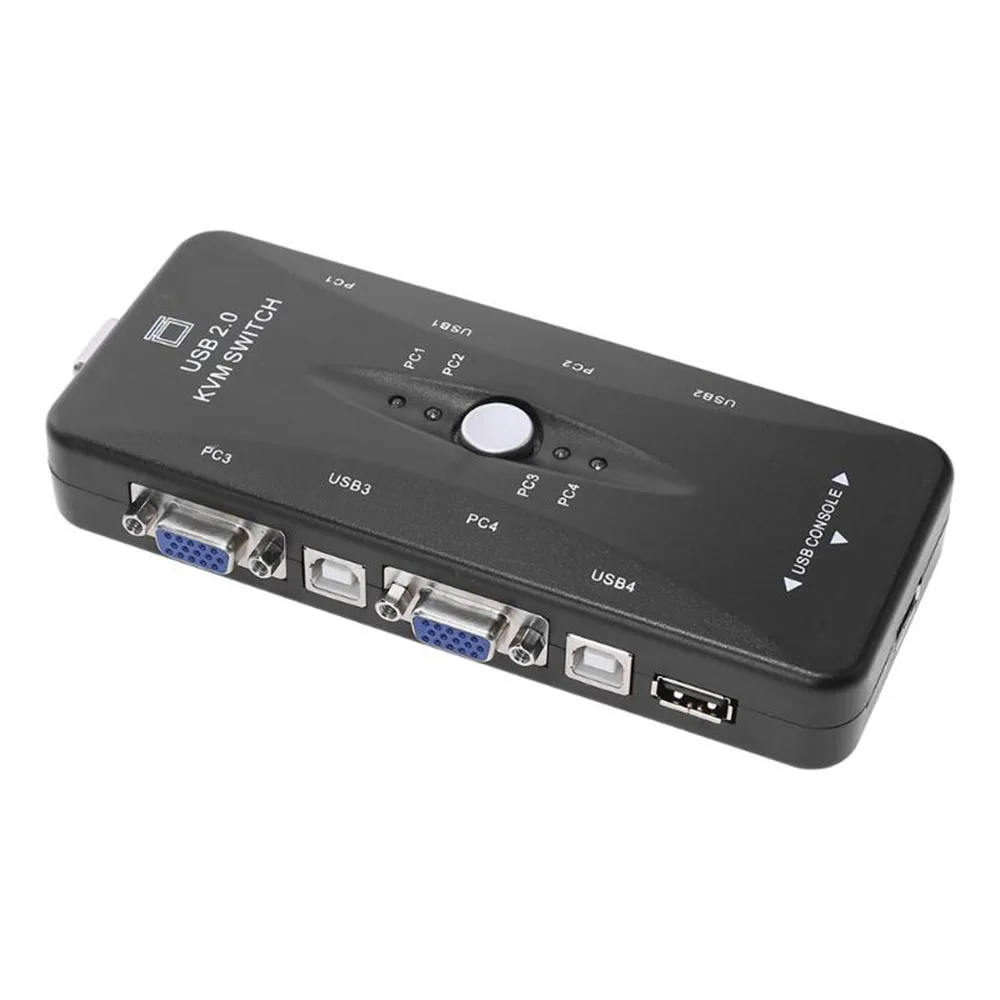

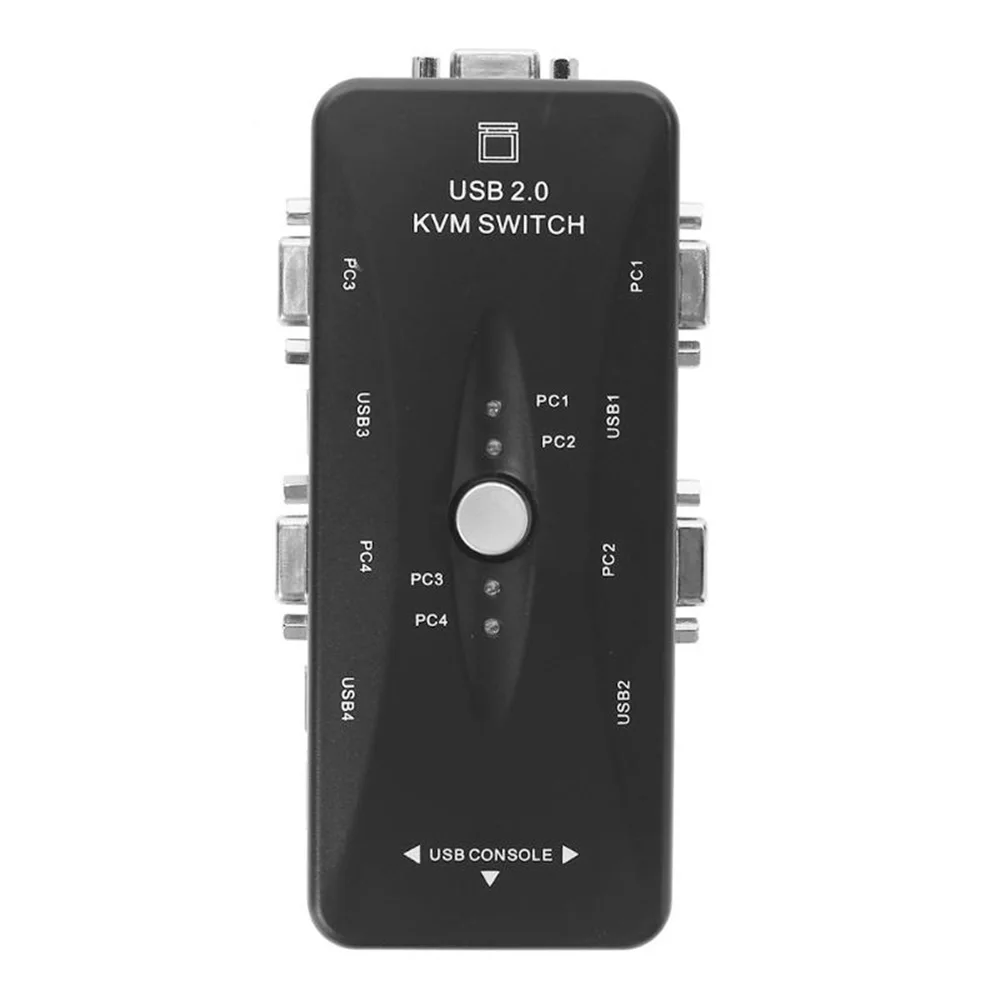

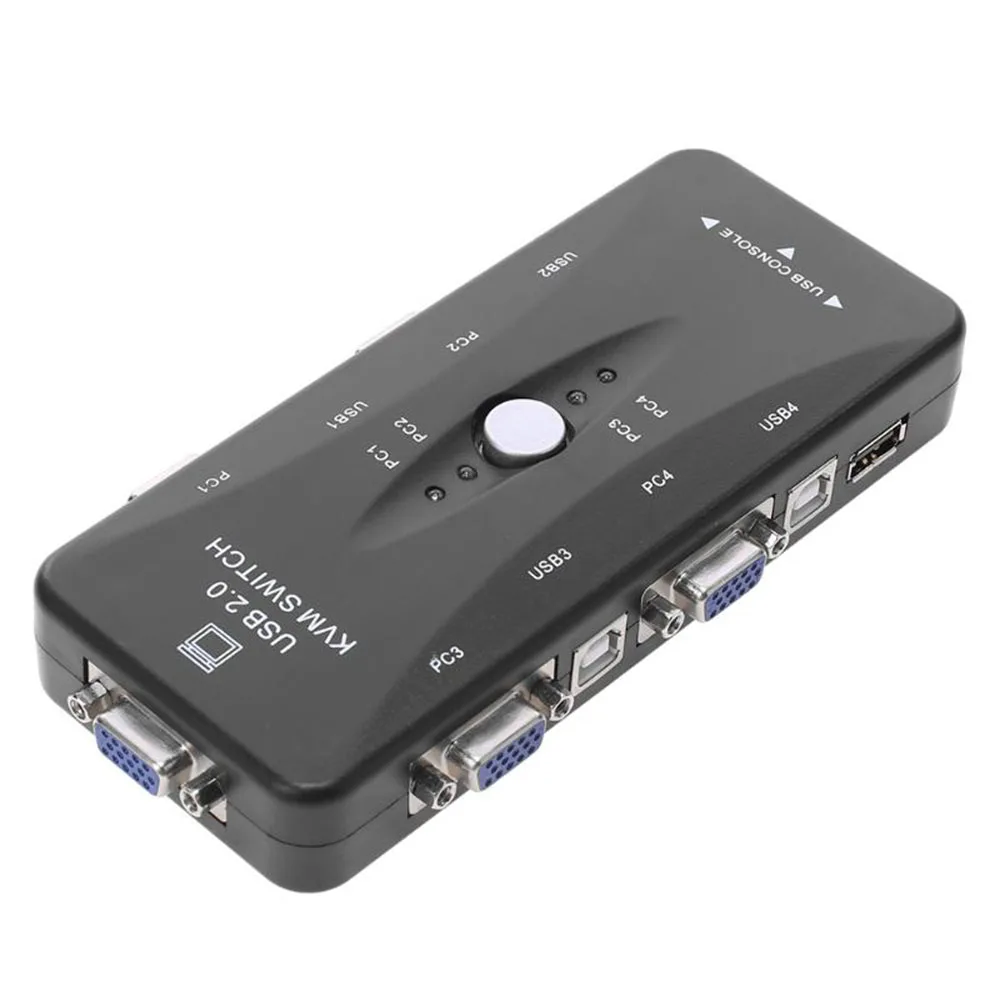

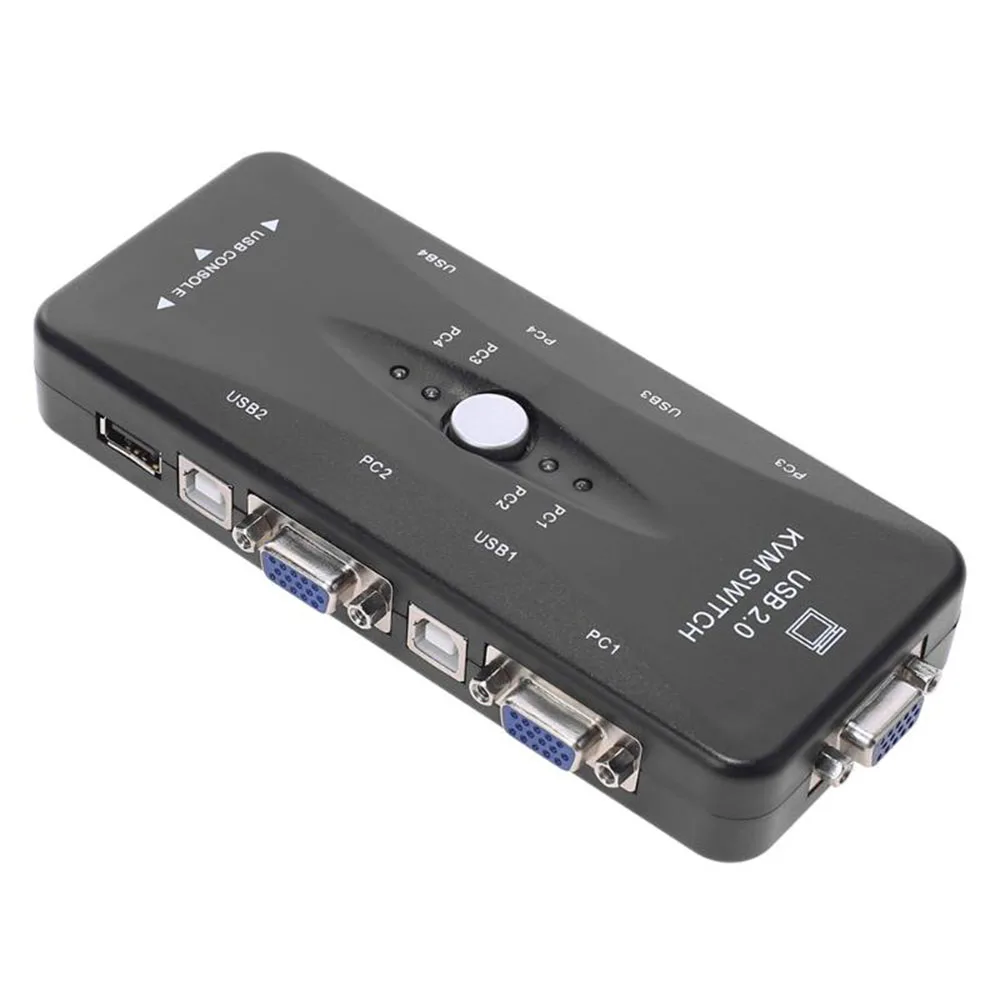

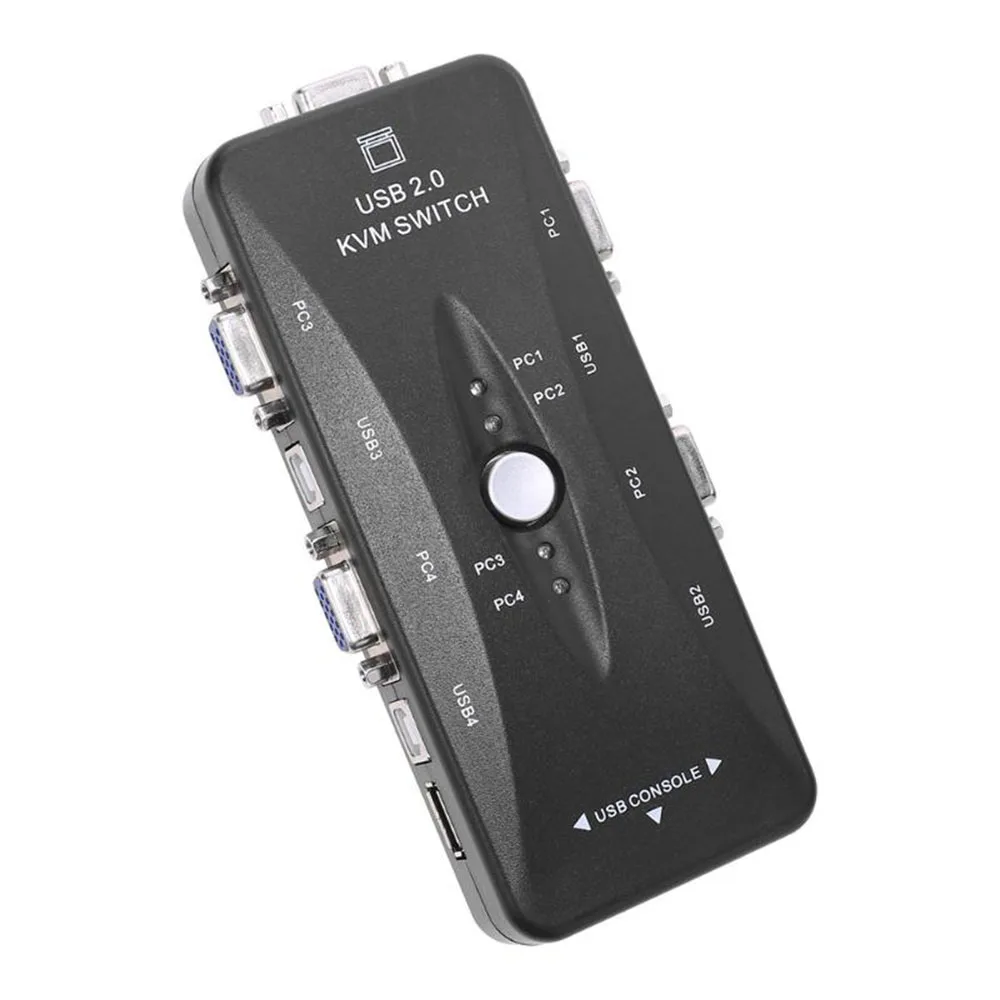

4 Port USB KVM Switch

This 4-port manual kvm switch is the most economical solution for controlling 4 PCs, this poweful tool is perfect for desktop placement and won't take up critical workspace.

Introduction:

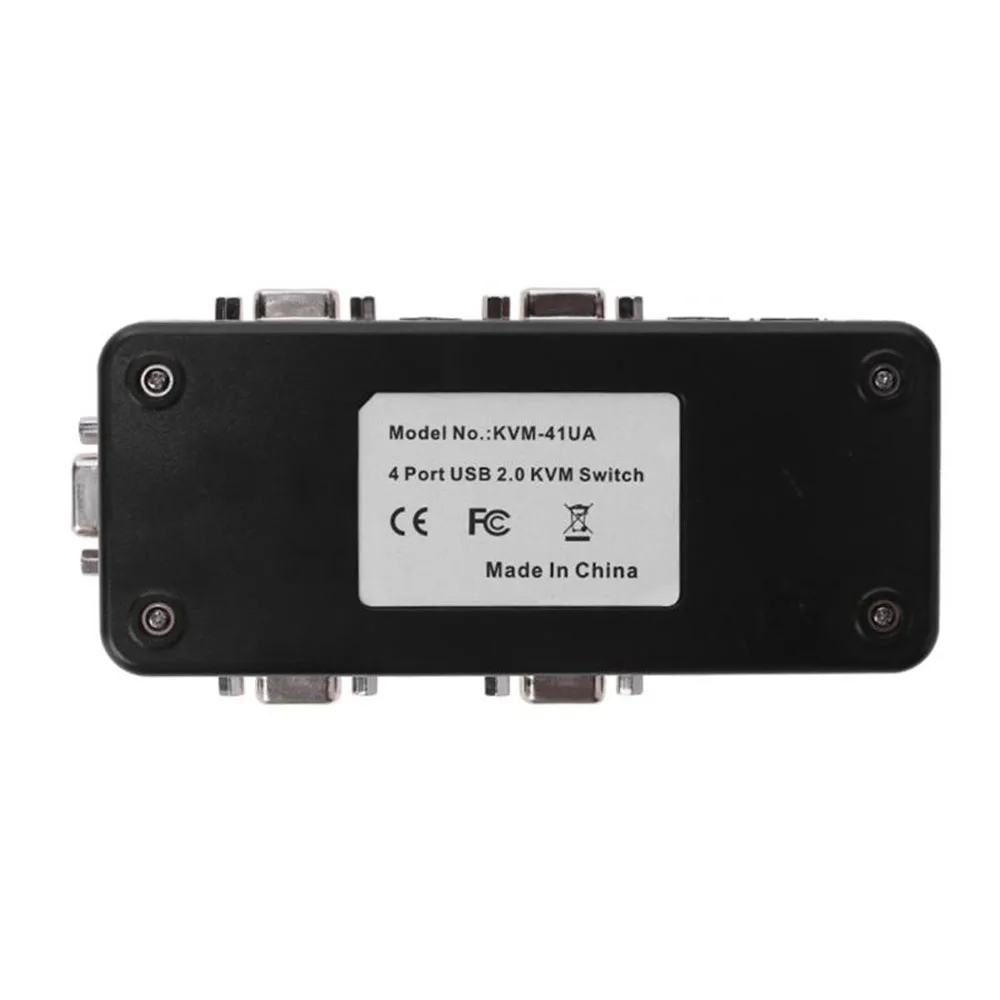

Model:KVM41UA (With Cable)

KVM 41UA Switch is a USB interface manual KVM switch, 4 PCs can be controlled by one sets of keyboard/mouse/monitor with the KVM, It will not happen to the problem that after switch, the computer dead , black screen, no use of the keyboard and mouse, This USB KVM is the most economical desktop solution at present. The strong performance is perfect for the desktop KVM switch, and make full use of the space.

Features:

Support USB mouse and USB Keyboard;

Support DOS, WIN3.X, WIN95/98/98SE/2000/ME/XP, WINNT, NETWARE, UNIX, LINUX;

Support plug and play, no need for external power;

Special design for high speed data

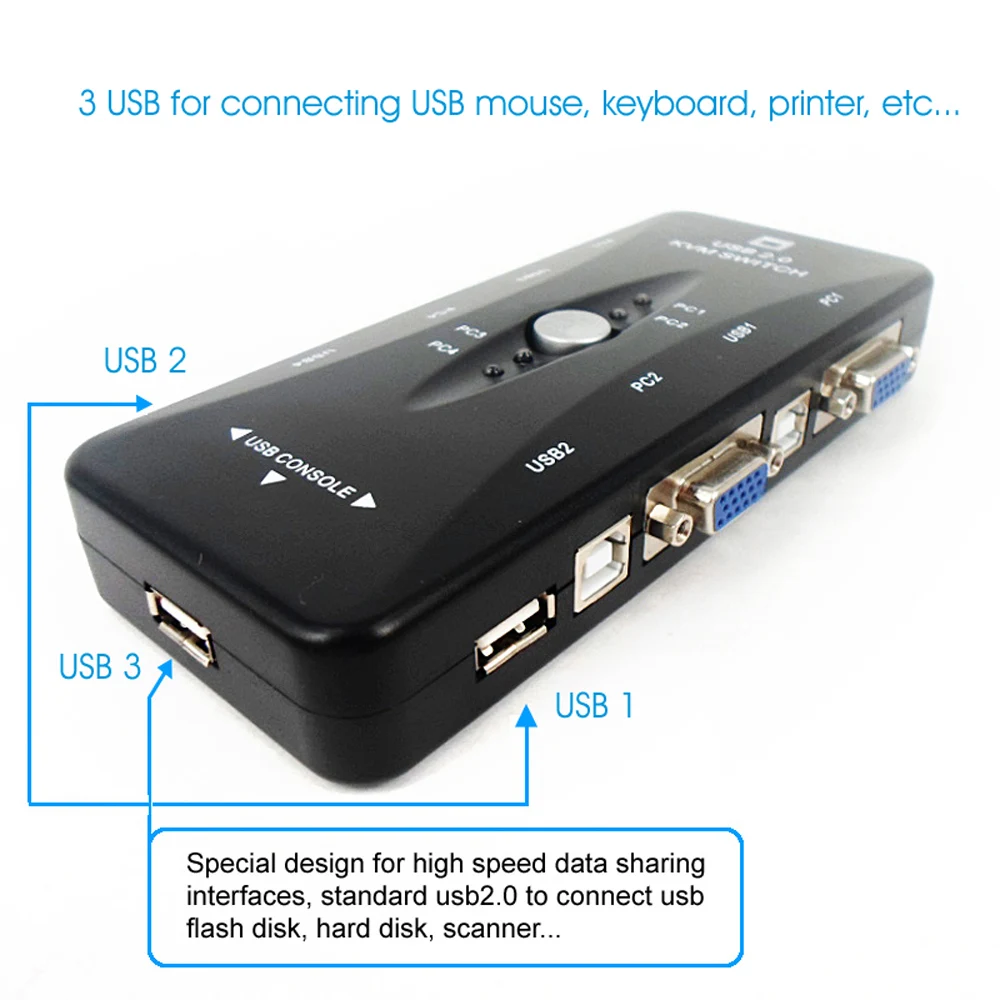

Sharing interface, standard USB2.0, USB port support USB1.1 and USB2.0;

Support button switch on the port;

Support wide screen, resolution up to: 1920x1440;

Support online game and DVR;

Transmission distance: VGA end ≤ 30meters; USB end ≤ 5meters;

Using environment: -20°C to 65°C, Relativity: 5% to 95%;

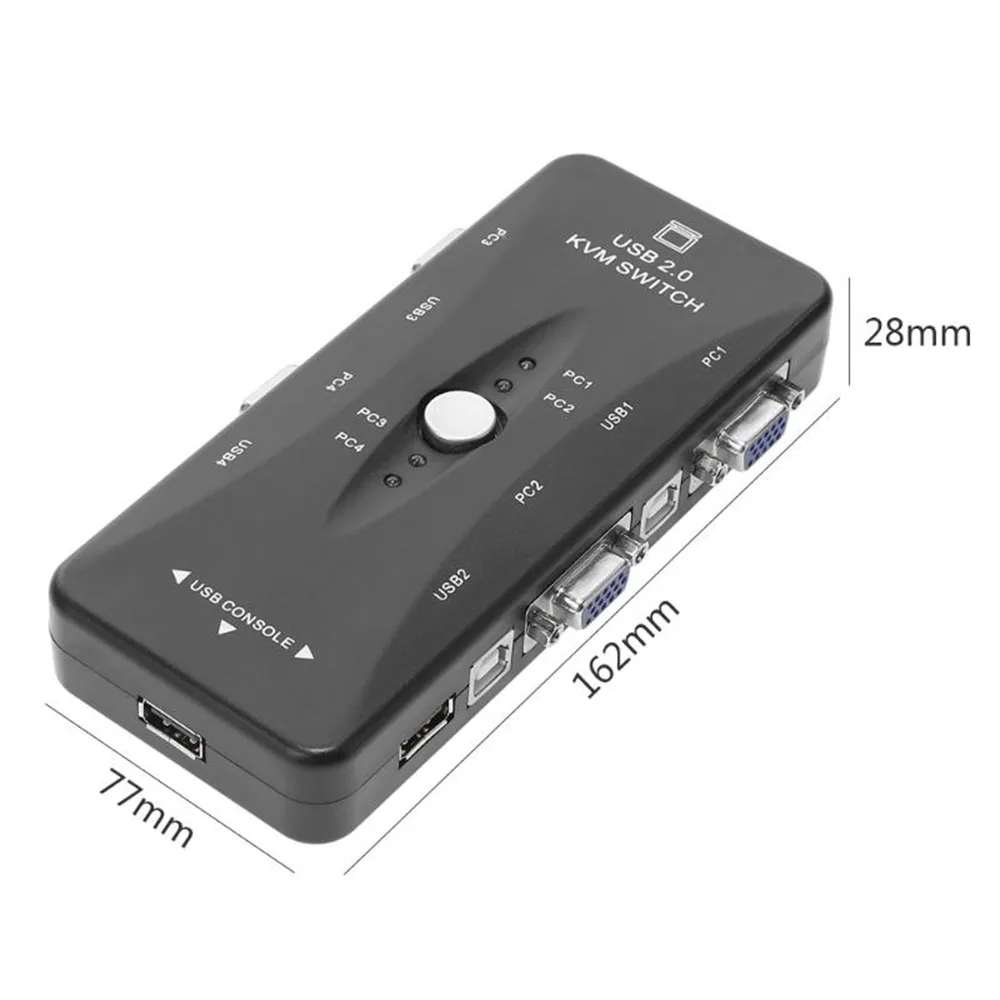

Technology parameters:

Functions:41UA

PC Port:4

Console Port:1

MAXPC Connections: 4

LED: 4

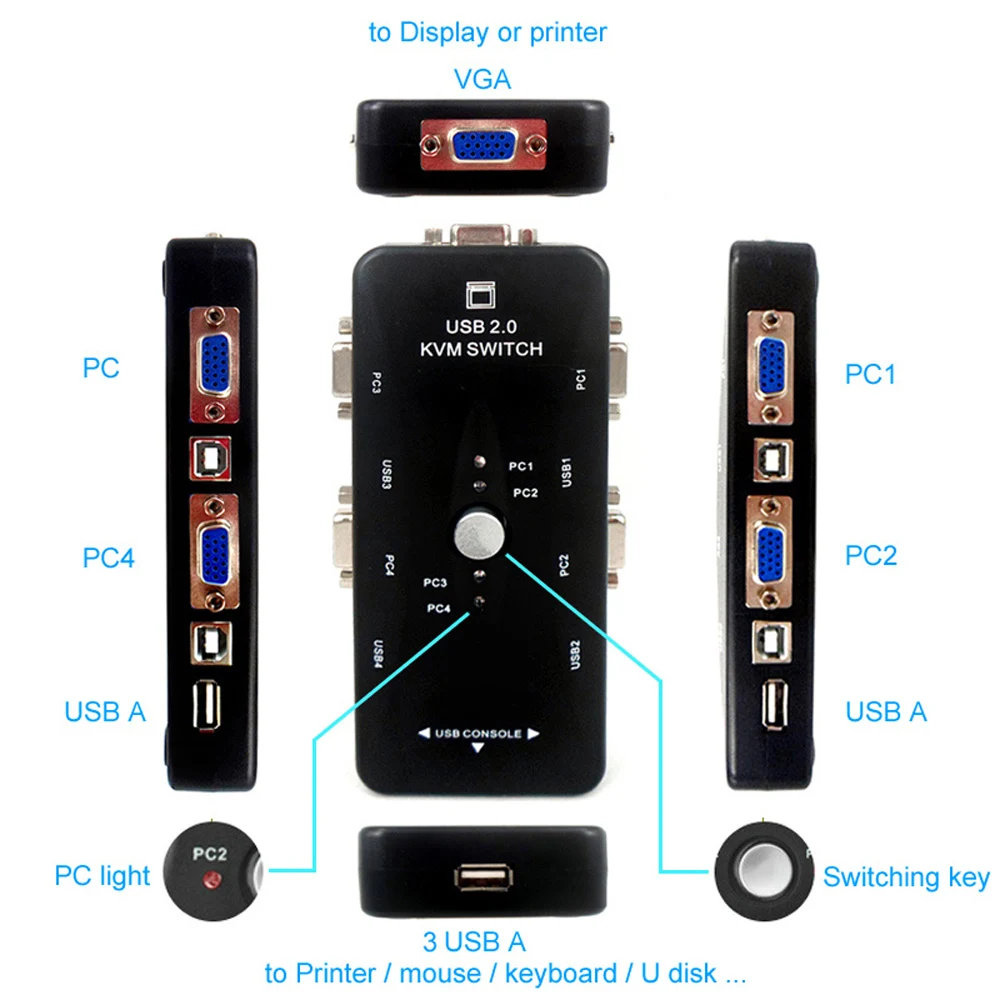

PC Port Connector: 2 USB type A port Female / 2 VGA HDDB 15pin Female

Console port Connector: 2 USB type A port Female / VGA HDDB 15pin Female

Selection PC: Button

Keyboard Emulation: USB

Mouse Emulation: USB

VGA Resolution: 1920x1440

Bandwidth: 500MHz

Type: Desktop

System Requirements Specifications:

Functions: 41UA

Console side:

One VGA Monitor

One USB Keyboard

One USB Mouse

One HDB 15pin male to male VGA cables (VGA cable to monitor)

Four USB cable A make to B male cables (4 KVM Cables)

(Monitor, USB Keyboard, USB Mouse and VGA cable need provide for oneself)

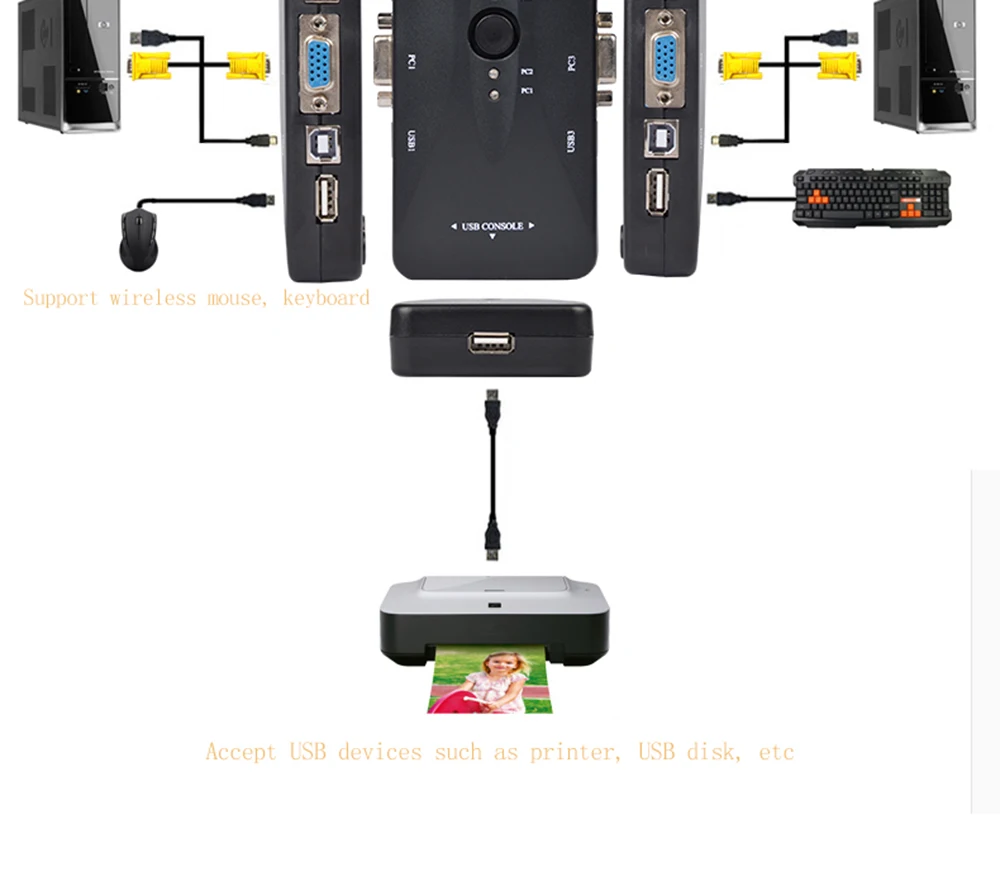

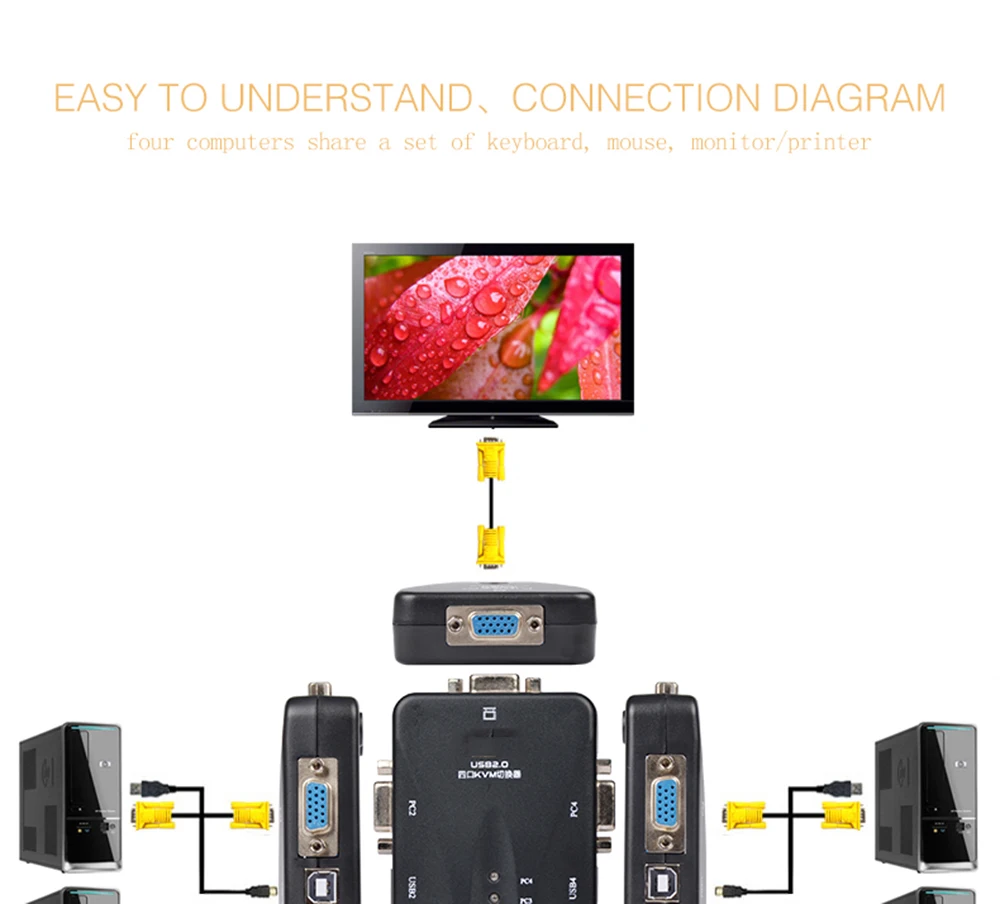

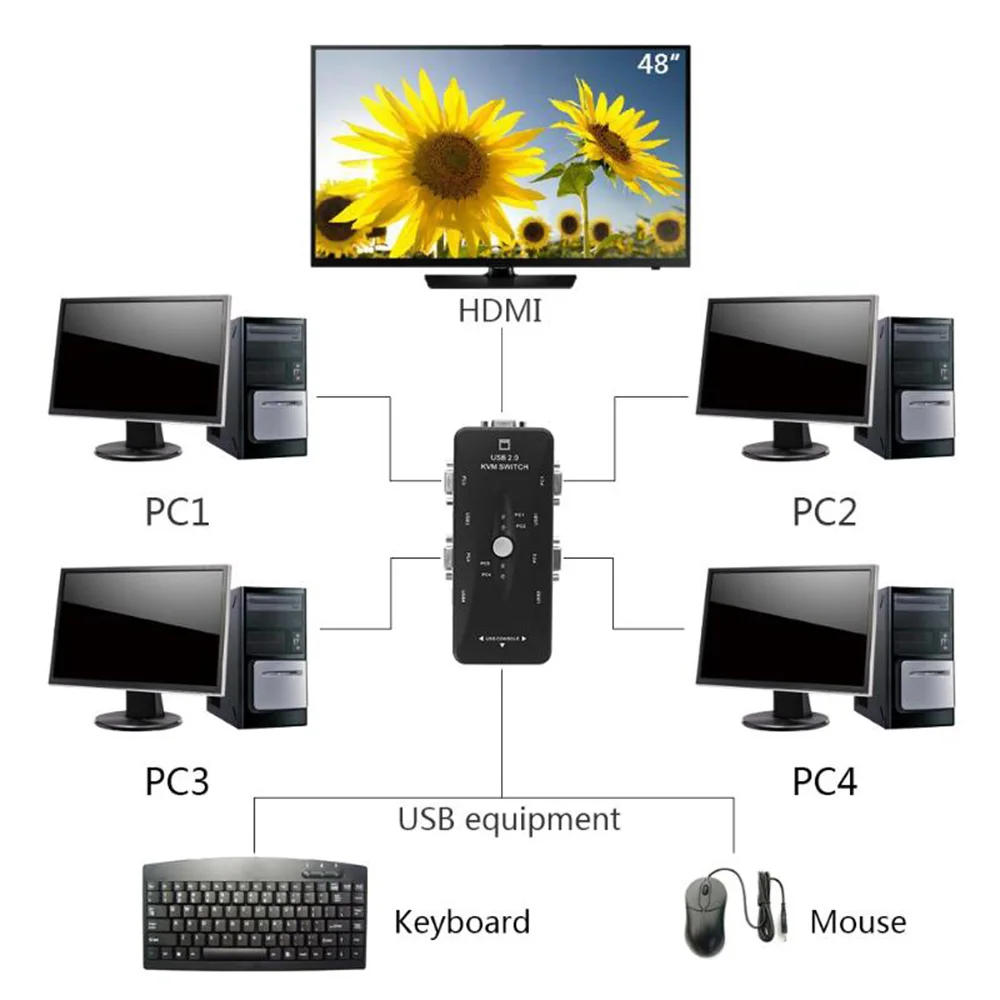

Hardware Installation:

Please make sure all of peripherals and computers have been turned off before installation.

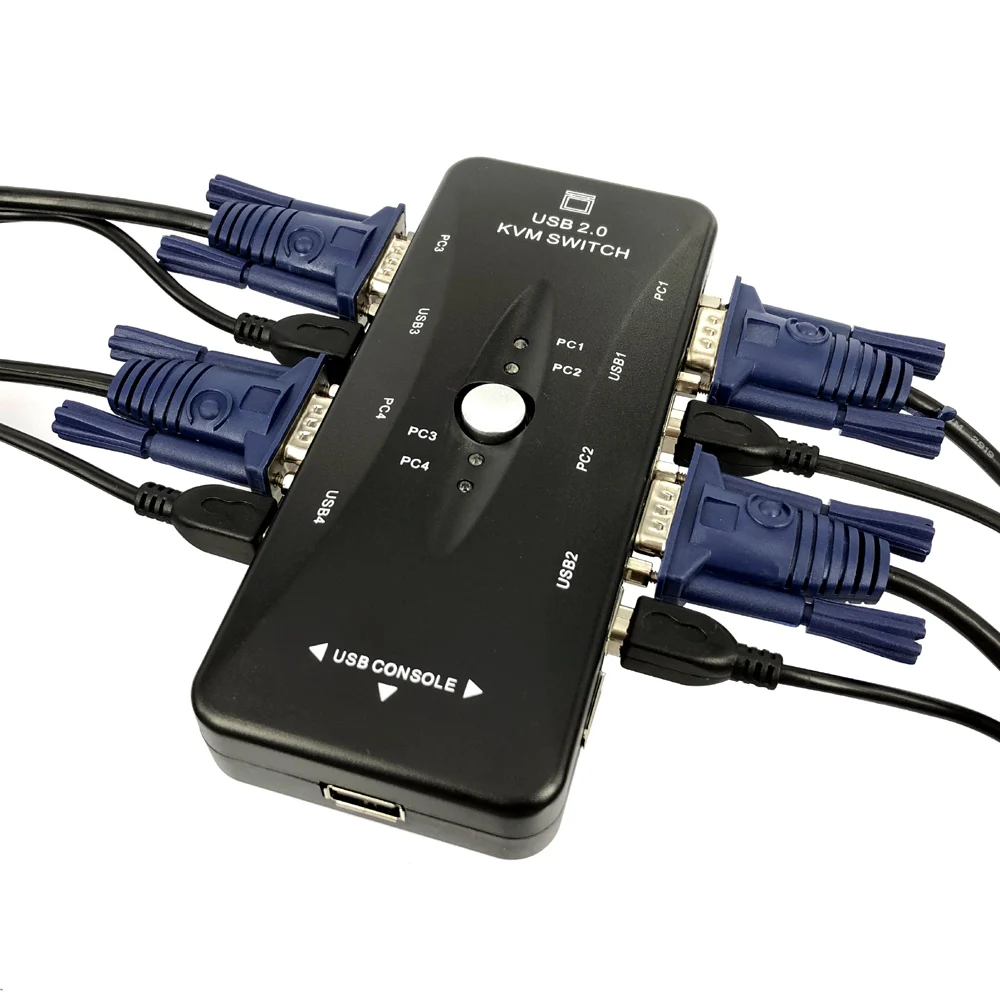

1. Connect the VGA cables, USB cable, to the computer ports of KVM switch

2. Connect the Keyboard, VGA monitor ,Mouse, to control port of KVM switch

3. After Powering on computers and finishing the boot-up process, you can start to go KVM switch.

Usage:

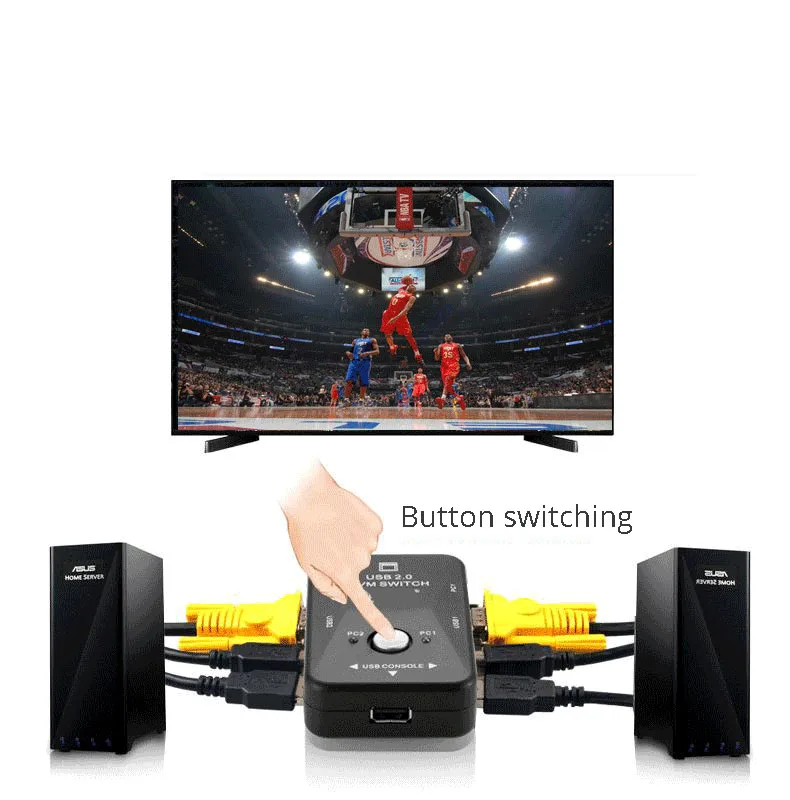

1.Press the button cyclically through all the ports.

  1-->2-->3-->4-->1-->...cycling

2.Each 4 port KVM has separate button on its panel.

3.You can press the buttons in order like mentioned-above diagram or also press the destination button you want directly.

Troubleshooting:

Ensure that all cables are well label all of cables with the number for each respective computer to avoid confusion.

1. KVM switch draws the power from USB port of computers.

2. Don't press any keys on the keyboard while the selected computer is booting up.

    Otherwise, it might cause the keyboard error or keyboard is not selected at PC side.

3. The computer boot up fine, but keyboard doesn't work, Make sure the keyboard works when directly plugged into the computer. Try 101 102 or 104-key keyboard.

4. The mouse is not Selected during PC boot up.

    Make sure the mouse works when directly plugged into the computer, Make sure the mouse plugged into computer, make sure the mouse is a true USB MOUSE.

5. Avoid moving the mouse or pressing the mouse buttons when switching the port.

6.  Laptop:

    Connect the laptop directly to the monitor, make sure the monitor display the content from the laptop, then connect the monitor and the laptop with KVM switch.

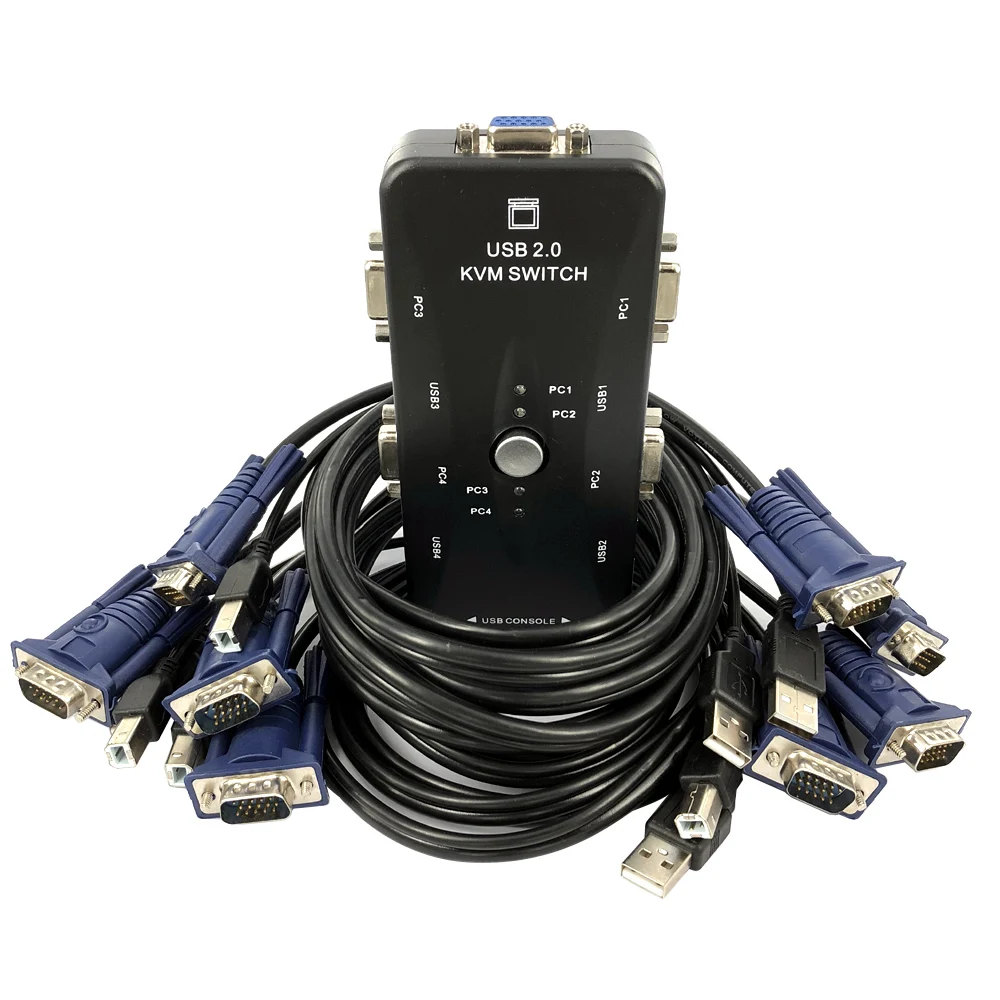

Package Included:

1 X 4 Port USB KVM Switch

4 X KVM Cable

1 X User manual
