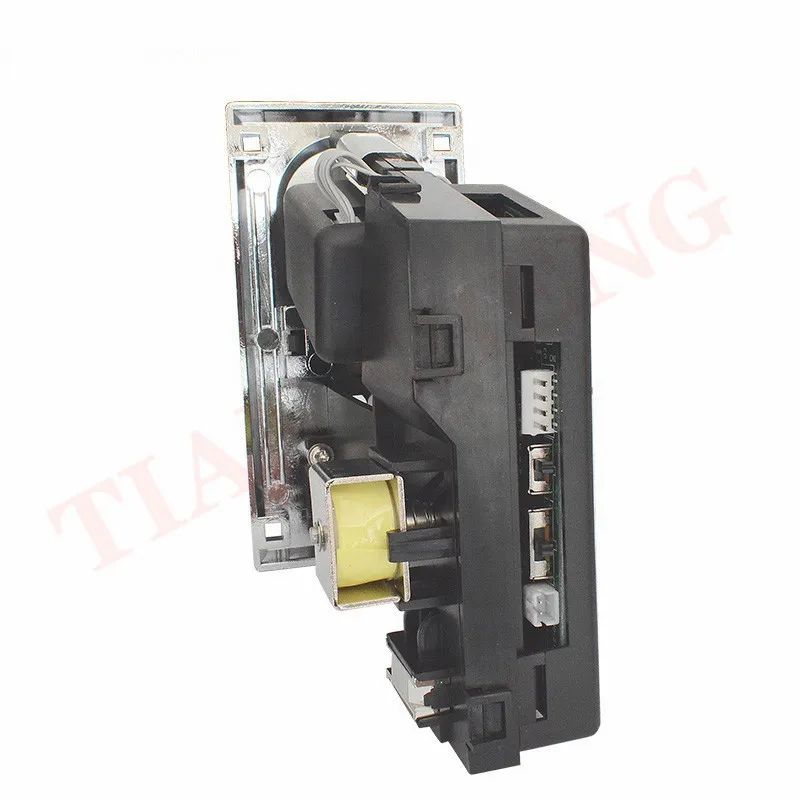

Description:

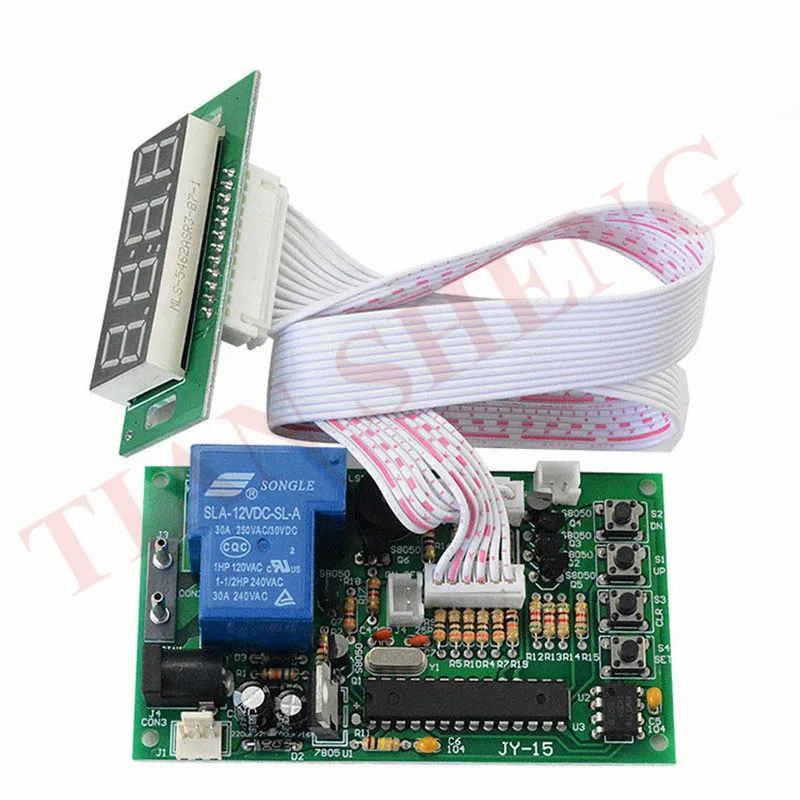

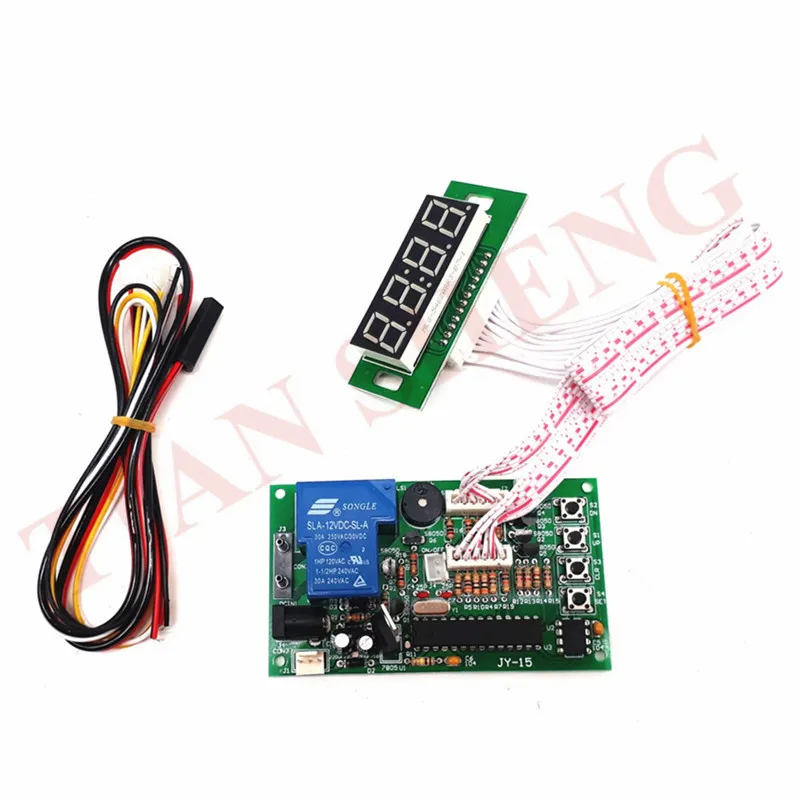

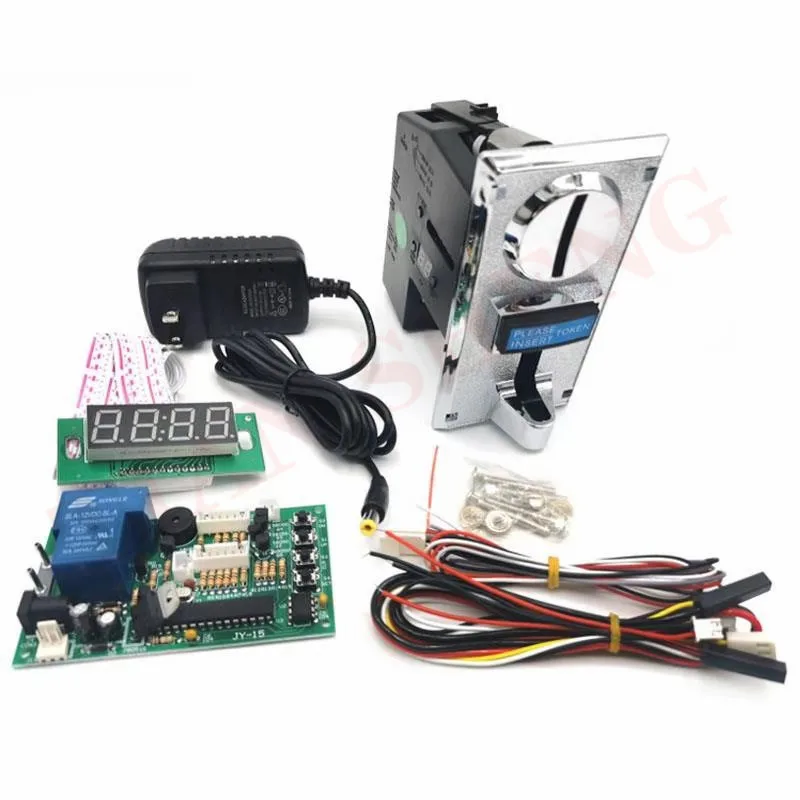

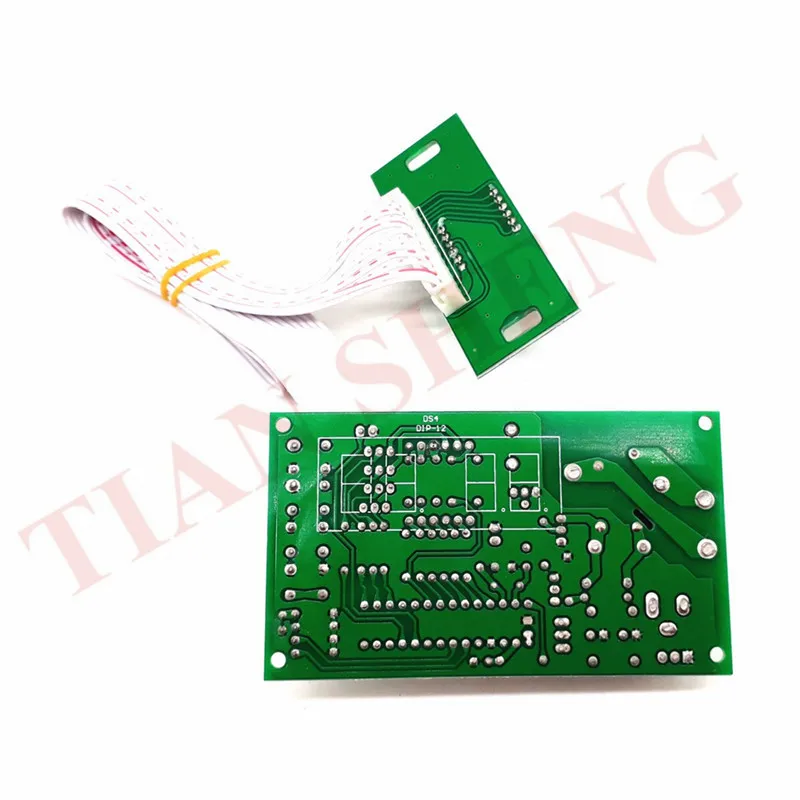

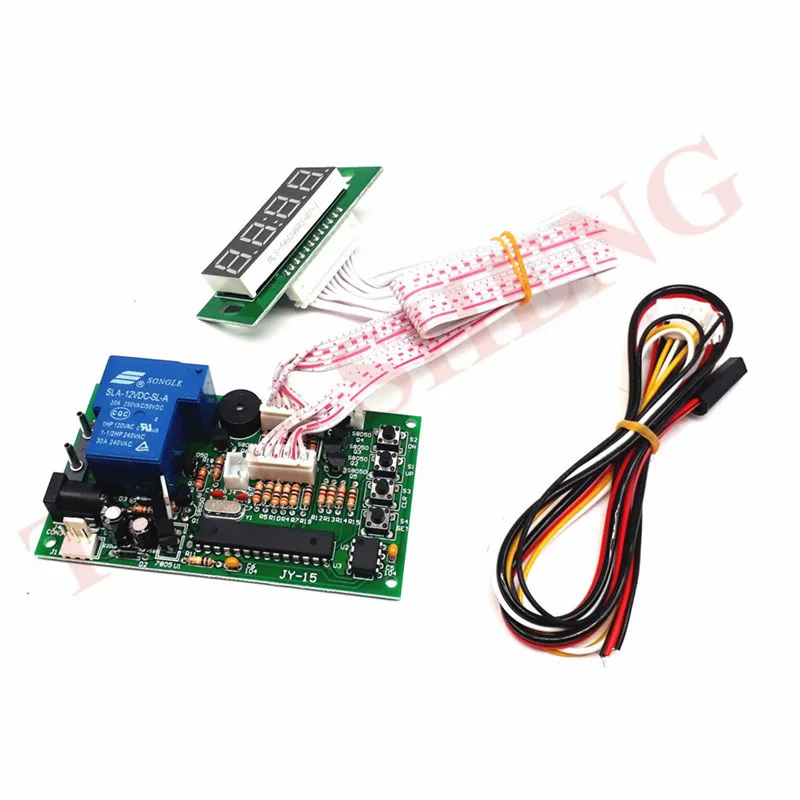

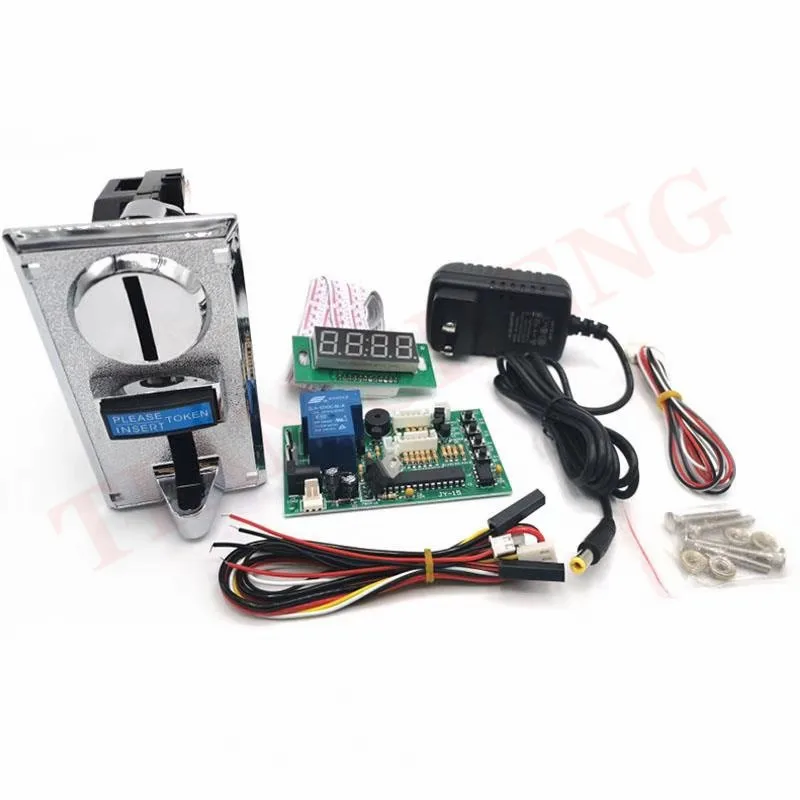

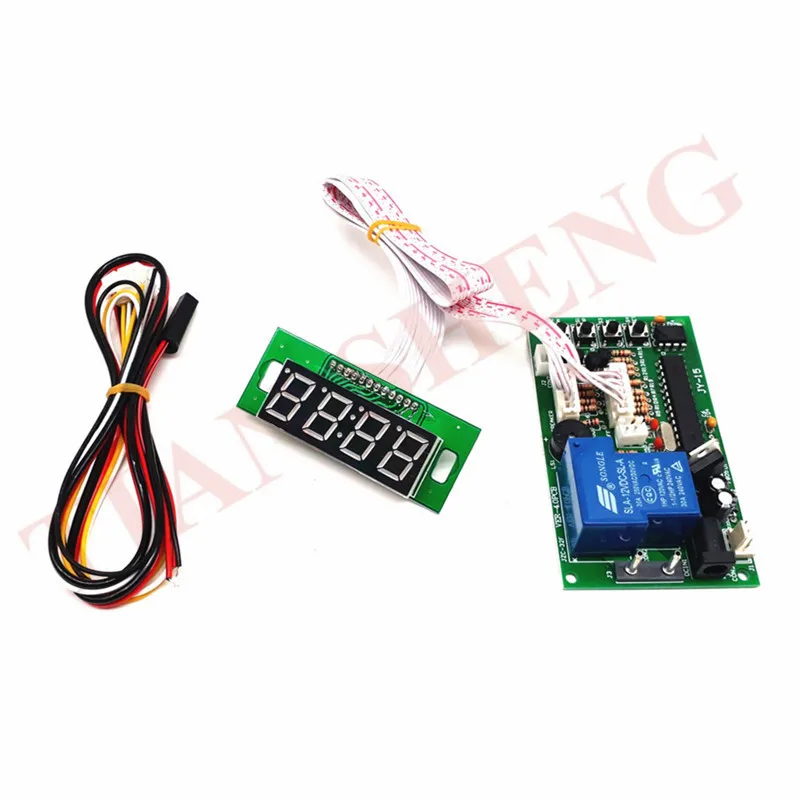

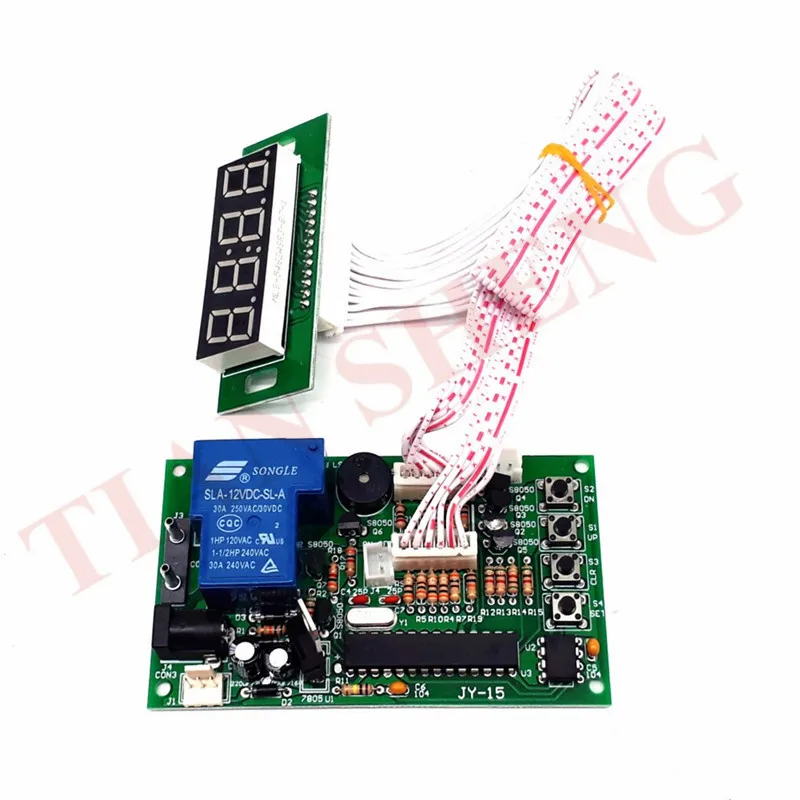

JY15B Timer Board

Description

Input Voltage

DC+12V

Standby

Display shows:00:00, reply: Normal Open (NO)

Accumulated time

Yes, add time if receive signals again when time is running

Max current load

15A

How it works

Mode 1

Time runs down after receive signals-> Display shows remaining time and supply power to device-> it cuts off power after time runs out

Mode 2

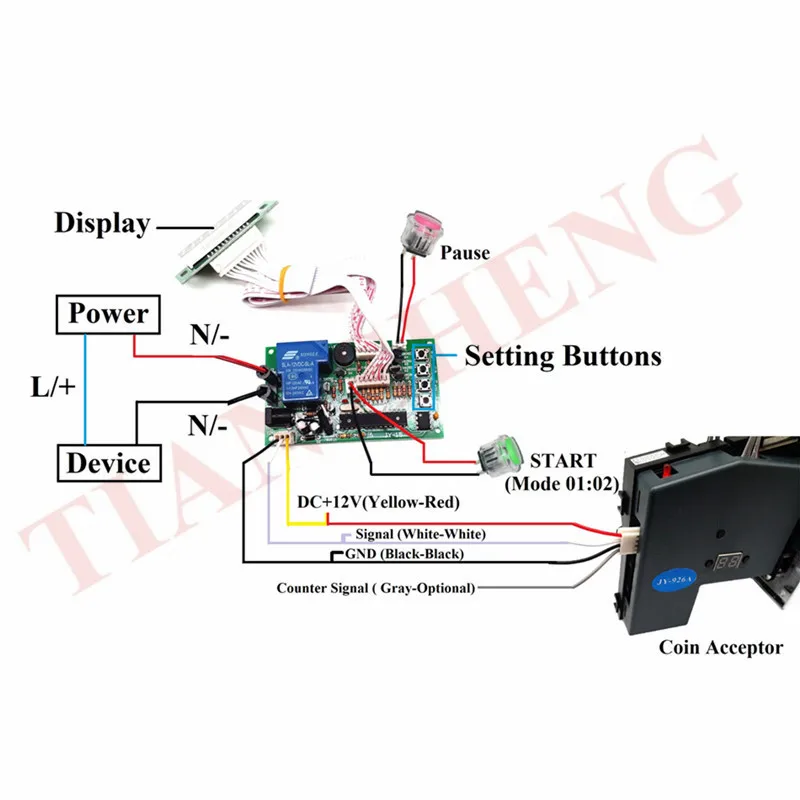

(Connect a button)

Display shows remaining time after receive signals-> push button start-> time runs down and supply power to device-> it cuts off power after time runs out

Pause
(connect a button)

Push button pause: it cuts off power when pause, display shows remaining time.  Re-supply power after push button pause again

Operating Mode

Please reference to page 2

Please follow CODE ON DISPLAY and use button "S1" and "S2" to set up number

INPUT SIGNAL QUANTITY AND TIME

Please press button "S4". “B” flashes. Please set up INPUT SIGNAL QUANTITY to active device (01-50).

Please press button "S4", “A” flashes. Please set up TIME (01-99).

Please press button "S4", “B” flashes. Please set up TIME (01-99).

Please press button “S4” 4 TIMES.

Please set up TIME for Warning Sound.

Please press button "S4" to finish.

----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------PAGE-2

GIVEN TIME:Add time by free if input signals reach SETTING RATE during time is running.
Example Setting: input signal to active device: 01, input signals for given time: 03 give time: 02:10
Add time “02:10” free if receive “3 signals” during time is running.

Please press button "S4" 4 TIMES. “B” flashes. Please set up RATE OF INPUT SIGNAL QUANTITY.

Please press button "S4", “A” flashes. Please set up GIVEN TIME.

Please press button "S4", “B” flashes. Please set up GIVEN TIME.

Please press button "S4" to finish.

Mode Setting

Please follow table to set up operating function:

Please hold on button "S1" and "S2" simultaneously for 3 seconds to get intoMODE SETTING.

Please use button "S1" and button "S2" to set up number forCODE

Please press button "S4" to switch to next code

Function

Code on Display

Description

A

B

Running Time

01

01

Time runs down without pressing button

02

Time runs down by pressing button

Time Type

02

03

MINUTE: SECOND

04

HOUR: MINUTE

Memory

03

05

Yes: Remaining time keep running after power off and on

06

No: Standby power off and on

Back to standby

04

1-30

user has no action after push buttons or receive signals in setting time

Default: 01-03: Bold and base line. 04: not use the function.
