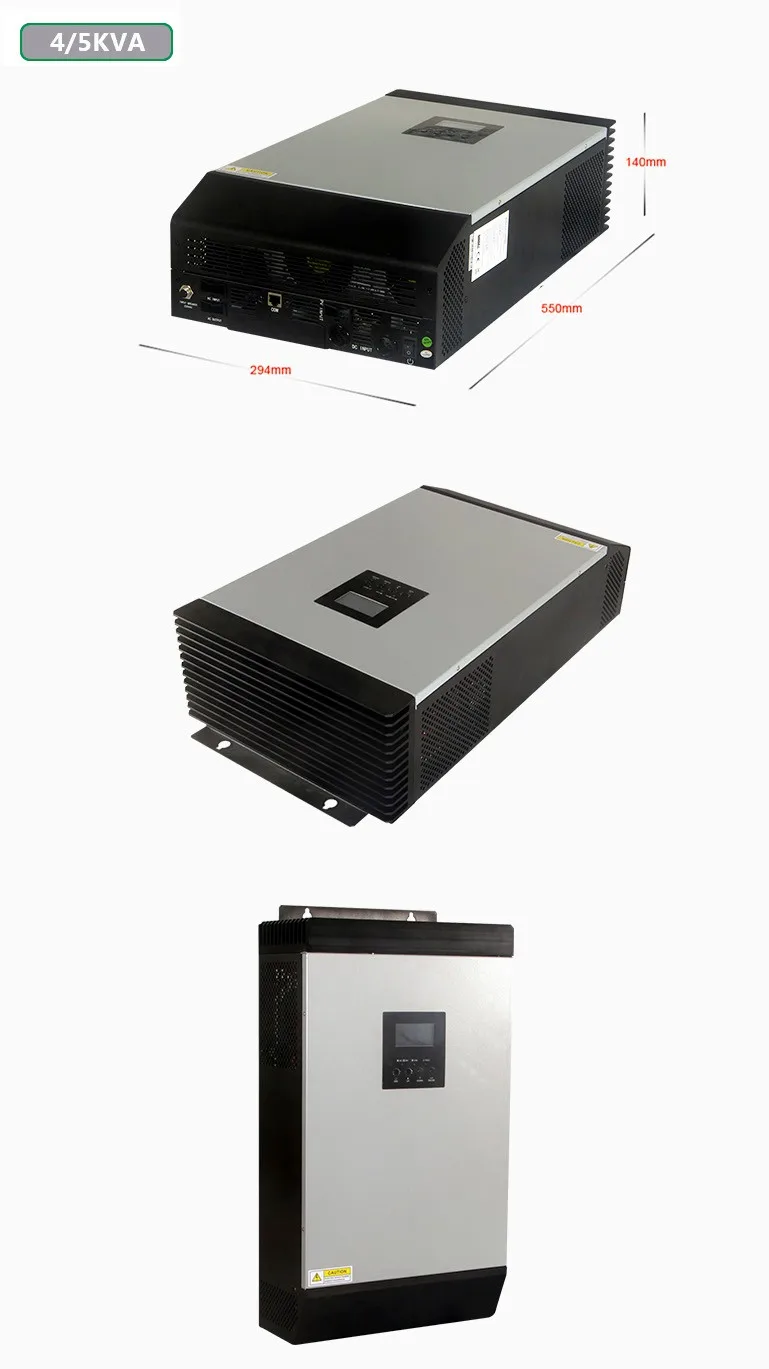

5000VA 4000W Гибридный инвертор чистого синусоидального типа с комплектом для параллельной работы входным напряжением 48VDC и выходным напряжением 220VAC с контроллером зарядного устройства солнечной батареи MPPT 80A.

5000VA 4000W Гибридный инвертор чистого синусоидального типа с комплектом для параллельной работы входным напряжением 48VDC и выходным 220VAC контроллером зарядного устройства солнечной батареи MPPT 80A.

Unavailable in

This is multi-function inverter/charger ,combining functions of inverter,MPPT solar charger and battery charger to offer uninterruptible power support with portable size .Its comprehensive LCD display offers user-configurable and easy-accessible button operation such as battery charging current .AC/Solar charger priority ,and acceptable input voltage based on different applications

Battery Connection

Model

Typical Amperage

Battery Capacity

Wire Size

Ring Terminal

Torque value

Cable mm2

Dimensions

D(mm)

L（mm)

5KVA

87A

200AH

1*4 AWG

22

6.4

33.20

2~3 Nm

2*8 AWG

14

6.4

29.20

AC Input/Output Connection

Model

AC Breaker

Gauge

Torque value

5KVA

50A

8 AWG

1.4~1.6 Nm

PV Connection

Model

Typical Amperage

Cable Size

Torque value

5KVA

60A

8 AWG

1.4~1.6 Nm

PV Module Selection

Maximum Power(Pmax)

260W

Max.PV module numbers in series

Max. Power Voltage Vmpp(V)

30.9V

3: 30.9x3=60~115

Max.Power Current Impp(A)

8.42A

PV module numbers in parallel

Open Circuit Voltage Voc(V)

37.7V

9: 80A/8.42

Short Circuit Current Isc(A)

8.89A

Total PV module numbers:3x9=27

Maximum PV module numbers in Series : 3

PV module numbers in parallel : 9

Total PV module numbers :3x9=27

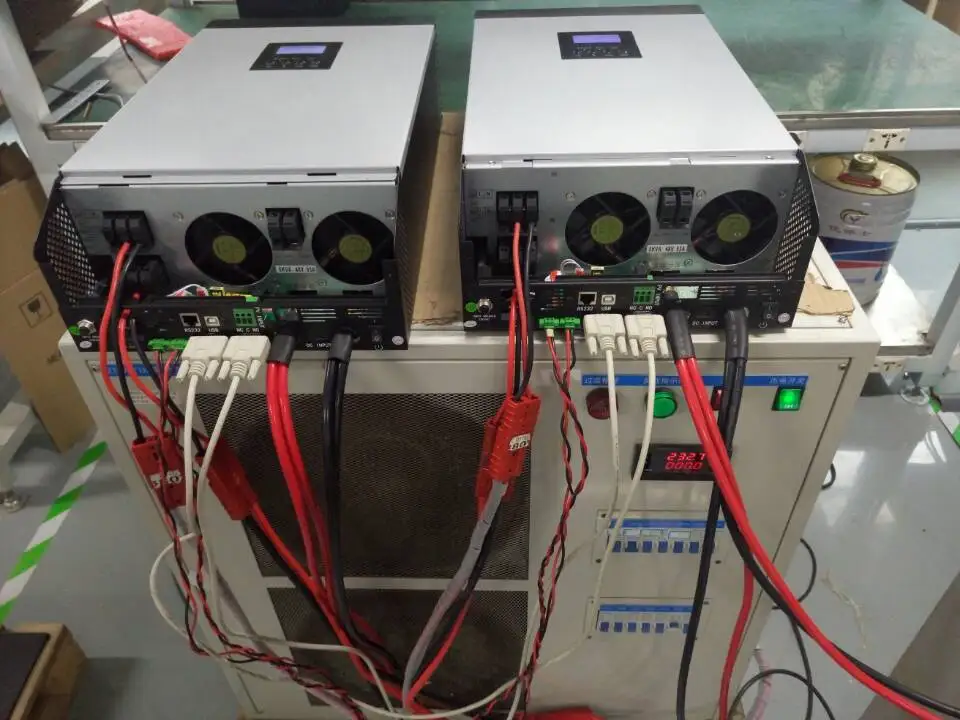

There is one parallel kit inside each inverter,if you want to put two inverters in parallel , you need to buy two pieces this model

if you want to put three inverters in parallel , you need to buy three pieces !

Pure sine wave inverter

Built-in MPPT solar charge controller

Selectable input voltage range and frequency according to city power in your country

Charging current is setable according to your battery type

Configurable AC/Solar input priority via LCD setting

Compatible to mains voltage or generator power

Auto restart while AC is recovering

Overload and short circuit protection

Smart charging system optimizes battery performance

Cold start function

Parallelable up to 4 units which available on MPS4K/5K only

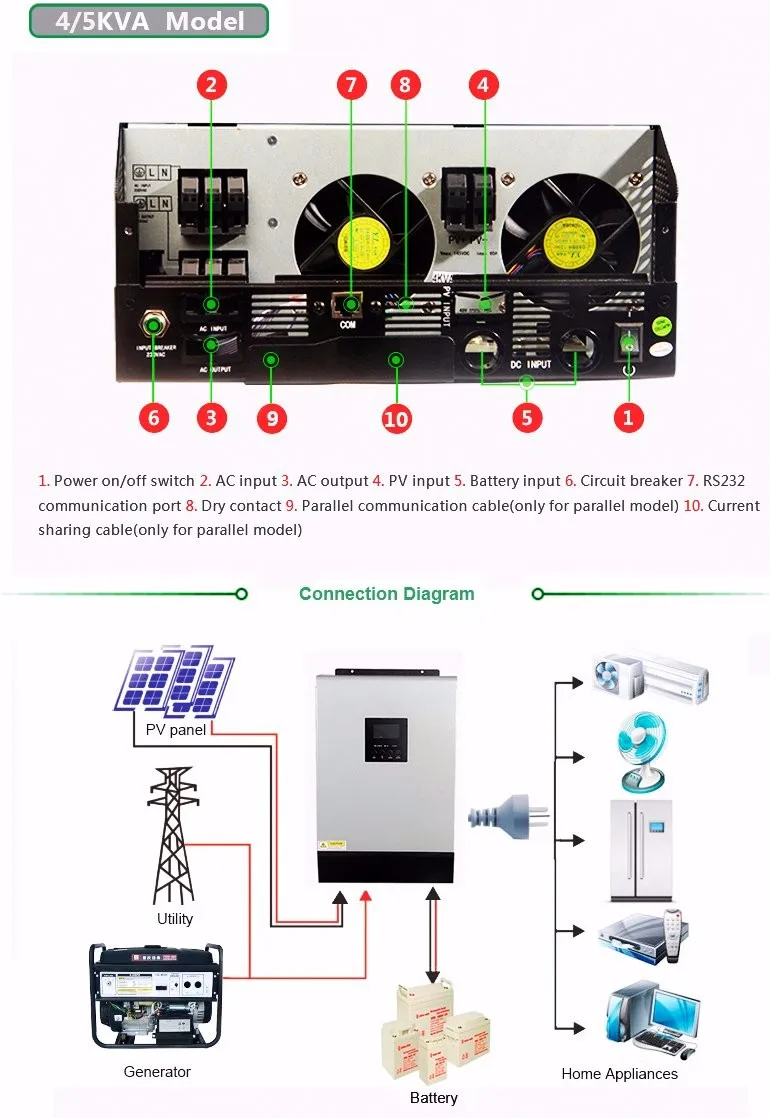

The following illustration sgiws basic application for this inverter/charger .It also includes following devices to have a complete running system :

Generator or Utility

PV modules (Option)

Consult with your system intergrator for other possible system architectures depending on your requirements .This invertert can power all kinds of applicances in home or office environment ,including motor-type applicances sucha as tube light ,fan,refrigenrator and air conditioner

Note:For Parallel model installation and operation ,please check separate paralllel installel installation guide for the details

1 LCD display

2.Status indicator

3.Charging indicator

4.Fault indicator

5.Function buttons

6.Power on/off swtich

7.AC input

8.AC output

9.PV input

10.Battery input

11. Circuit Breaker

12. RS232 communication port

13.Parallel communication cable (only for parallel model)

14.Current sharing cable (only for parallel model)

15.Dry Contact

The unit x 1

User Manual(English) x 1

Communication cable x 1

Software CD x 1

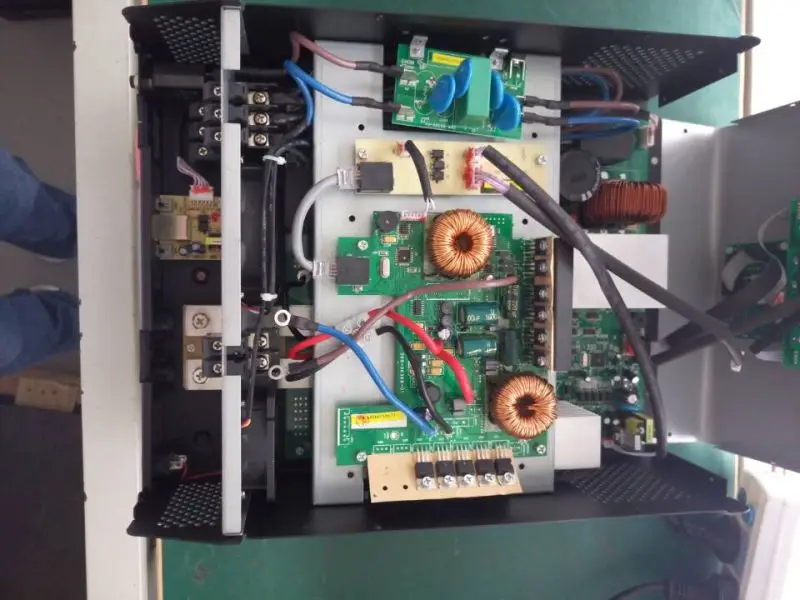

MPPT charge controller with large transformer coil inside.
