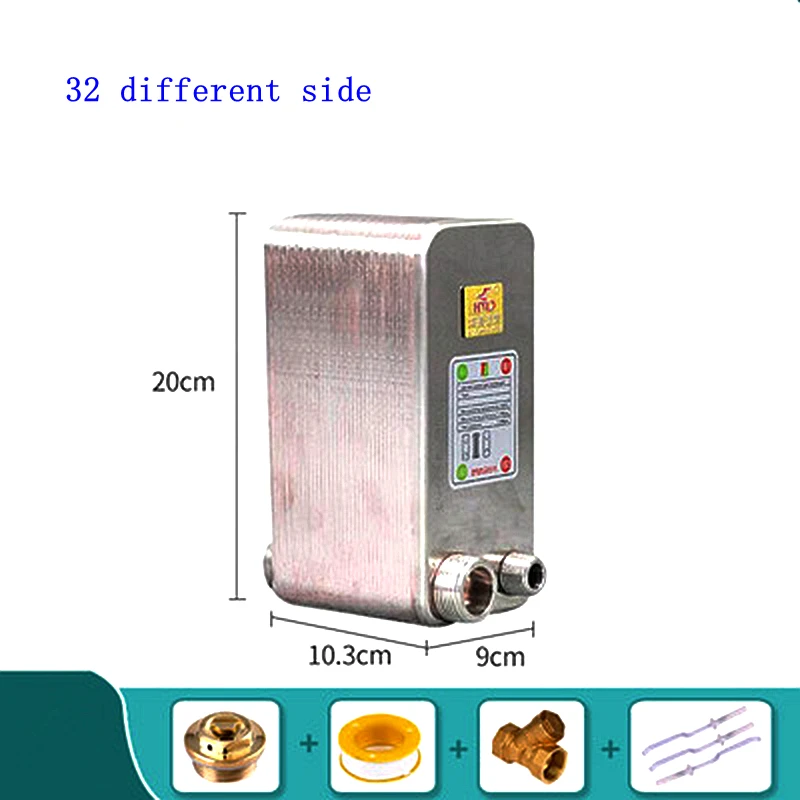

32 Plates stainless steel heat exchanger Brazed plate type water heater SUS304

We are not responsible for any custom duty or import tax, it is buyer’s responsibility.Thanks for your understanding.

If you have any questions,  Please send us a message. We have English and Russian customer service.

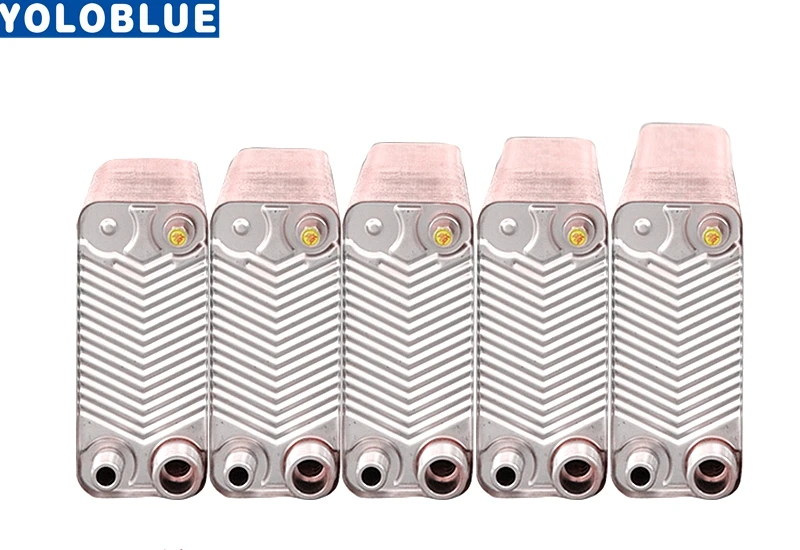

Name: Brazed plate type heat exchanger

Material:SUS 304 Stainless Steel, food grade

WeldIing Material: 99.9% Copper

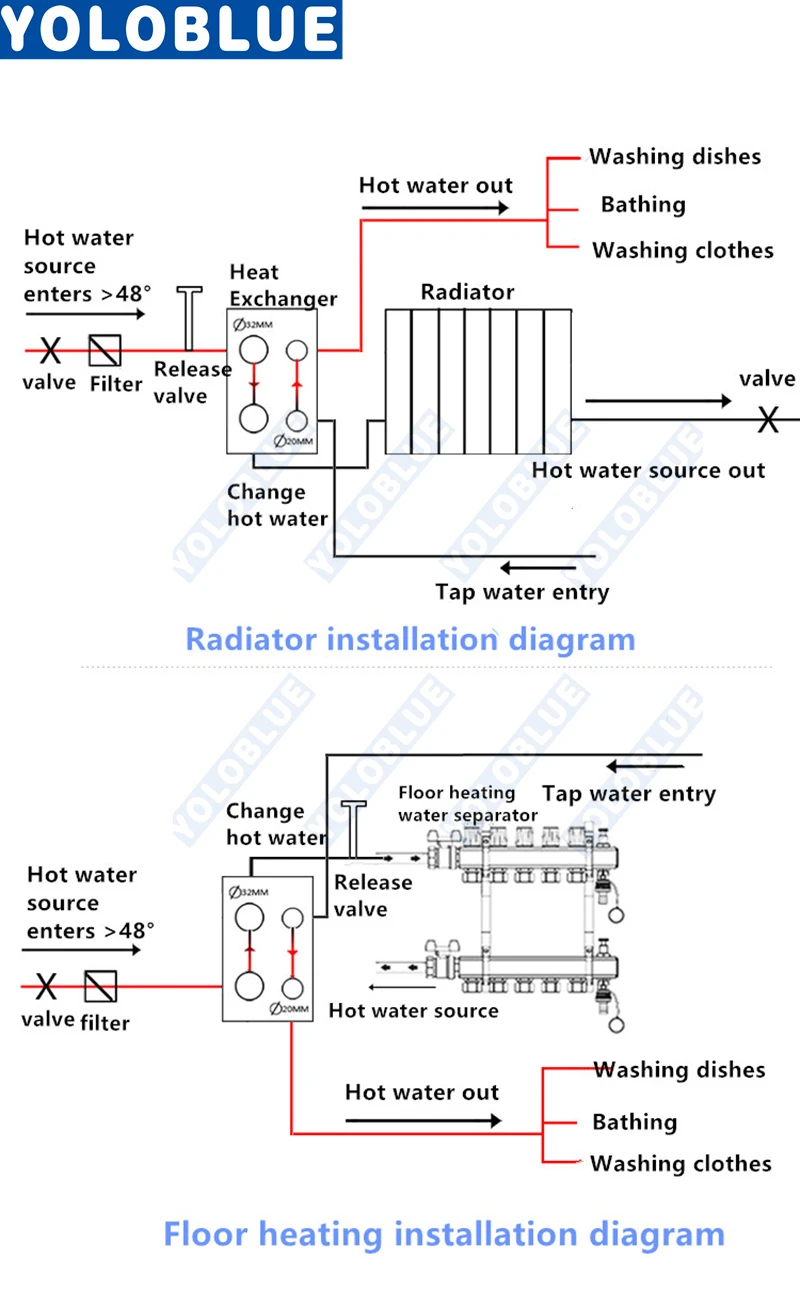

Application:Home Brew Wort Chiller, Famliy Hot Water supply

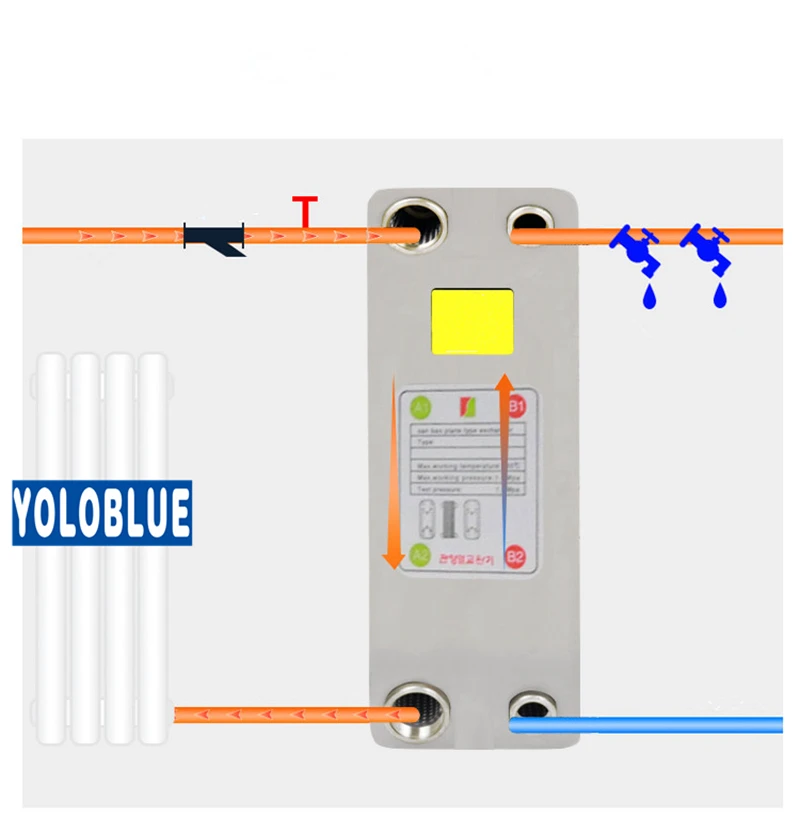

Thread of Port A1、A2:1/2" BSPT Male

Thread of Port B1、B2:1" BSPT Male

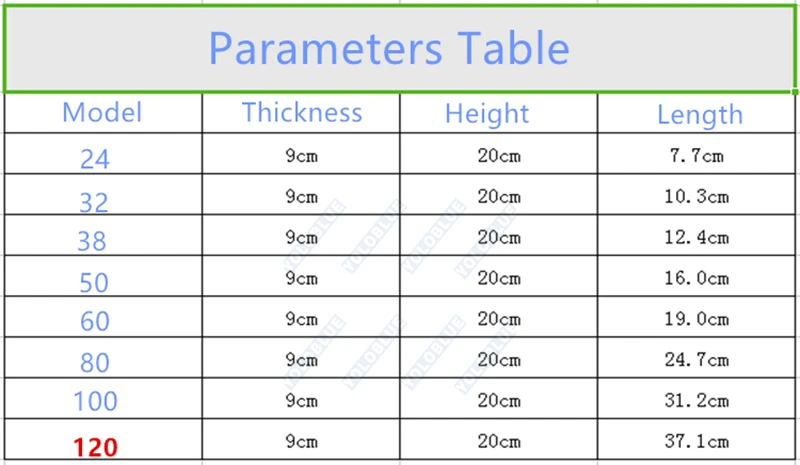

Plates Number: 32 plates

Heat Transfer Area/plate: 0.028 m2(0.30 ft2)

Thickness of One Plate:0.25-0.35mm

Working Temperature:-160 ℃ to + 185 ℃

​Below 50 plates: suitable for washing hands and face

Options Instruction:

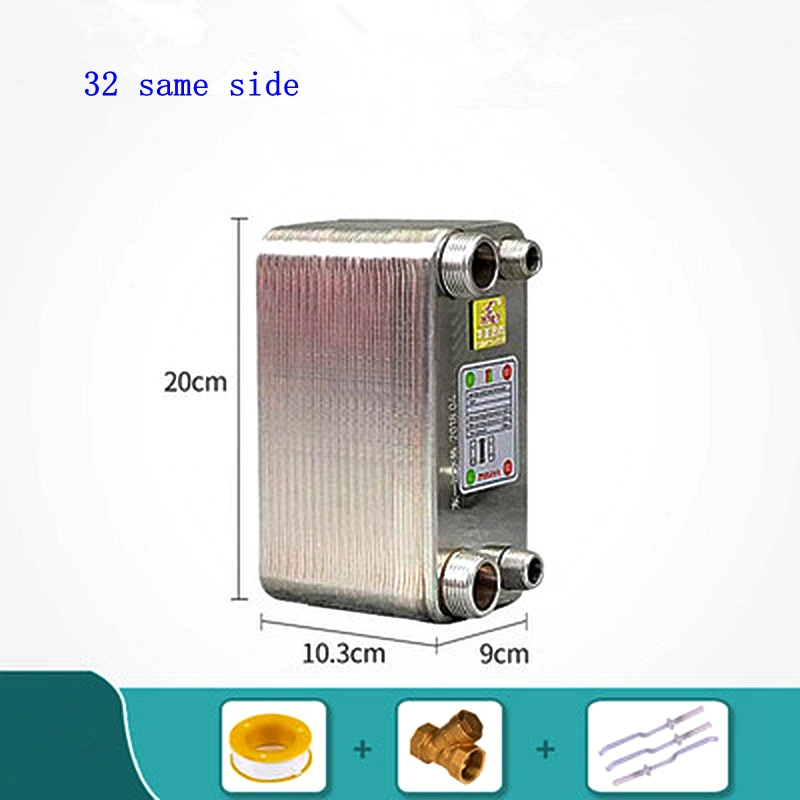

Same side: mean the 4 ports are in the same side

Different side: mean the 4 ports are in different side, each side with 2 ports.

Please choose it according to your own demand. Thanks.

Besides above four ports, there is an air vent on the heat exchanger for 50 plates heat exchanger and above, this air vent's function is to avoid if there is some air remained in the exchanger and you need to release the remain air so that the water can go through when you first time use this heat exchanger. For other time, the air vent need to be plugged with a plug.
