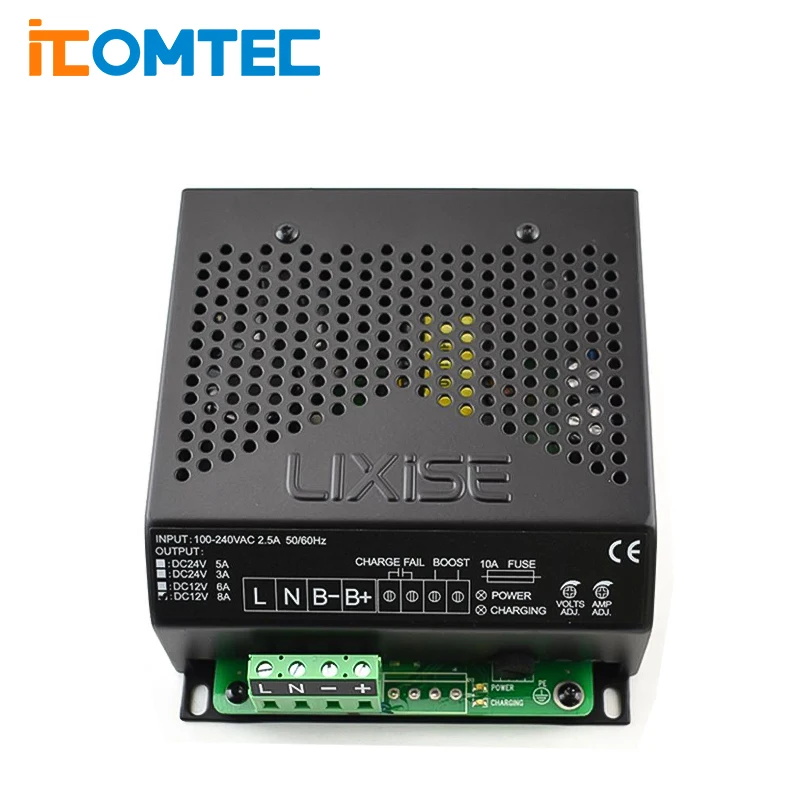

LBC1208 LIXiSE 12V 8A diesel generator battery charger

Description-----

Designed for engine starting operation of battery charging, charging more.With constant voltage, constant current, a trickle floating, full automatic stop, short circuit, reverse connection, etc

Selling point:

Does many sections of charging, extend battery life 30%

Does have short circuit resistance, resistance to reverse function

Does high reliability, can work normally in - 30 ~ 70 degrees

Does plus: one year replacement, lifetime warranty

Why did you choose us:

Many sections of the charging: constant voltage, constant current, a trickle charge, full automatic stop, extend battery life by 30%

With functions of short circuit resistance, resistance to reverse

LED charging status indication, a see will know whether they have been full of

With charging output contact failure, can be connected to the PLC, generator controller, etc., realize charging fault alarm

With the BOOST up voltage function, compensation winter filling dissatisfaction phenomenon

High reliability, can work in - 30 ~ 70 degrees

Wide input voltage range: 100-265 vac

Use switch circuit structure, efficiency is as high as 86.7% @ 265 vac



Category Project Specification
Input Characteristic nominal AC input voltage range AC (100~240)V
Max. AC input voltage range AC (95~280)V
AC frequency 50 Hz/60 Hz
No-load power consumption <3 W
efficiency AC 110 V AC 220 V
>82% >86%
Max. input active power LBC 2405 LBC 2403 LBC 1206 LBC 1208
168 W 97 W 90 W 118 W
Max. Input current 2.9 A 1.8 A 1 A 1.5 A
Output Characteristic No-load output voltage 27.6 V,error ±1% 13.8 V, error ±1%
rated charging current 5 A,error ±2% 3 A,error ±2% 6 A,error ±2% 8 A,error ±2%
rated output 135 W 85 W 83 W 111 W
Alarm Output relay contact 0.5 A/250 VAC(Only useful with B suffixes, such as LBC2405B)
Insulating Property insulating resistor Input and output,input and shell both read DC500V 1min RL 500MΩ
insulating voltage Input and output,input and shell both read AC1500V 50Hz 1min leak current IL 3.5 mA
Working Situation working temperature (-30~55)°C
store humidity (-40~85)°C
working humidity 20% RH~ 93% RH( no condensation)
storage humidity 10% RH~ 95% RH(no condensation)
weight 0.7 kg
Configuration size 133 mm× 117 mm× 53 mm (length× width× height)
