body { font-size: 75%; color: #000; font-family: Open Sans,Arial,Helvetica,sans-senif,SimSun,"宋体"; line-height: 1.3; } dl { margin: 0px; width: 480px; float: left; } dt { width: 100px; height: 15px; float: left; } dd { width: 240px; height: 15px; float: left; } dl dt { margin: 0px; line-height: 22px; color: #474747; font-size: 14px; font-family: tahoma; } #product-desc { width: 100%; height: 209px; } #description { width: 100%; height: 50%; } #details { width: 100%; height: 50%; } .ui-box-title { height: 30px; font-size: 15px; font-family: tahoma; font-weight: bold; background-color: #ddd; text-anchor: inherit; padding-top: 8px; margin: 0px; } .ui-box-body { margin: 0px; } #tbspecifics { border-right: 1px solid black; border-bottom: 1px solid black; } #tbspecifics tr { height: 30px; } #tbspecifics td { width: 100px; border-left: 1px solid black; border-top: 1px solid black; } 10-42Inch LVDS Universal Lcd Driver Board MT561-MD Free Program 12V 25Kinds Jump Cable VGA+DC NEW Powerful Universal VGA LCD Controller Board for easy DIY LVDS panel 10inch to 42inch up to 1920x1200 optional by jumper

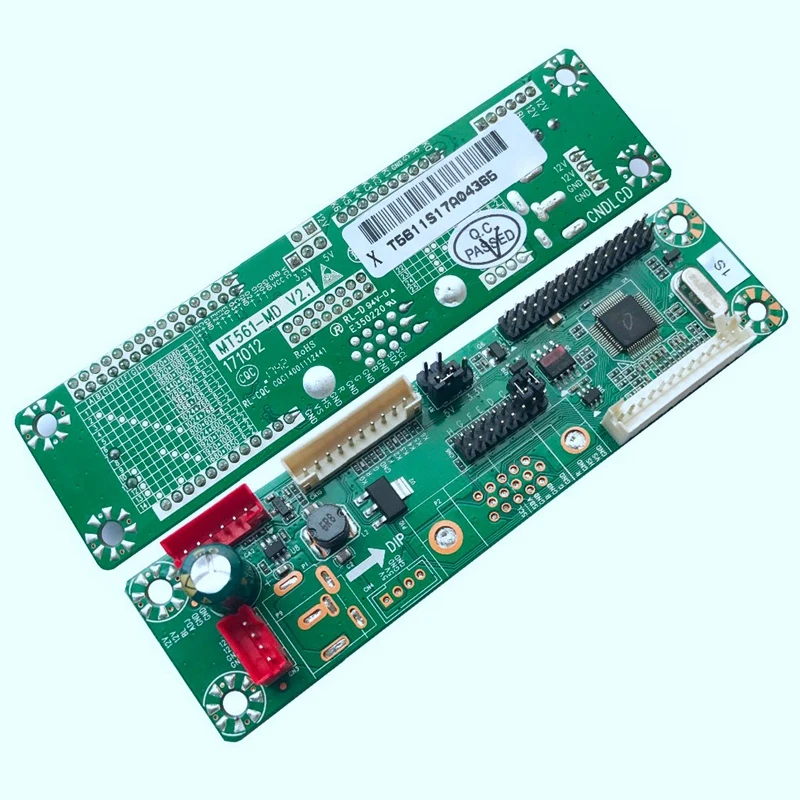

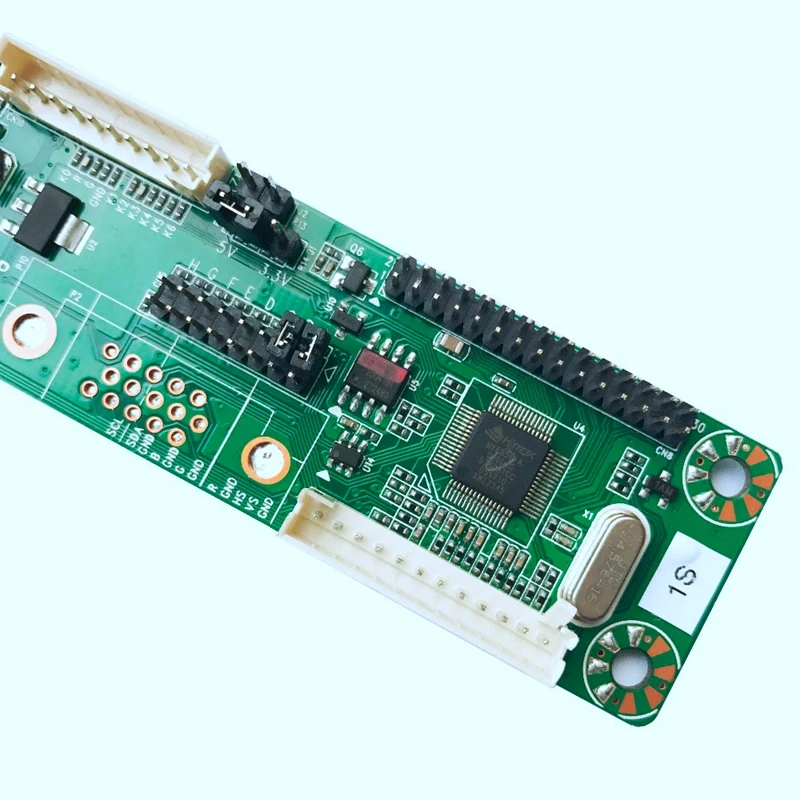

Model: MT561-MD V2.1
Function: Turning a bare LCD panel into a working screen. Especially good for reusing old laptop LCD screen (in good condition, but mother board died)

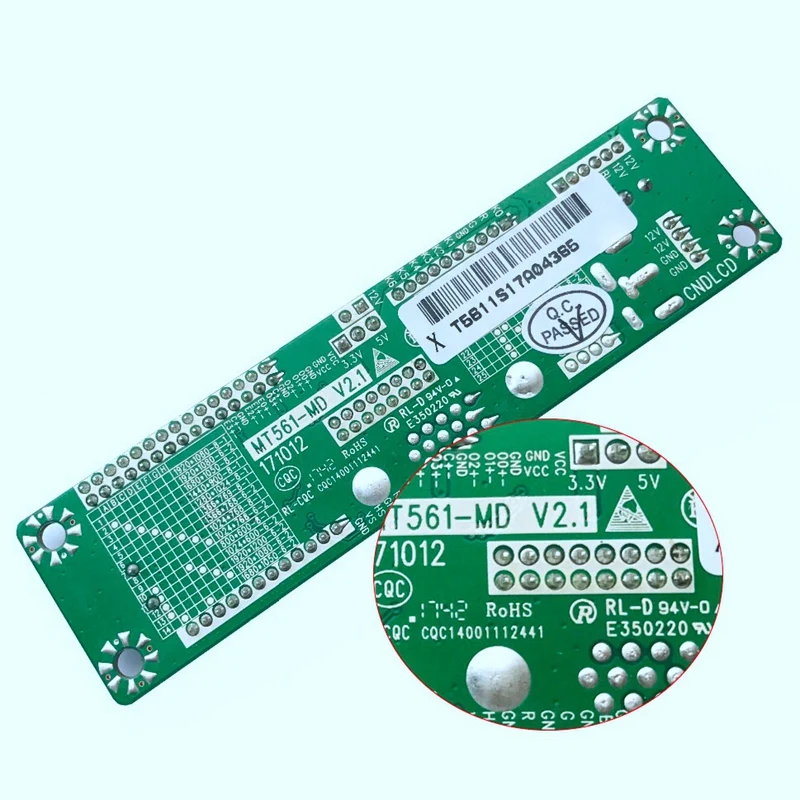

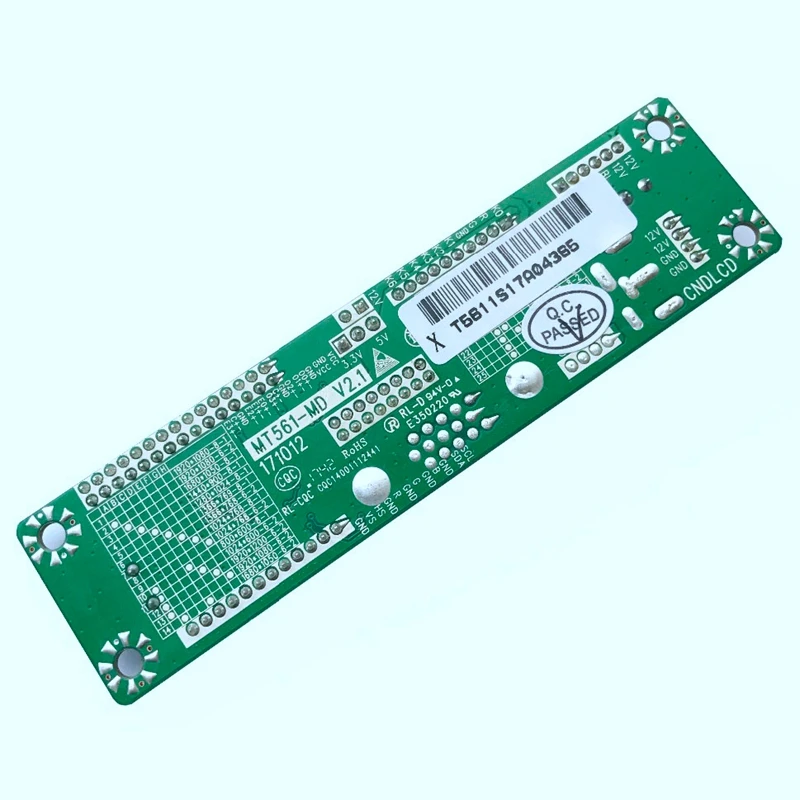

Interface definition pin orders shown on the back of the board! Easy for DIY!

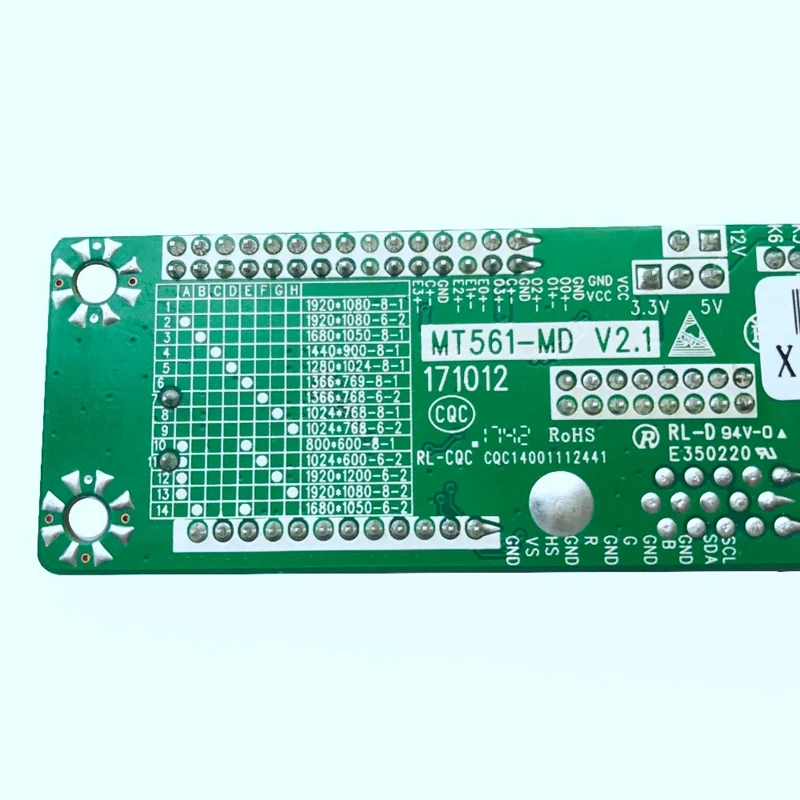

Resolution Choices optional by jumper, instruction Printed on backside.Jumper options base on panel resolution (Notes: -1,-2 refer to panel TI mode)
CN8(2 X 15PIN/2.0) LVDS interface
Pin Seq. - Definition-Description
1 LCD-VDD Power for Panel
2 LCD-VDD Power for Panel
3 LCD-VDD Power for Panel
4 GND Ground
5 GND Ground
6 GND Ground
7 RXO0- LVDS ODD 0 - Signal
8 RXO0+ LVDS ODD 0 + Signal
9 RXO1- LVDS ODD 1 - Signal
10 RXO1+ LVDS ODD 1 + Signal
11 RXO2- LVDS ODD 2 - Signal
12 RXO2+ LVDS ODD 2 + Signal
13 GND Ground
14 GND Ground
15 RXOC- LVDS ODD Clock - Signal
16 RXOC+ LVDS ODD Clock + Signal
17 RXO3- LVDS ODD 3 - Signal
18 RXO3+ LVDS ODD 3 + Signal
19 RXE0- LVDS EVEN 0 - Signal
20 RXE0+ LVDS EVEN 0 + Signal
21 RXE1- LVDS EVEN 1 - Signal
22 RXE1+ LVDS EVEN 1 + Signal
23 RXE2- LVDS EVEN 2 - Signal
24 RXE2+ LVDS EVEN 2 + Signal
25 GND Ground
26 GND Ground
27 RXEC- LVDS EVEN Clock - Signal
28 RXEC+ LVDS EVEN Clock + Signal
29 RXE3- LVDS EVEN 3 - Signal
30 RXE3+ LVDS EVEN 3 + Signal
Instruction to connect the controller board to the LCD:
1. Take away the old inverter and old LVDS cable from the LCD panel.
2. Connect the new inverter and LVDS cable to your LCD panel.
3. Connect controller board with PC by VGA cable.
4. Input power of 12V,4A.
Condition: New
Input signal: VGA
Compatible: GameConsole
colour:green
Material:Plastic + metal
Package Contents:
1 * Driver Controller Board
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
