4 6 Axis MACH3 USB motion control card CNC Standard Board MK4 MK6 Wireless hand wheel

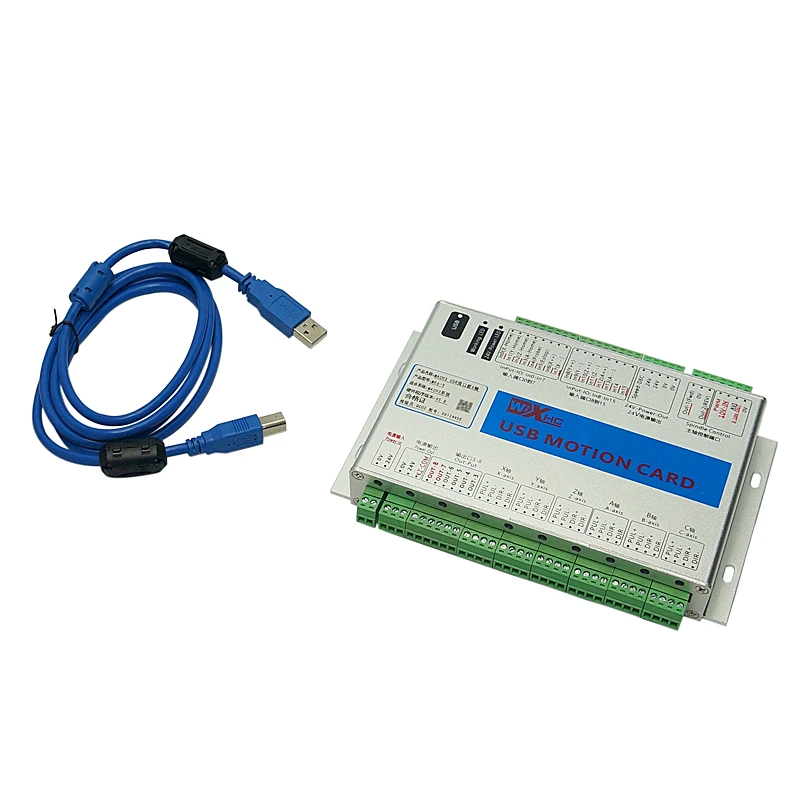

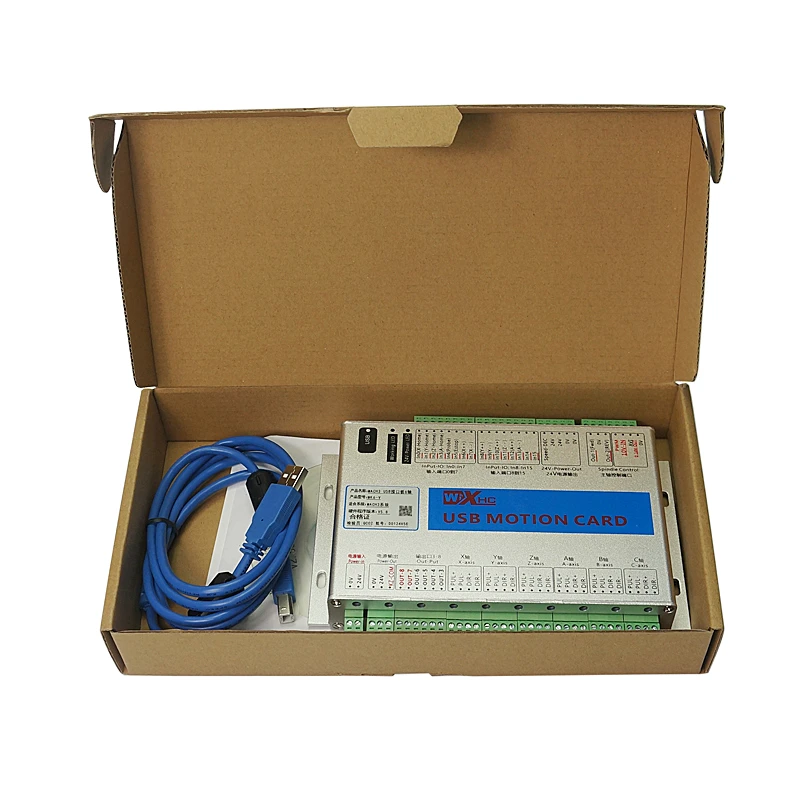

Specification- USB motion control card:

I. Description:

This is the latest generation motion control card, It could work under Mach3 software. The maximum step-pulse frequency is 2000 KHz.

II. Features:

1.Dual-Processors, ARM+FPGA, More processing power

2.Support all versions of Mach3.

3.Work under Windows 32-bit operating system (not including Mac OS)

4.Support spindle speed feedback function.

5.USB jack does not need to install the driver, plug and play under all versions of Windows.

6.Full support USB hot-swappable, USB connection status monitoring at any time. Under Mach3 working state, USB cable unplugs and then plugs in, but also the normal connection.

7.Supports 6 axis linkage.

8.Maximum step-pulse frequency is 2000 KHz, can connect servo driver and stepper driver.

9.The indicator light indicates various working status, such as USB connection, Mach3 connection and so on.

10.16 input IO, 8 output IO, Supports extended I / O control.

11.Onboard isolated power supply, not need external power supply.

12.All IO port fully isolated, strong anti-interference, stable performance.

13.Support spindle speed PWM output; support spindle pulse and direction output; support spindle speed output from 0 to 10V analog voltage.

14.Support XHC series of wireless electronic Mach4 MPG

15.With an aluminum shell, effectively shielding interference, stable and reliable performance.

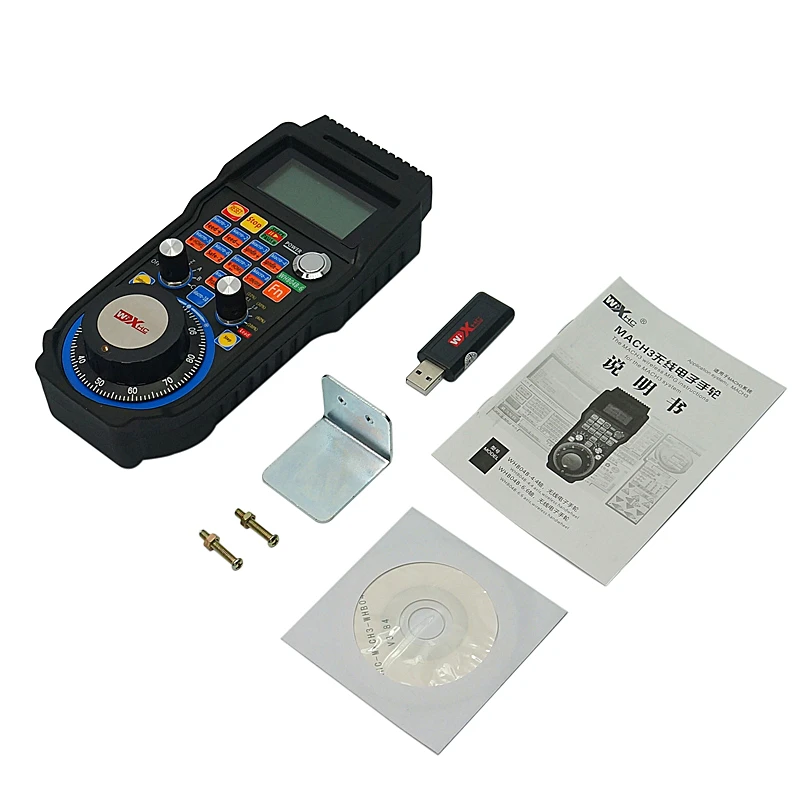

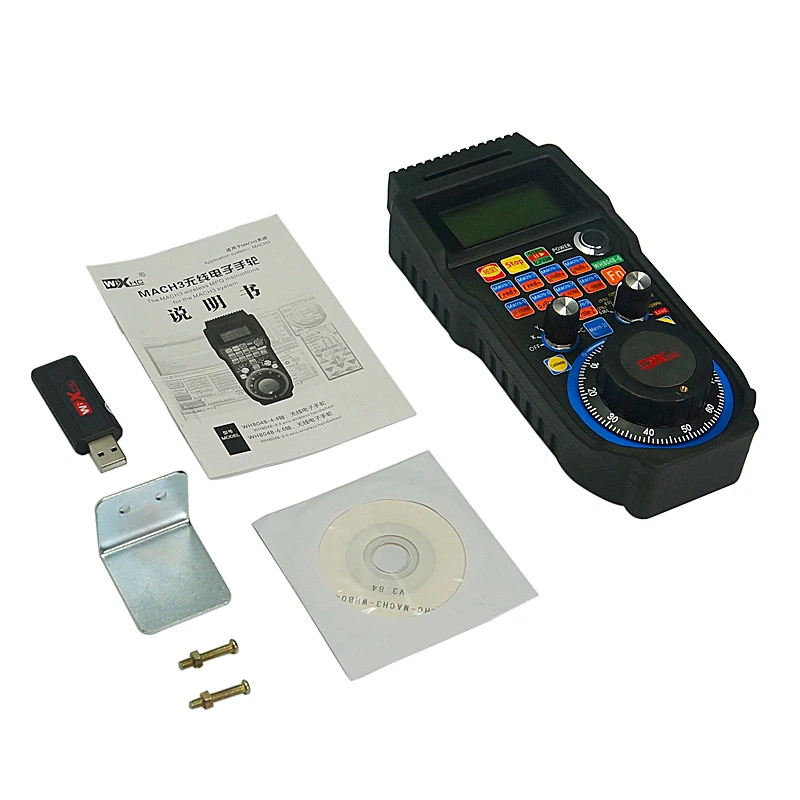

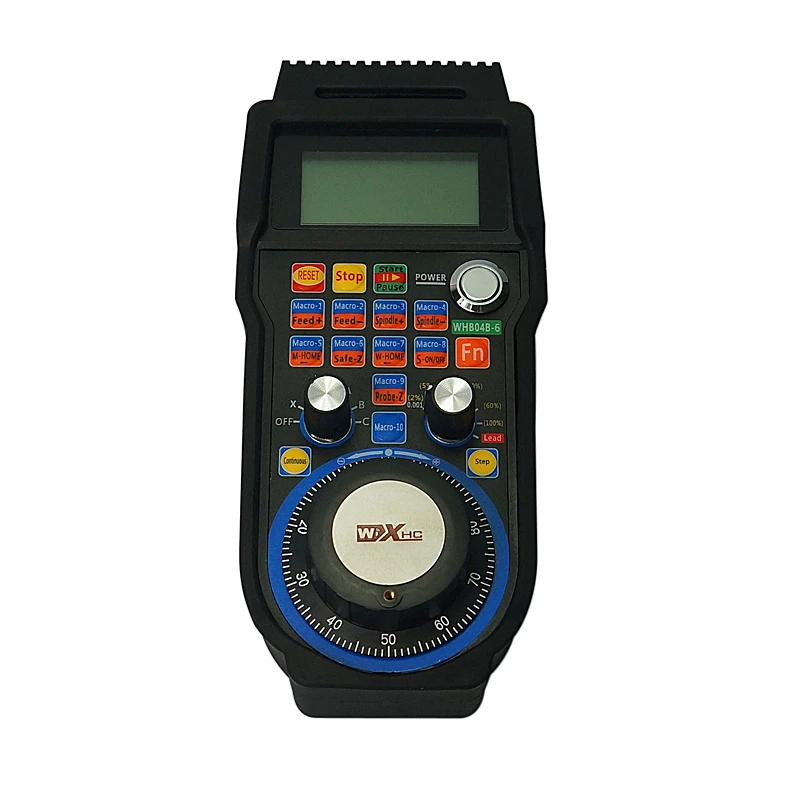

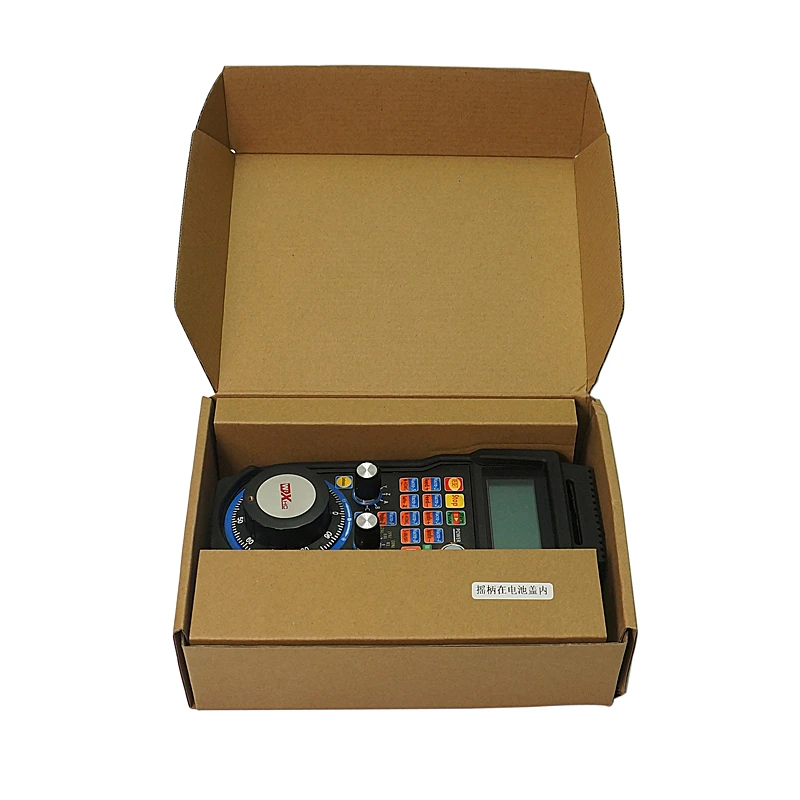

Specification- Wireless hand wheel:

Radio frequency: 433 MHz, ISM, theTx power is 10DB and the RX sensitivity is 98DB

USB receiver 6axis (X, Y, Z, A,B,C axis) with LCD display real-time display

Support 128*64 dot matrix input

Support 100PPR electronic hand wheel function.

Support the 13 shortcut keys, the user is free to define the function

Wireless transmission distance of 40 meters

64 channel frequency hopping transmission, strong anti-interference, stable and reliable; the channel gap is 1 MHz

Low power design, 2 AA battery for 1 months

Industrial grade design, dust proof design, stable and reliable

Applied to a variety of CNC systems, suitable for the use of the industry are: engraving machine industry, engraving and milling machine industry, CNC lathe industry, laser cutting machine industry, flame cutting machine industry, plasma cutting machine industry, automation production control industry.

Package Content:

1set 4/6axis CNC Motion Control Card

1 set 4/6axis Wireless hand wheel

note: MK-V is USB port; MK-ET is Ethernet port

6 Axis MACH3 Ethernet motion control card MK6 CNC USB Wireless hand wheel

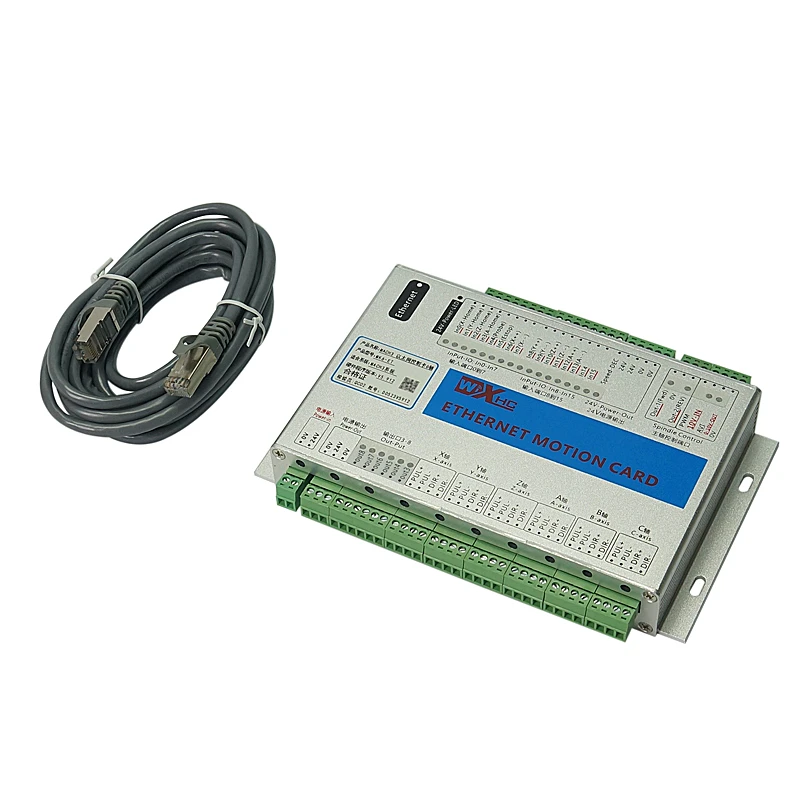

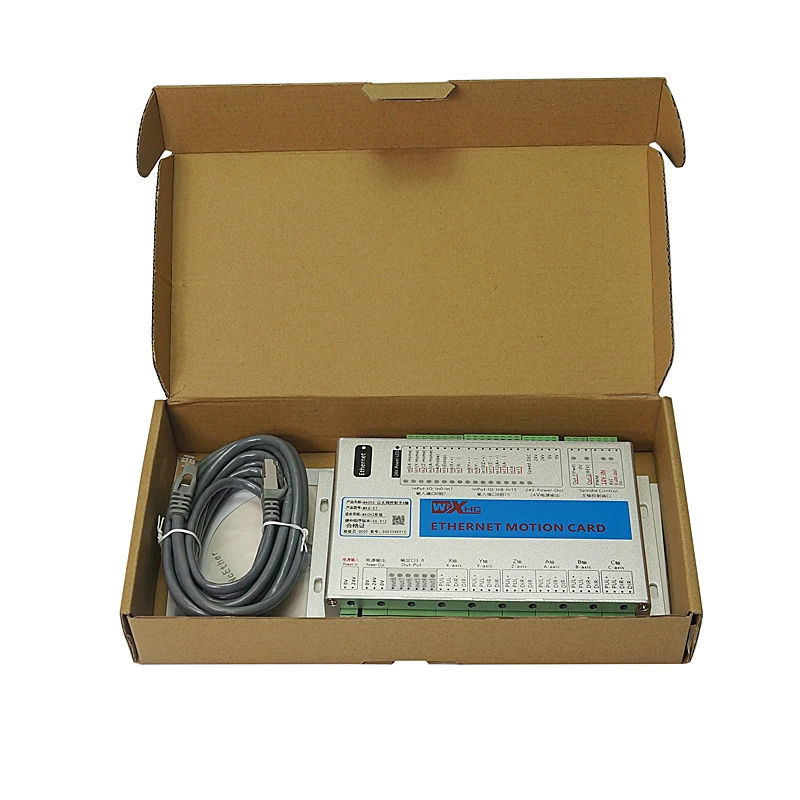

Specification- Ethernet motion card:

Features:

Fully supporting all Mach3 versions, support Windows 7, 8, 10 (32-bits);

Only support Ethernet interface, need to set IP address (Please read page 20 on the instruction);

Support save data when power off, support resume from breakpoint;

Support spindle speed feedback;

Supports spindle PWM speed control output;

Support 10 meters Ethernet interface cable;

No need to install the driver, plug and play;

Supports 6-axis linkage;

Maximum step-pulse frequency is 2000KHz, 16 general-purpose input,8 output;

Support differential signal output;

Velocity feedback function, Spindle speed display in real time all IO-port isolation, interference, stable performance;

Support controlling servo motor and step motor;

Specification- Wireless hand wheel:

Radio frequency: 433 MHz, ISM, theTx power is 10DB and the RX sensitivity is 98DB

USB receiver 6axis (X, Y, Z, A,B,C axis) with LCD display real-time display

Support 128*64 dot matrix input

Support 100PPR electronic hand wheel function.

Support the 13 shortcut keys, the user is free to define the function

Wireless transmission distance of 40 meters

64 channel frequency hopping transmission, strong anti-interference, stable and reliable; the channel gap is 1 MHz

Low power design, 2 AA battery for 1 months

Industrial grade design, dust proof design, stable and reliable

Applied to a variety of CNC systems, suitable for the use of the industry are: engraving machine industry, engraving and milling machine industry, CNC lathe industry, laser cutting machine industry, flame cutting machine industry, plasma cutting machine industry, automation production control industry.

Package Content:

1set  6axis Ethernet Motion Card

1 set  6axis Wireless hand wheel
