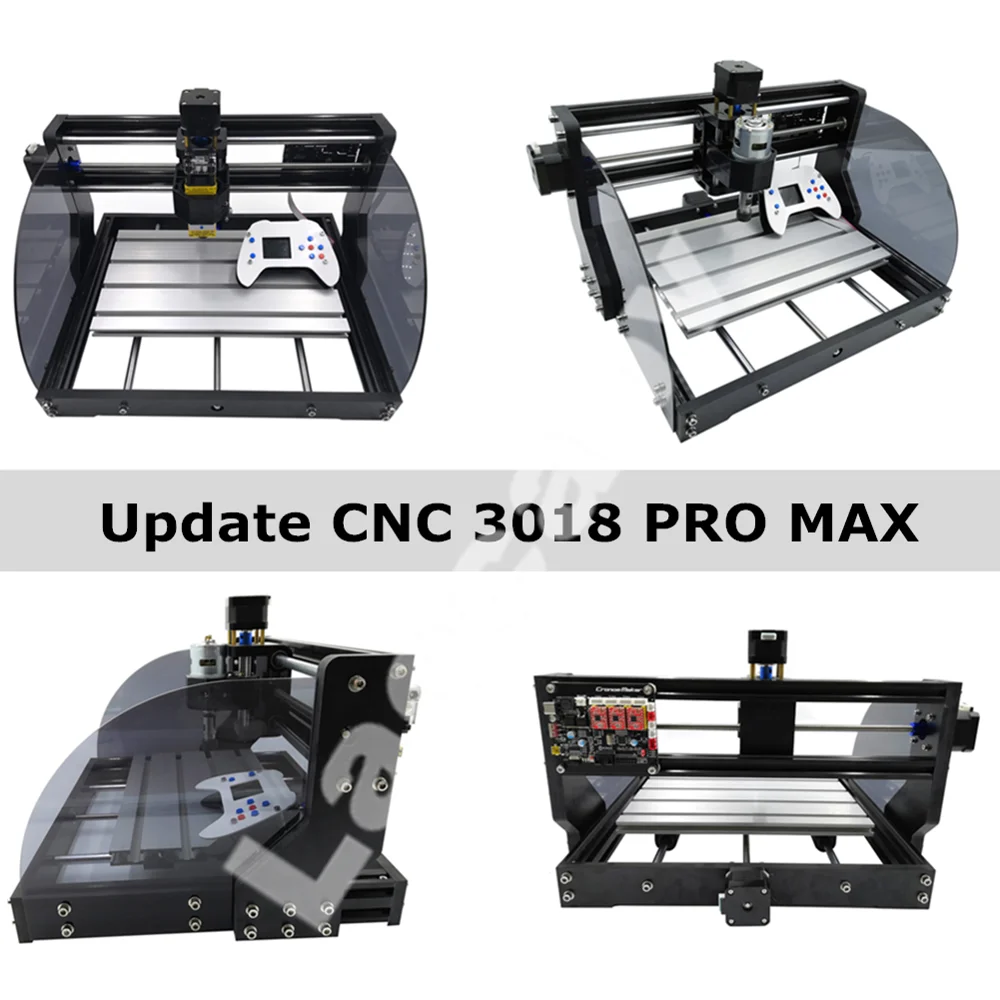

CNC 3018 Pro Max +Offline Laser Engraver Wood DIY CNC Router Machine ,Pcb Milling Machine,Wood Router,GRBL Control,Craved On Metal

Pay Attention To: The 3018 Pro max machine frame features an upgraded version of the BAKELITE for better insulation, mechanical strength, anti static, intermediate electrical insulation, wear resistance and high temperature resistance. Please contact us for SOFTWARE AND INSTRUCTION ​MANUAL download link! *The laser can be carved including: Can Engrave:MDF/Balsa/Paper/Wood/Fabric/Plastic/Leather/Plywood/Foam Paper/Anodized Aluminum/Ceramics/Stone/Stainless steel *Can Not Engrave:Metal/Glass/PCB/Reflective Material/Transparent Material *We have a 15W Laser, which can engrave metal materials such as stainless steel and alumina. *The blade can be engraved plastic, wood, acrylic, pvc, pcb, wood or the like material *ER11 needs shrink fitting. Both the spindle and ER11 have the correct diameter, but ER11 is designed to be minus tolerence to spindle so you cannot put it on directly. *Offline controller supports offline work, you will not need to connect to a computer *We have EU and US adapters and I will send the correct plugs according to your country. *If you need any question,feel free to contact me.

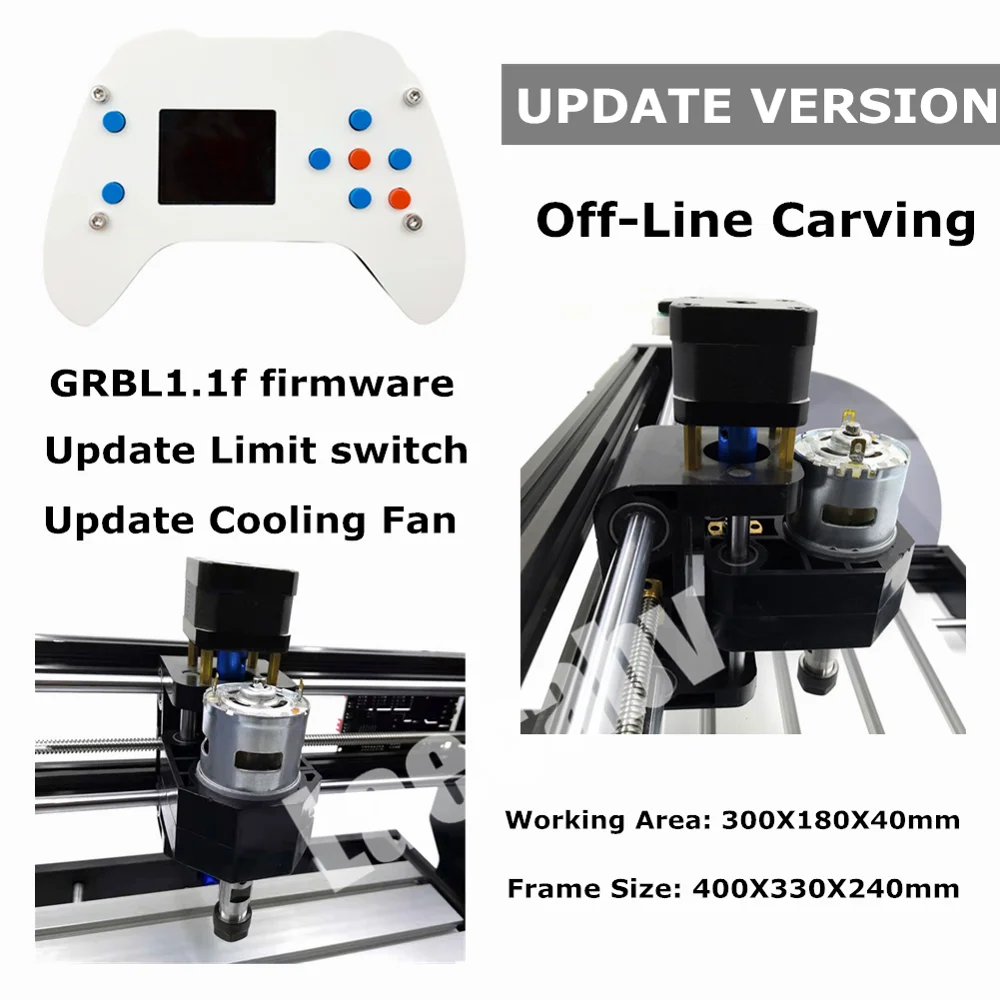

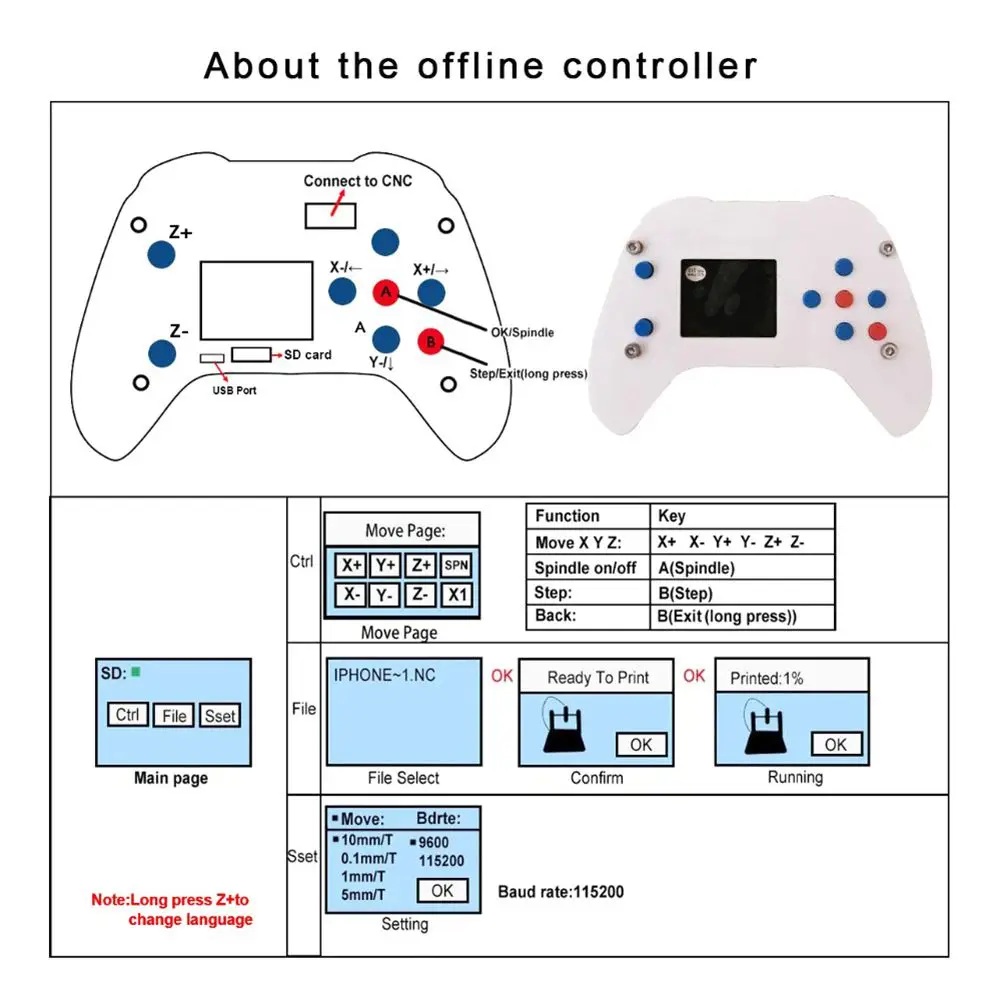

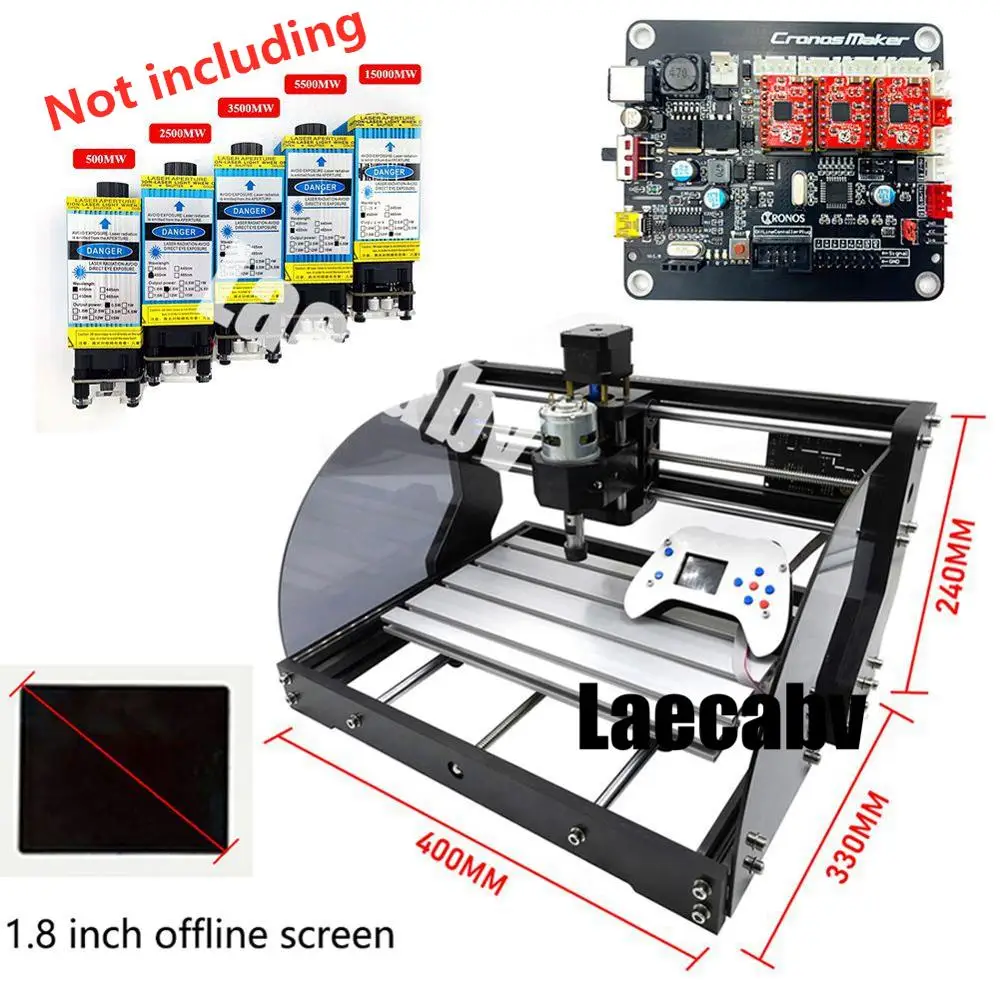

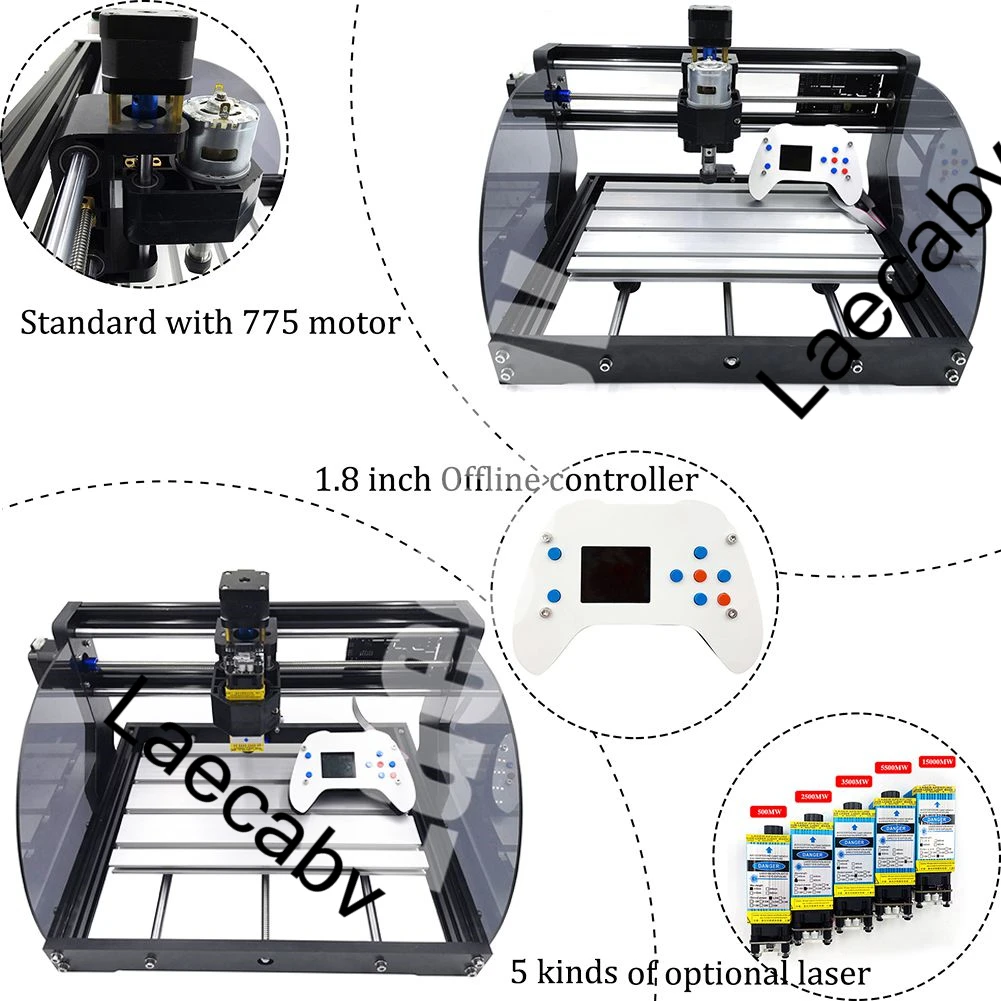

Feature: X, Y, Z Working Area: 300 x 180 x 40 mm Mesa: 300 x 180 mm Frame: 400 x 330 x 240 mm, features an upgraded version of the BAKELITE for better insulation, mechanical strength, anti static, intermediate electrical insulation, wear resistance and high temperature resistance. Collet: ER11, defaul size 3.175mm Stepper Motor: 3 x 42 stepper motors: 1.3A, 0.25N.m Spindle: 775 spindle motor, 24V: 10000 r/min, support PWM, 0-100% adjustable Software: GRBL Control Systems, Wei Diao Software Supported system: Windows XP / Win 7 / Win 8 / Win 10 Screw: professional T8 T-screw, lead 4 mm, pitch 2mm, double copper nut and poor Power Supply: 24V 5A power adapter Controller Board: Upgrade GRBL Offline XYYZ 3 Axis Control Board with upgrade A4988 drives Laser Module (Options): Brand new and updated blue lasers, which is 33mm 3P connection, supports PWM/TTL, 0-100% adjustable Offline work: Surpport Offline controller : new version with button battery, 1.8in LCD monitor with installed SD card Application: Laser Can Engrave: MDF/Balsa/Paper/Wood/Fabric/Plastic/Leather/Plywood/Foam/Paper /Anodized Aluminum/Ceramics/Stone/Stainless steel (with 15W) Laser Can Not Engrave: Metal/Glass/PCB/Reflective Material/Transparent Material 15W Laser Can cut: About 3mm wooden materials Cutters can be engraved: plastic, wood, acrylic, pvc, pcb, wood or the like material The advantages of 3018 Pro Max with new offline controller (compare with 3018 Pro with previous version offline controller): 1. Add laser protection boards on both sides to make laser testing more convenient. 2. The upgraded A4988 drivers and GRBL1.1f firmware of control board, stable performance, stepper motor overcurrent protection to avoid damage. 3. The upgraded control board also supports limit switch, tool setting, steering gear, cooling fan and other functions, supports full-line offline engraving, offline tool setting and engraving. 4. With new version offline controller, will not need to connect to computer any more.
