Pressure Transmitter Transducer Two Wire 4~20ma Silicon 0-5V 1-5V 0-10V Gauge Sensor |

Pressure Transmitter Transducer Two Wire 4~20ma Silicon 0-5V 1-5V 0-10V Gauge Sensor |

pressure transmitter transducer two wire 4~20ma silicon pressure transmitter 0-5V 1-5V 0-10V Gauge Pressure sensor

Application:
Chemical and petrochemical industry
Oil/gas/steam/water
Machine manufacturing
Hydraulic system, pneumatic system.
Food and beverage
General industrial application

Technical detail:
1.Pressure range:-0.1….0 to 0…..1000 bar Optional
2.Accuracy:±0.5% FS(standard),±0.25% FS Optional.
3.working temperature: -20 to 80°C or -20 to 150°C High temperature could be customized.
4.Ambient temperature: -20 to 85°C
5.Safe Overload: 150% F.S.(standard)
6.Material: stainless steel

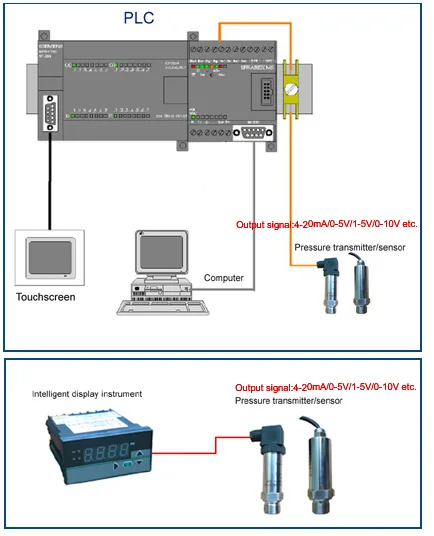

7.Output Signal:4-20mA,1-5V,0-5V,0-10V etc.
8.Electronic Wire: 4-20mA 2 Wires or 1-5V,0-5V,0-10V 3 Wires
9.Power Supply: 12~36 Vdc 24Vdc
10.Pressure connect port: 1/2’‘NPT ,G1/2 ,1/4NPT, M20*1.5 can be customized.
11. pressure type: Gauge pressure; Absolute pressure; Negative pressure（vacuum） optional.

Please do not hesitate to communicate with customer service if you need to customize the measuring range or have others requirements.
