7in Navigation Chart Plotter Marine Navigator with Colorful LCD Internal GPS Antenna Brand New High Quality Positione |

7in Navigation Chart Plotter Marine Navigator with Colorful LCD Internal GPS Antenna Brand New High Quality Positione |

Feature:

Specification:

Condition: 100% Brand New
Item Type: GPS Chart Plotter
Color: Shown as Picture
Waterproof: IP67
Drawing Interval: 1s-9h or 0.01 nm-9.99nm
Plotting Range: 0.01nm-1,000nm
Navigation Data Input: $ – DBT, $ – DPT, $ – GGA, $ – GLL, $ – GSA, $ – GSV,
$ – HDG, $ – HDM, $ – HDT, $ – MTW, $ – RMB, $ – RMC,
$ –VTG,$ – ZDA,$ – VWR,$ – VWT,$ – MWD,$ – VPW
Output:
$ –AAM,$ – APB,$ – BOD,$ – BWC,$ – GGA,$ – GLL,
$ –RMB,$ – RMC,$ – VTG,$ – XTE,$ – ZDA,$ – DBT
$ –DPT,$ – WPL,$ – ZDL,$ – ZTG
Autopilot Output: $ –AAM, $ – APB, $ – BOD, $ – VTG, $ – DBT, $ – DPT
On/Off Perspective
Celestial Sunrise/Sunset, Moonrise/Monthly
Power Supply: 5 to 35VDC, Current Consumption 1.0A at 12V
Pixel: 800x600
Waterproof Display Unit: IPX6
Temperature Range Display Unit: -15°C-+ 55°C
Acquisition Time Cold Start: Average 27 Seconds
Warm Start: an Average of 27 Seconds
Hot Start: 1 Second on Average
Update Rate: 1 / Sec or 10 / Sec, Continuous
Accurate Position: 2.5 Meters (95%) Without S / A
Speed: 0.1 M / S (no S / A)
Time: ±100ns Synchronized with GPS Time
Dynamic Altitude: Up to 50,000m
Speed: 1640.42ft (500 M) / S
Acceleration: Up to 4g
Datum Wgs 84 and Others
Interface NMEA 0183 Input and Output, Rs232 Output
AIS Interface
Data Input: NMEA 0183, RS232
Baud Rate: 38,400

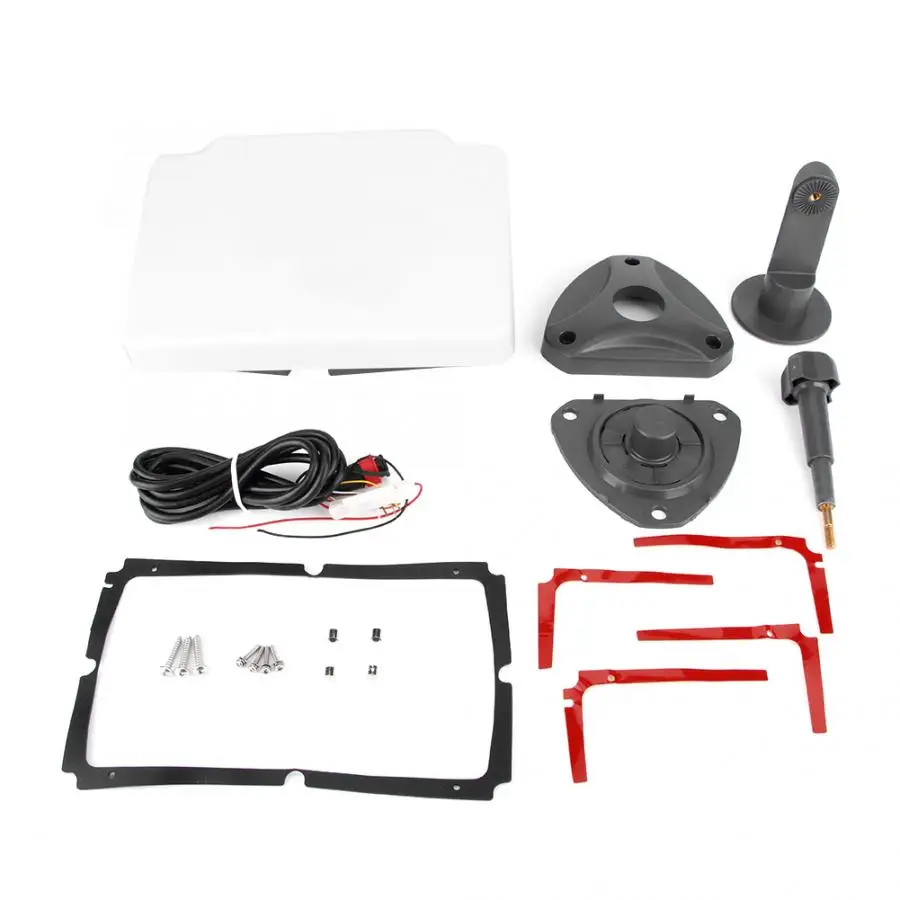

Package List:
