LM2596 DC-DC Step-down Power Supply Module 3A Adjustable Voltage Regulator 24V Switch 12V 5V 3V GK99 | Электроника

LM2596 DC-DC Step-down Power Supply Module 3A Adjustable Voltage Regulator 24V Switch 12V 5V 3V GK99 Feature:
100% Brand New And High Quality !

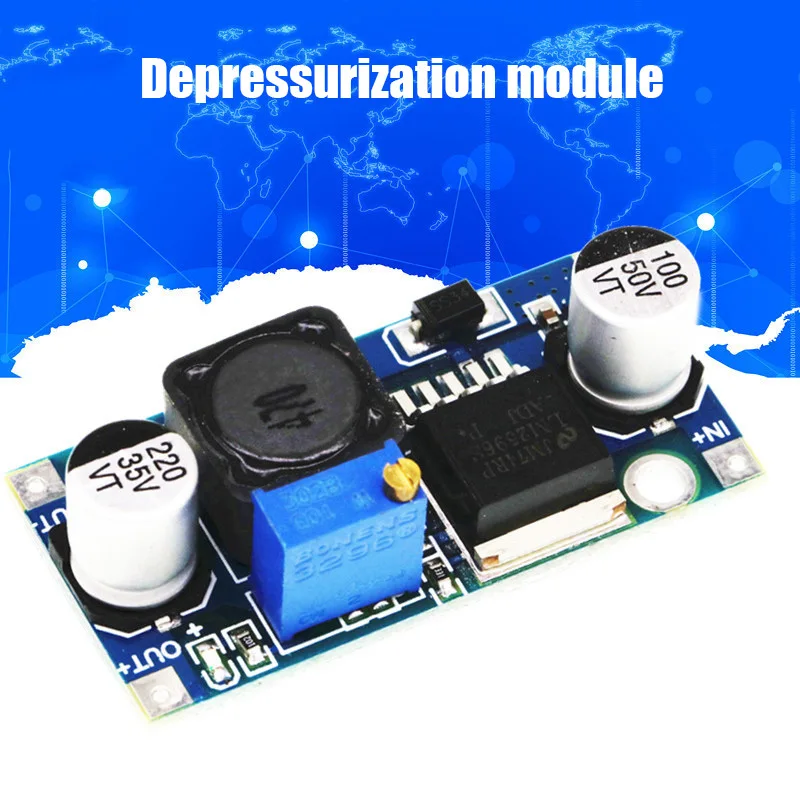

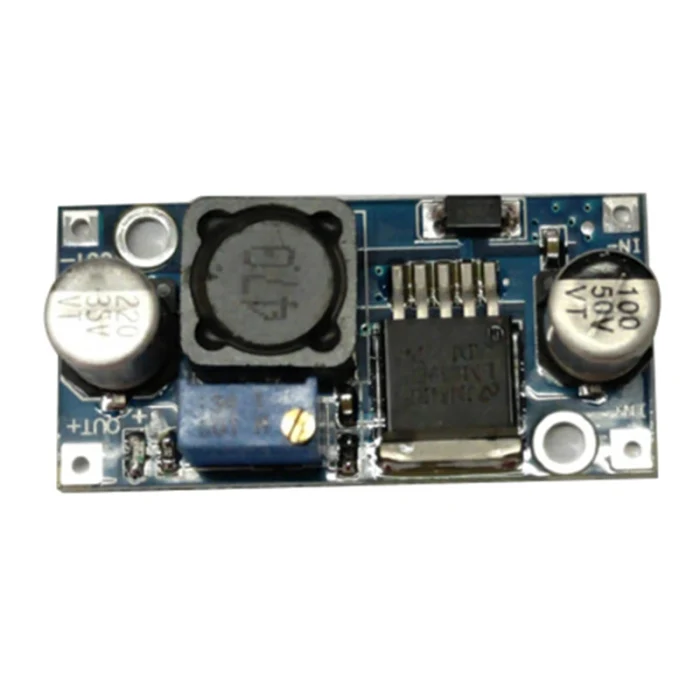

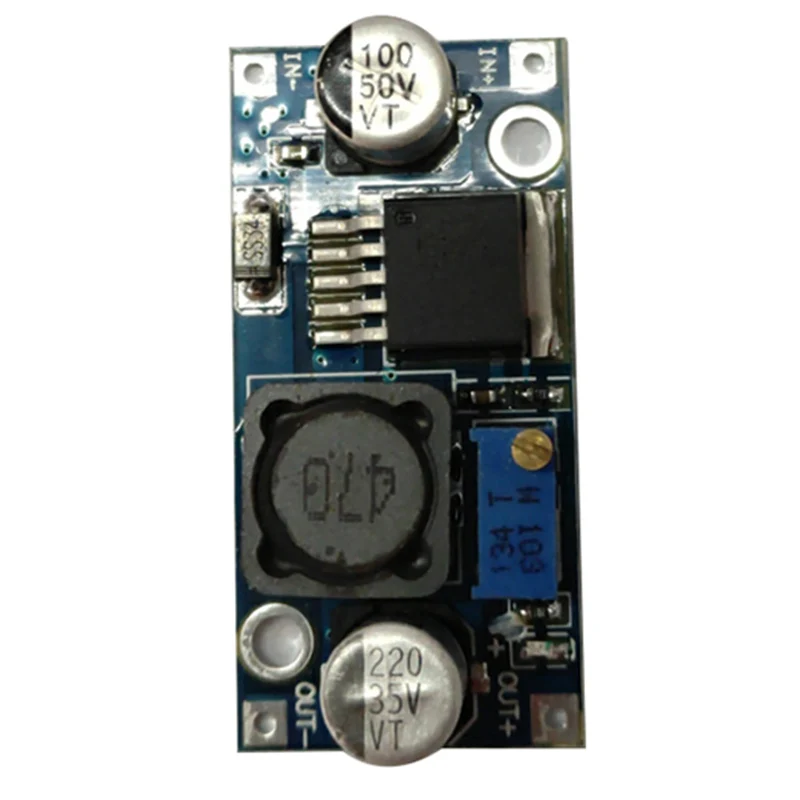

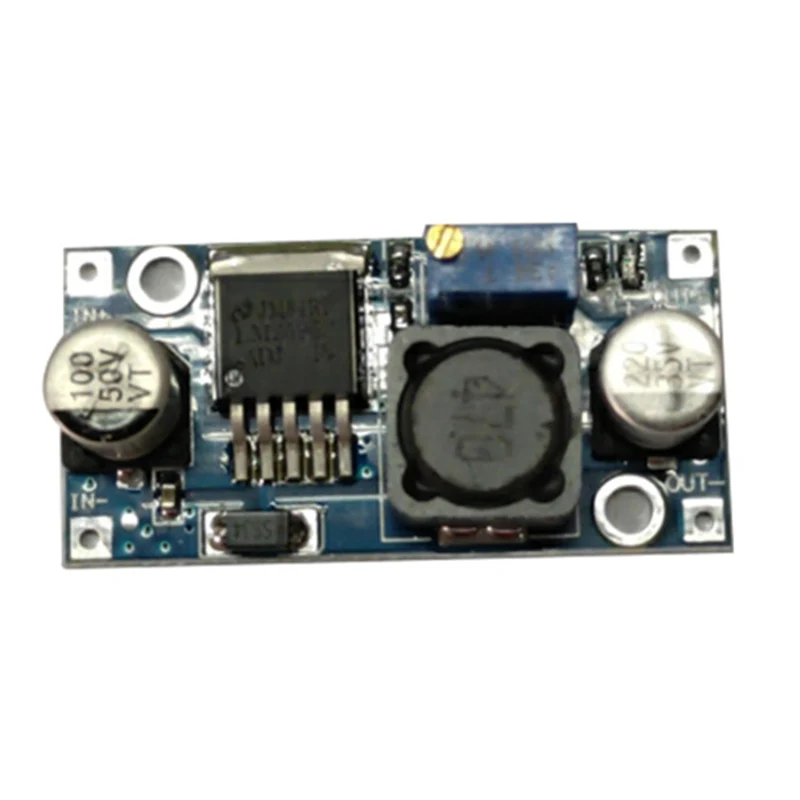

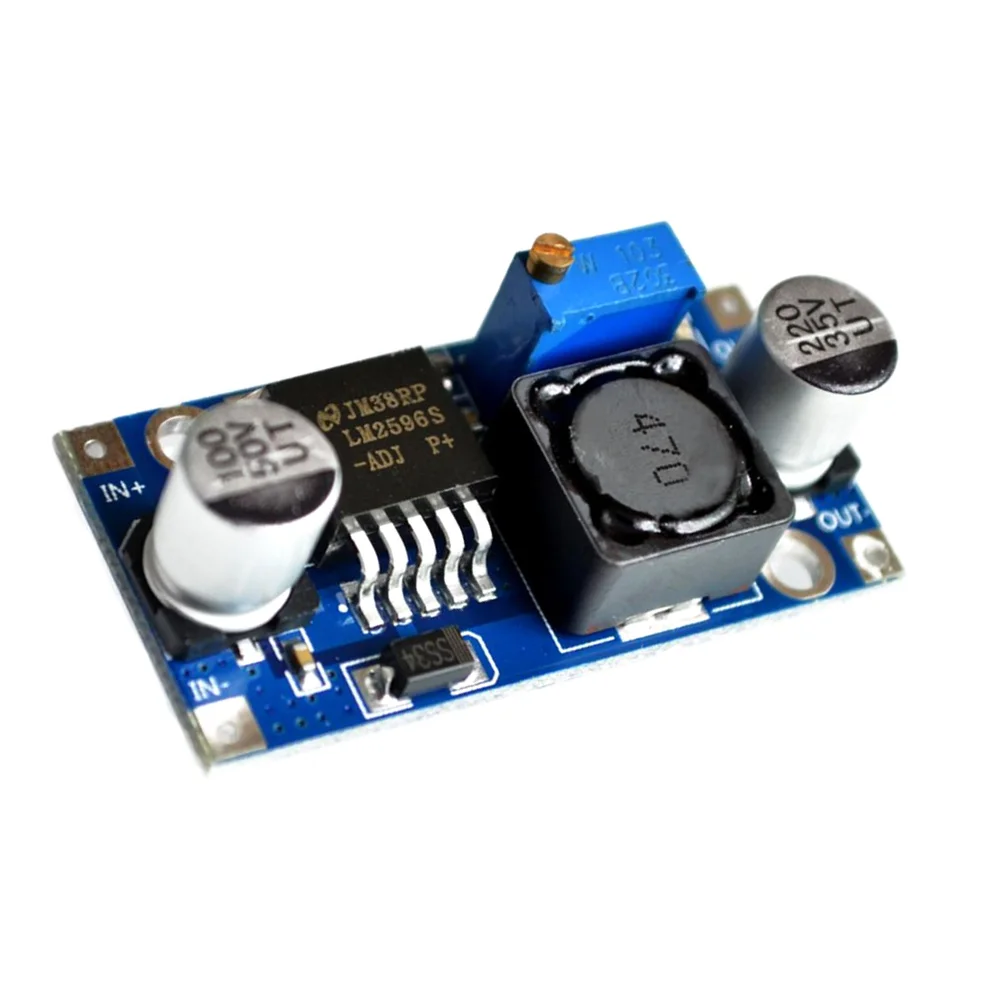

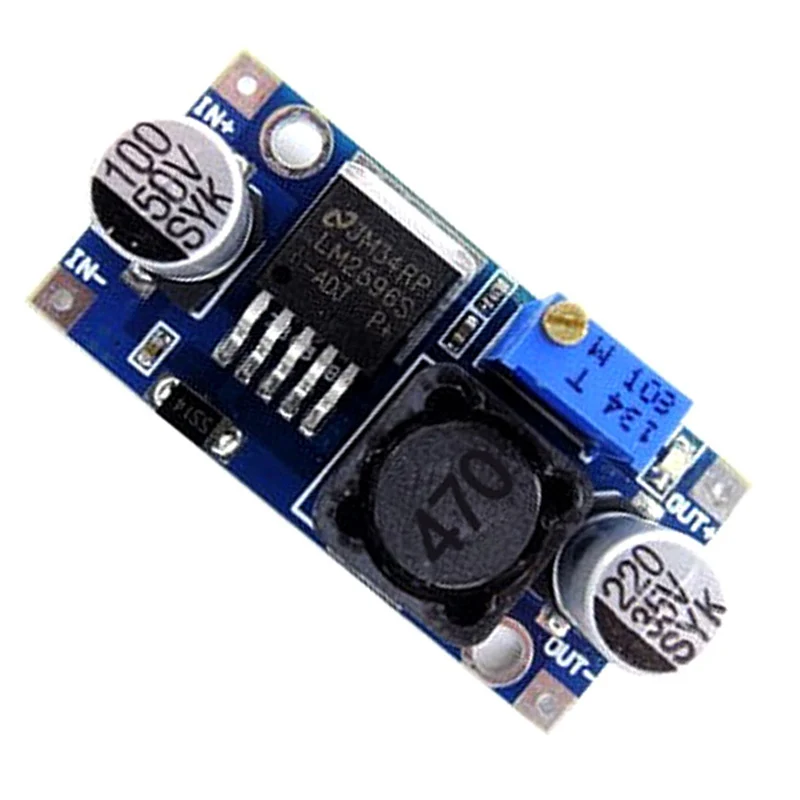

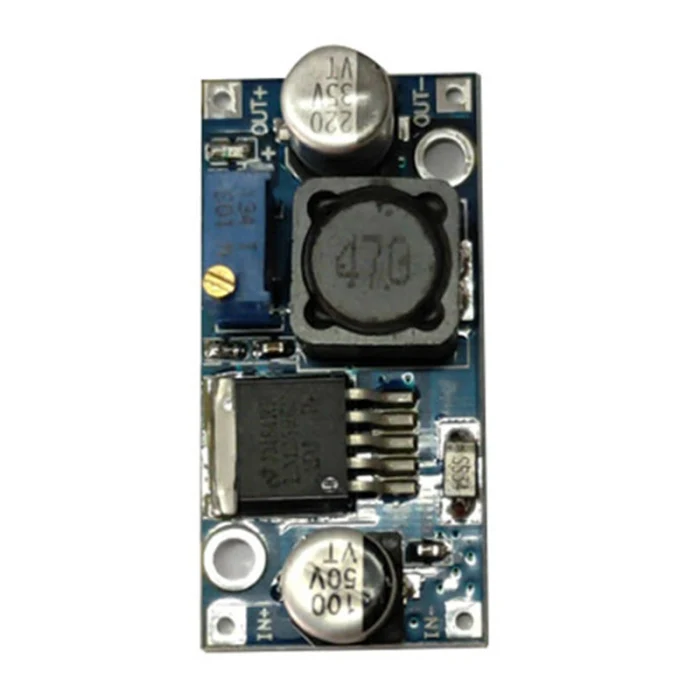

Type:LM2596 Step-down Power Supply Module
Size:Length:43mm, Width:21mm, Height:14mm
Input Voltage: 3.2-35V
Output Voltage: 1.25-35V (adjustable)
Output current: 3A (max)
Conversion efficiency: Up to 92%(highest)
Output ripple: <30mV
Switching frequency: 65KHz
Operating temperature:-45℃ to 85 ℃
For long periods of time, it is recommended to use the current within 2.5A, and more than 2A with a heat sink (more than 10W output);
Since it is a step-down module, keep the minimum 1.5V differential in order to ensure stable output
Notice:
IN+ input positive IN- input negative electrode
OUT+ output positive OUT- output negative pole
Note that the input and output can not be reversed.
