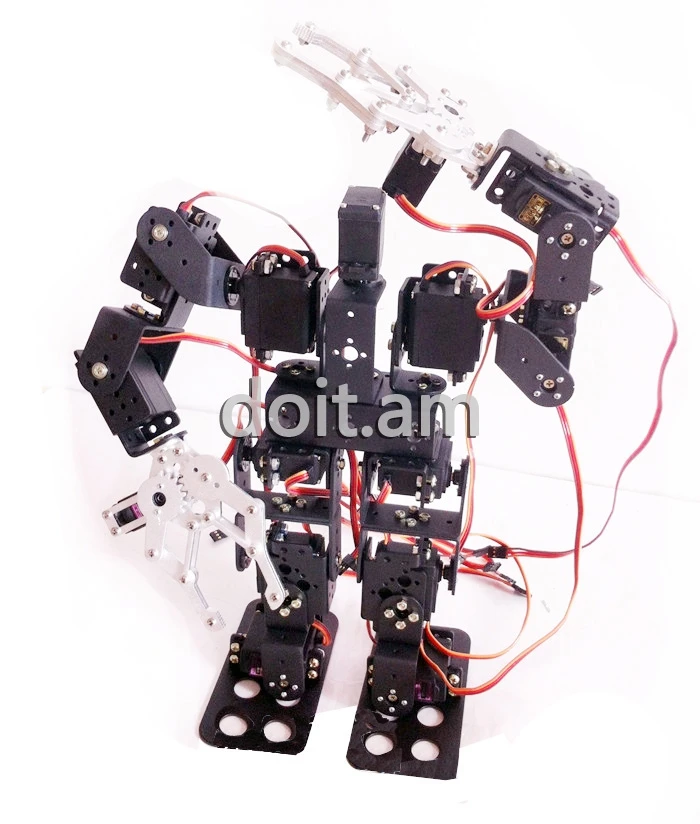

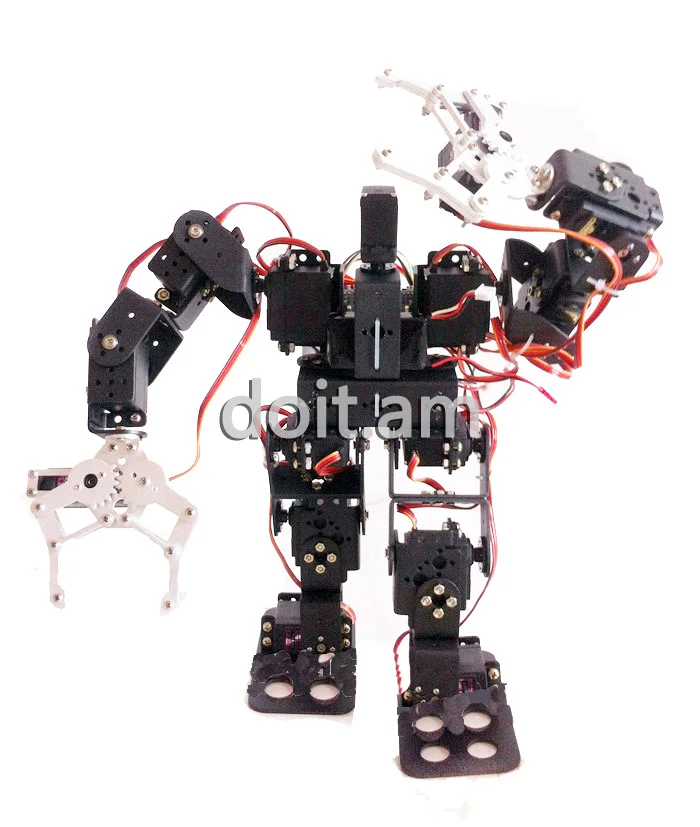

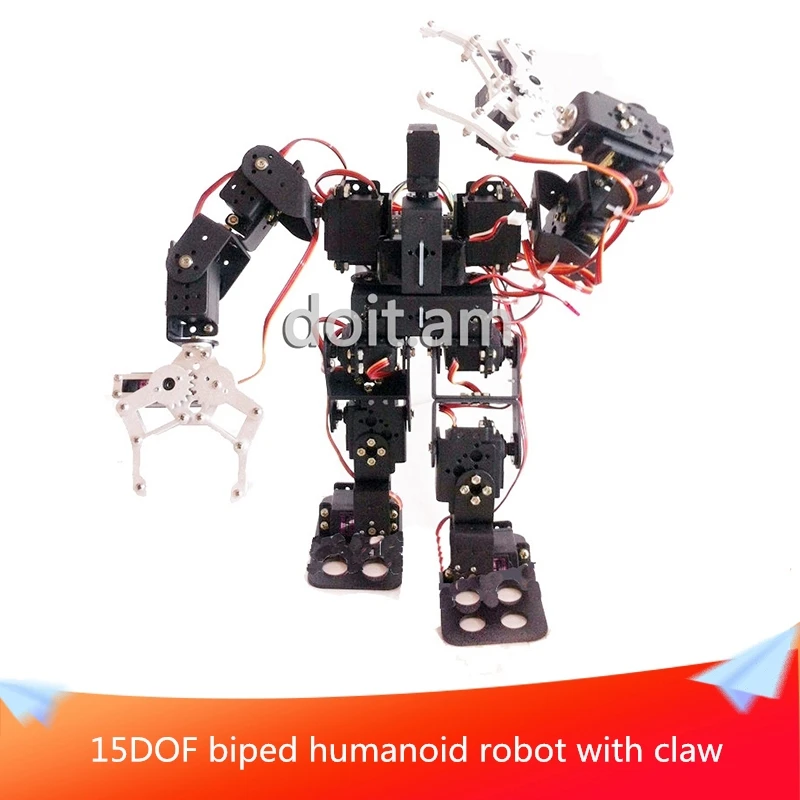

1.  The robot is 30cm high and 23cm wide with 15 degrees of freedom. Among them, the head has 1 degree of freedom, 2 degrees of freedom in the hand, 4 degrees of freedom in the arm, 2 degrees of freedom in the shoulder, 4 degrees of freedom in the leg, and 2 degrees of freedom in the foot.

2.  The robot's legs are constructed with a 6-degree-of-freedom biped robot. The short U-bracket is used to shorten the lower body slightly, which not only reduces the overall center of gravity of the robot, but also reduces the burden on the steering gear, making the robot better controlled.

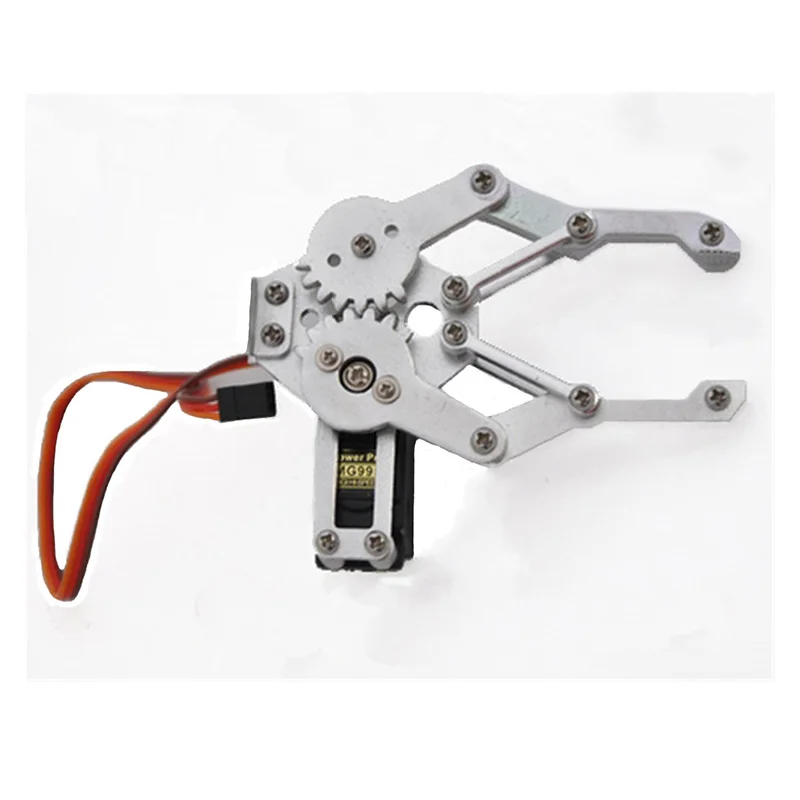

3.  This robot's lower limbs can complete straight, turn and other actions, and the upper limbs can also perform a variety of swing arm movements. We have metal mechanical claws on the robot's hand so that the robot can grab things. The two mechanical claws are oriented horizontally and vertically, so that the robot can choose the right one according to their needs. To grab the item.

4.  This robot bracket complete set of accessories, the bracket material is all 2mm thick 60 series hard aluminum plate, high hardness, light weight, high process precision. You can buy a package with a steering gear, or you can buy a steering gear without a steering gear. We recommend that the main force joint of the robot can use our MG996R steering gear, and the MG995 steering gear can be used in the small force or the end joint. In general, the six joints of the lower body of the robot and the two joints of the shoulders are preferably MG996R servos. The steering gears of other joints can use the MG995 steering gear.

5.  If you like, you can also use this kit to create other special-purpose electronic smart products such as robots, machine beasts and other freedoms.

6.  This product is a spare part, you need to assemble it yourself. After purchasing this product, we will provide installation pictures for your convenience.

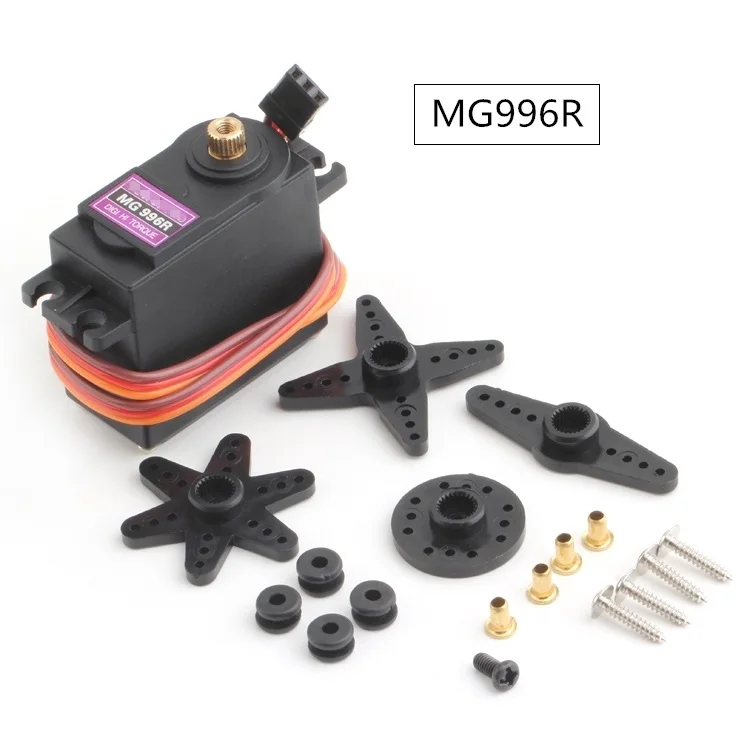

​MG996R steering gear parameters

​

Gripper parameters

shipping list 1

Full set of metal structure brackets (without steering gear)

12 pcs multi-functional brackets

9 pcs short U brackets

2 pcs oblique U brackets

2 pcs metal mechanical claws

8 pcs L-shaped brackets

2 pcs bigfoots

1 pcs U-beam

10 pcs imported cup bearings

1 set full set of screws and nuts

​

shipping list 2

Full set of metal structure brackets (without steering gear)

12 pcs multi-functional brackets

9 pcs short U brackets

2 pcs oblique U brackets

2 pcs metal mechanical claws

8 pcs L-shaped brackets

2 pcs bigfoots

1 pcs U-beam

10 pcs imported cup bearings

1 set full set of screws and nuts

15pcs metal steering wheels

15 pcs MG996R steering gears

​
