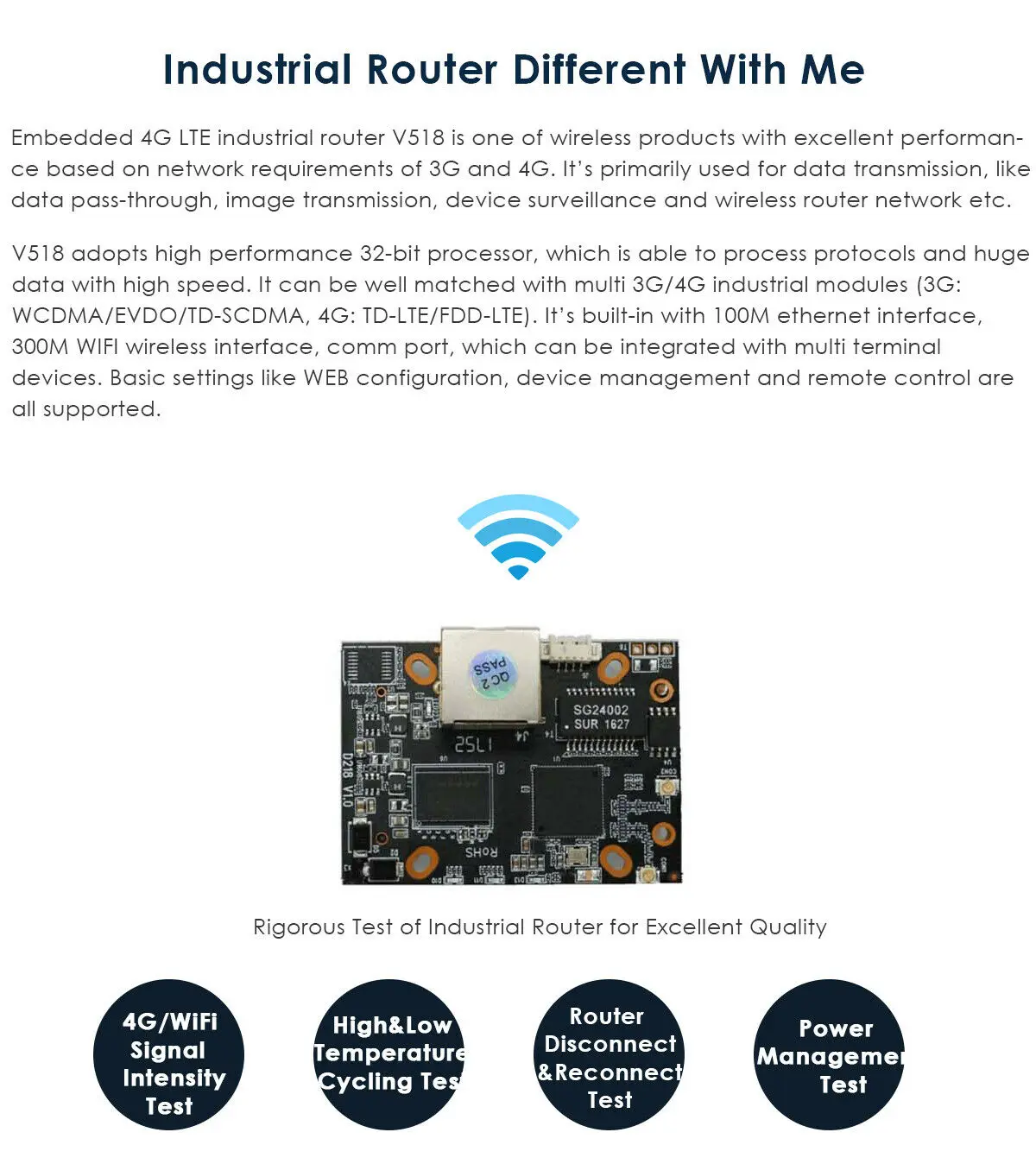

Introduction of 4G LTE Industrial Wireless Router with Built-in EC25-J for JapanV518 is high performance industrial wireless router based on requirement of 3G/4G. It is mainly used for data transmission of industrial users, support transparent transmission of data and image transmission, device monitoring and wireless routing featuresSoftware of 4G LTE Industrial Wireless Router with Built-in EC25-J for Japan1Auto Detection, Auto Reboot When Failed to Dial, Timing Reboot2VPN Client and Server Mode3Support VPDN Services by More Than 200 Global Carriers4Multiple DDNS Dynamic Domain Service5Site Control, Port Mapping, DMZ Host, Firewall etc6MAC Black/White List7Singly User Management(Access/Connection Authorization etc.)8Remote Cloud Management9Software Watchdog Design to Ensure It will be Online for 7*24H10Compatible with Most of 4G Module, Auto/Manual 2G/3G/4G11Compatible with Multiple Card of IOT, Customized APN12Smart Backup Between Dual Wireless Network13Smart Backup between Wired and Wireless Network14Attached Clout Management Platform(Developing)Specification of 4G LTE Industrial Wireless Router with Built-in EC25-J for JapanSOCMT7628Flash1Gb/64MbWIFI(2.4G)

Standard: IEEE802.11bgn 300Mbps(2T2R)

Transmission Power: 11n HT40 MCS7 15dBm/11b CCK 18dBm/11G OFDM 15dBm

Receiving Sensitivity: -65dBm at 300Mbps/-73dBm at 54Mbps/-86dBm at 11Mbps

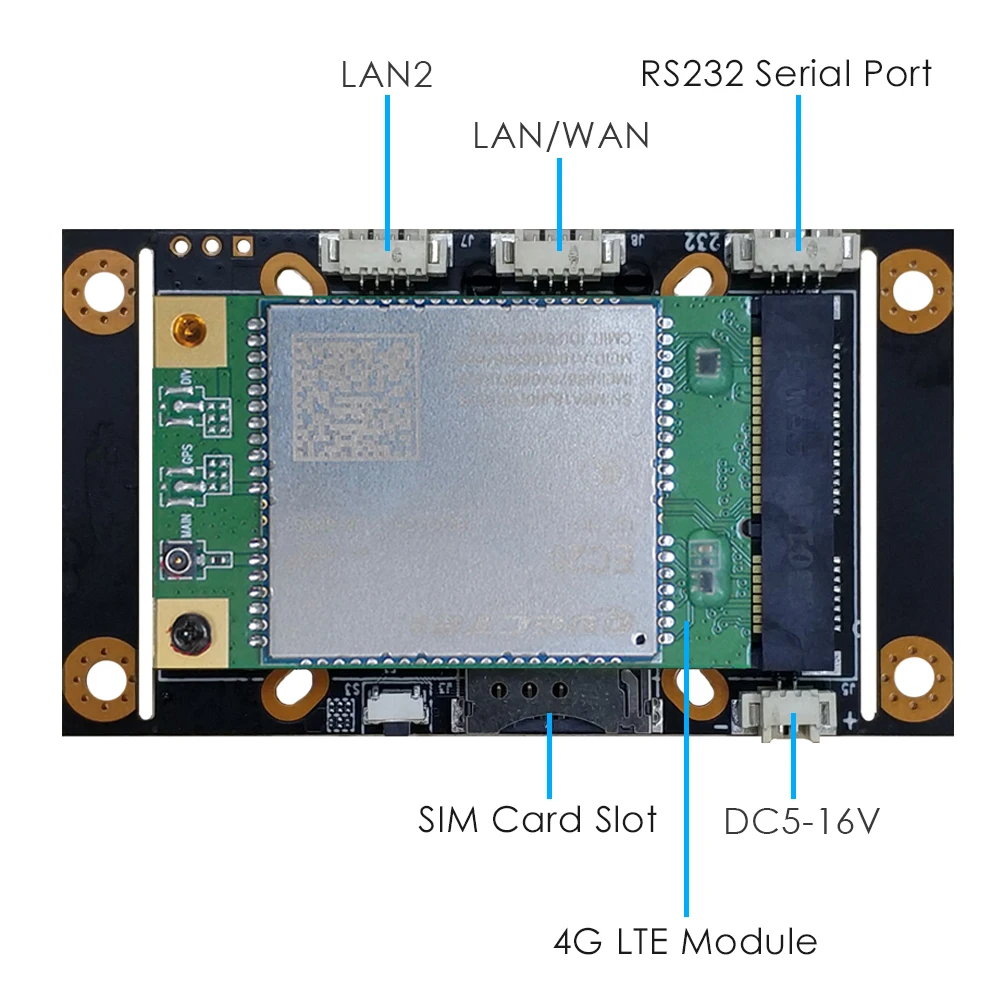

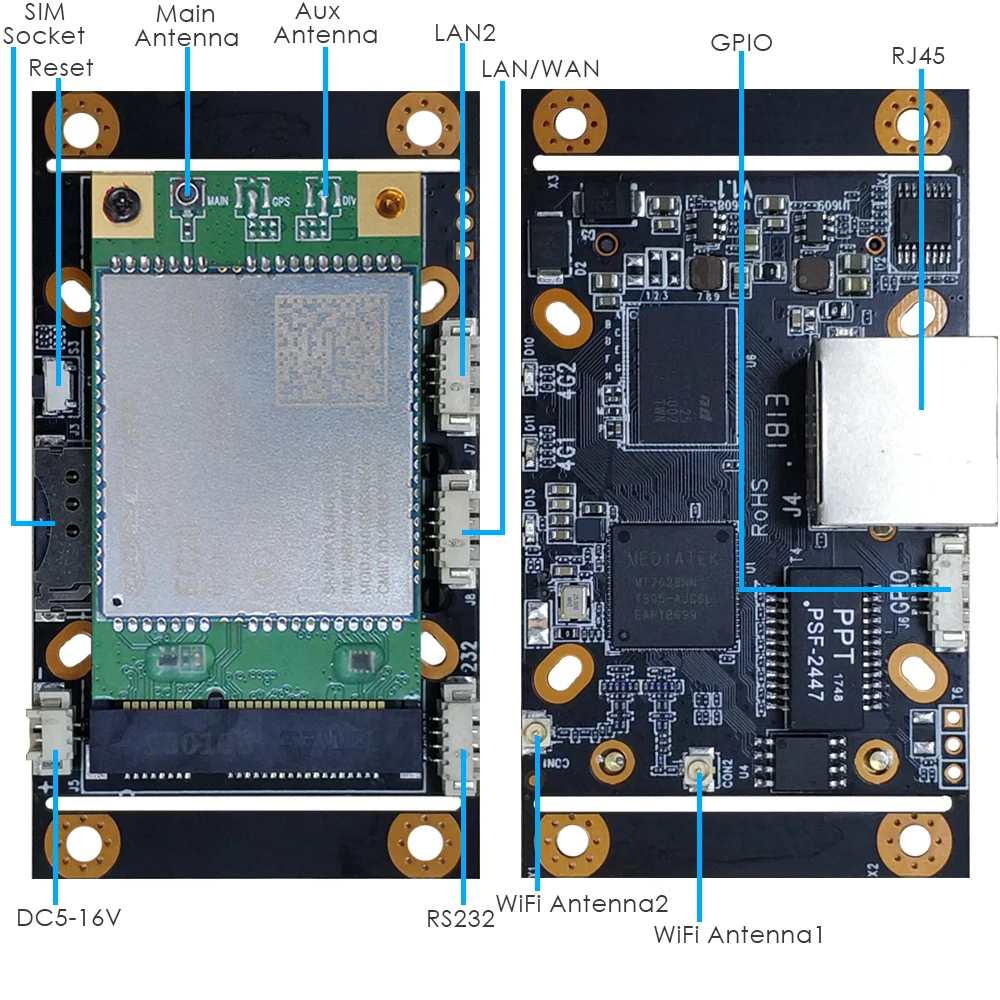

Network Interface

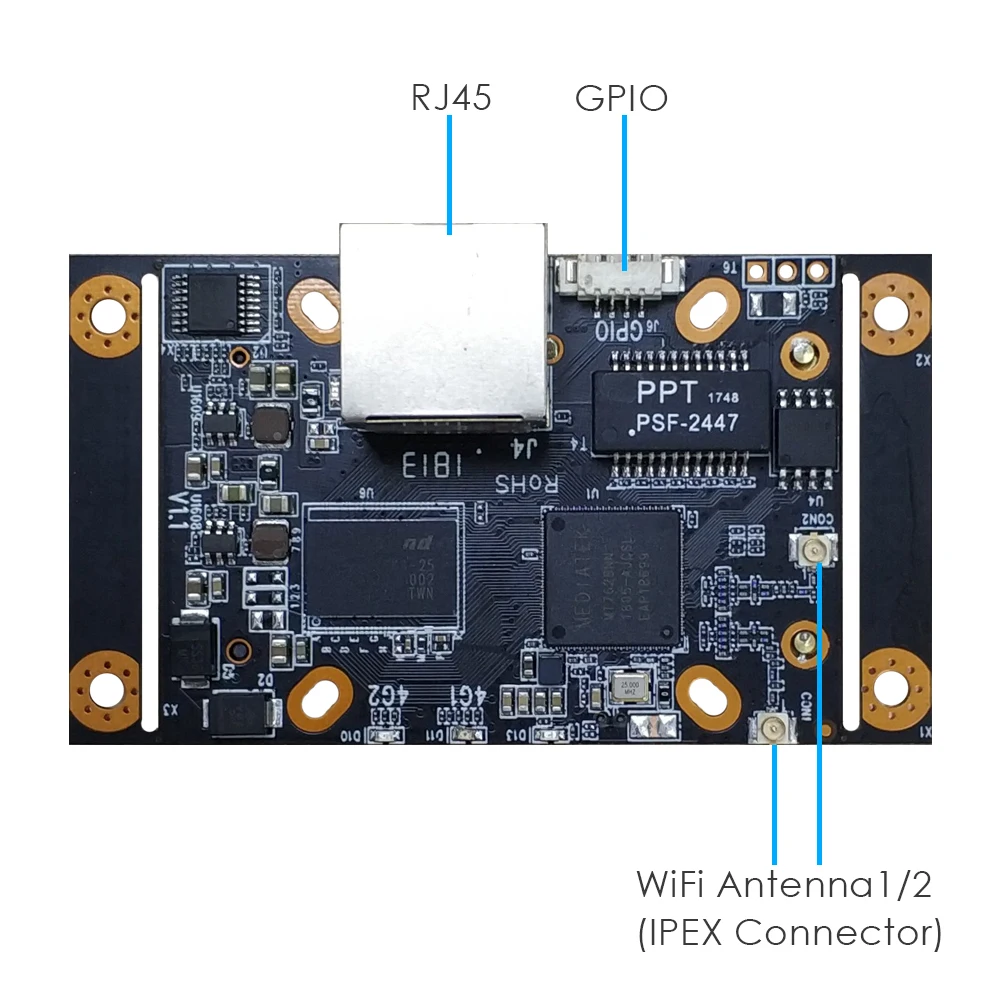

LAN/WAN Pin Interface x 1(10/100Mbps Adaptive), Ethernet Port Can Be Welded If Needed;

LAN2 Pin Interface x 1(10/100Mbps Adaptive)

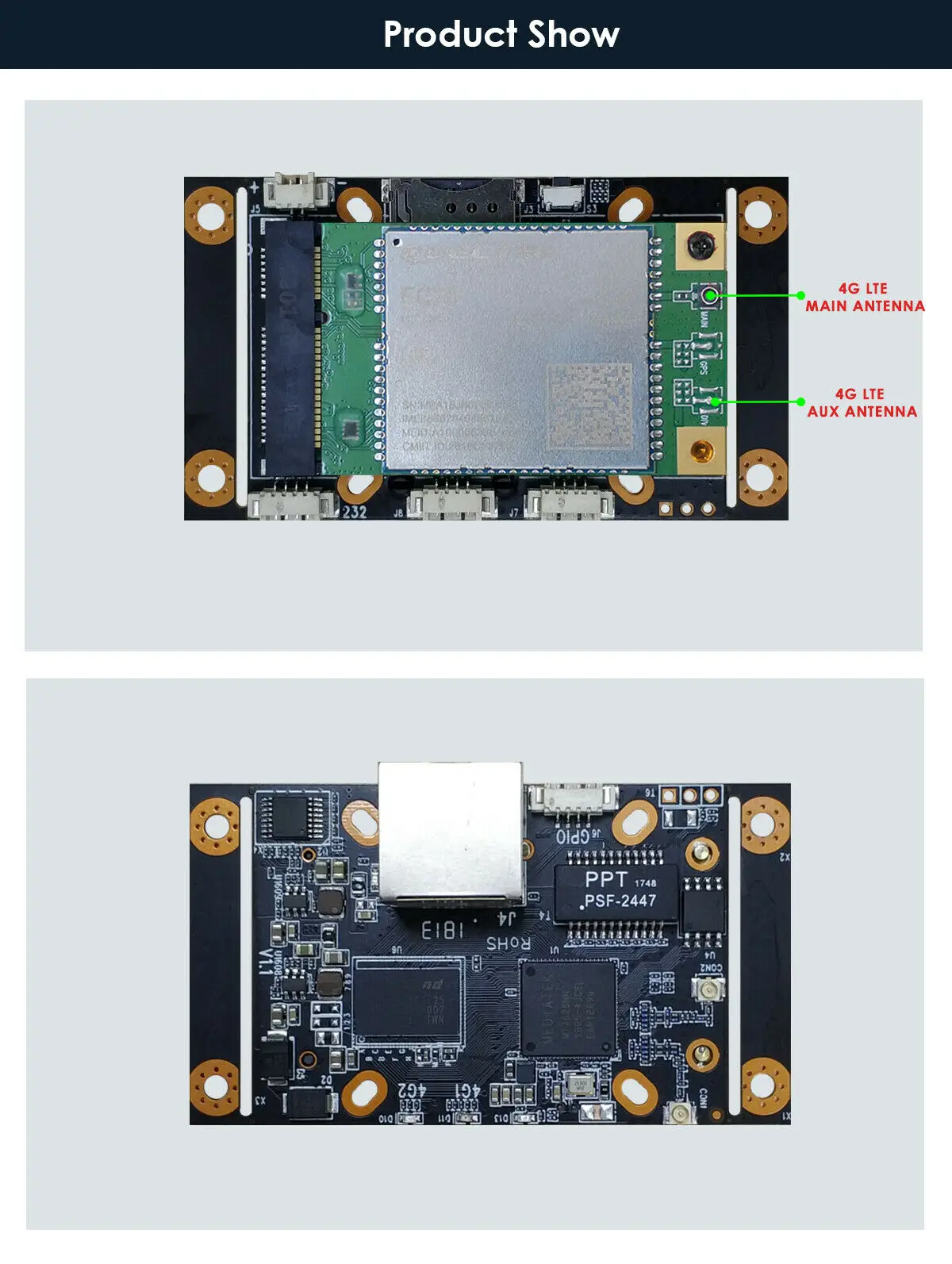

COMM(RS232)Snap-in Interface (TTL 3.3V or RS232 5V), RS232 By DefaultAntennaWIFI Omnidirectional IPEX Antennax 2, 4G Omnidirectional IPEX Antennax 1SIM Card SlotMicro SIM slot, Gap Outwarded, Hot-Plugged Not SupportedButtonReset Button(Press For More Than 5 Seconds to Reset)Indicator

4G LED(Green): Steady Green When Connected, Quick Flash When Dialing, Slow Flash For Failed Connection

Signal LED(Red): Red When Signal Is Bad

Signal LED(Green): Green When Signal Is Strong

Signal LEDx 2 Both Not Lit Means No Signal, No SIM Card, No 4G Module

Power SupplyDC Pin(with snap-in) 5~16V/2A, 12V RecommendedPower ConsumptionLess Than 500mA When Powered by 12V(Full Load))Network Connection3G/4G, Wire, Wireless, Bridge, Relay, WISP, Intelligent Backup ModeSoftware Features

Multiple modes (4G/Wire Gateway/Wireless/Wireless Bridge/Wireless Hotspot/Wireless Relay);

APN Auto Detection(more than 400 ISP supported) and APN customization;

RS232 Pass-through(Data Control/Customized Registration Pack/Customized Keep-Alive Pack;

RS232 Pass-through(Server and Client Simultaneously Work/Serial Port Data Statistics);

VPN(L2TP Server and Client/PPTP Server and Client);

Network Keep-Alive Mechanism(ICMP/DNS Detection);

Auto Reboot(Timing or Reboot when free);

DDNS(Oray or other ISP supported), UPNP, Access Control, Firewall, Port Mapping, DMZ;

WOL Local Broadcast Discovery Protocol Interface (Used for Discovering Local Devices);

HTTP Protocol Control Interface (Used for Controlling the Device).

Developing Port

Local Broadcast Discovery Protocol Interface(Used for Discovering Local Devices

HTTP Protocol Control Interface(Used for Controlling the Device)

Telnet Command Control Interface

Remote Cloud HTTP Control Interface(Used for Integration with Cloud Platform Management)

Please Contact Sales for Protocols in Detail.

SDKSDK for Farm, Can Develop Related Application Based On This SDKDevice Management

Network Time Synchronization, Synchroninzed with PC and Cellphone;

Backup and Import Configuration;

Online and Local Upgrade;

Remote Management;

Telnet (Terminal) Command, Serial Port (TTL) Command;

LED Indicator On/Off, Local and Remote Log.

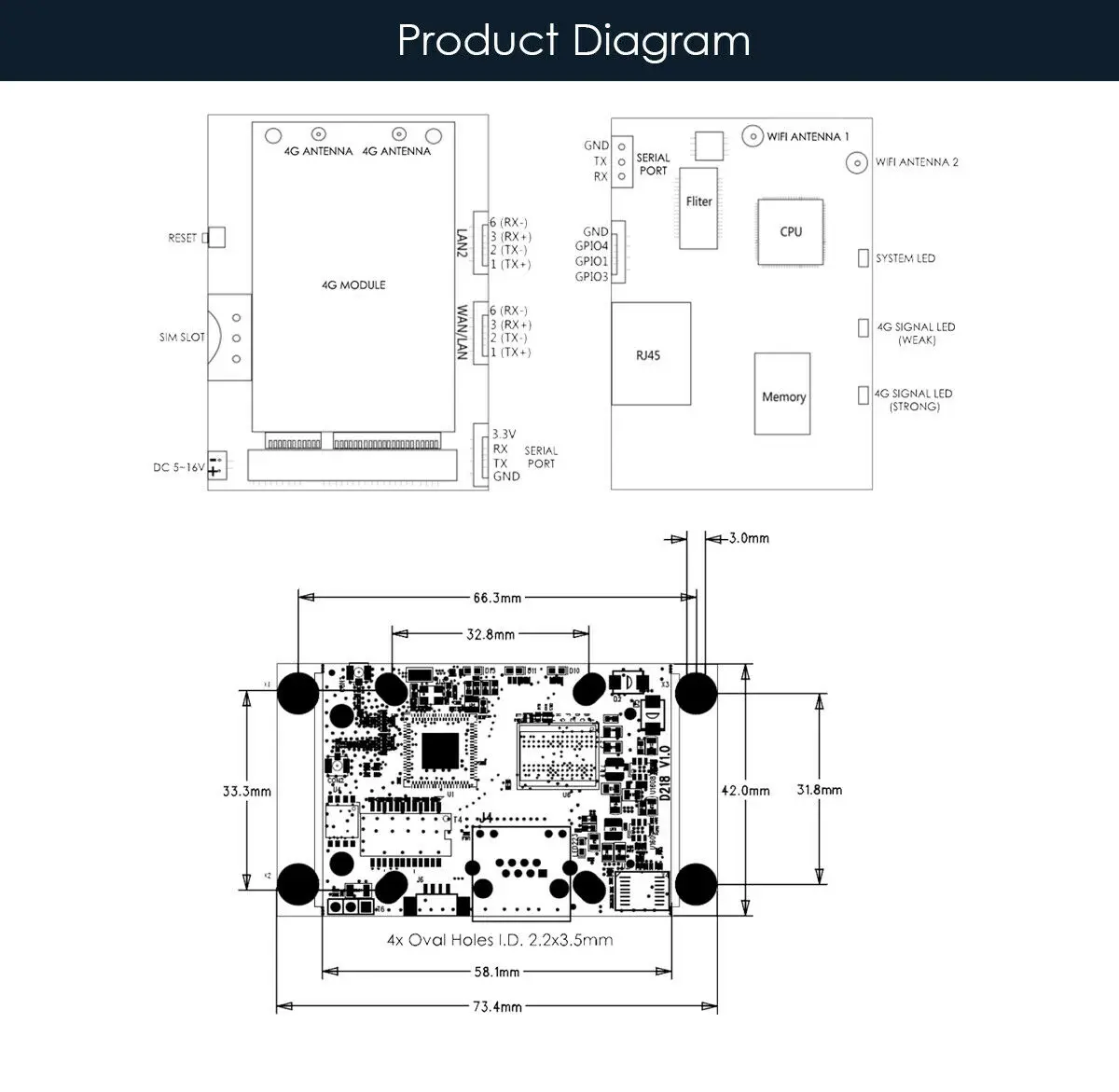

Max. UsersWireless Connection: 60nos, Wired Connection: 100nos (Theoretically)Browsers RequirementIE9.0/Chrome 60.0.0/Firefox 55.0.0/ Safari:5.0.0 Later VersionWorking Temperature-20°C ~ +70°C (-20°F ~ +158°F)Storage Temperature-20°C ~ +85°C (-20°F ~ +185°F)Dimension73.4mm*42mm*11.8mm (With Side Board and Position Hole)CertificationCCC/ROHSModels ComparisonModelBandsV518EC25A
(EC25-A)

LTE FDD: B2/B4/B12

WCDMA: B2/B4/B5

Carrier: AT&T, T-Mobile, Rogers, Telus

Region: North America

V518EC25AF
(EC25-AF)

LTE FDD: B2/B4/B5/B12/B13/B14/B66/B71

WCDMA: B2/B4/B5

Carrier: Verizon/AT&T/T-Mobile/Rogers/U.S. Cellular/Telus/Bell*(*Under Development)

Region: North America FirstNet

V518EC25AFX (Under Development)

LTE FDD: B2/B4/B5/B12/B13/B14/B66/B71

WCDMA: B2/B4/B5

Carrier: Verizon*/AT&T*/T-Mobile*/U.S. Cellular*/Rogers*/Bell*/Telus*(*Under Development)

Region: North America FirstNet

V518EC25AU
(EC25-AU)

LTE FDD: B1/B2/B3/B4/B5/B7/B8/B28

LTE TDD: B40

WCDMA: B1/B2/B5/B8

GSM: B2/B3/B5/B8

Region: Latin America, Australia, New Zealand, Taiwan

V518EC25E
(EC25-E)

LTE FDD: B1/B3/B5/B7/B8/B20

LTE TDD: B38/B40/B41

WCDMA: B1/B5/B8

GSM: B3/B8

Carrier: Vodafone/Deutsche Telekom/SKT/Telefónica/T-Mobile*/KT*/LGU+*(* Under Development)

Region: EMEA, Korea, Thailand, India

V518EC25J
(EC25-J)

LTE FDD: B1/B3/B8/B18/B19/B26

LTE TDD: B41

WCDMA: B1/B6/B8/B19

Carrier: DoCoMo, SoftBank, KDDI, Others(Except DoCoMo, SoftBank, KDDI)

V518EC25MX

LTE FDD: B2/B4/B5/B7/B28/B66

LTE TDD: B41

WCDMA: B2/B4/B5

Region: Mexico

V518EC25V
(EC25-V)

LTE FDD: B4/B13

Carrier: Verizon

Region: North America

V518EG25G
(EG25-G)

LTE FDD: B1/B2/B3/B4/B5/B7/B8/B12/B13/B18/B19/B20/B25/B26/B28

LTE TDD: B38/B39/B40/B41

UMTS: B1/B2/B4/B5/B6/B8/B19

GSM: B2/B3/B5/B8

Carrier: Deutsche Telekom/Verizon/AT&T/Sprint/U.S. Cellular/Telus/T-Mobile*/Rogers*(* Under Development)

Region: Global

V518EP06A
(EP06-A)

LTE FDD: B2/B4/B5/B7/B12/B13/B25/B26/B29③/B30/B66

UMTS: B2/B4/B5

Carrier: Verizon/AT&T/Rogers/Telus/Sprint*/Bell(TBD)(* Under Development)

Region: North America

V518EP06E
(EP06-E)

LTE FDD: B1/B3/B5/B7/B8/B20/B28/B32③

LTE TDD: B38/B40/B41

UMTS: B1/B3/B5/B8

Region: EMEA/APAC②/Brazil



NOTECarrier: DoCoMo(White), SoftBank(Black), KDDI(Gold), Others(Silver)
