 This product is genuine genuine Danfoss (Danfoss). The warranty period is 2 years.

KP35, KP36 specific application:
The Danfoss KP/KPI series pressure controller is applicable to pressure regulation, monitoring and alarm in the industrial field
Features: wide range of adjustment
It can be used for the control of pumps, boilers and air compressors.
Small size, easy to install;
Anti vibration and shock;
With the ultra short flutter time, the contact wear is reduced to the lowest, and the reliability is greatly increased.
The front end connection is easy to control the installation of the cabinet and save time.
AC and DC dual purpose;
Apply 6-14mm cable;
Pg13.5 and PG16 cables are applicable to the inlet of the threaded cable.

KP35, KP36 product detailed parameters:

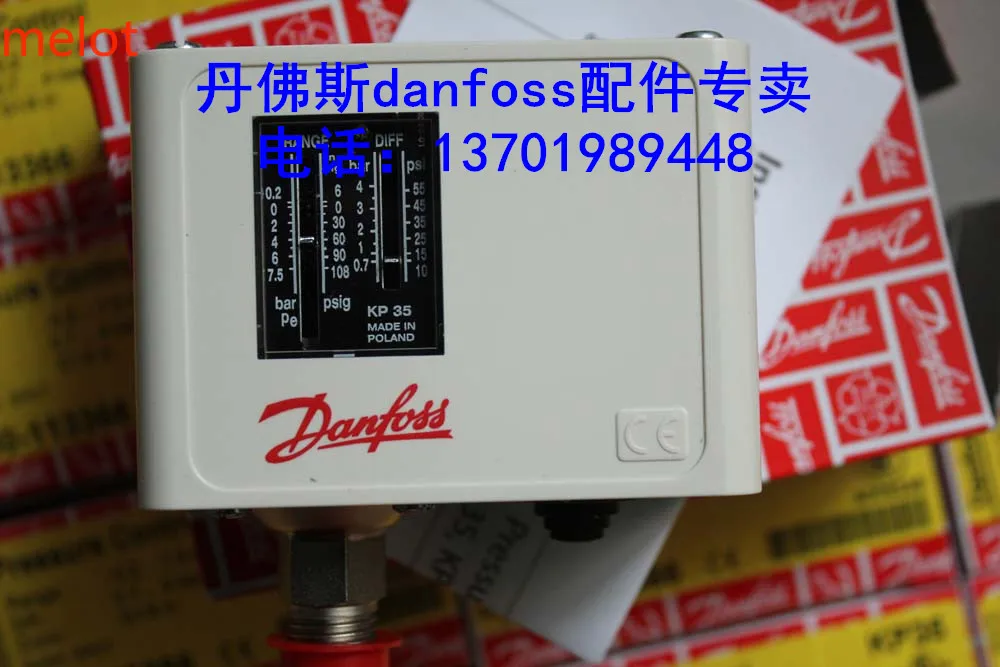

1, KP35, product code: 060-1133060-5047: adjustment range -0.2-7.5 (bar), mechanical return 0.7-4 (bar), maximum working pressure 17 (bar), maximum test pressure 22 (bar) pressure connection: G1/4A contact material: Ag, commonly used code: 060-1133.

2, KP36, product code: 060-1108060-1137060-1221060-1144: adjustment range 2-14 (bar), mechanical return 0.7-4 (bar), maximum working pressure 17 (bar), maximum test pressure 22 (bar0 pressure connection: G1/4A contact material: Ag, commonly used code: 060-1108.
