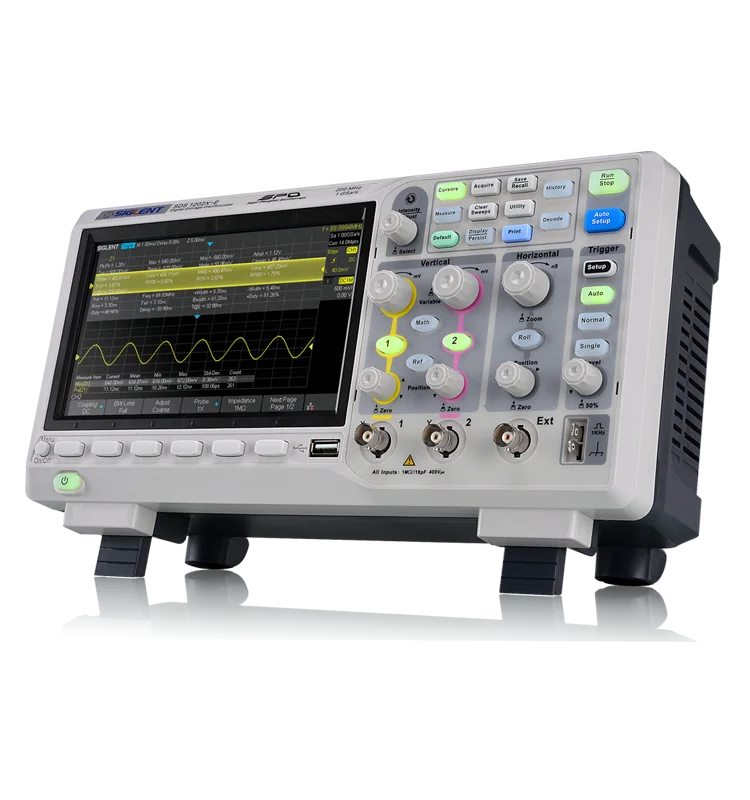

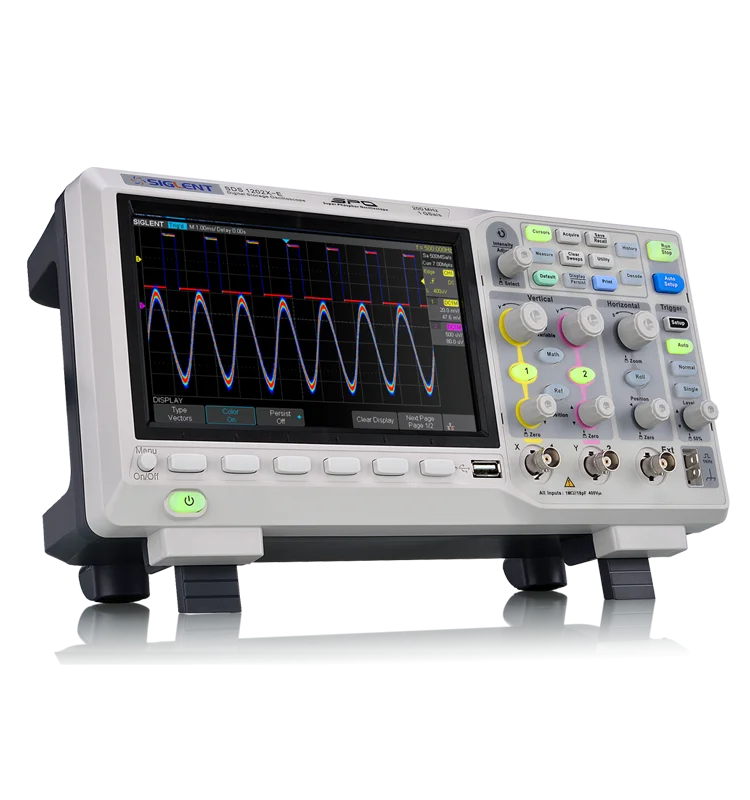

SDS1000X-E Series Super Phosphor Oscilloscopes

Product Overview

SIGLENT's new SDS1000X-E Series Super Phosphor Oscilloscope is available in one bandwidth, 200 MHz. It has a maximum sample rate of 1 GSa/s and a standard record
length of 14 Mpts. For ease-of-use, the most commonly used functions can be accessed with its user-friendly front panel design.The SDS1000X-E series employs a new generation of SPO (Super Phosphor Oscilloscope) technology that provides excellent signal fidelity and performance. The system noise is also lower than similar products in the industry. It comes
with a minimum vertical input range of 500 uV/div, an innovative digital trigger system with high sensitivity and low jitter, and a waveform capture rate of 400,000 frames/ sec (sequence mode).

The SDS1000X-E also employs a 256-level intensity grading display function and a color temperature display mode not found in other models in this class. Siglent's latest oscilloscopes offering supports multiple powerful triggering modes including serial bus triggering. Decoding is standard configuration including IIC,SPI,UART,CAN,LIN. History waveform recording and sequential triggering enable extended waveform recording and analysis. Another powerful addition is the new 1 million points FFT math function that gives the SDS1000X-E very high frequency resolution when observing signal spectra. The new design also includes a hardware co-processor that delivers measurements quickly and accurately. The features and performance of Siglent's new SDS1000X-E cannot be matched anywhere else in this price class.

Key Features

200 MHz bandwidth model

Real-time sampling rate up to 1 GSa/s

New generation of SPO technology

    Waveform capture rate up to 100,000 wfm/s (normal mode), and 400,000 wfm/s(sequence mode)

    Supports 256-level intensity grading and color display modes

    Record length up to 14 Mpts

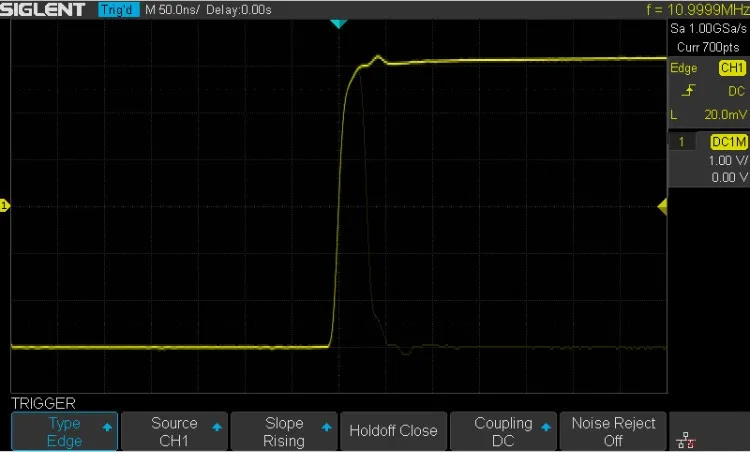

    Digital trigger system

Intelligent trigger: Edge, Slope, Pulse Width, Window, Runt, Interval, Time out (Dropout), Pattern

Serial bus triggering and decode, supports protocols IIC, SPI, UART, RS232, CAN, LIN (Standard)

Video triggers and supports HDTV

Low background noise, supports 500 μV / div to 10 V / div voltage scales

10 types of one-button shortcuts, supports Auto Setup, Default, Cursors, Measure, Roll, History, Display/Persist, Clear Sweep, Zoom and Print

Segmented acquisition (Sequence) mode, dividing the maximum record length into multiple segments (up to 80,000), according to trigger conditions
  set by the user, with a very small dead time segment to capture the qualifying event.

History waveform record (History) function, the maximum recorded waveform length is 80,000 frames

Automatic measurement function on 38 parameters, supports Statistics, Gating measurement, Math measurement, History measurement and Ref measurement

1M points FFT

True measurement and math to all of sample 14M points Math functions (FFT, addition, subtraction, multiplication, division, integration, differential, square root)

Preset key can be customized for user settings or factory "defaults"
Security Erase mode

High Speed hardware based Pass/ Fail function

Large 7 inch TFT-LCD display with 800 * 480 resolution

Multiple interface types: USB Host, USB Device (USB-TMC), LAN (VXI-11), Pass / Fail, Trigger Out

Supports SCPI remote control commands

Supports Multi-language display and embedded online help

Characteristics

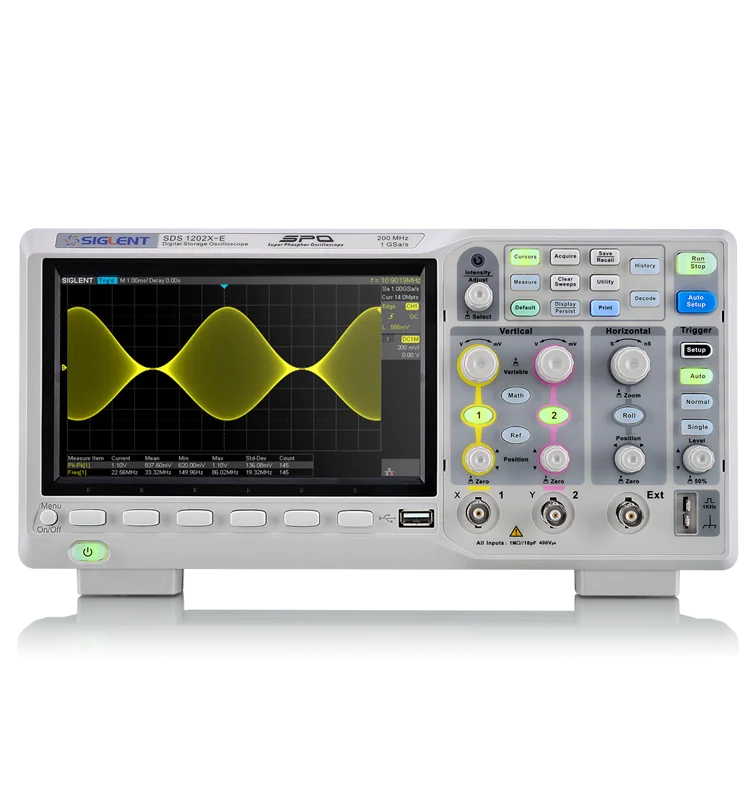

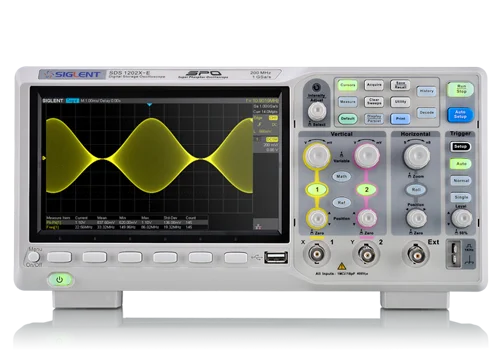

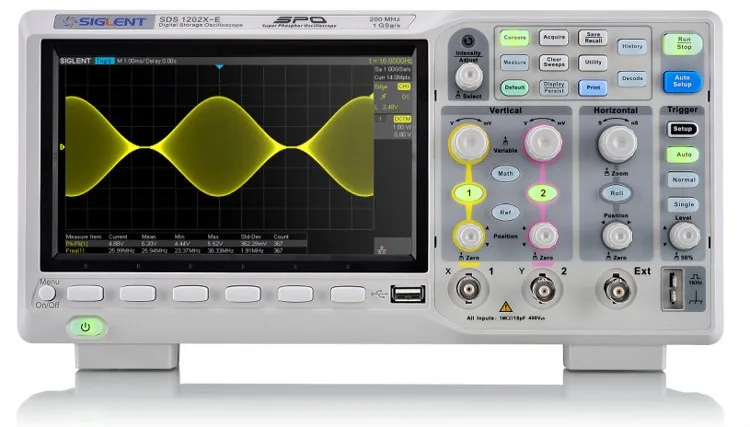

7 Inch TFT-LCD Display and 10 One-button Menus

7-inch TFT-LCD display with 800*480 resolution

Most commonly used functions are accessible using 10 different one -button operation keys: Auto Setup, Default, Cursor, Measure, Roll, History, Persist, Clear Sweep, Zoom, Print

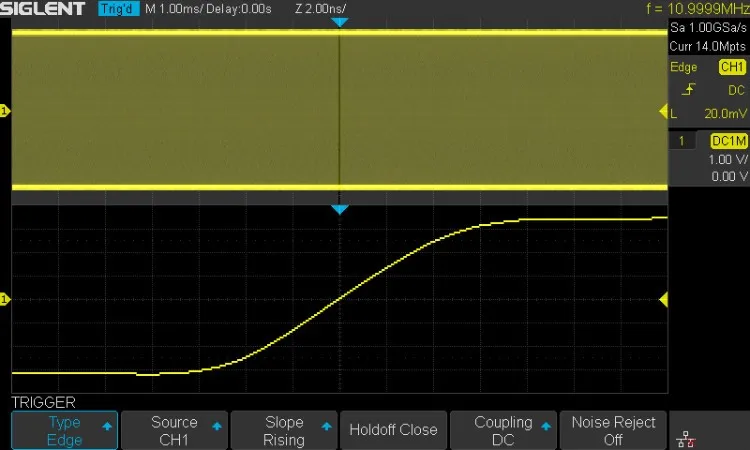

Record Length of Up to 14 Mpts

Using hardware -based Zoom technologies and record length of up to 14 Mpts, users are able to use a higher sampling rate to capture more of the signal and then quickly zoom in to focus on the area of interest.

Waveform Capture Rate Up to 400,000 wfm/s

With a waveform capture rate of up to 400,000 wfm/s (sequence mode), the oscilloscope can easily capture the unusual or low-probability events.

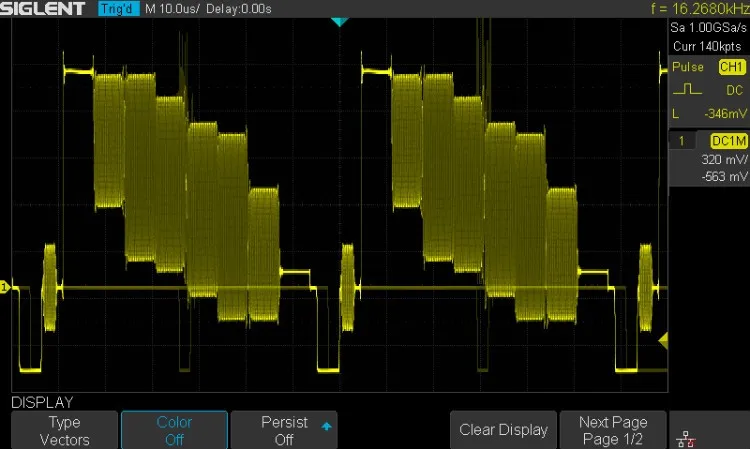

256-Level Intensity Grading and Color Temperature Display

SPO display technology delivers fast refresh rates. The resulting intensity graded traces are brighter where events occur more frequently and less bright where they occur less often.

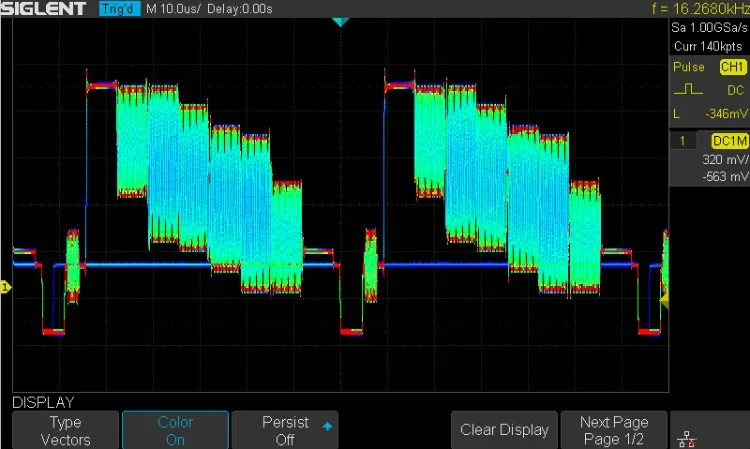

The color temperature display is similar to the intensity-graded trace in function, except that the trace occurrence is represented by different colors (color "temperature") as opposed to changes in the intensity of one color. Red represents the most common occurrences or probabilities, while blue is used to mark points that occur least frequently.

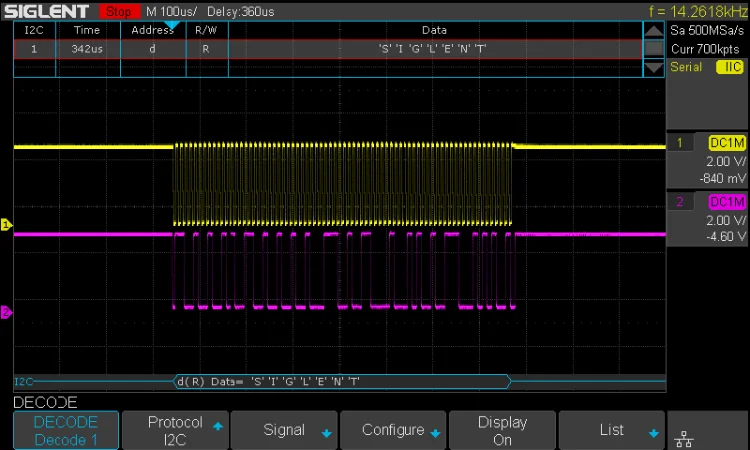

Serial Bus Decoding Function (Standard)

SDS1000X-E displays the decoding through the events list. Bus protocol information can be quickly and intuitively displayed in a tabular format.

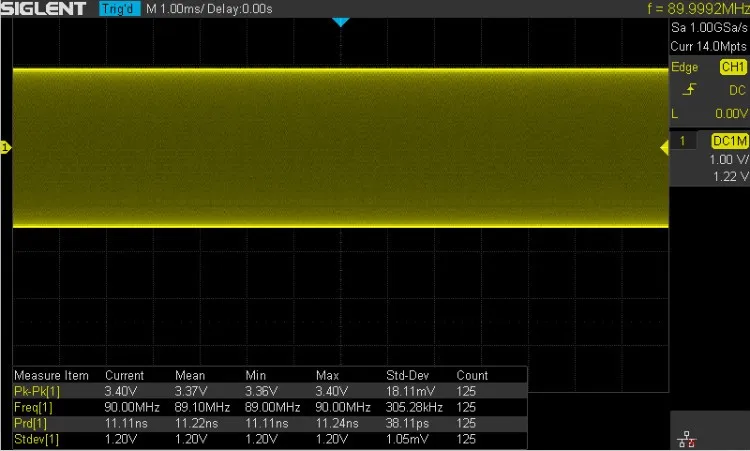

True Measurement to 14 Mpoints

At any one timebase, the SDS1000X-E can measure using all 14M sample points. This ensures the accuracy of measurements while the math coprocessor decreases measurement time and increases ease-of-use.

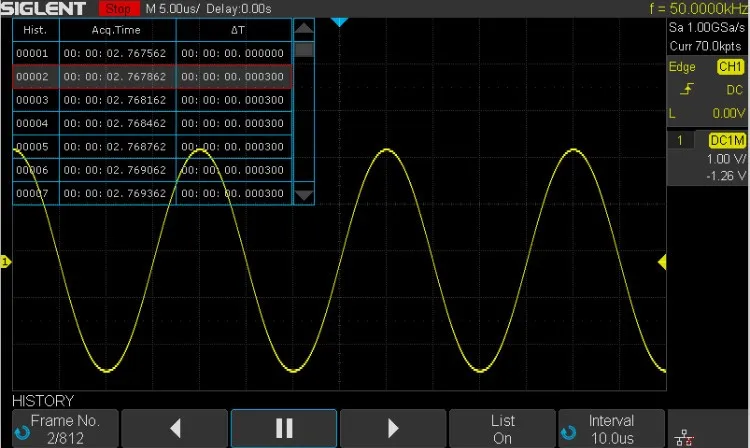

 History Waveforms (History) Mode and Segmented Acquisition (Sequence)

Playback the latest triggered events using the history function. Segmented memory zcquisition will store the waveform into multiple (up to 80,000) memory segments, each segment will store triggered waveforms and timestamp each frame.

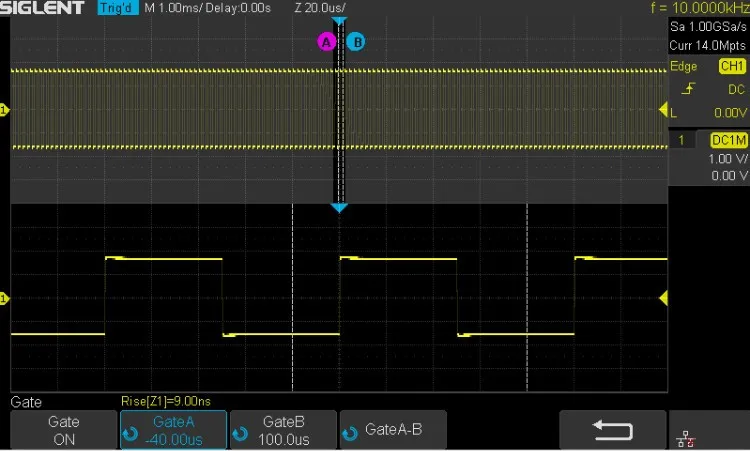

Gate and Zoom Measurement

Through Gate and Zoom measurement, the user can specify an arbitrary interval of waveform data analysis and statistics. This helps avoid measurement errors that can be caused by invalid or extraneous data, greatly enhancing the measurements' validity and flexibility.

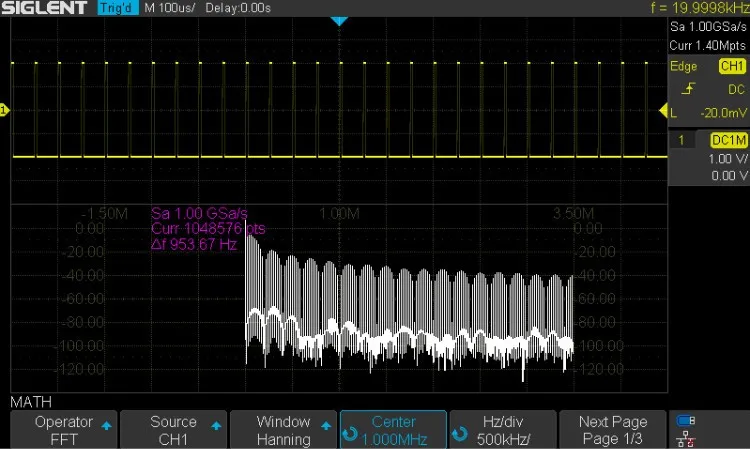

1 Mpoints FFT

The new math co-processor enables FFT analysis of incoming signals using up to 1M samples per waveform. This provides high frequency resolution with a fast refresh rate. The FFT function also supports a variety of window functions so that it can adapt to different spectrum measurement needs.

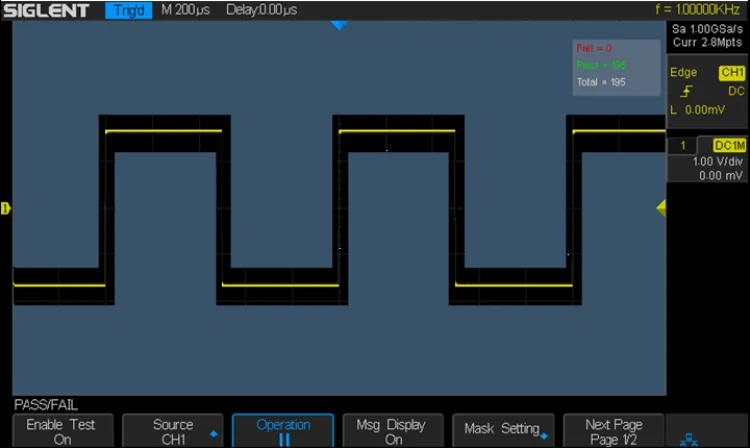

The SDS1000X-E utilizes a hardware-based Pass/Fail function, performing up to 40,000 Pass / Fail decisions each second. Easily generate userdefined test templates provide trace mask comparison making it suitable for long-term signal monitoring or automated production line testing.

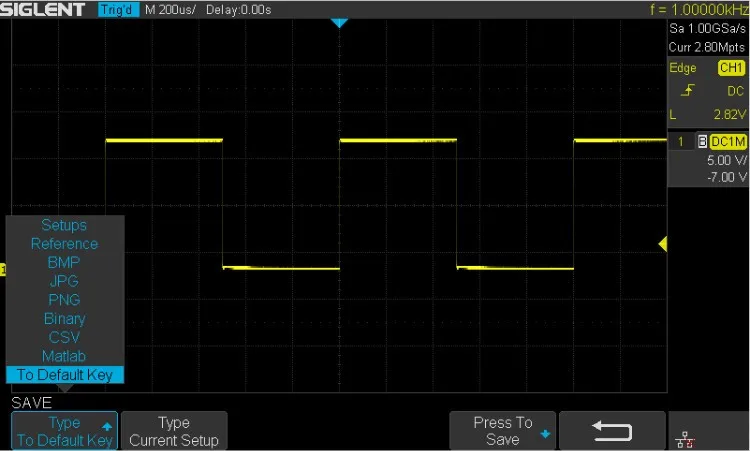

Customizable Default Key

The current parameters of oscilloscope can be preset to Default Key through the Save menu.

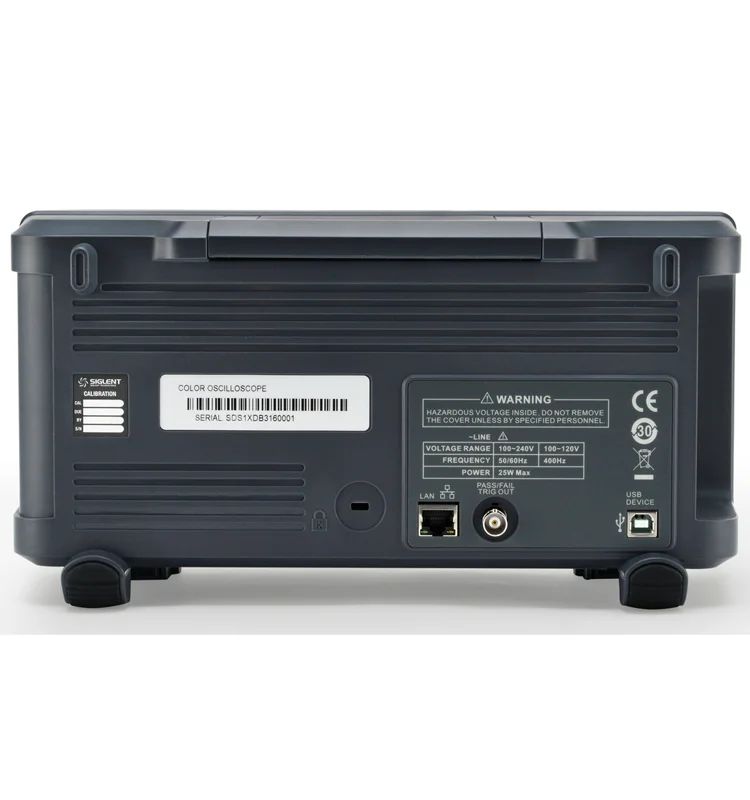

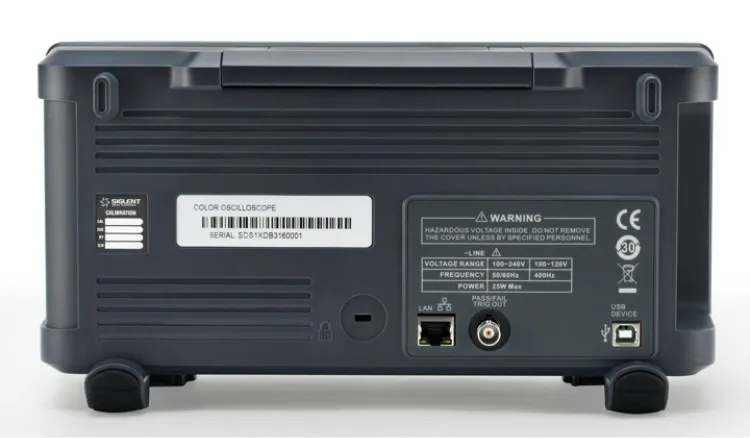

Complete Connectivity

SDS1000X-E supports USB Host, USB Device (USB-TMC), LAN (VXI-11), Pass/Fail and Trigger Out.

Ordering Information

Product Name

Product Description

200 MHz, 2 CH, Serial Bus decoder (Standard)

Optional Accessories

ISFE

Isolated Front End

STB Demo Source

HPB4010

High Voltage Probe

CP4020/CP4050/CP4070/

DPB4080/DPB5150/DPB5150A/

DPB5700/DPB5700A

Differential Probe
