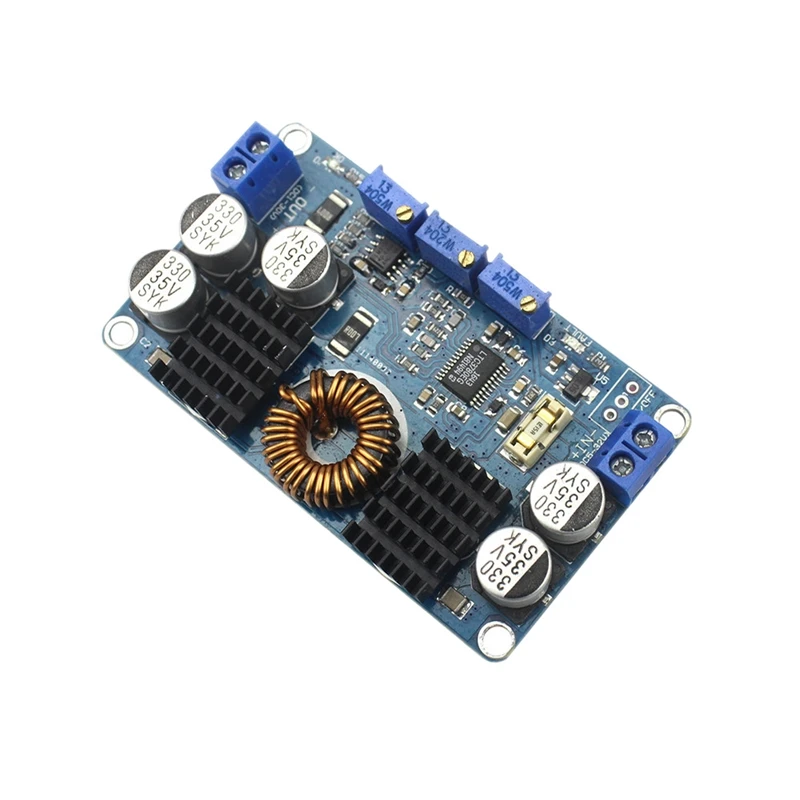

body { font-size: 75%; color: #000; font-family: Open Sans,Arial,Helvetica,sans-senif,SimSun,"宋体"; line-height: 1.3; } dl { margin: 0px; width: 480px; float: left; } dt { width: 100px; height: 15px; float: left; } dd { width: 240px; height: 15px; float: left; } dl dt { margin: 0px; line-height: 22px; color: #474747; font-size: 14px; font-family: tahoma; } #product-desc { width: 100%; height: 209px; } #description { width: 100%; height: 50%; } #details { width: 100%; height: 50%; } .ui-box-title { height: 30px; font-size: 15px; font-family: tahoma; font-weight: bold; background-color: #ddd; text-anchor: inherit; padding-top: 8px; margin: 0px; } .ui-box-body { margin: 0px; } #tbspecifics { border-right: 1px solid black; border-bottom: 1px solid black; } #tbspecifics tr { height: 30px; } #tbspecifics td { width: 100px; border-left: 1px solid black; border-top: 1px solid black; } Ltc3780 Dc 5-32V To 1V-30V 10A Automatic Step Up Down Regulator Charging Module The power supply is a kind of high-efficiency voltage automatically regulator.
Whatever is the input voltage value,the output voltage can be maintained constant.
For example,set the output to 12V, then the variation of the input voltage in the range of 5-32V,
the output voltage in the 12V invariant.
This module has a perfect protection function, and can be widely used in notebook power,vehicle power supply, solar charge etc..
Operating temperature range: -45 ~ +85 Celsius
Condition:New
Type:Voltage Regulator
Application:Regulator charging module
Advantages:
The input uses replaceable fuse to protect power supply and equipment;The whole electrolysis use patch, low resistance, high frequency capacitor,to make the ripple down to the freezing point;
Constant voltage, constant current, under voltage protection (MPPT is more suitable for solar charging)
The output has error indicating lamp,it will light when the output voltage drift too serious,short circuit and other fault;Inductor use iron 0.8 double winding, generate less heat.
Parameters:
Input voltage: DC5-32V;
Output voltage: DC1V-30V continuously adjustable; the default 12V shipment
Output current: 10A (MAX) ,long term within 8A
Output power: 80W, peak 130W, more than 80W please strengthen heat dissipation
Output ripple: 50mV (12V turn to 12V, 5A measured)
Short circuit protection:YES
Input reverse connection protection: No
Output prevent reverse connection protection: No
colour:As shown
Material:ABS
size:77.6*46.5*15mm
Package Contents:
1*LTC3780 Solar charging module
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
