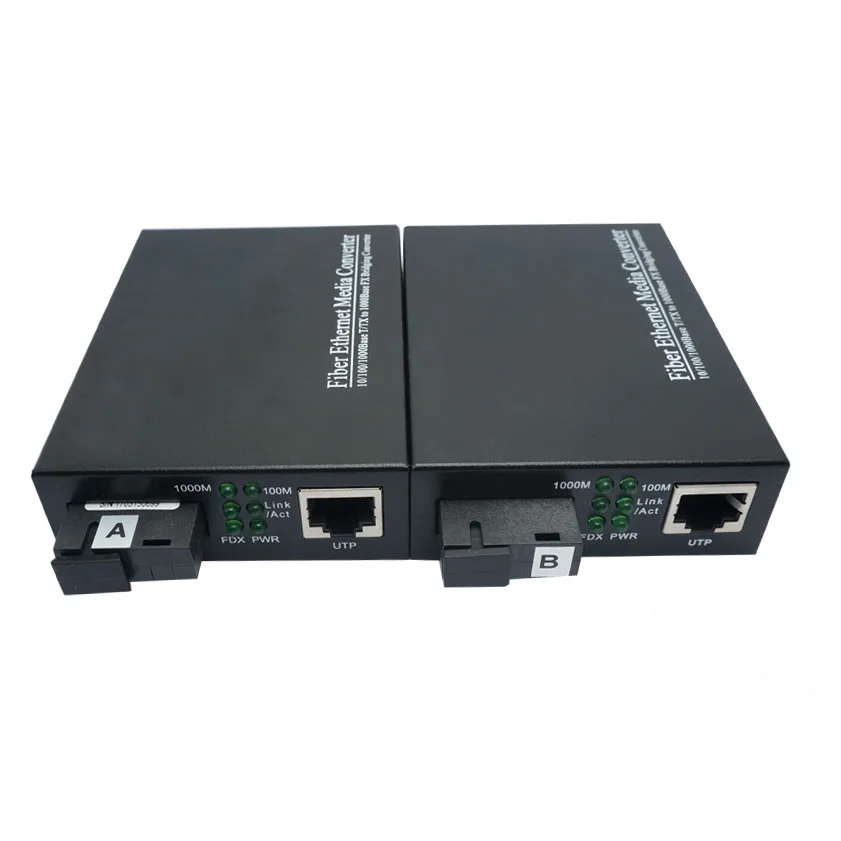

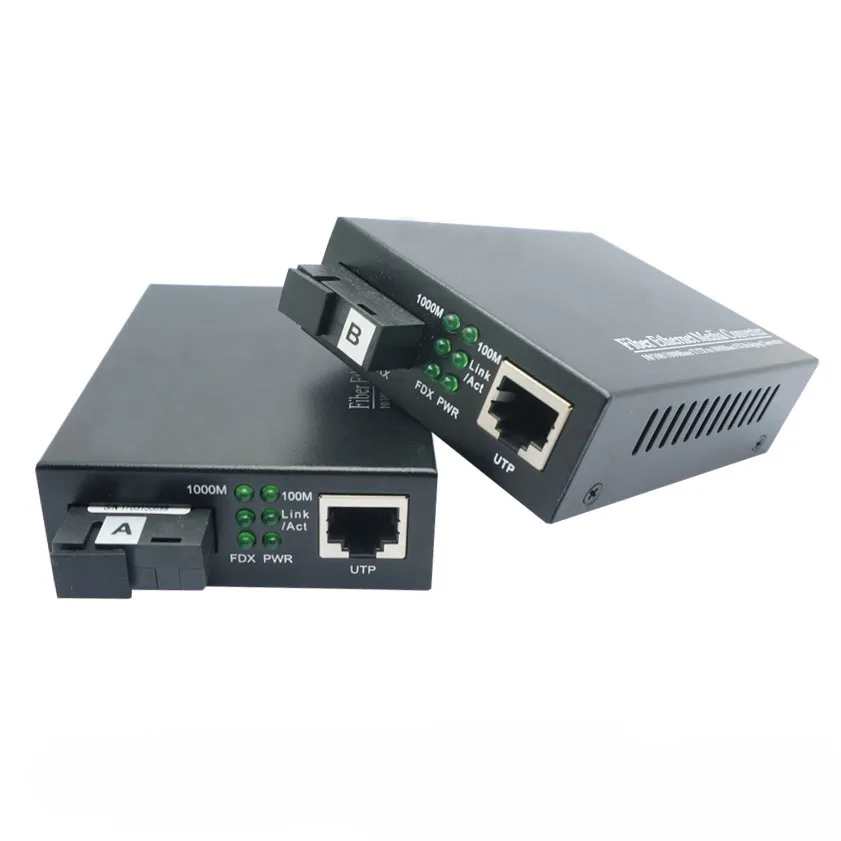

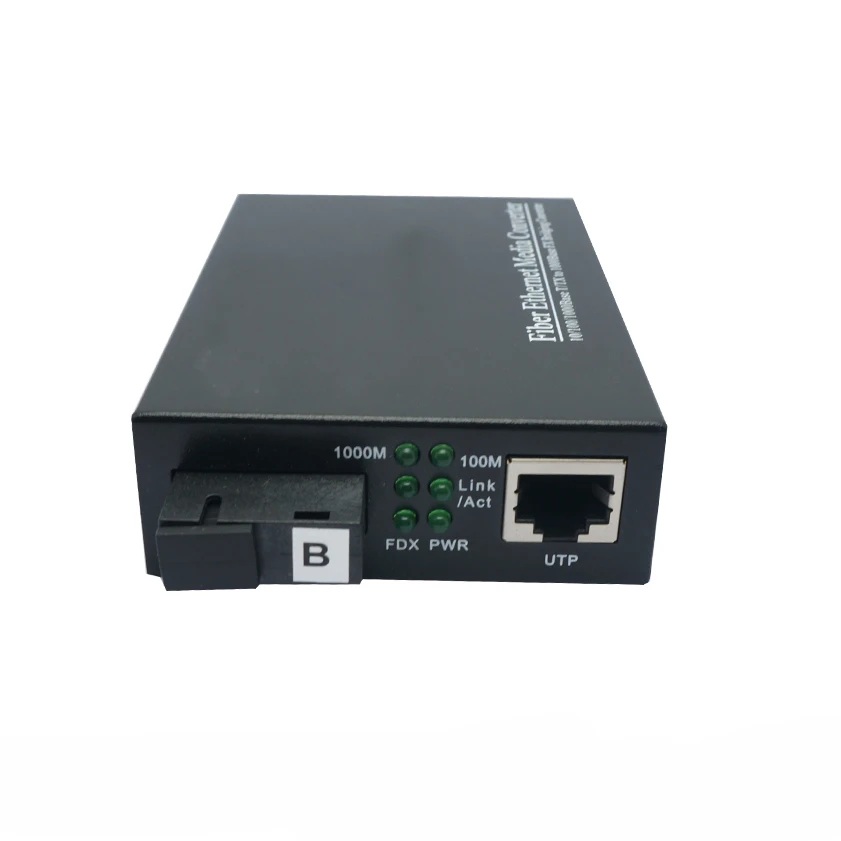

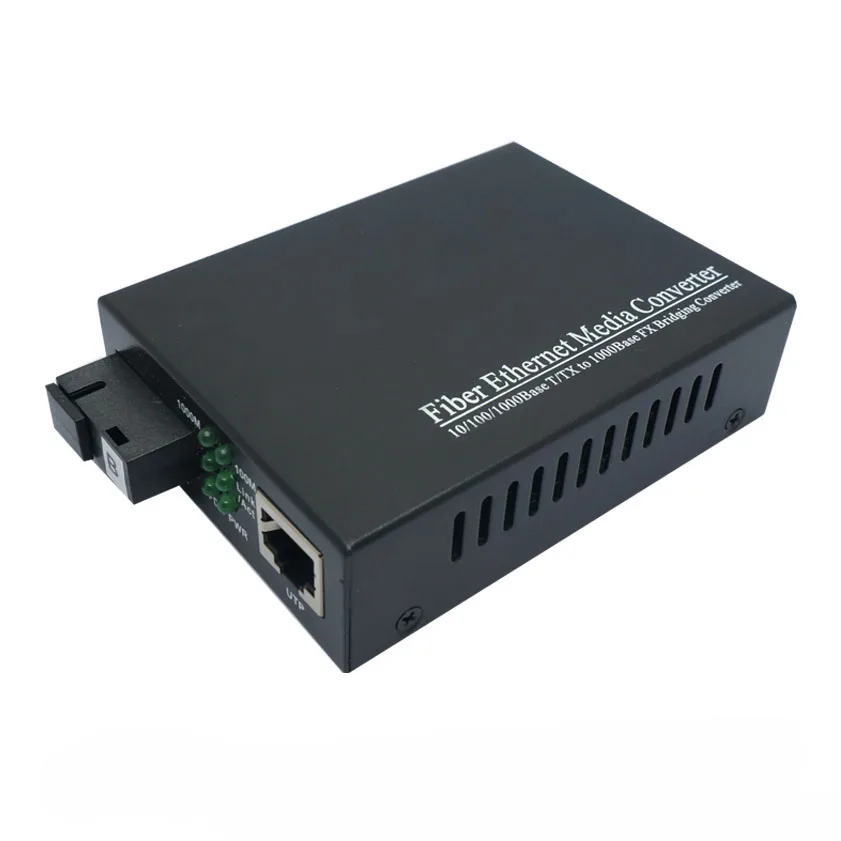

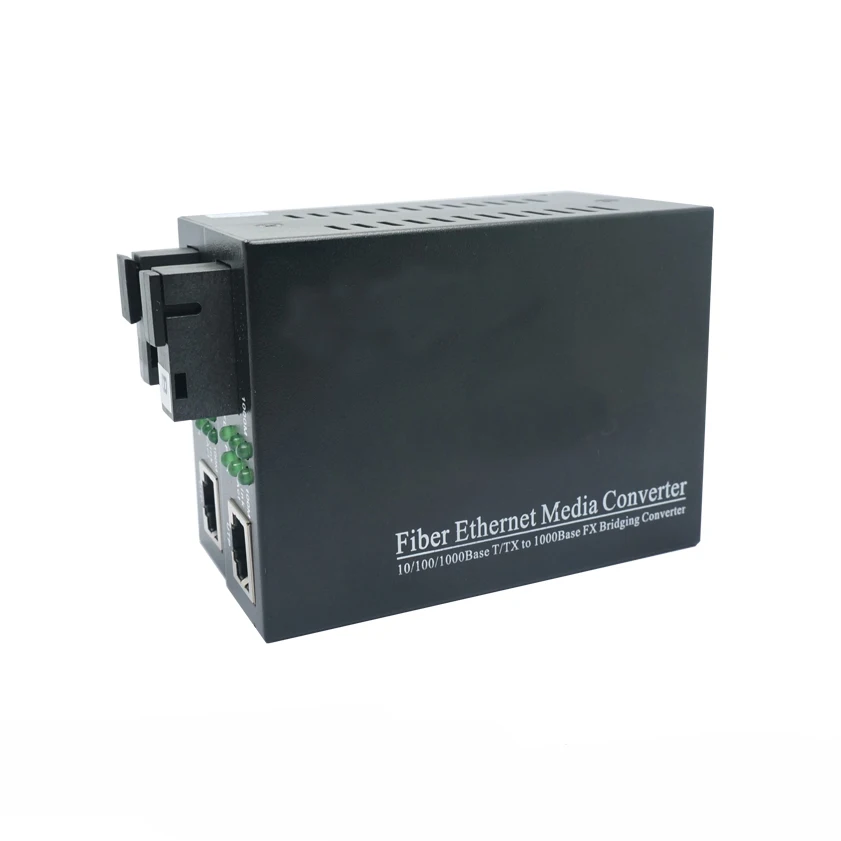

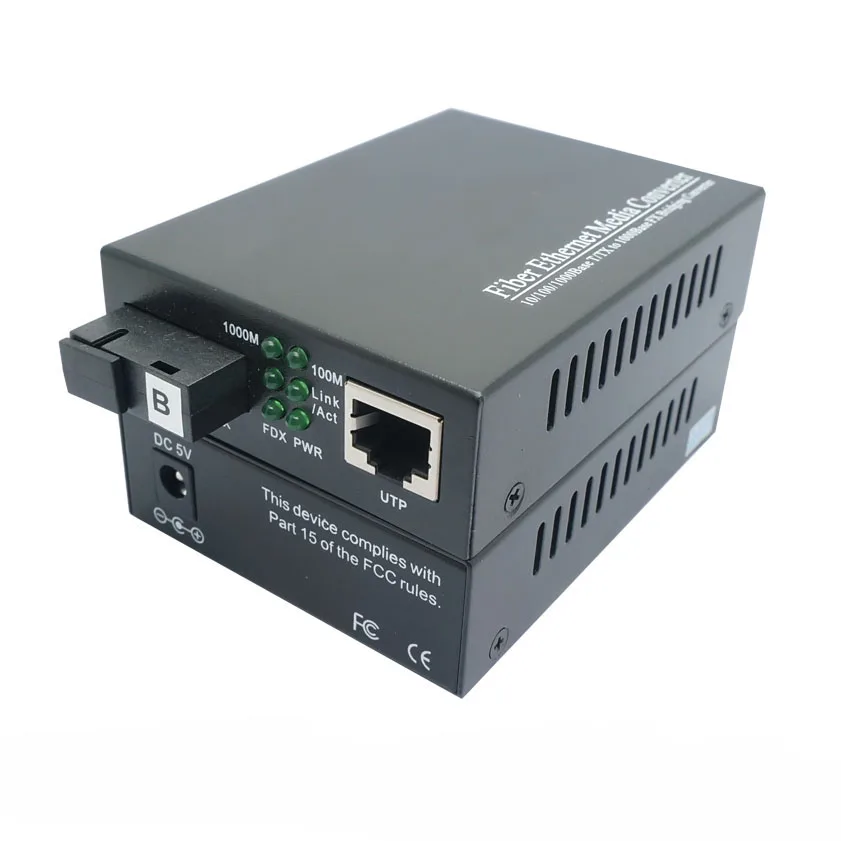

20KM Gigabit Fiber Media converter 1000M Singlemode Single Fiber 1310/1550nm SC/UPC

The non-managed media converters, which give you economic solutions for media conversion between

fiber and copper Ethernet. It provides you SC,FC or ST connectors for your fiber optic cables and RJ45 for twisted pair UTP cable connection.The maximum extension is up to 120km over fiber.

Features

* In conformity to IEEE802.3 10base-T, IEEE802.3u 100 base-TX/FX, IEEE802.3ab 1000 base-T, IEEE802.3z,1000base-SX/LX, IEEE802.1a, IEEE802.1PQ0S, IEEE802.1d Spanning Tree.

* Hot Plug-gable & Wall-Mountable.
* Stable performance more than 50thousand hours with fault-free.

* Unique IC solution applied.
* Supports 10/100Mbps and 10/100/1000M full/half duplex, easy upgrades.
* Auto MDI/MDI-X.

* Auto Negotiation.

* Support flow control.
* Concentrated into EF16-D220(16slot for media converter cards) or EF14-D220(14slot for media converter standalone type) 2U rack-mount chassis.
* Stable performance more than 50 thousands hours with fault-free.
* In conformity with safety code of FCC, CE and RoHS.

​Specifications

Optical Interface

Connector

1x9 SC

Data Rate

1000Mbps

Duplex Mode

Full duplex

Fiber

SM 9/125um

Distance

10/100/1000Mbps: SM 25km

Wavelength

WDM Tx1310/Rx1550nm(A side),Tx1550/Rx1310nm(B side)

UTP Interface

Connector

RJ45

Data Rate

10/100/1000Mbps

Duplex Mode

Half/full duplex

Cable

Cat5,Cat6

Power Input

Adapter Type

DC5V

Power Built-in Type

AC100~240V

Power Consumption

＜3W

Weight

Adapter Type

0.39kg

Power Built-in Type

0.67kg

Dimensions

Adapter Type

94*70.5*26.5mm

Temperature

0~50℃ Operating; -40~70℃ Storage

Humidity

5~95%(no condensing)

MTBF

≥10.0000h

Certification

CE,FCC,RoHS

Application

* Extend your Ethernet connection up to 0~120km away using fiber optics

* Creates an economical Ethernet-fiber/copper-fiber link for connecting remote sub-networks to larger fiber optic networks/backbones

* Converts Ethernet to fiber, fiber to copper/Ethernet, ensuring optimum network scalability for connecting two or more Ethernet network nodes (e.g. connecting two buildings on the same campus)

* Designed to provide high-speed bandwidth for demanding large scale work groups that require expansion of Gigabit Ethernet Network

System Design

1. For Networking

2. For CCTV Surveillance Security

Packing :
