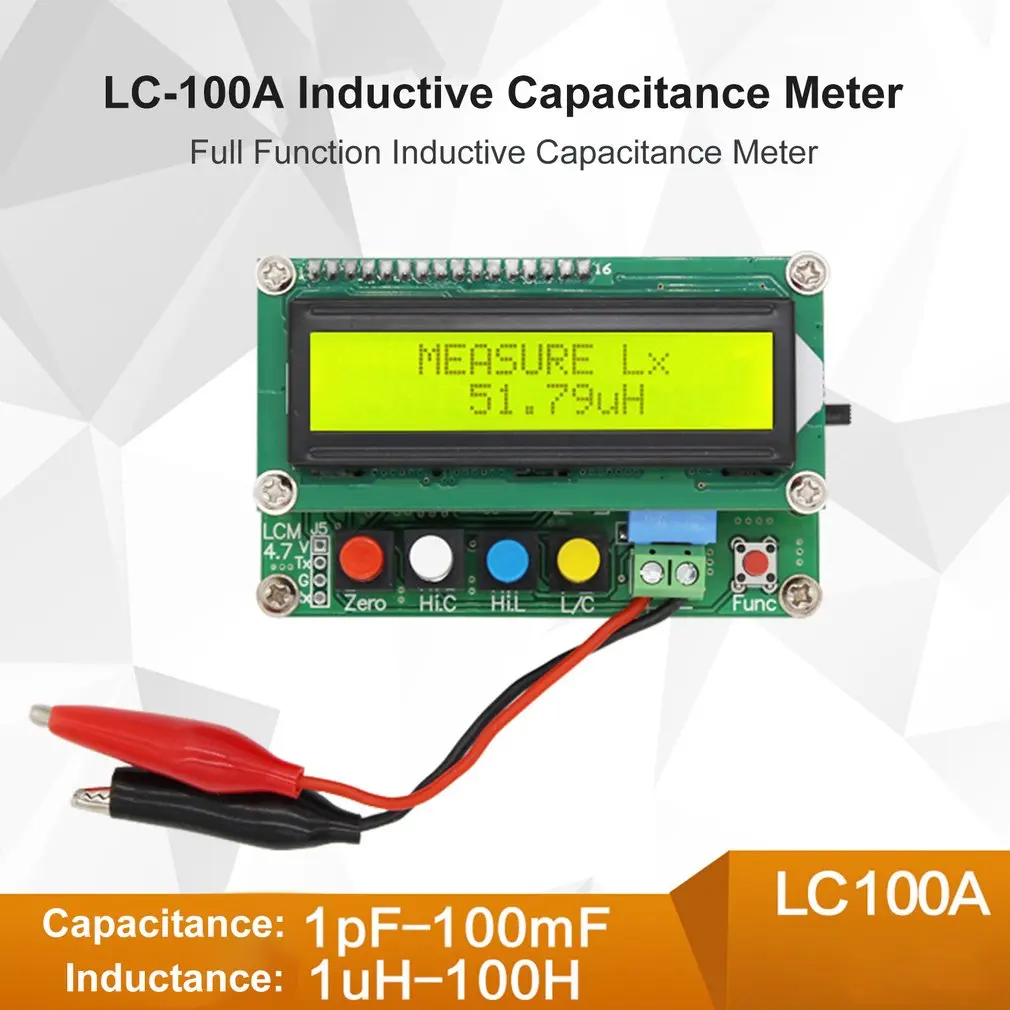

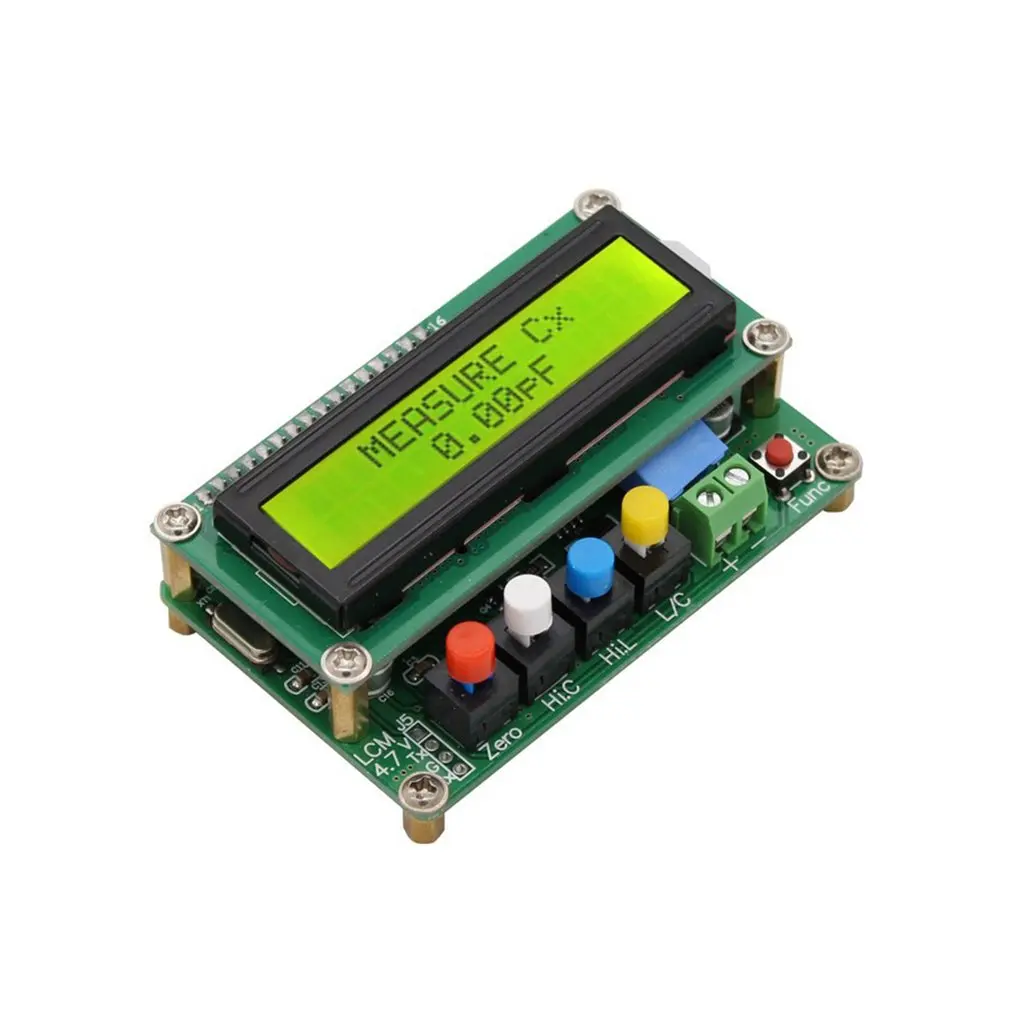

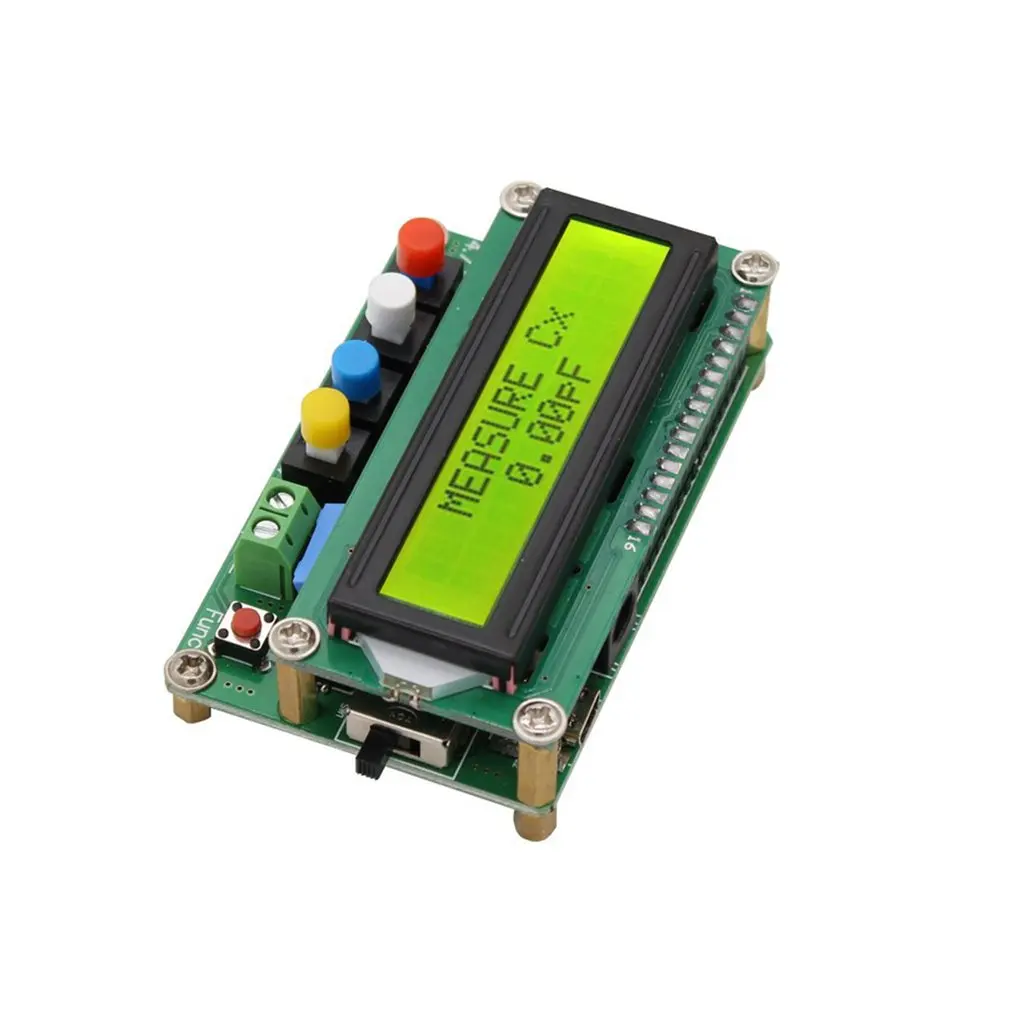

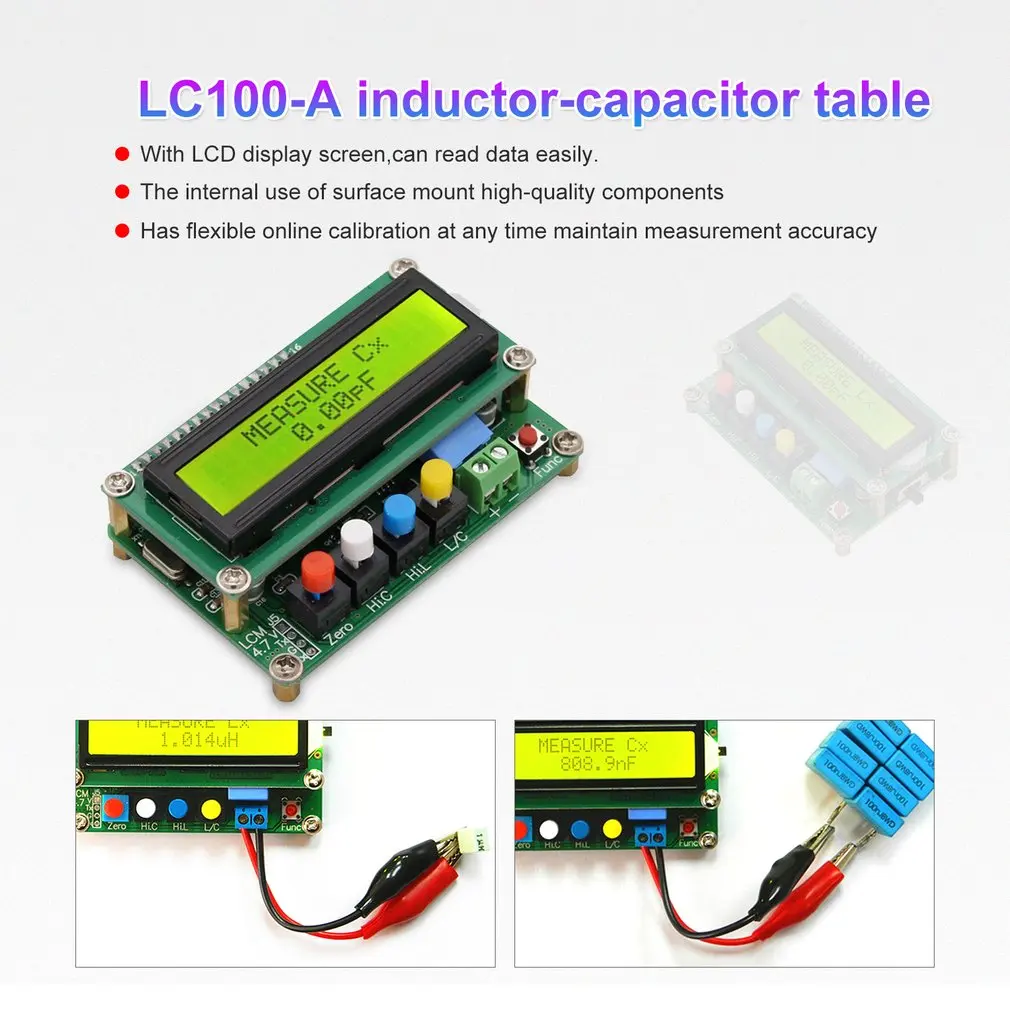

LC100A Digital LCD Capacitance LC Meter Inductive Inductance Tester Inductor Capacitor Table 1pF-100mF 1uH-100H

Features:
1.With LCD display screen,can read data easily.
2.Has flexible online calibration at any time maintain measurement accuracy.
3.The internal use of surface mount high-quality components to ensure excellent quality.
4.Can measure 1pF-100mF capacitance and 1uH-100H inductance, capacitance resolution up to 0.01pF, inductor resolution 0.001uH.
5.The instrument is based on the principle of LC resonance and can measure inductance below 1uH and small capacitance less than 1pF.

Descriptions:
1.LC100-A type is a full-featured added 1uF-100mF electrolytic capacitor test function, in addition to the basic three stalls, all the stalls are auto-ranging.
2.High precision,stable performance,safety and reliability,simple operate.
3.Suitable for microwave production and measurement of switching power supply transformers, filter inductors, etc.

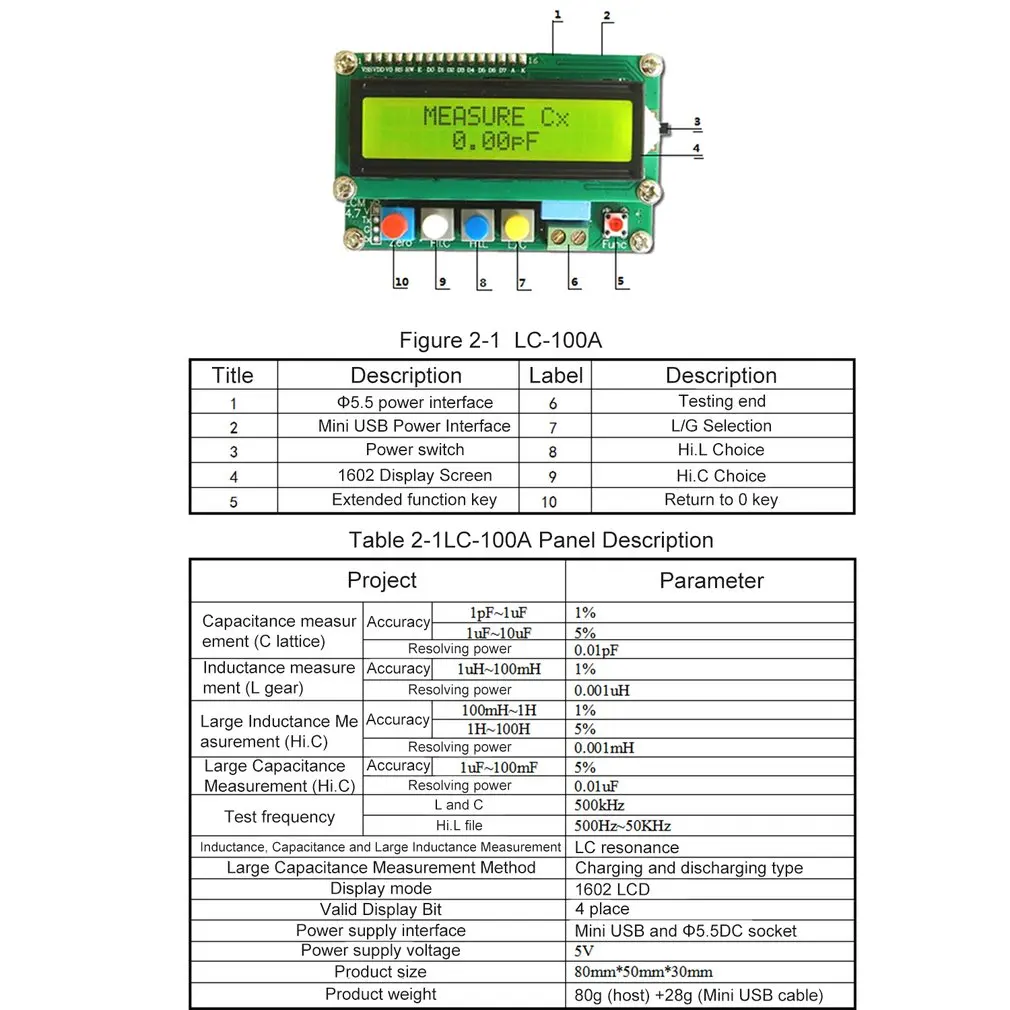

Specifications
Model:LC100A

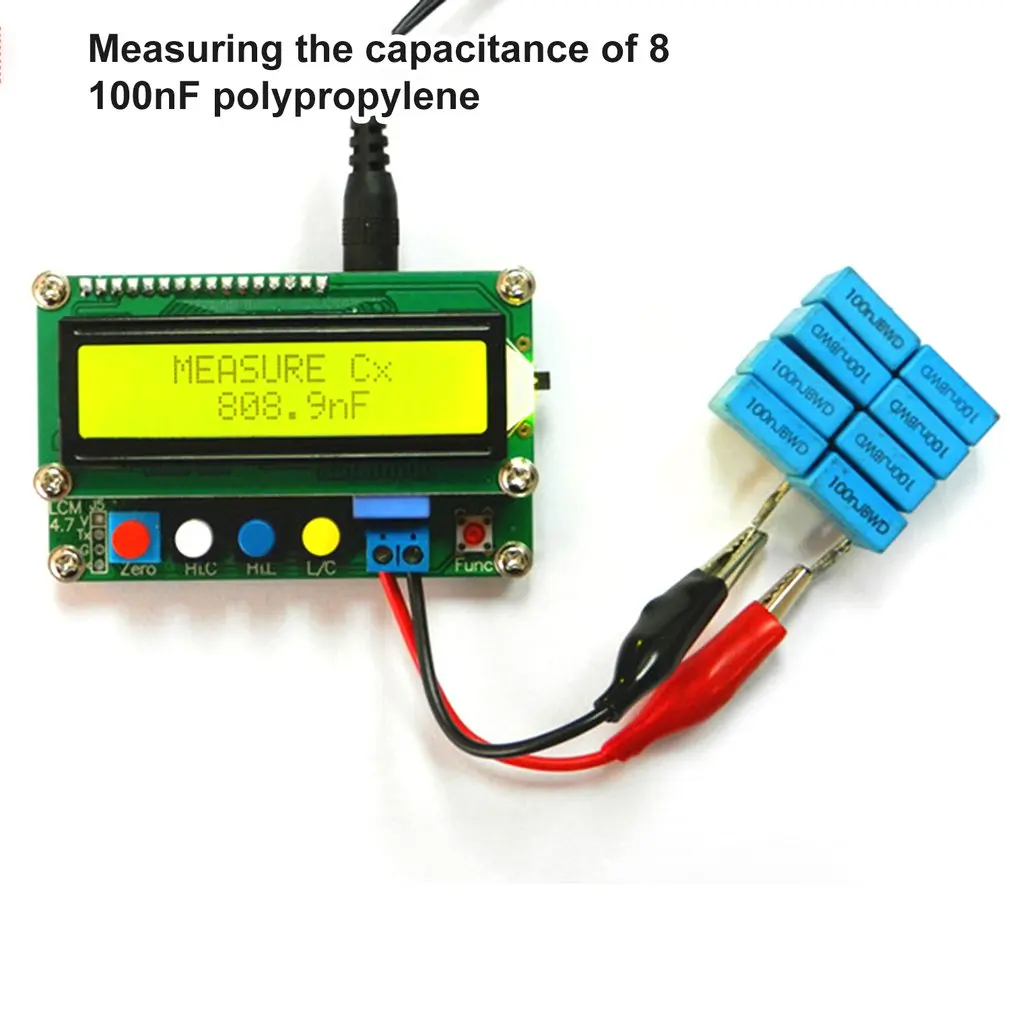

C range : Capacitance (1pF-10uF)
Capacitance accuracy :  1%(1pF~1uF), 5%(1uF~10uF)
Measurement resolution of capacitance (C Range):  0.01pF

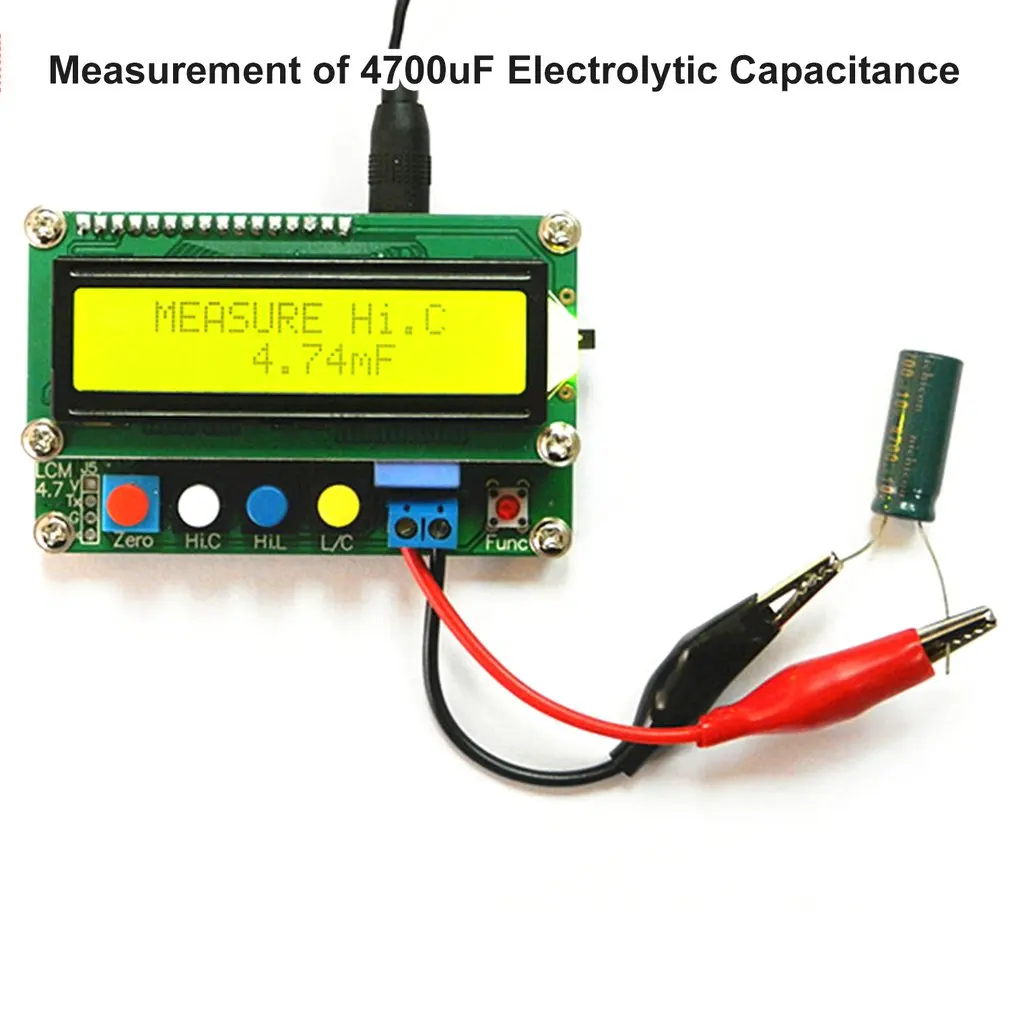

Hi.C range :  Large capacitance ,1uF-100mF
Large capacitance accuracy:   5%(1uF-100mF)
Measurement resolution of large capacitance(Hi.C Range):  0.01uF

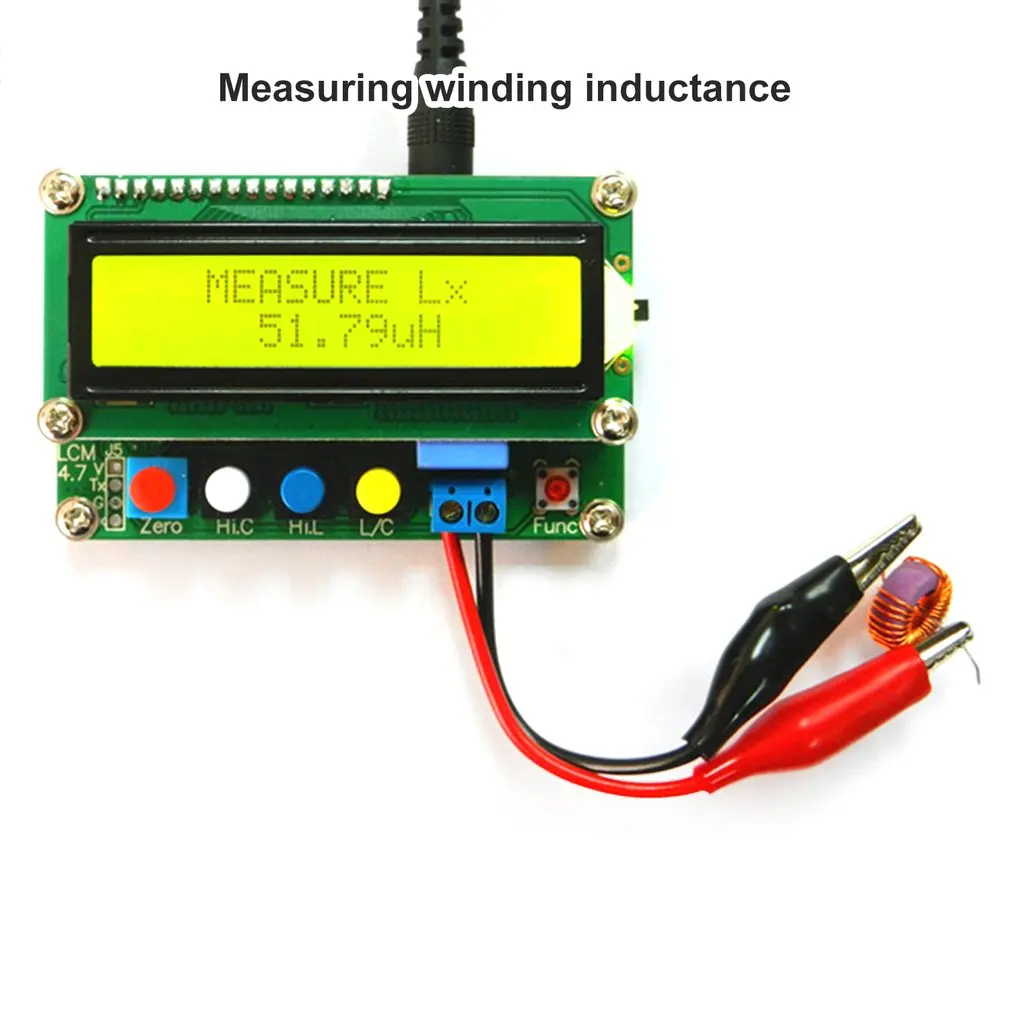

L range :  Inductance (1uH-100mH)
Inductance accuracy :1%(1uH~100mH)
Measurement resolution of inductance(L Range):   0.001uH

Hi.L range :  Large inductance (0.001mH-100H)
Large inductance accuracy:  1%(100mH~1H),5%(1H~100H)
Measurement resolution of large inductance(Hi.L Range):  0.001mH
Test Frequency: L Range.C Range,500kHz; Hi.L Range,500Hz~50KHz

Measurement method of capacitance.Inductance and Large Inductance:  LC Resonance
Measurement method of large capacitance:Charge-discharge
Display:1602 LCD
Effective display digits:  4 digits
Interface to power supply:Mini USB &Φ5.5DC Socket,4 x AA Batteries(not included)
Supply Voltage:5V

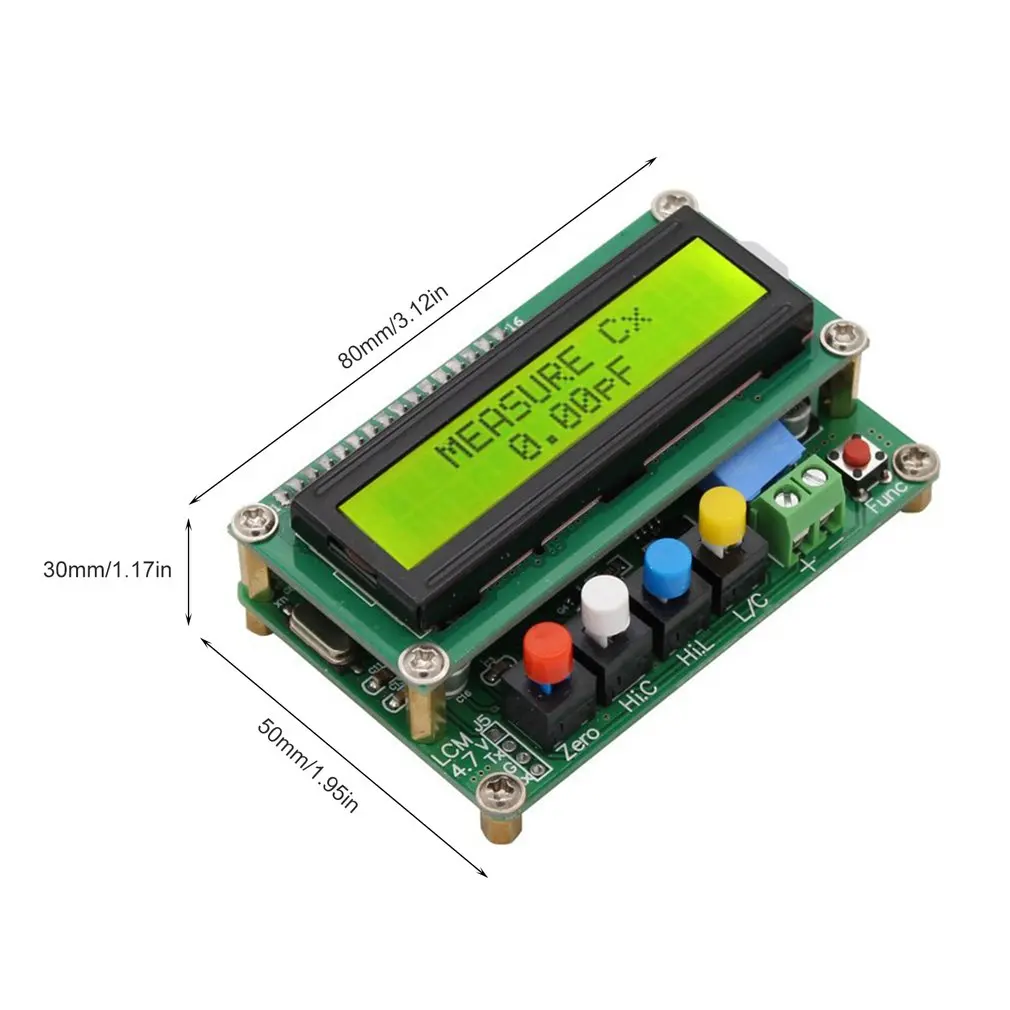

Dimensions:80x50x30mm/3.12x1.95x1.17in

Package informations:
Package Size:105x100x50mm/4.1x3.9x1.95in
Package weight:126g/4.41oz
General Box Package

Package included:
1 x LC100-A inductor-capacitor table
1 x Mini USB cable

Noted:
1.Please allow 1-2mm errors due to manual measurement.
2.Item color displayed in photos may be showing slightly different on your computer monitor since monitors are not calibrated same.
