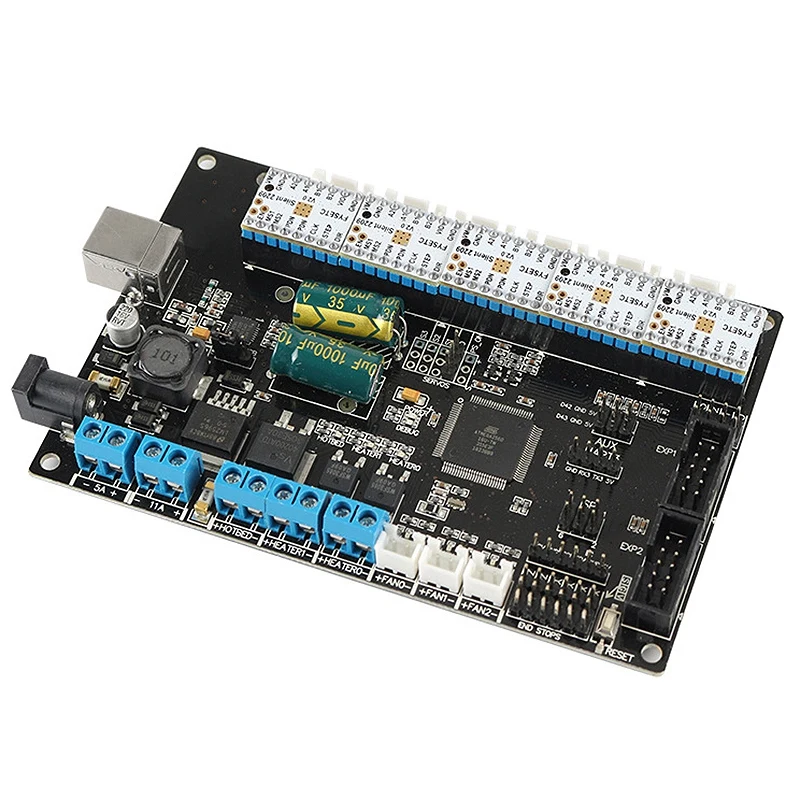

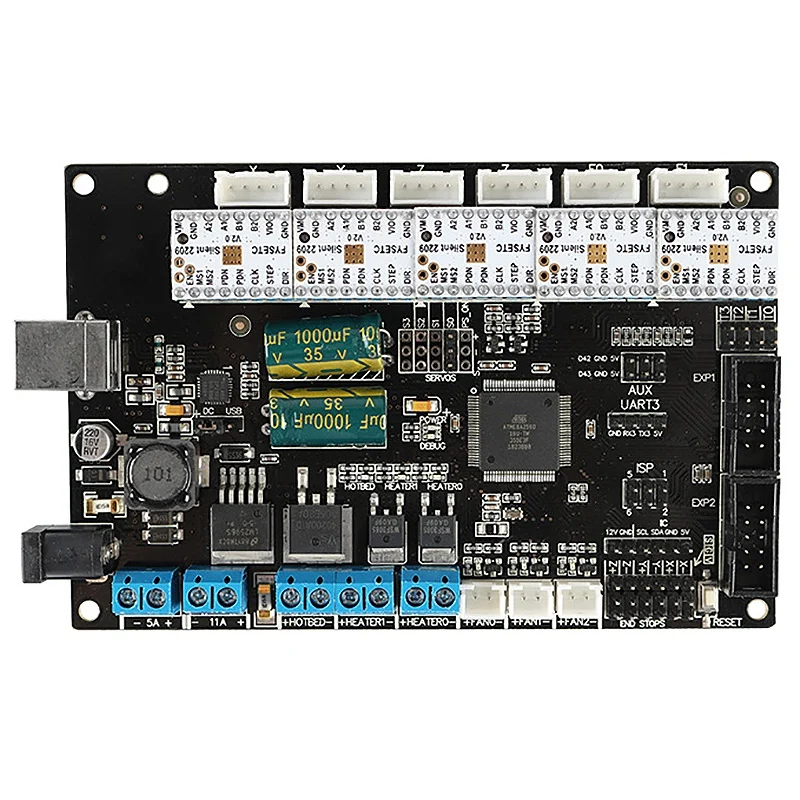

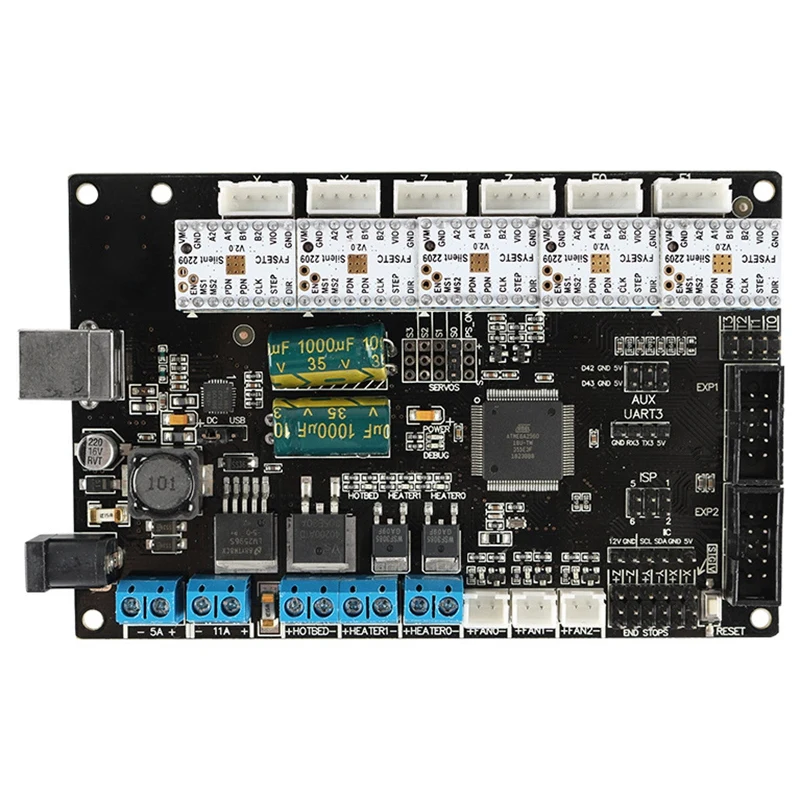

body { font-size: 75%; color: #000; font-family: Open Sans,Arial,Helvetica,sans-senif,SimSun,"宋体"; line-height: 1.3; } dl { margin: 0px; width: 480px; float: left; } dt { width: 100px; height: 15px; float: left; } dd { width: 240px; height: 15px; float: left; } dl dt { margin: 0px; line-height: 22px; color: #474747; font-size: 14px; font-family: tahoma; } #product-desc { width: 100%; height: 209px; } #description { width: 100%; height: 50%; } #details { width: 100%; height: 50%; } .ui-box-title { height: 30px; font-size: 15px; font-family: tahoma; font-weight: bold; background-color: #ddd; text-anchor: inherit; padding-top: 8px; margin: 0px; } .ui-box-body { margin: 0px; } #tbspecifics { border-right: 1px solid black; border-bottom: 1px solid black; } #tbspecifics tr { height: 30px; } #tbspecifics td { width: 100px; border-left: 1px solid black; border-top: 1px solid black; } Specification:TriGorilla is a integrated main board that is integrated with the mighty function of the Mega2560+ramps 1.4 on respect of both software and hardware and has more premium features;
the streamlined interfaces effectively avoid the unnecessary troubles and power than Ramps 1.4 + Mega2560,
it is a feature rich all-in-one electronics solution for Reprap Mendel Prusa and other CNC devices.
Main Control Chip: ATMEGA256016AU.Input Power: 10V ~ 30V.Standby Current: 35mA±5mA.Stepper Motor Drivers: 5 channel Max.Hot bed Output Control: 1 channel.Heated output control: 2  channel.under-current output control: 3 channel

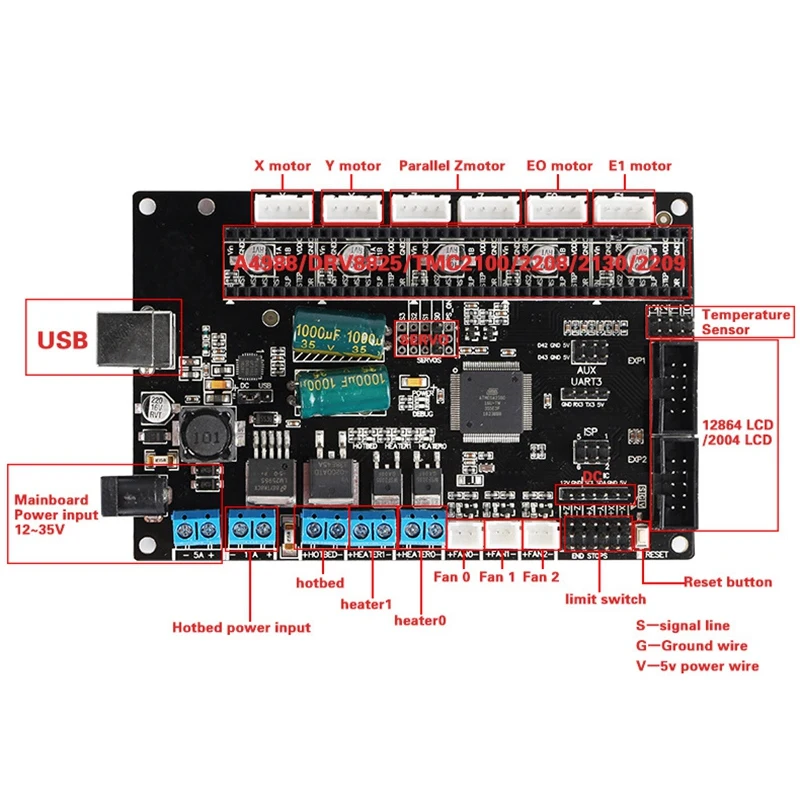

Feature:1, simple to install: Integrated with the mighty function of the Mega2560+ramps 1.4 kit.2, Convenient to use: TriGorilla motherboard support LCD2004 and LCD12864 without using adapter, and there are two choices for main board power supply, you can choose DC power supply connection or directly from the terminal.TriGorilla use CP2102 chip as a serial port communication.but also avoid the repeated to install the driver
3, Excellent compatibility: Firmware can use the same configuration as ramps1.4, the marlin firmware which runs in Mega2560+ramps 1.4 kits can directly running in TriGorilla board.
4, voltage input at super wide range, short-circuit protection:
TriGorilla adopts DC - DC step-down scheme design and Recoverable fuse for short-circuit protection, improving the MEGA2560 board serious heating problem,
Allowing any power supply from 10V-30V.
5, Support up to 5 motor drivers, support A4988/ DRV8825 /TMC2100 driver:
6, Rich expansion port.TriGorilla had reserved SERVO, UART, IIC expansion, so you can use it realize automatic leveling, control Contact screen smart controller,
control wireless module and the detection of break, etc
7, wide applicability.widely used in 3D printers, e.g. Kossel, Prusa i3, corexy, etc
colour: black
Material: Plastic + metal

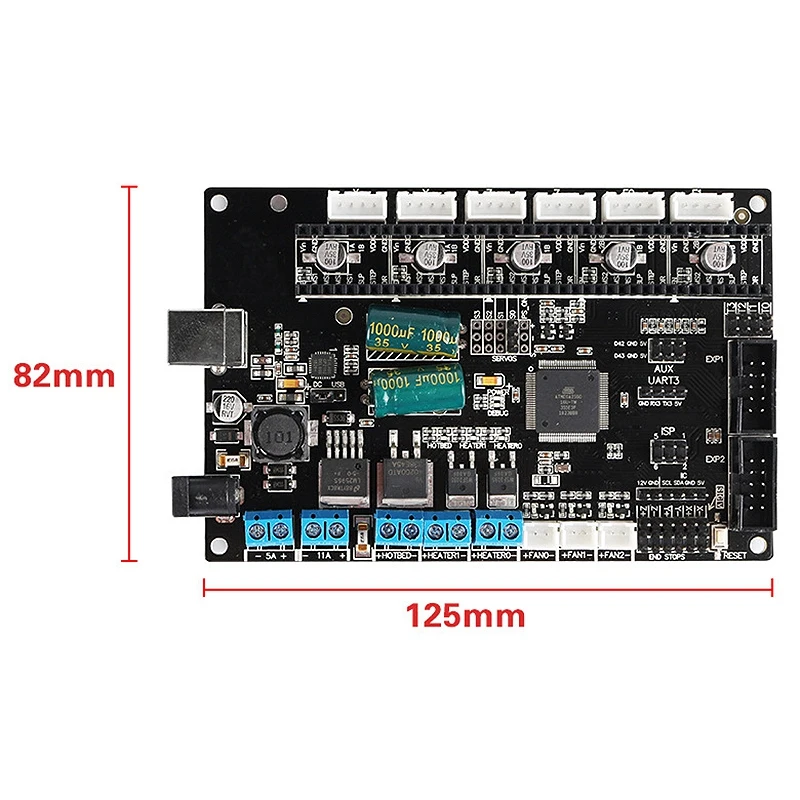

size: 125x82mm

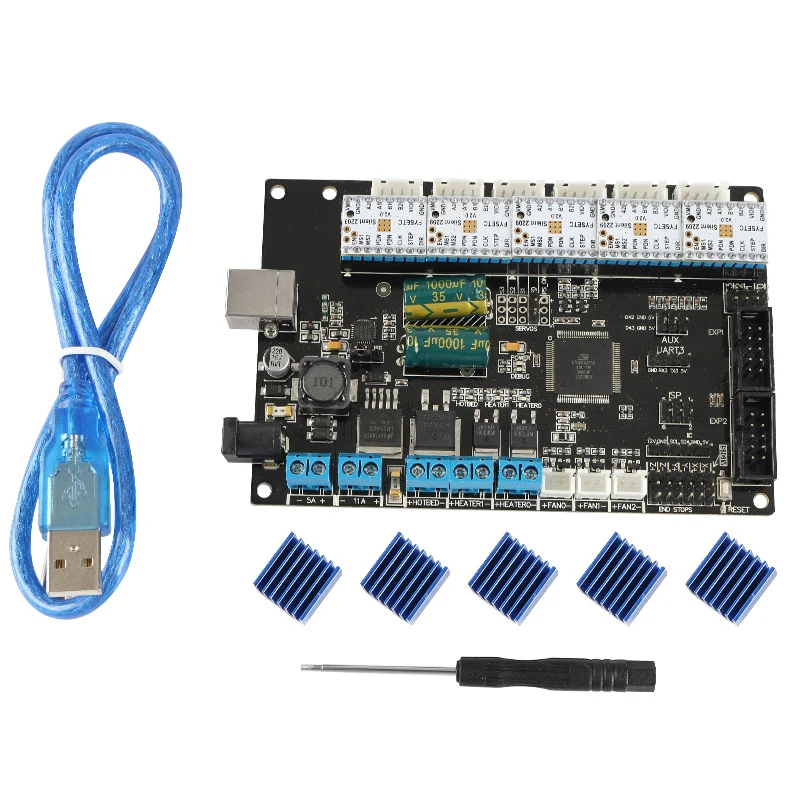

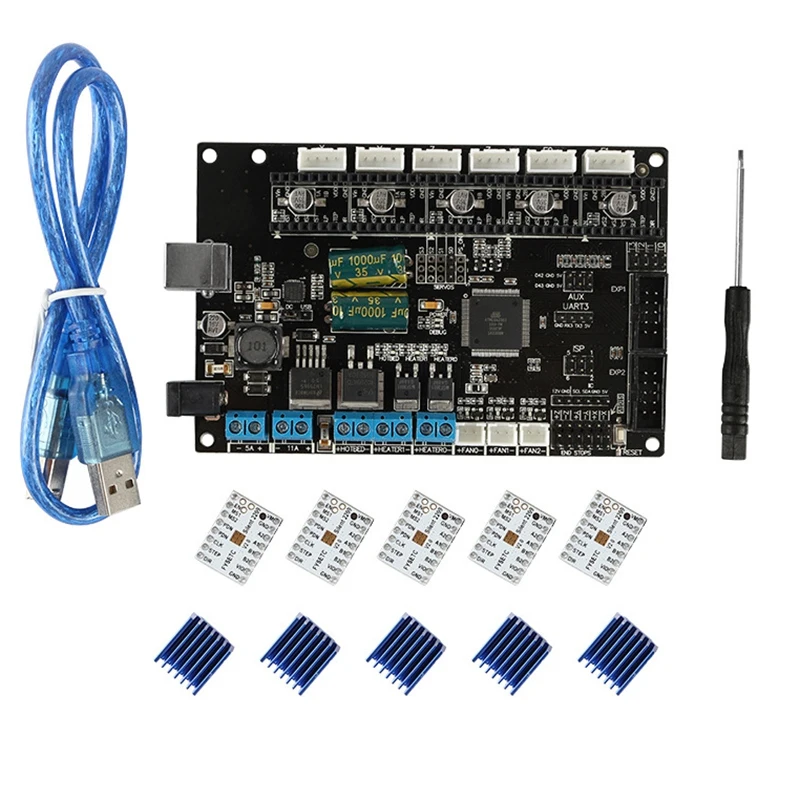

Package Contents:
1 x TriGorilla motherboard

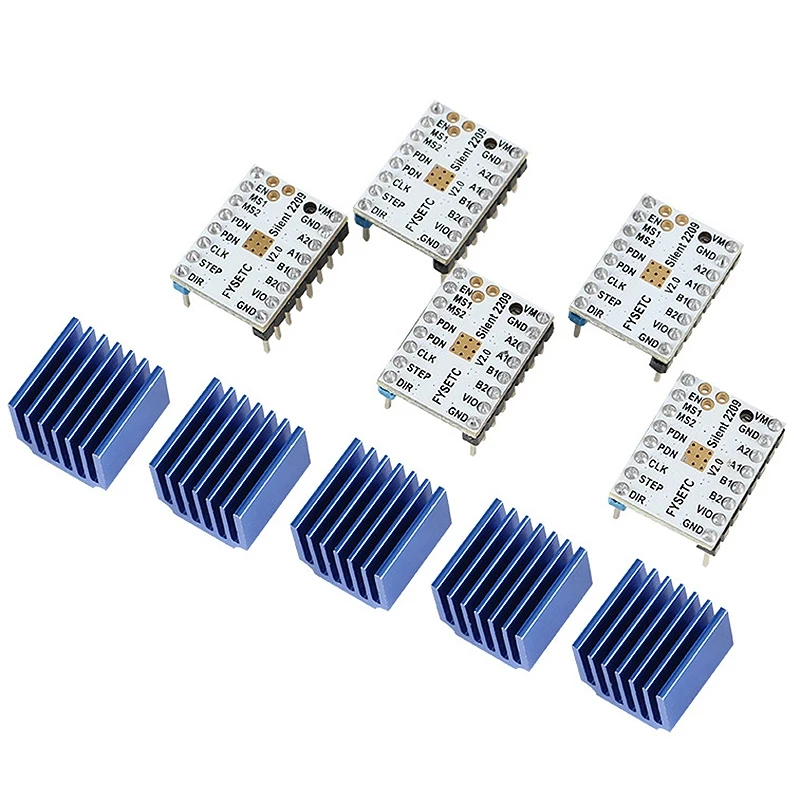

1 x TMC2209 V2.0 driver
5 x Heat sink
1 x USB cable
1 x Screwdriver
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
