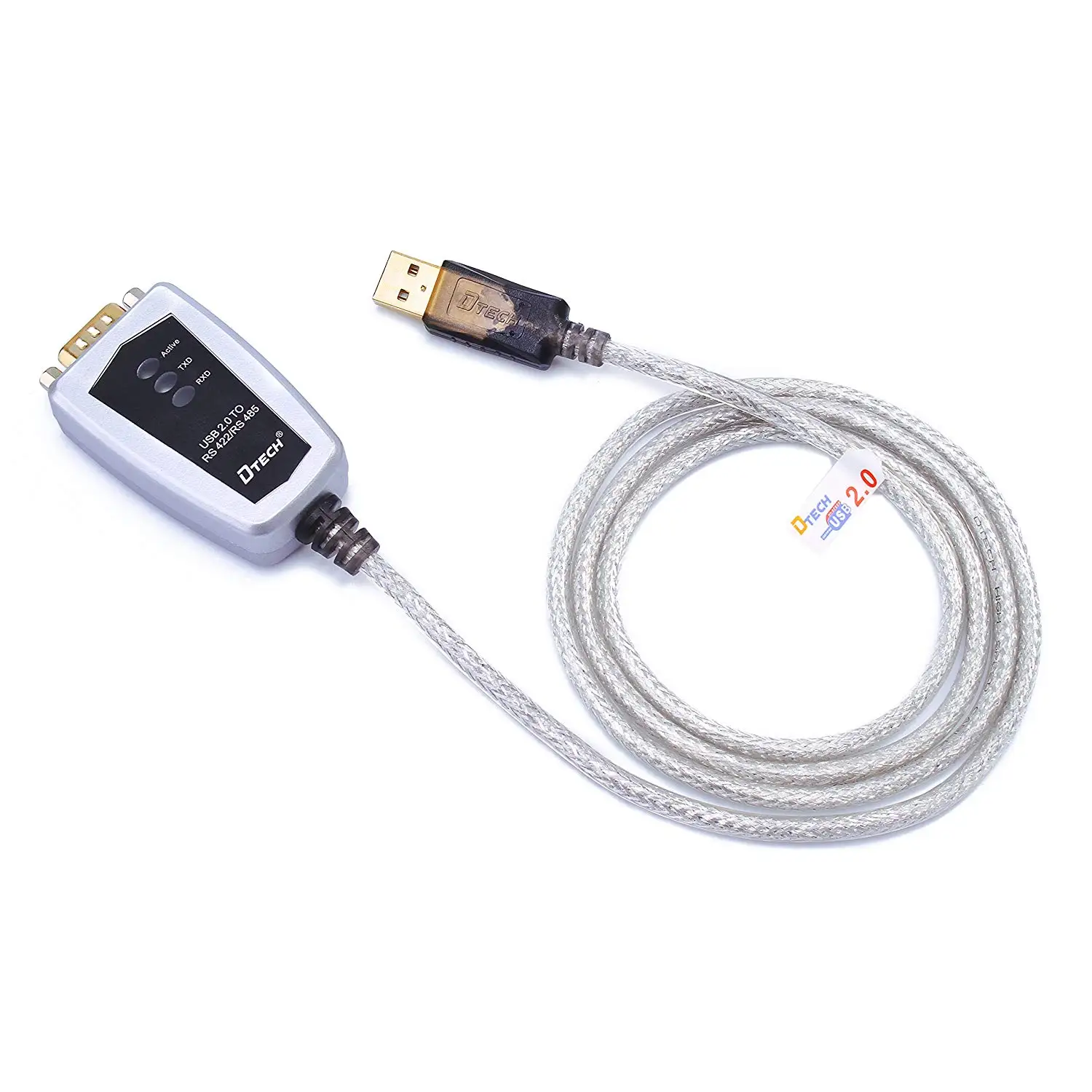

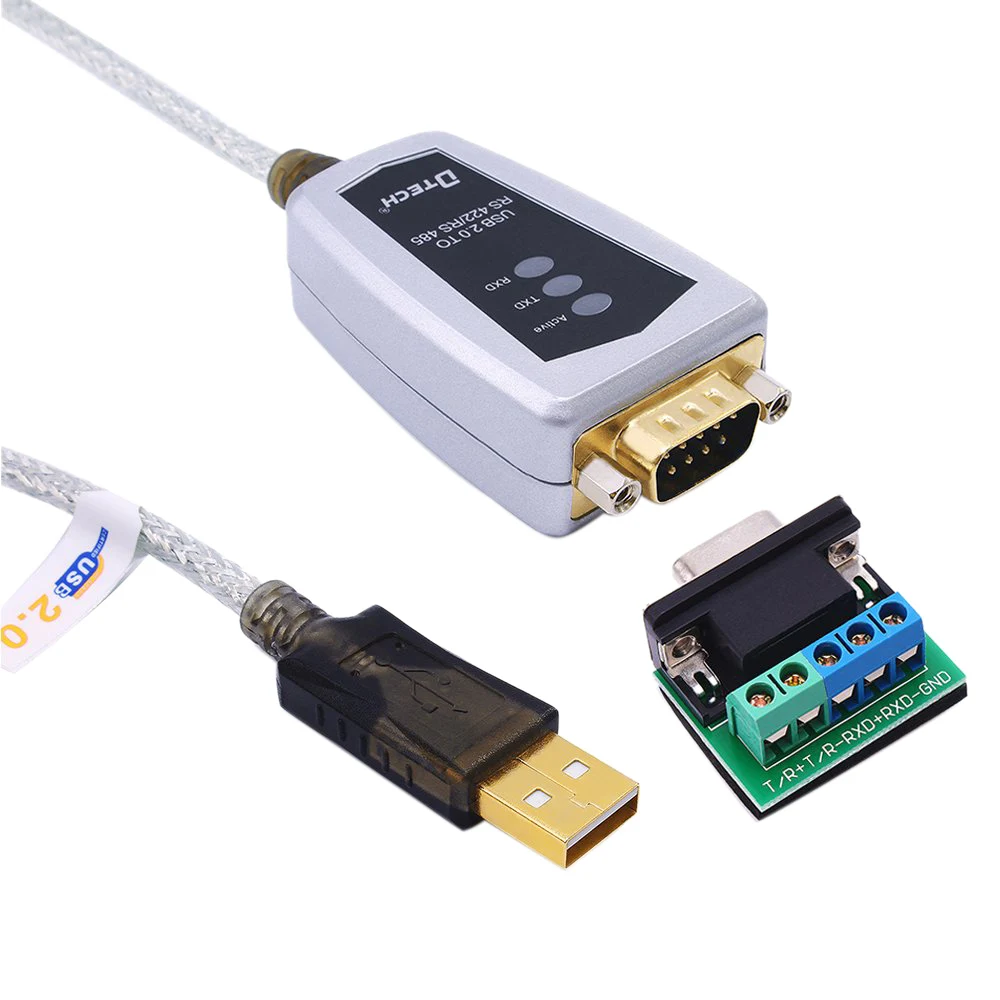

USB to RS485 RS422 Serial Converter Adapter Cable FTDI Chip for Windows 10 8 7 XP and Mac |

body { font-size: 75%; color: #000; font-family: Open Sans,Arial,Helvetica,sans-senif,SimSun,"宋体"; line-height: 1.3; } dl { margin: 0px; width: 480px; float: left; } dt { width: 100px; height: 15px; float: left; } dd { width: 240px; height: 15px; float: left; } dl dt { margin: 0px; line-height: 22px; color: #474747; font-size: 14px; font-family: tahoma; } #product-desc { width: 100%; height: 209px; } #description { width: 100%; height: 50%; } #details { width: 100%; height: 50%; } .ui-box-title { height: 30px; font-size: 15px; font-family: tahoma; font-weight: bold; background-color: #ddd; text-anchor: inherit; padding-top: 8px; margin: 0px; } .ui-box-body { margin: 0px; } #tbspecifics { border-right: 1px solid black; border-bottom: 1px solid black; } #tbspecifics tr { height: 30px; } #tbspecifics td { width: 100px; border-left: 1px solid black; border-top: 1px solid black; } USB to RS485 RS422 Serial Converter Adapter Cable FTDI Chip for Windows 10 8 7,XP and Mac

600W static surge and ±15KV ESD protection protects devices and ensures high speed data communication

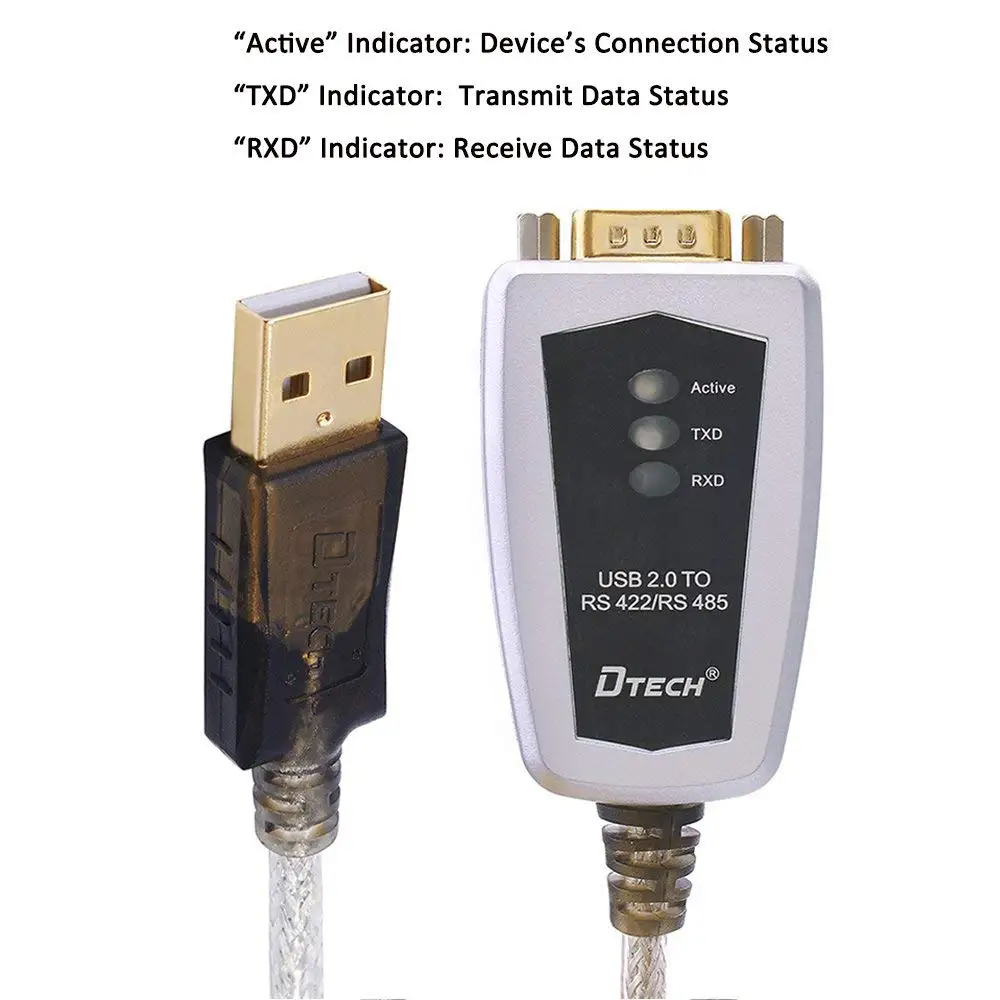

TX, RX indicators help you check communication activity, which is very helpful when troubleshooting;
The shielded cable supports four wires full duplex, two wires half duplex; point to point, point to multi-point communication;Transmission distance up to 1.2 km at at baud rate of 9600 bps (the longer distance, the lower baud rate);Terminal block is well-labeled for you to easily wire it to your device correctly!
Item Features / Specifications :
Color: silver + gray
Material: PVC
Brand new and high quality
Serial Protocol: RS485 / RS422;
USB 2.0; EIA/TIA RS485 and RS422 standard;
Chip: FTDI;
Max Baud Rate: 921600bps;
Max Distance (RS485/422 End): 984ft (300m) at 921600bps, 1968ft (600m) at 38400bps, 3937ft (1.2km) at 9600bps;
USB-bus powered, no external power needed.
Automatic hand-shaking protocol supported
Item Length: 50cm / 1.6ft
FTDI Chip supports the widest possible OS compatibility: Win 10, 8, 8.1, 7, Vista, XP, Linux and Mac
Package Contents:
1 * USB to Serial Converter Cord 50cm

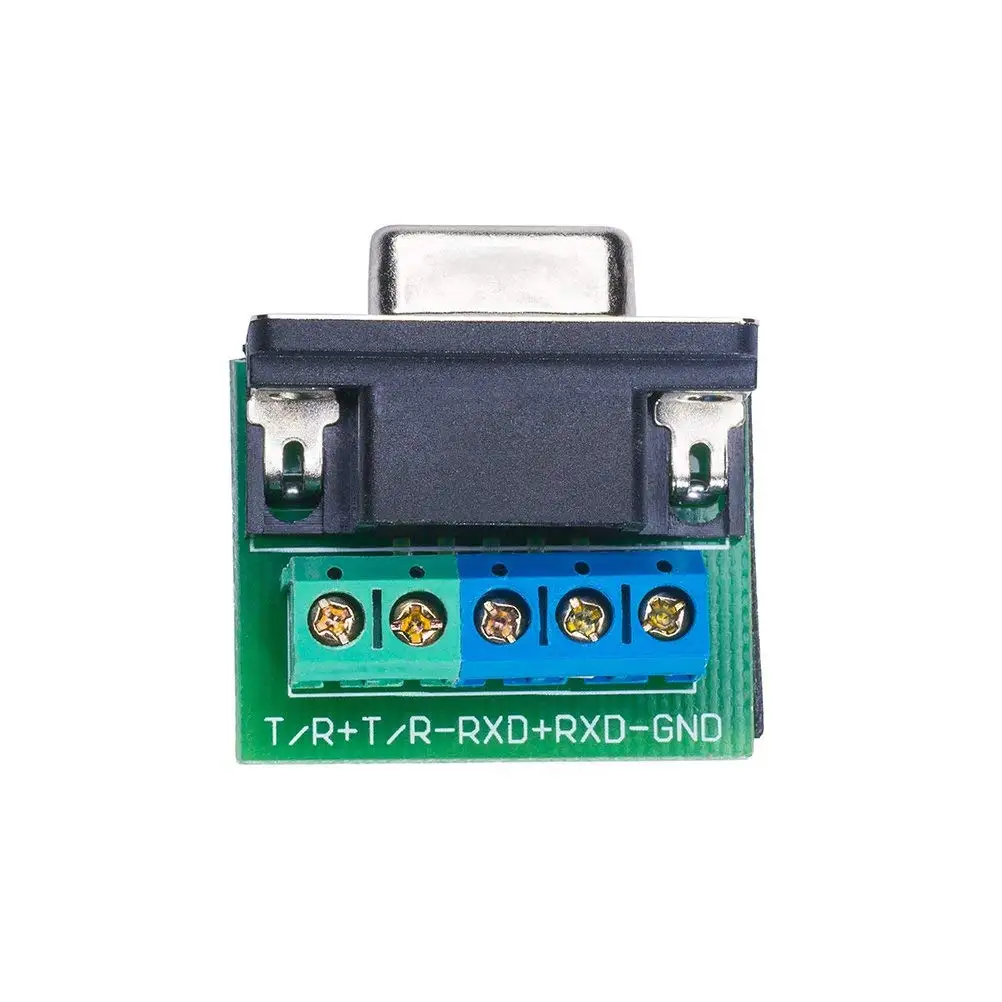

1 * RS422 RS485 Serial DB9 to Terminal Block Adapter
1 * Driver CD
1 * User manual
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
