New Arrival Thermal Imaging Camera for Inspection and Quarantine Temperature Screening Detection Thermometer |

New Arrival Thermal Imaging Camera for Inspection and Quarantine Temperature Screening Detection Thermometer |

New Arrival Thermal Imaging Camera for Inspection and Quarantine Temperature Screening Detection Thermometer Thermal Camera

Product Parameter

T120H

Category

Item

Specification

IR Detector

IR resolution

120*90@17μm

Detector type

Uncooled Vox/7.5~14μm

Frame Rate

25HZ

NETD

60mk

Focal Length/F#

2.28mm/F1.13

FOV

50°x38°

IFOV

7.6mrad

Focus

Focus-free

Image   Display

Display type

2.4inch LCD display

Display Resolution

240*320

Image Mode

IR Image

Temperature Measurement

Filter Range

20℃-50℃

Accuracy

≤±0.5℃ (Ambient temperature 25 ℃, target distance 1m, target temperature 32 ℃ ~ 42 ℃, )

Measurement Point

Central   point

Alarm

Over-temperature   alarm, color prompt  (preset value:   37.3℃)

Image   Storage

Storage Media

TF   card (maximum support: 32G)

 Image Format

Full   Radiometric (JPG)   (120*90)

Communication Mode

USB

TYPE-C,   TF Card slot

Tripod Interface

YES

Power   System

Battery Type

Rechargeable   Li-ion battery

Operating Time

＞8H

Charging Time

DC,≤2.5H

Enviromental Parameter

Operating Temperature

-10℃~50℃

Storage Temperature

-40℃~70℃

Encapsulation

IP54，2-meter Drop Test

Others

Certification

CE/ROHS/FCC

Weight

350g

Dimension

194mm   *61.5mm *76mm

Standard Accessories

Wristband,Quick   start Guide,Charging adapter, Plug, USB Type-C cable,Download card,16G TF   Card

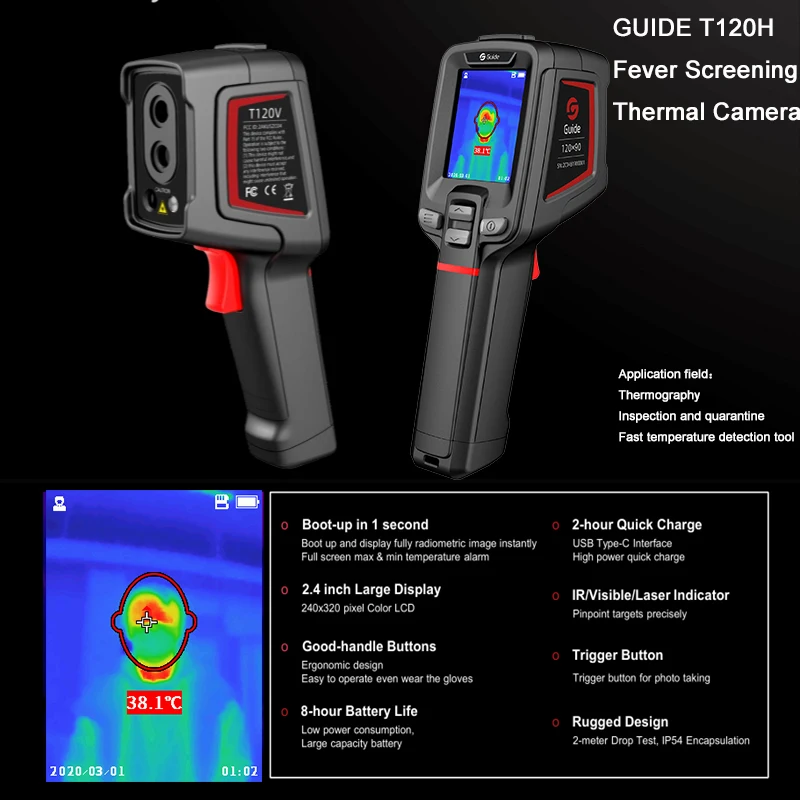

Features

oAdopt the high sensitive WLP IR detector with independent intellectual property rights

oFast temperature detection, automatic fever identification and alarm

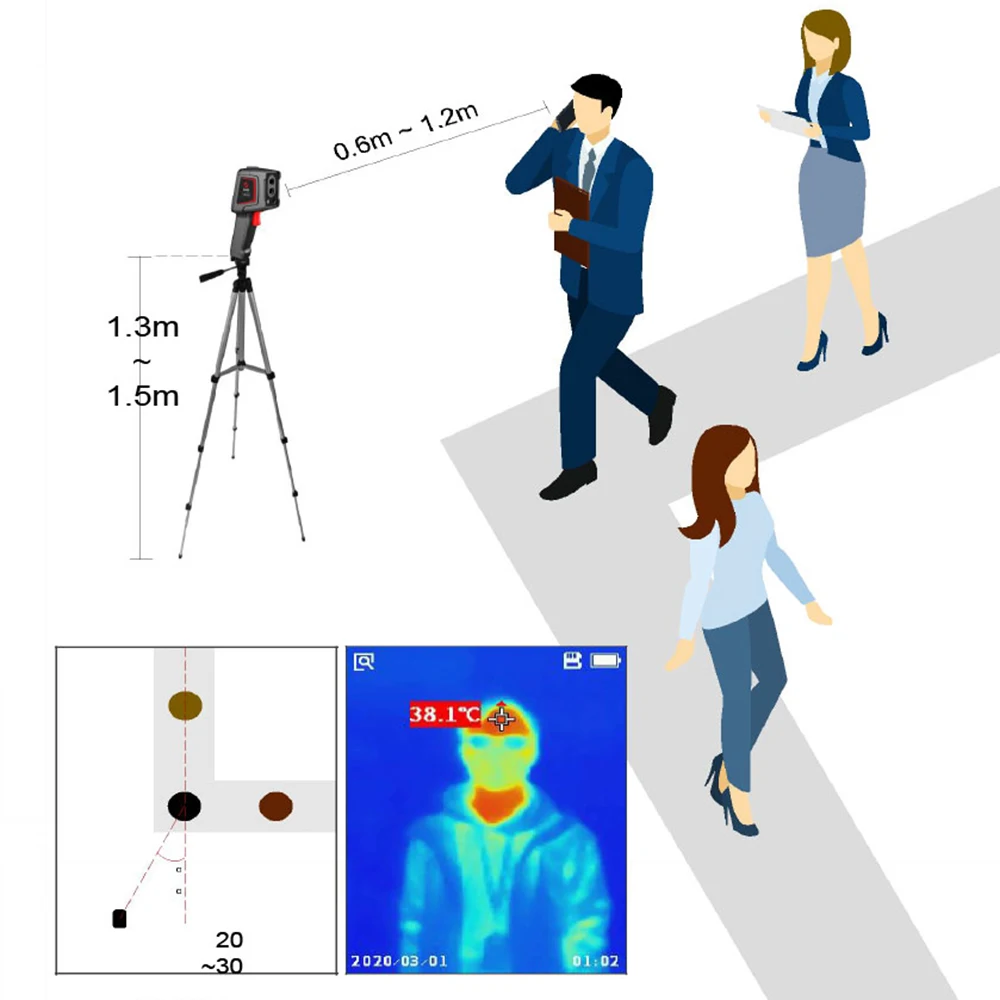

o1-meter safe detection distance, low risk of infection, no disturb to detected person

oSupport to save up to 100,000 images, can check temperature data

oTYPE-C interface, 2.5H fast charge, battery time up to 8H.

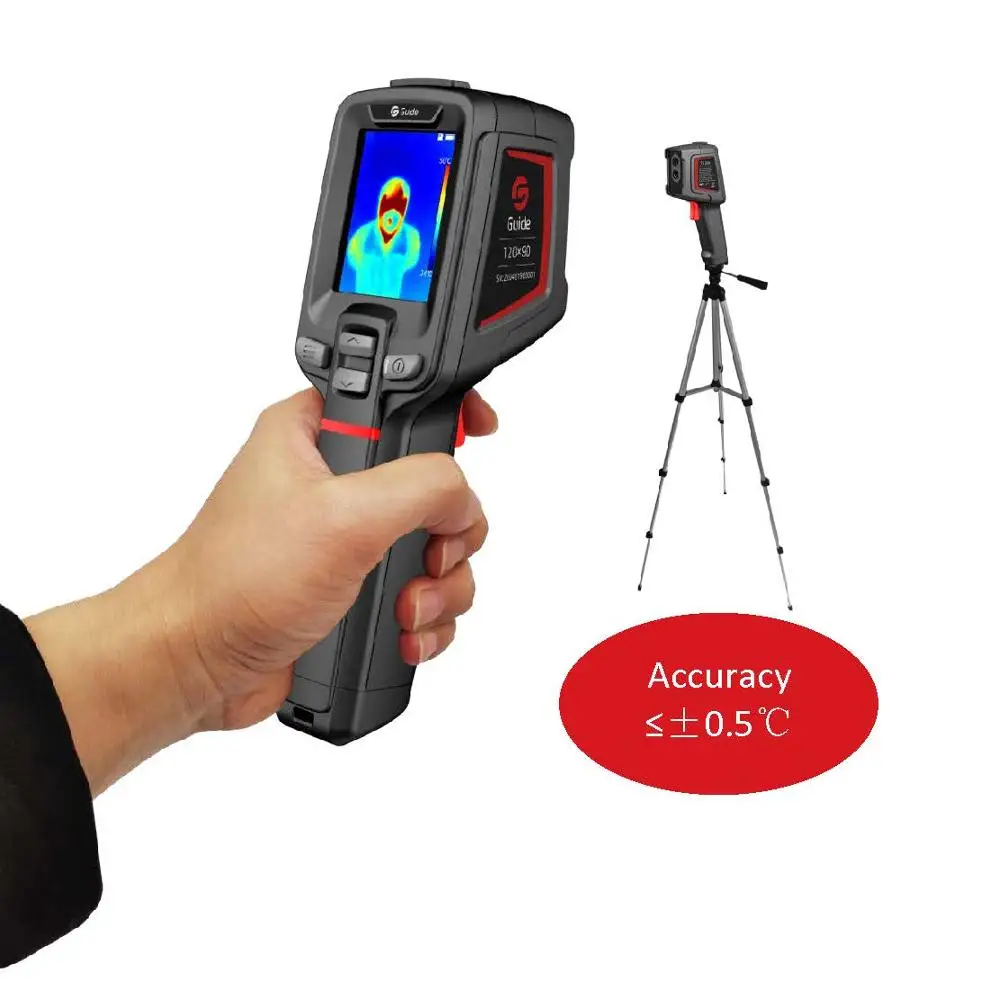

oCompact and portable, suitable for mobile detection, also can be fixed by optional tripod

Description

GUIDE T120H Fever Screening Thermal Camera is a fast temperature detection tool, which can be used to detect human temperature from a safety distance with accuracy of ±0.5℃.

It is an economical and practical thermal camera that could meet the needs of primary temperature screening well.

GUIDE T120H is not only suitable for flexible temperature screening, but also can be deployed at the entrances and exits of the public area, which makes it an ideal device to improve the efficiency of epidemic prevention and protect public health.
