Detail

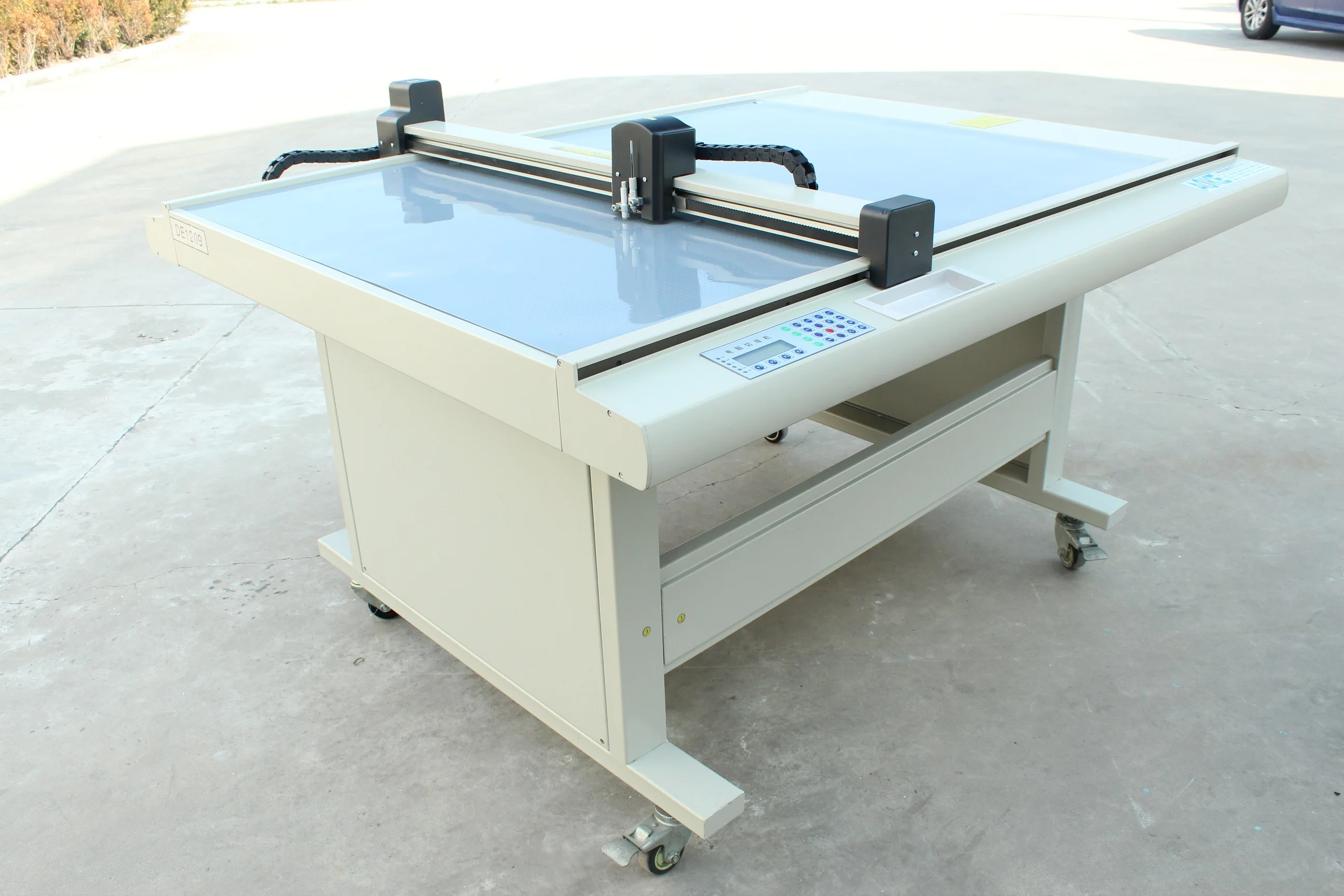

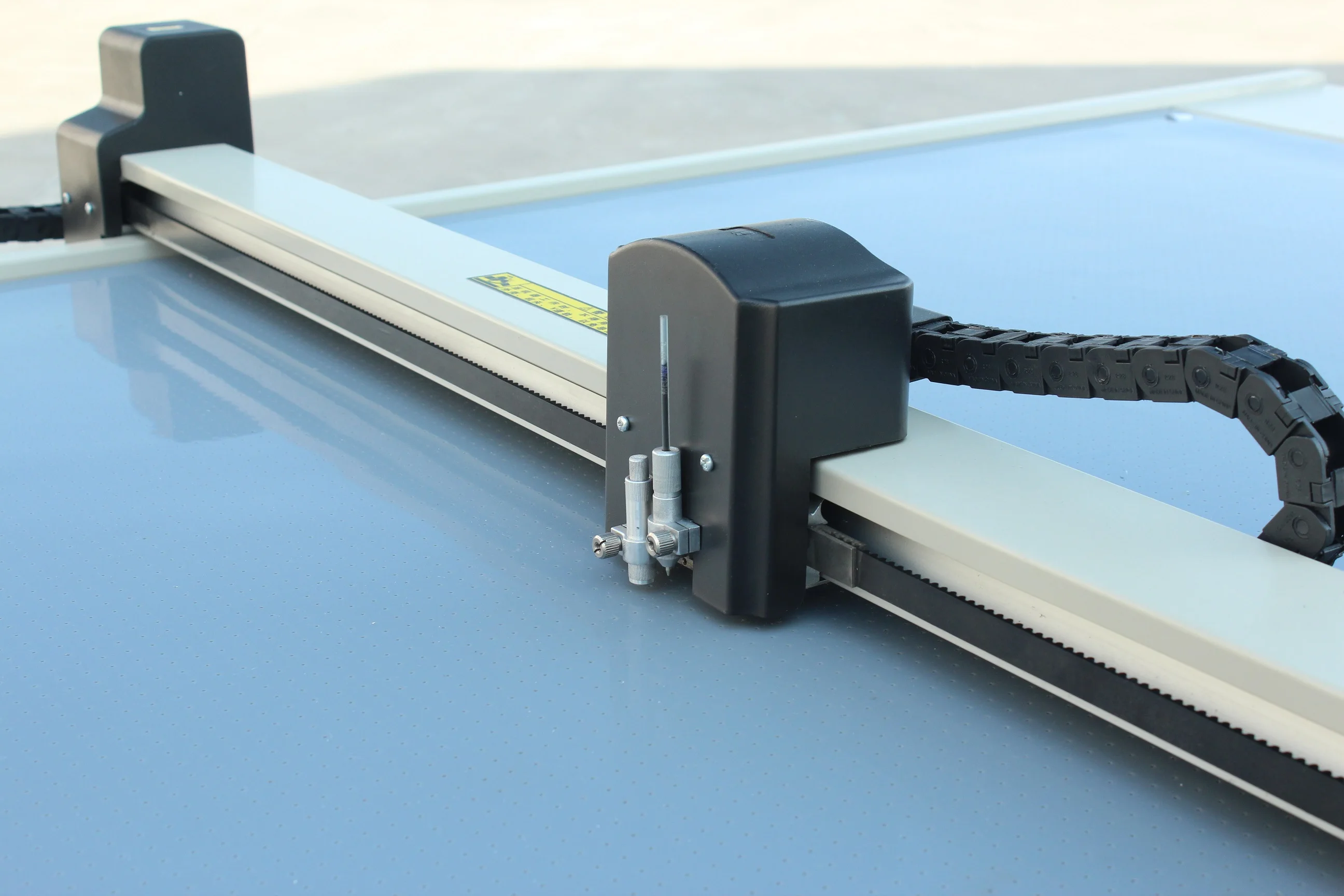

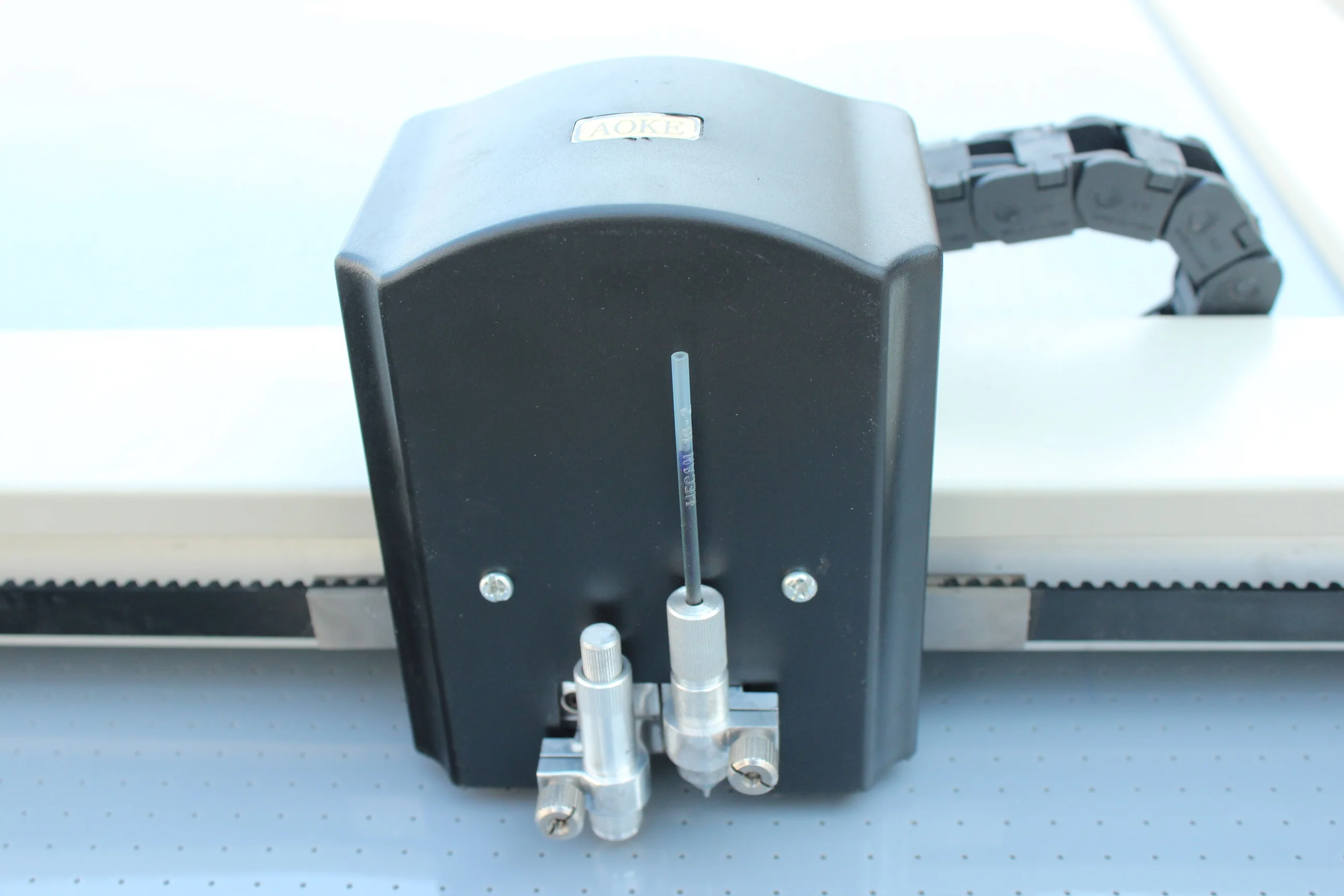

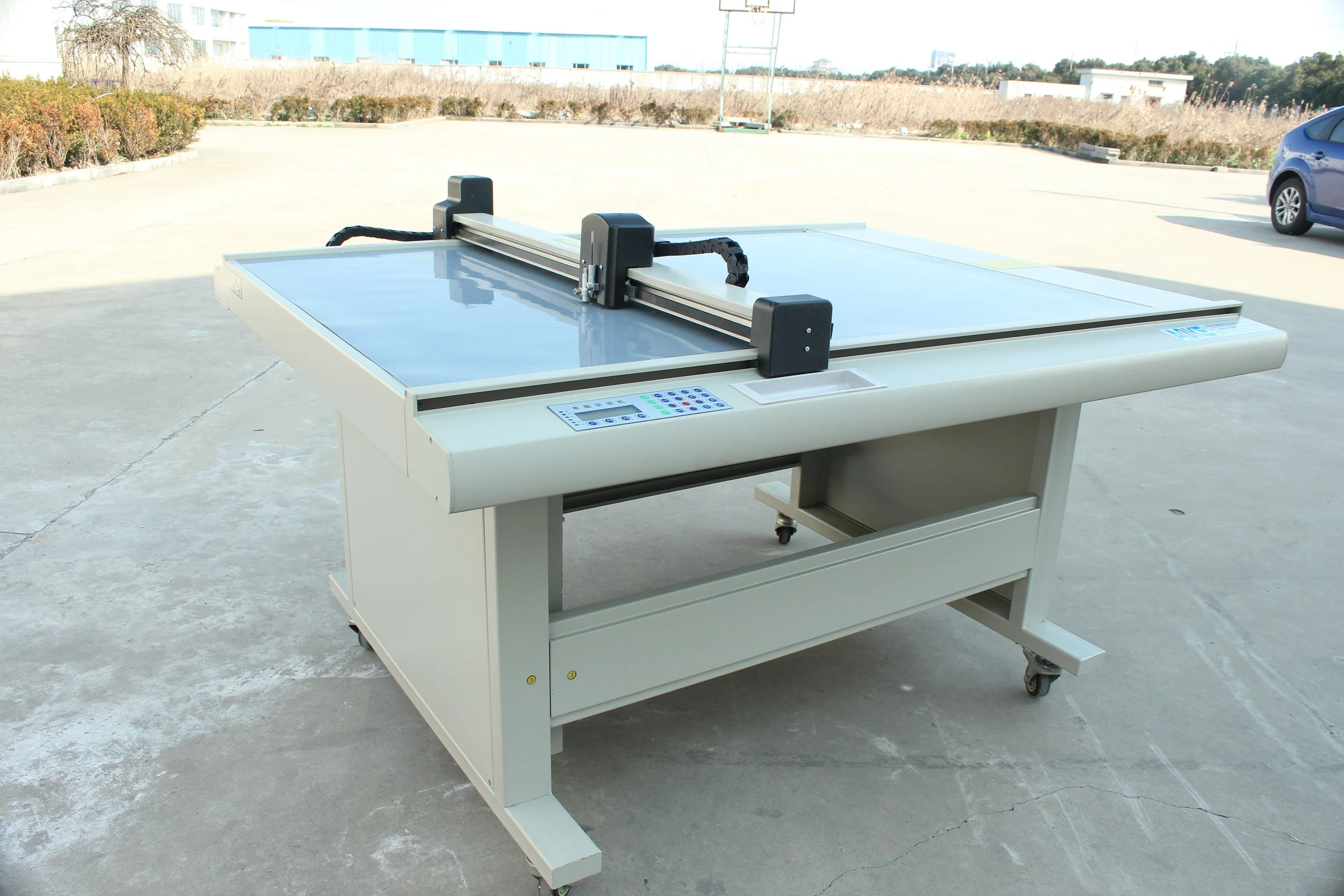

 GD series costume pattern cutting plotter is the star product in the pattern cutting machine, and ocuupy a large market share. This machine is designed for professional costoume pattern making. And it can meet the customer’s demand for pattern cutting and drawing of various materials by its cutting and drawing function. It has a fast writing speed and good cutting quality, and become a good assistant for the fashion designer. It can cut many materials used in the pattern of garment, such as card paper, kraft paper, red hard paper etc. GD series high speed cutting machine could meet the requirementt for common cutting accuracy. It employs import synchronous belt for power driving, and work under high speed, convenient use, compatible with any CAD software. It is greatly welcomed by customers and widely applied for garment pattern cutting or plotting.

The main features:
·Imported synchronous belt, long lifetime
·Steady performance, low useage cost

Specification

Model

GD0906

GD1209

GD1509

GD1512

Effective cutting area

900*600mm

1200*900mm

1500*900mm

1500*1200mm

Configuration

Special knife, pen

Way of fixing paper way

Vacuum absorbing

Driving material

Import synchronous belt

Cut materials

Red hard paper,plastic board,white board,kraft paper

Cutting way

Drawing by pen,half cutting,whole cutting

Cutting thickness

0.5-2mm

Cutting precision

≤0.1mm

Max speed

1000mm/s

Working time and character

Continuous work, operating computer and cutting at the same time, linear high-speed transmission for data.

Transmitting port

International standards: parallel port/RSC232 serial port

Capacity of buffer area

Buffer area of large capacity, it can finish high-speed transmission for data at a time

Instruction set

International standards: HP-GL or DXF form can be selected selected, It is compatible with all kinds of CAD software

Numerical control board

LTD, all-English operating menu

Driver

Step motor

Pen type

General signing pen, oil pen, ball pen

Main structure

Cutting platform,head,driving system,control cabinet,control micro computer,frame,vacuum pump

Voltage

AC 220V 50HZ

Fuse standard

5A

Occupy dimension (L*W*H)

135*106*108cm

163*136*108cm

193*136*108cm

193*166*108cm

Note

Other size can be customized.

 WoWorking sample

Training and Use

1. We will supply with the machine operation manual in English version for installing and operation.

2.Customer can come to our factory training .

3.Our engineer can go to customer's factory training.


Warranty and After service


1. Our warranty is 2 years counting from the date when the Machine arrives at the port of

destination.

2. We will supply after service 24 hours,customer can contact us any time.

3.When some problems can’t be solved by customers, our engineer can go to door to help.

 Questions and answer:

Q1.how to get the most suitable machine and best price

Please tell the material and thickness you want to cut?


What’s the MAX size of these material ?( length ? Width ? Thickness ?)

Q2.What is the payment?

The payment is 30% or 50% T/T or Alibaba trade assurance in advance, balance after machine finished.

Q3.What is the producing time after order?

The proucing time is about 10-20 days depend on different machines.

Q4.If we don't know how to use the machine,can you teach us?

Yes,we will ,if you come to China,we will offer you free training until you can use machine freely.And if

you are busy ,we will have the special engineer to your country,but you need to bear some fee,like

tickets and hotel and meal.

Q5.How about your after-sales service?

we offer you 24 hours service phone,skype or whatsapp, our engineer also can go to door install or training.

Q6. Quality Control:

The whole production procedure will be under regular inspection and strict quality control. The

complete machine will be tested to make sure they can work very well before being out of factory.

The testing video and pictures will be available before delivery.
