X7 IP camera tester H.265 4K 8MP TVI CVI AHD SDI CVBS IP CCTV Tester Monitor with

This the the full model : X7MOVTADHS , Contains all functions .

X7-MOVTADHS: support IP+analog camera test+AHD+CVI+TVI+SDI+Digital Multimeter+Optical power meter+visual fault locater+TDR cable test+Video level meter+Cable tracer+UTP cable test+RJ45 cable TDR test+HDMI in/out

if you need other model , pelase contact me . Thank you for it .

X7(Basic version)  : support IP+analog camera test+Video level meter+Cable tracer+UTPcable test+RJ45 cable TDR test+HDMI in/out

X7-ADH :support IP+analog camera test+AHD+CVI+TVI+Video level meter+Cable tracer+UTP cable test+RJ45 cable TDR test+HDMI in/out

X7-ADHS :support IP+analog camera test+AHD+CVI+TVI+SDI+Video level meter+Cable tracer+UTP cable test+RJ45 cable TDR test+HDMI in/out

X7-MOVTADHS: support IP+analog camera test+AHD+CVI+TVI+SDI+Digital Multimeter+Optical power meter+visual fault locater+TDR cable test+Video level meter+Cable tracer+UTP cable test+RJ45 cable TDR test+HDMI in/out

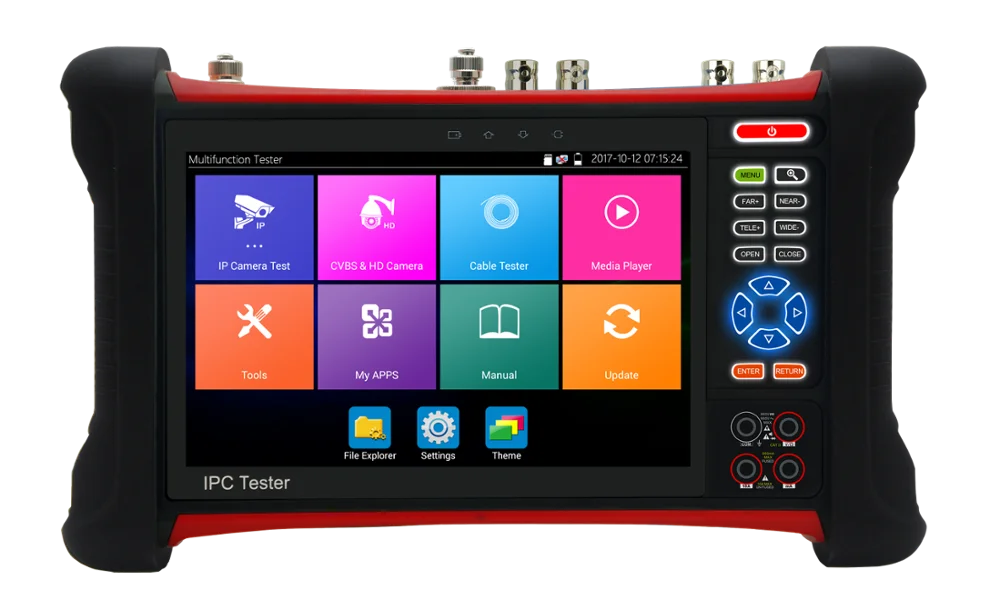

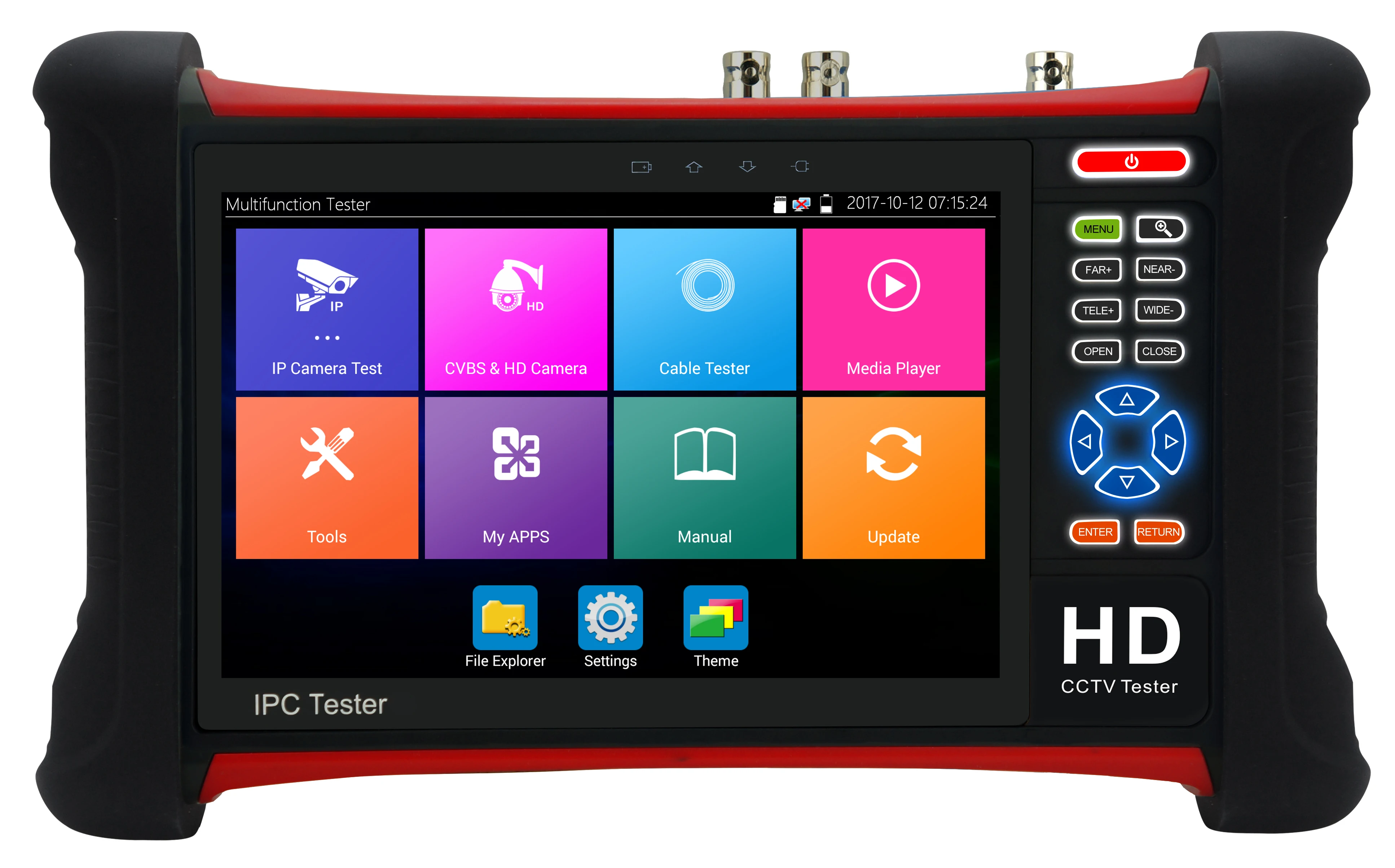

HD 7 inch retina touch screen all-in-one multi-functional IPC Tester

Model: X7 series

● 8MP TVI, 8MP CVI, 8MP AHD, 8MP EX-SDI, HD-SDI, 3G-SDI test *

● H.265/H.264, 4K video display via mainstream

● Chrome browser, set Axis etc cameras parameters

● Built in WIFI, create WIFI hotspot

● HDMI input & 4K output

● DC12V 3A, DC48V PoE power output

● RJ45 cable TDR test,cable quality test

● Cable tracer and video level meter

Camera test:

● 7 inch retina touch screen, 1920*1200 resolutions

● H.265 & H.264 IP, 4K video display via mainstream

● 8MP TVI test,3840 x 2160P 15 fps,4xzoom ,video record &playback ,coaxial PTZ control & call OSD menu *

● 8MP AHD test, 3840x2160P 15 FPS, 4xzoom, video record & playback, coaxial PTZ & call OSD menu *

● 8MP CVI test, 3840 x 2160P 12.5/15fps, 4xzoom, video record& playback, coaxial PTZ & call OSD menu *

● 8MP EX-SDI test, 3840 x 2160P 25/30FPS,4xzoom, video record& playback, coaxial PTZ & call OSD menu *

● HD-SDI test, 1920 x 1080P 25/30/50/60 FPS, 4xzoom, video record& playback, coaxial PTZ & call OSD menu *

● 3G-SDI test, 1920 x 1080P 50/60 FPS, 4xzoom, video record& playback, coaxial PTZ & call OSD menu *

● Rapid ONVIF, Auto log in and display image, create testing report

● AXIS, Hikvision camera test, enter ONVIF app, input username and password to test

● CVBS camera test and PTZ control

● IPC TEST (Non-ONVIF test), HIK test tool (Hikvision camera),DH test tool (Dahua camera)

● Video level meter, peak video signal level, SYNC signal level, Color bar chroma level measurement

● DC12V/3A power output, camera can be powered from DC 12Votage

● 48V PoE power output power

● Rapid video, just by one key to detect all network cameras and auto display

● Built in Wi-Fi, display image from the wireless camera, create WIFI hotspot

● CVBS loop test, the tester send and receive color bar generator signal, to check BNC cable

● Enhanced Color bar generator, PAL/NTSC multi-system color bar video generator

Cable test:

● Improvement cable tester, UTP cable, telephone cable etc order and connectivity test, can save testing report, if special number, need customized

● RJ45 cable TDR test, test cable pair status, length, attenuation, reflectivity, impedance, skew etc

● Cable tracer, search BNC cable, network cable and telephone cable from the mess cables

● TDR cable test: BNC cable, network cable, telephone cable, RVV cable and elevator cable, cat 5/6 cable's length and short circuit. measurement range 1.2KM*

Other functions:

● Network tool: Ping, IP scan, Port Flash, DHCP server, Trace Route

● POE & power information, DC12V& PoE power and voltage output /input measurement

● Tester Play: Tester, android version mobile phone and PC display at the same time

● Shortcut button, drop-down menu, can select Poe power, IP setting, CVBS, LAN info, HDMI IN etc

● HDMI input,720×480p /720×576p /1280×720p /1920×1080p /1024×768p/1280×1024p /1280×900p /1440×900p display,record and snapshot

● Traffic monitoring, display network port or WIFI connection real-time upload and download speeds and other network parameters

● Self -update software, you can install apps with android version

● Media player, 4K video files and MKV/MP4 media files play

● Quick office, quick office app (support excel, word, ppt format) doc. editable

● 8GB SD card including

● Display its genuine resolution of the IP camera images

● Audio in, support record and save the audio/LED lamp, calculators, music players and other application tools

● 7.4 V /5000mAh Lithium Ion Polymer Battery, after 6~7 hours charging , working time lasts 10 hours

Application:

● CCTV system installation and maintenance

● Network cabling project installation and maintenance

● Dome camera, 4K H.265 IP camera testing

● Video transmission channel testing

● PTZ controller
