Тестер безопасности монитор аудио PTZ IPC1800ADH Plus с кабелем трассировщик 8MP AHD TVI CVI CVBS

Тестер безопасности монитор аудио PTZ IPC1800ADH Plus с кабелем трассировщик 8MP AHD TVI CVI CVBS

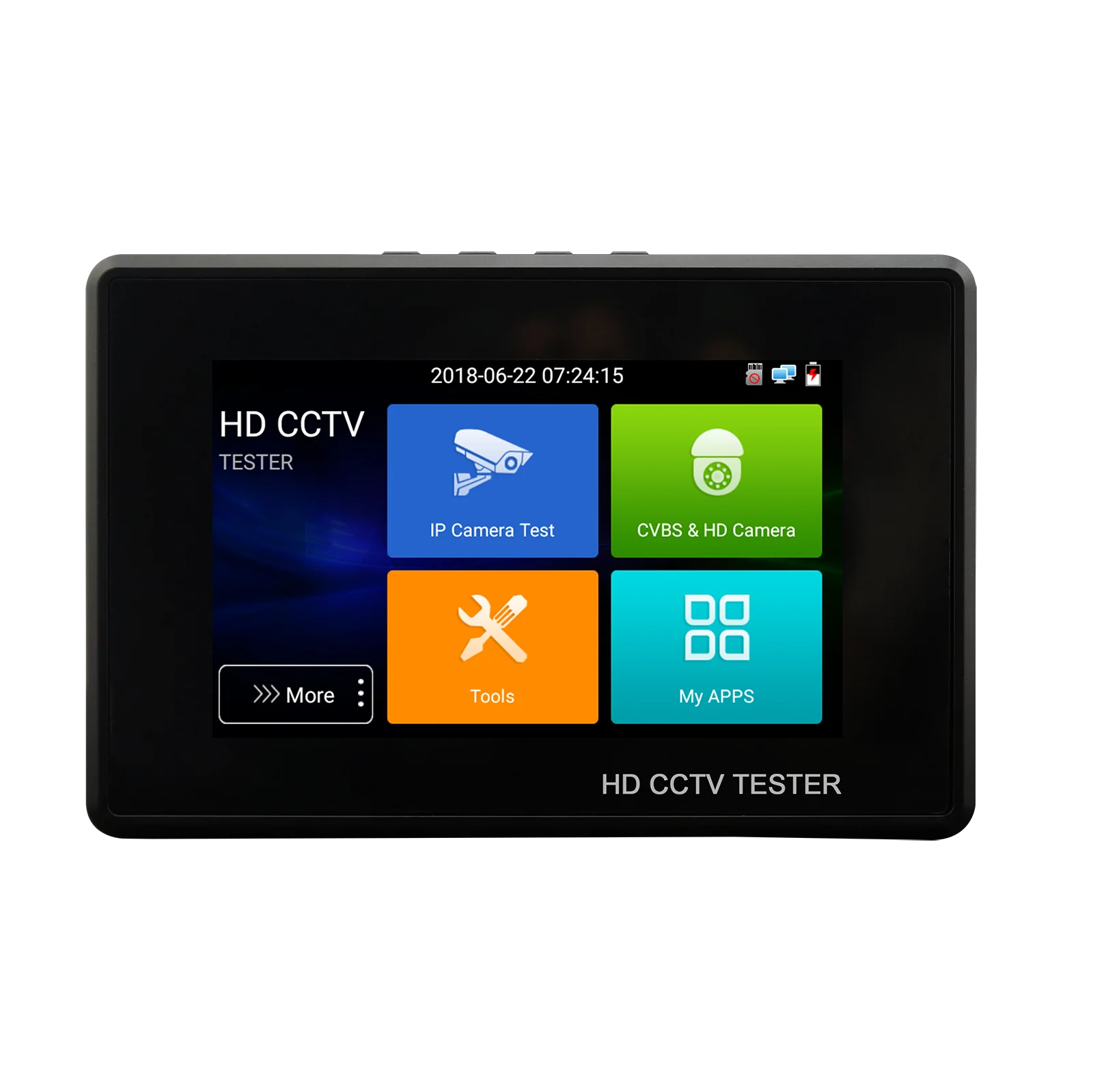

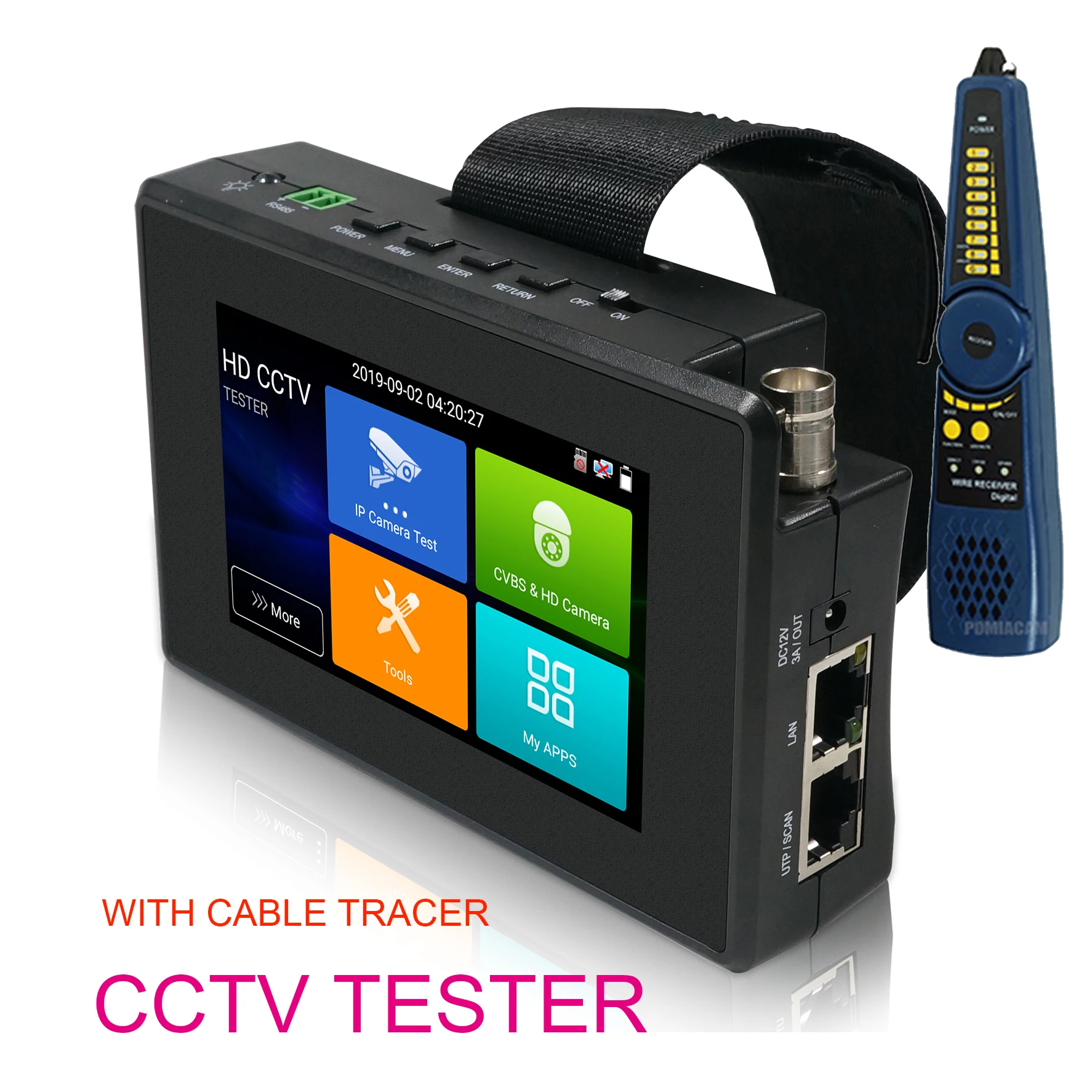

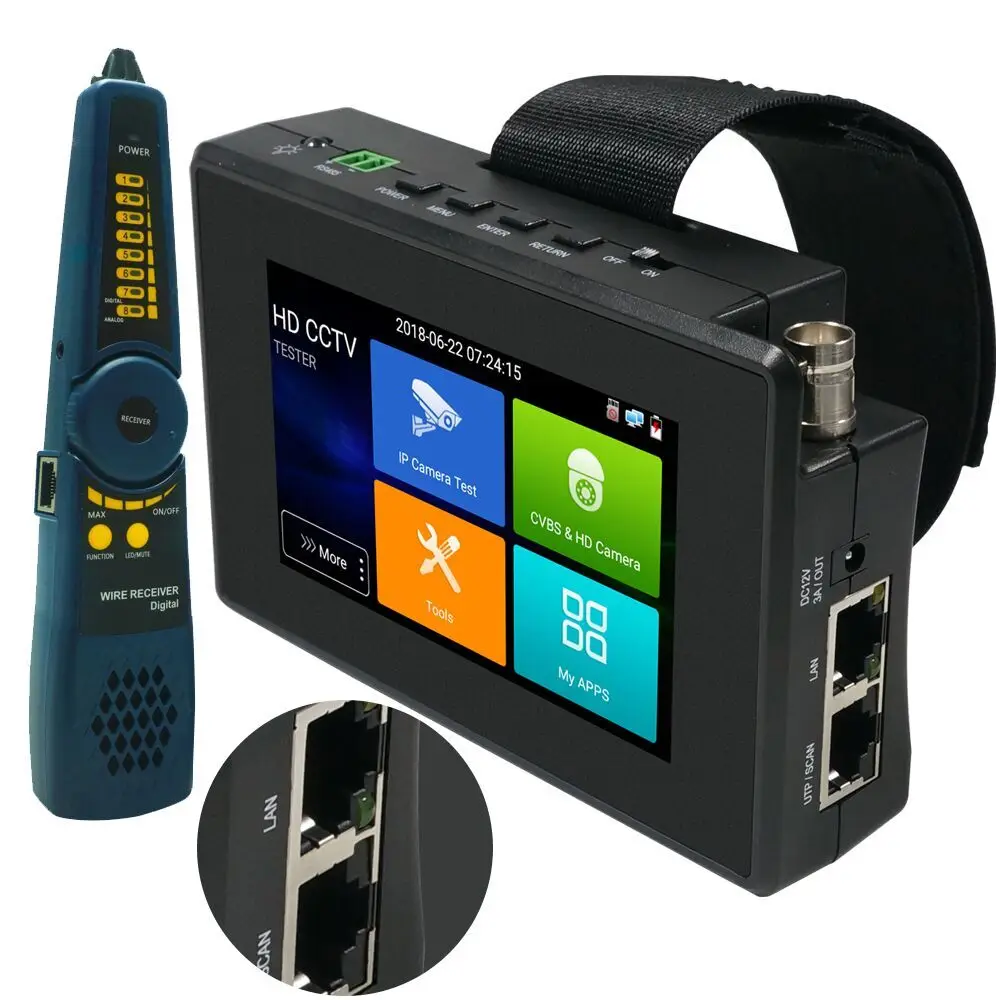

UPGRADE IPC-1800 PLUS 4" wrist coaxial HD 4.0 CCTV Tester Monitor 4K H.265 IP CVI TVI AHD CVBS Camera tester with WIFI hotspot PTZ Control

IPC1800ADHS plus support : 8MP TVI / 8MP CVI / 8MP AHD / 4K H.265 IP / CVBS camera test with cable tracer

Newest 4" wrist 4K H.265 IP CVBS CVI TVI AHD 5-in-1 CCTV Tester

Model: IPC-1800ADH Plus

● 8MP TVI/ CVI/AHD, 4K H.265 IP, CVBS camera test

● H.265/H.264, 4K video display via mainstream

● Dahua, Hikvision, Axis etc ONVIF camera test

● Rapid ONVIF, auto view video and create testing report

● DC12V 3A, DC48V PoE power output

● Built in WIFI, create WIFI hotspot

● RJ45 cable TDR test,cable quality test

● Wrist design, portable and easier to carry

● 10/100/100M Ethernet, network state and traffic display

● Cable test with cable tester via UTP interface,Test UTP cable connection status and display in the screen. Read the number of the test box.

Camera test:

● 4 inch touch screen, 800*480 resolution

● H.265 & H .264 IP, 4K video display via mainstream

● Rapid ONVIF, Auto log in and display image, create testing report

● AXIS, Hikvision camera test, enter ONVIF app, input username and password to test

● 8MP TVI/8MP CVI/8MP AHD

● CVBS camera test and PTZ control

● IPC TEST (Non-ONVIF test), HIK test tool (Hikvision camera), DH test tool (Dahua camera)

● IP discovery, just by one key to detect all network cameras IP address

● Rapid video, just by one key to detect all network cameras and auto display

● DC 12V 3A power output

● PoE DC48V power output, Max power 25.5W

● Innovative coaxial HD focus, video signal quality test

● Built in WiFi, display image from the wireless camera, create WIFI hotspot

Cable test:

● RJ45 cable TDR test, test cable pair status, length, attenuation, reflectivity, impedance, skew etc

● Cable test with cable tester via UTP interface,Test UTP cable connection status and display in the screen. Read the number of the test box.

Other functions:

● 10/100/1000M Ethernet, network state and traffic display

● Wrist design, portable and easier to carry

● TesterPlay: Tester, android version mobile phone, PC display at the same time

● Network tool: PING test, IP address scan, port flashing etc

● Drop-down menu, can select Poe power, IP setting, CVBS, LAN info etc

● Self -update software, you can install apps with android version

● Media player, 4K video files and MKV/MP4 media files play

● Display its genuine resolution of the IP camera images

● PTZ control supports more than 30 protocols such as PELCO-P, PELCO-D, and SAMSUNG

● Audio in, support record and save the audio/LED lamp, calculators, music players and other application tools

● 7.4 V /2400mAh Lithium Ion Polymer Battery, after 4~5 hours charging, working time lasts 7 hours

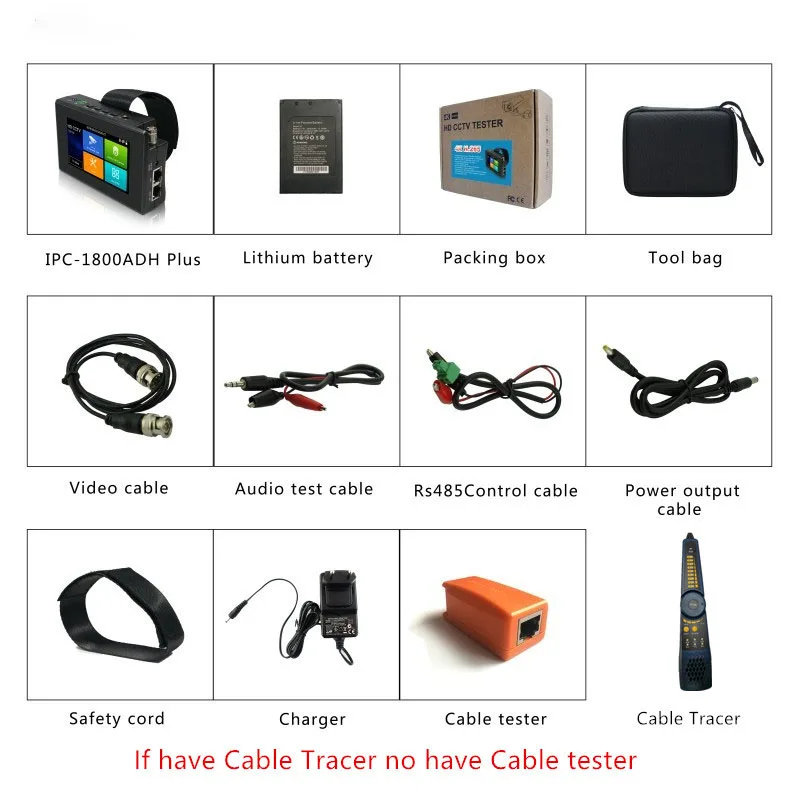

Packing list
1*Tester(Built-in battery)
1*Adapter
1*BNC cable
1*RS485 connector
1*Power output conversion cable
1*Audio cable

1*Cable tester

1*Safety cord

1*Tool bag

1*Packing box

​

Detail :

  Display: New 4 inch IPS touch screen , 800*480 resolution

  CVBS:

  1 channel BNC input, NTSC/PAL (Auto adapt)

  PTZ control, RS485 control, Baud 600-115200bps, compatible with more than 30 protocols such as PELCO-D/P, Samsung, Panasonic etc

  IP camera test 4K/H.265/H.264 :

  IP Discovery/Quick ONVIF/IPC test /RTSP play /Client APK

  Rapid Video: Auto view the video, create testing report

  Hik test tool: pressing just one key to activate hikvision camera , Image test, can modify the user name, password and IP parameters

  Dahua test tool : Dahua camera test, modify the username, password and IP parameters

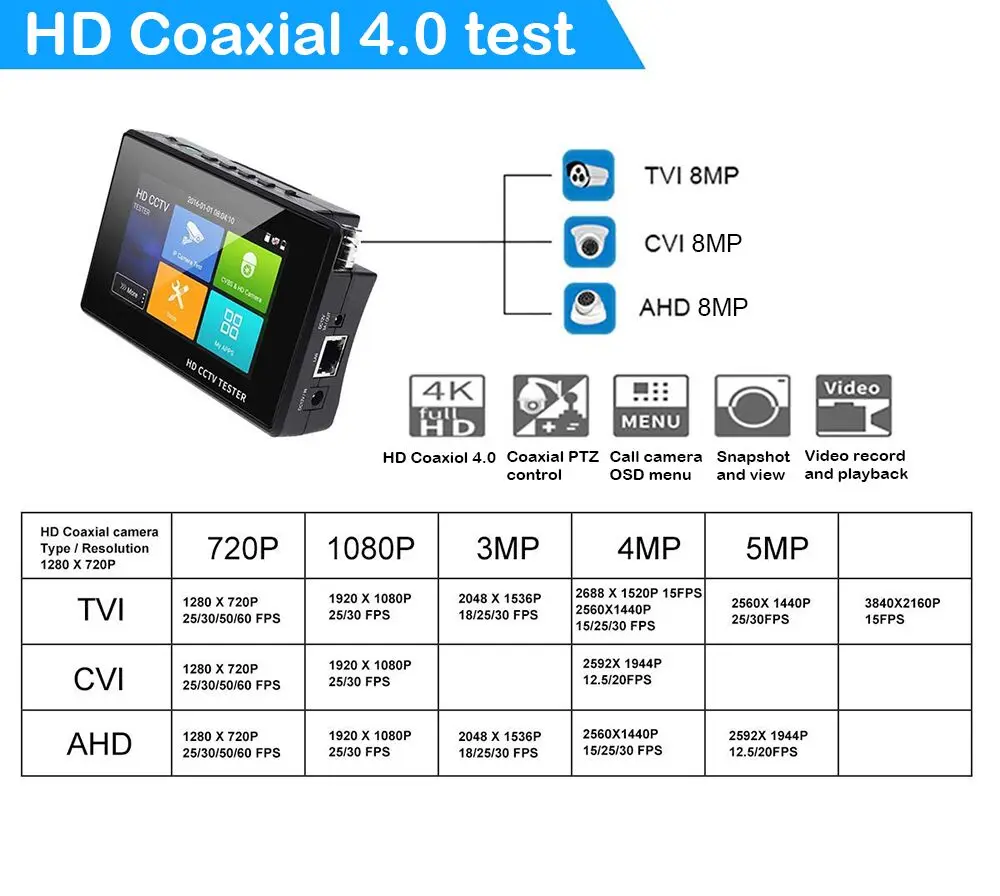

  Coaxial HD test :

  8MP TVI camera test, 3840 x 2160P 15 FPS, UTC control/call OSD menu

   8MP CVI camera test, 3840 x 2160P 12.5/15 FPS, UTC control/call OSD menu

  8MP AHD test, 3840 x 2160P 15 FPS, UTC control/call OSD menu
  Zoom Image
  4x zoom, to enlarge image, Screen snapshot, record, save, view and record and play back

  12V/3A power :Output DC12V/3A power out, supply temporarily power for the camera

  PoE power output : 48V PoE power output, max power 25.5W

  Network test: Link monitor,port flashing, Ping test

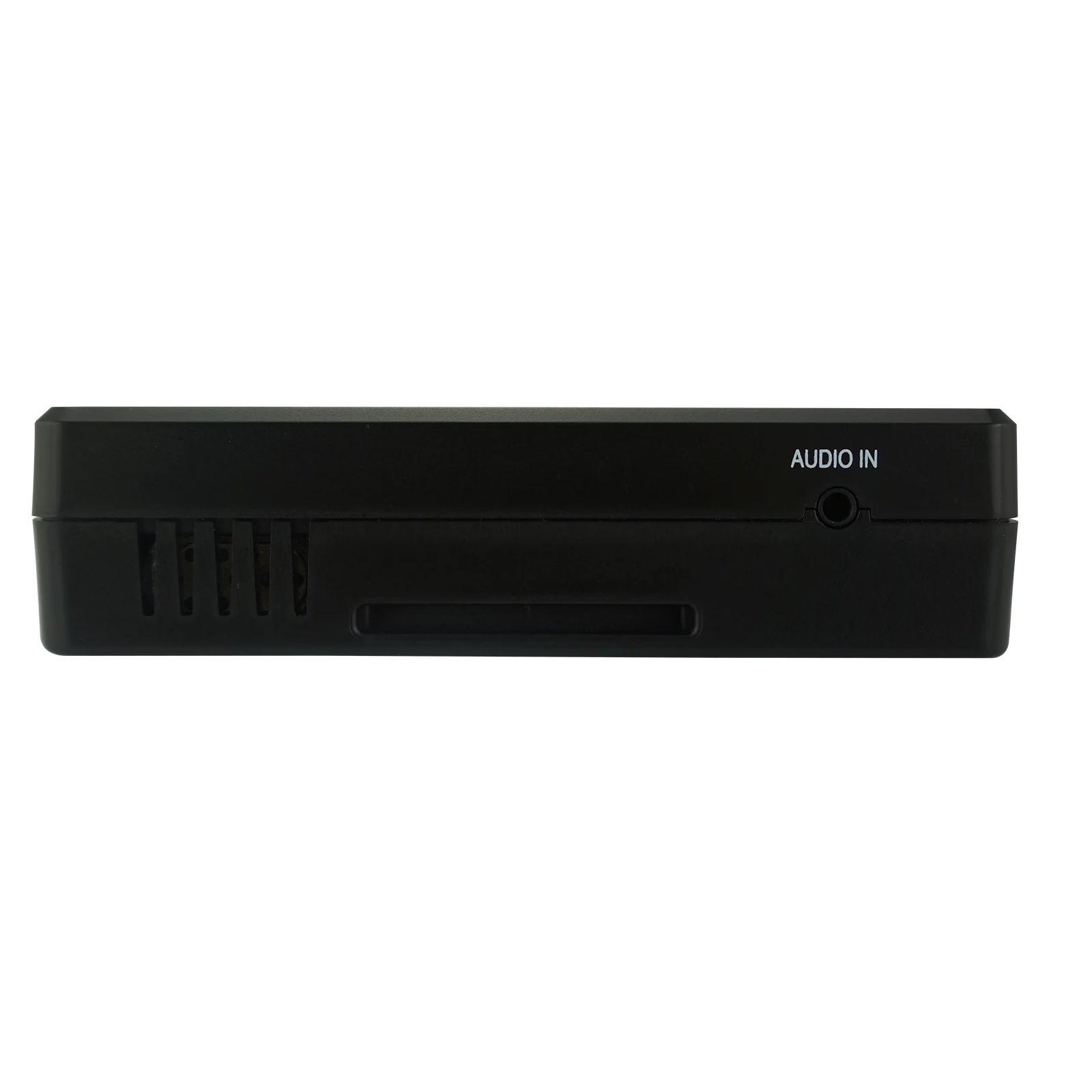

  Audio test : 1 channel audio signal input, test whether sound normal, 1 channel audio signal, to connect headphone

  Data monitor: Captures and analyzes the command data from controlling device, also can send hexadecimal

  Drop-down menu : You can select PoE power switch, IP setting, CVBS, LAN info, etc in any interface

  External power supply: DC 12V 1A

  Battery: Built-in 7.4V Lithium polymer battery , 2400mAh

  Rechargeable: After charging 4~5 hours, normal working time 7 hours

  Operation setting: OSD menu, select your desired language: English, Chinese, Korean, Russian, Italian, French, Polish, Spanish, Japanese etc

  Auto off : 1-30 (mins)

  Working Temperature: -10℃---+50℃

   Working Humidity : 30%-90%

  Dimension/Weight: 126mm x 83mm x 33mm / 0.32kg

Application:

● CCTV system installation and maintenance

● Network cabling project installation and maintenance

● Dome camera, 4K H.265 IP camera testing

● Video transmission channel testing

● PTZ controller
