   characteristic:

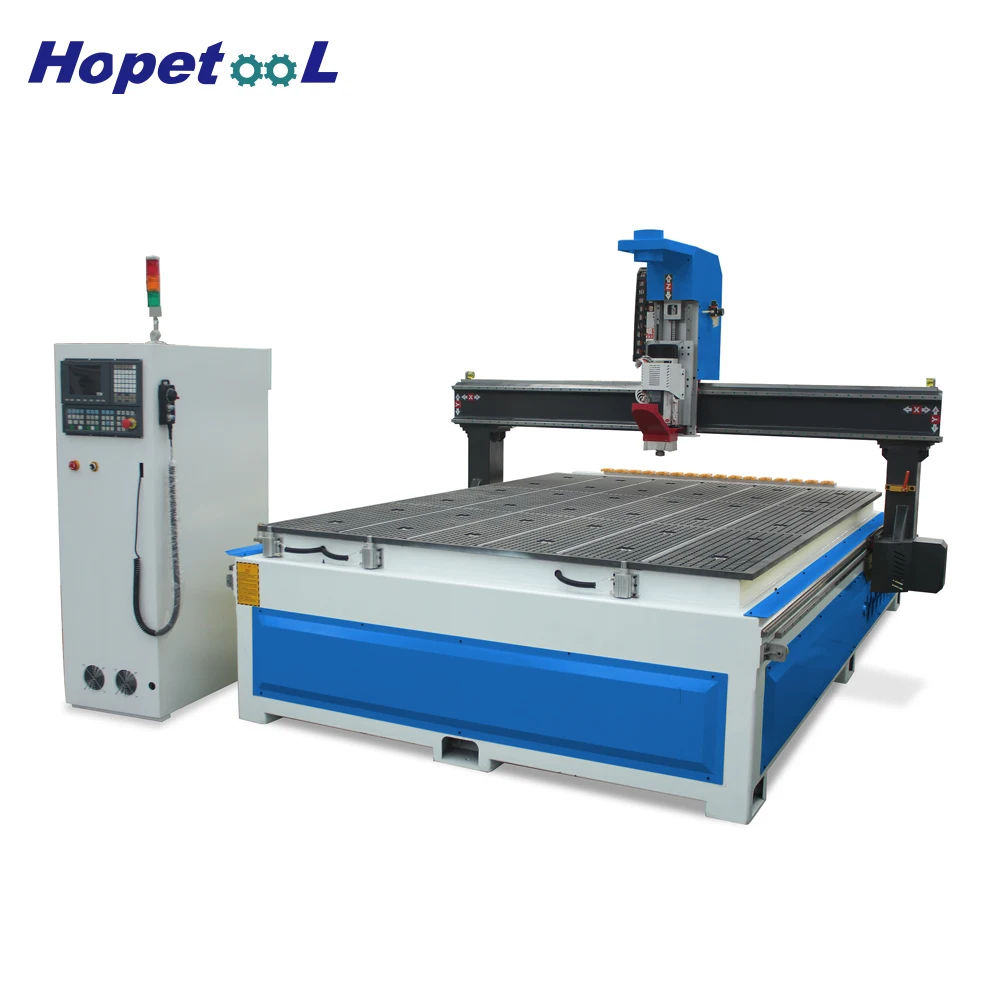

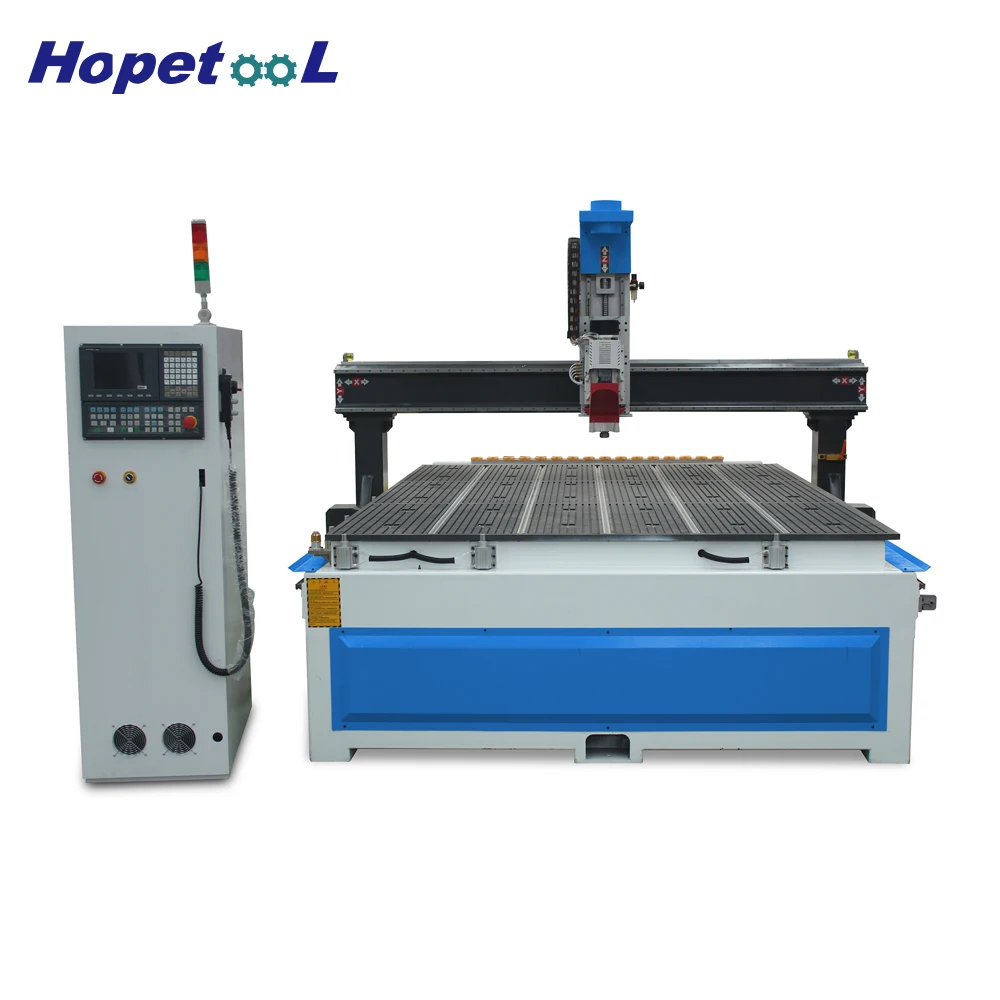

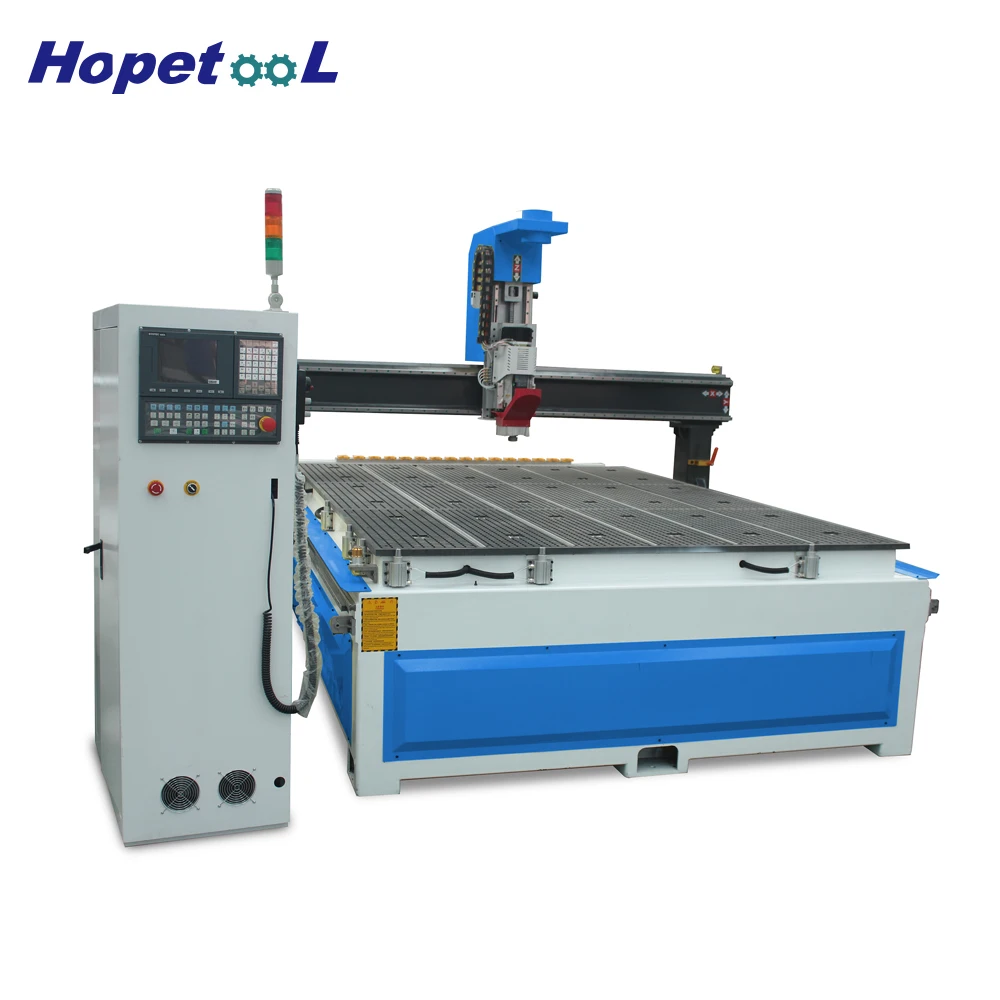

1)HT-2030L is linear Auto tool change machine, X,Y axises adopt gear-wheel, speed is fast. It adopts domestic no oil vaccum pump with high efficiency.

2)Adopt Japan yaskawa servo motor ,built-in encoder,It can stop automatically when graunch happens,so can avoid accidents .

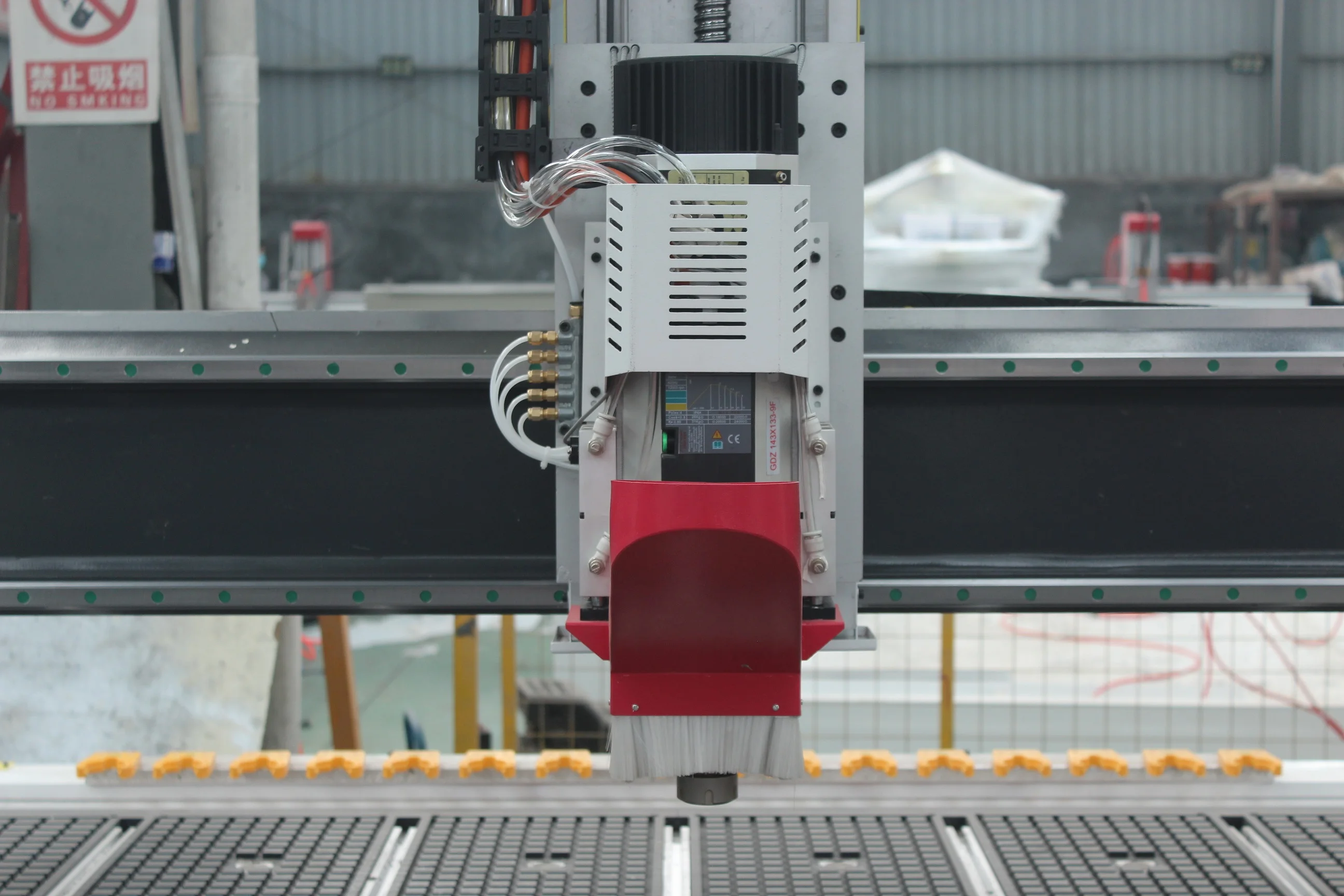

3)Italy air cooling spindle or China water cooling spindle with tool change, high power , imported tool holders with high precision and long lifetime.

4)Whole machine is welded with seamless steel structure, the regidity is good , not easy to be deformed.The gantries adopt steel structure

5)All adopt imported square oribit, heavy loading, stable working , high precision and long lifetime. Imported ballscrew , high precision.

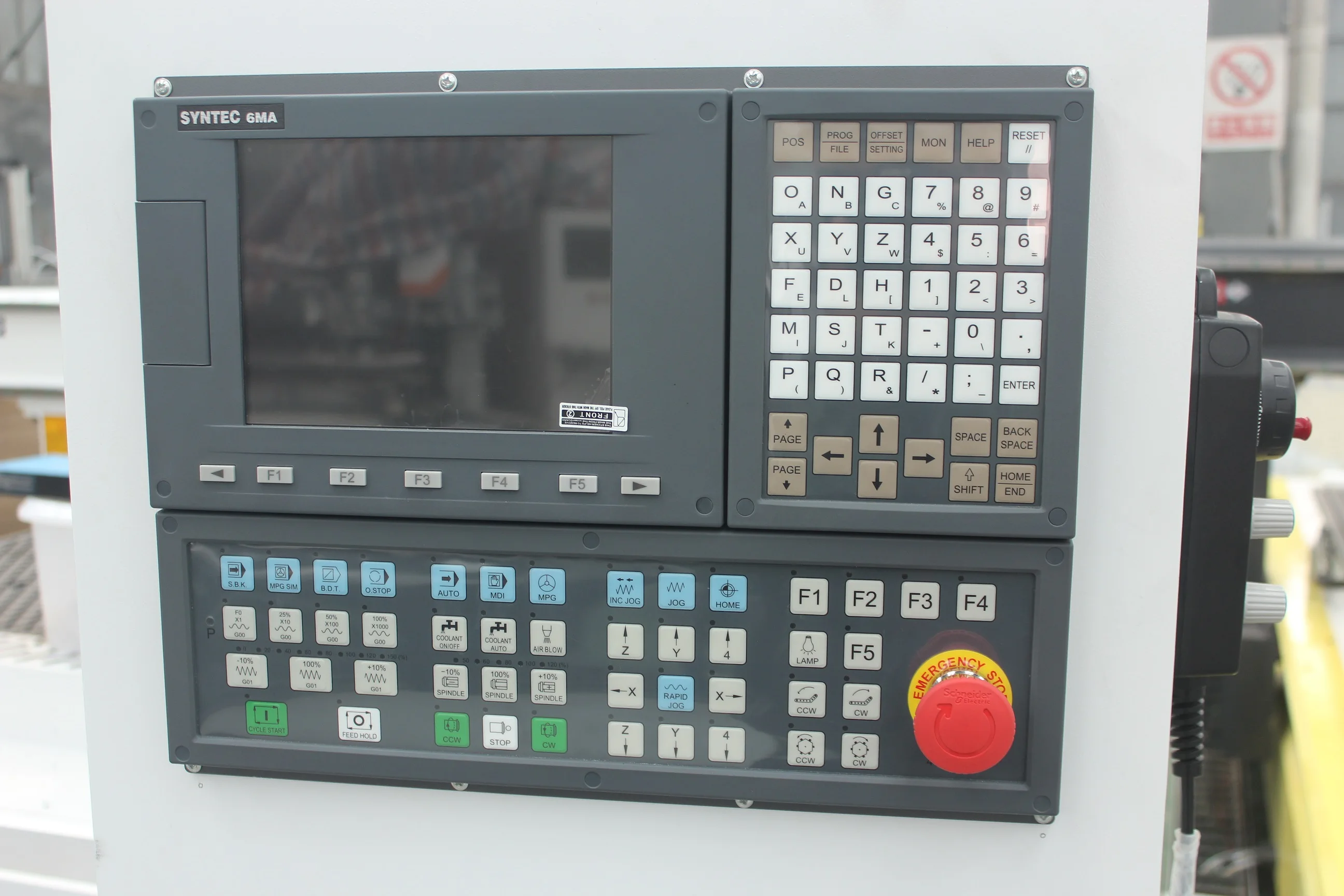

6)Taiwan leading control system: The embedded numerical control system based on windows platform can upgrade the functions infinitively. Anti-interference design of the hard and soft ware synchronistically make sure of the reliable operation. Advance 3D space curve prediction algorithm can make sure of the evenness of polyline and the speed and precision of curve lines. Advanced file pretreatment function can correct the error in the files and is compatible with the process codes of multiple national and international software. (such as Mastercam,Typ3,UG,Artcam,Caxa).

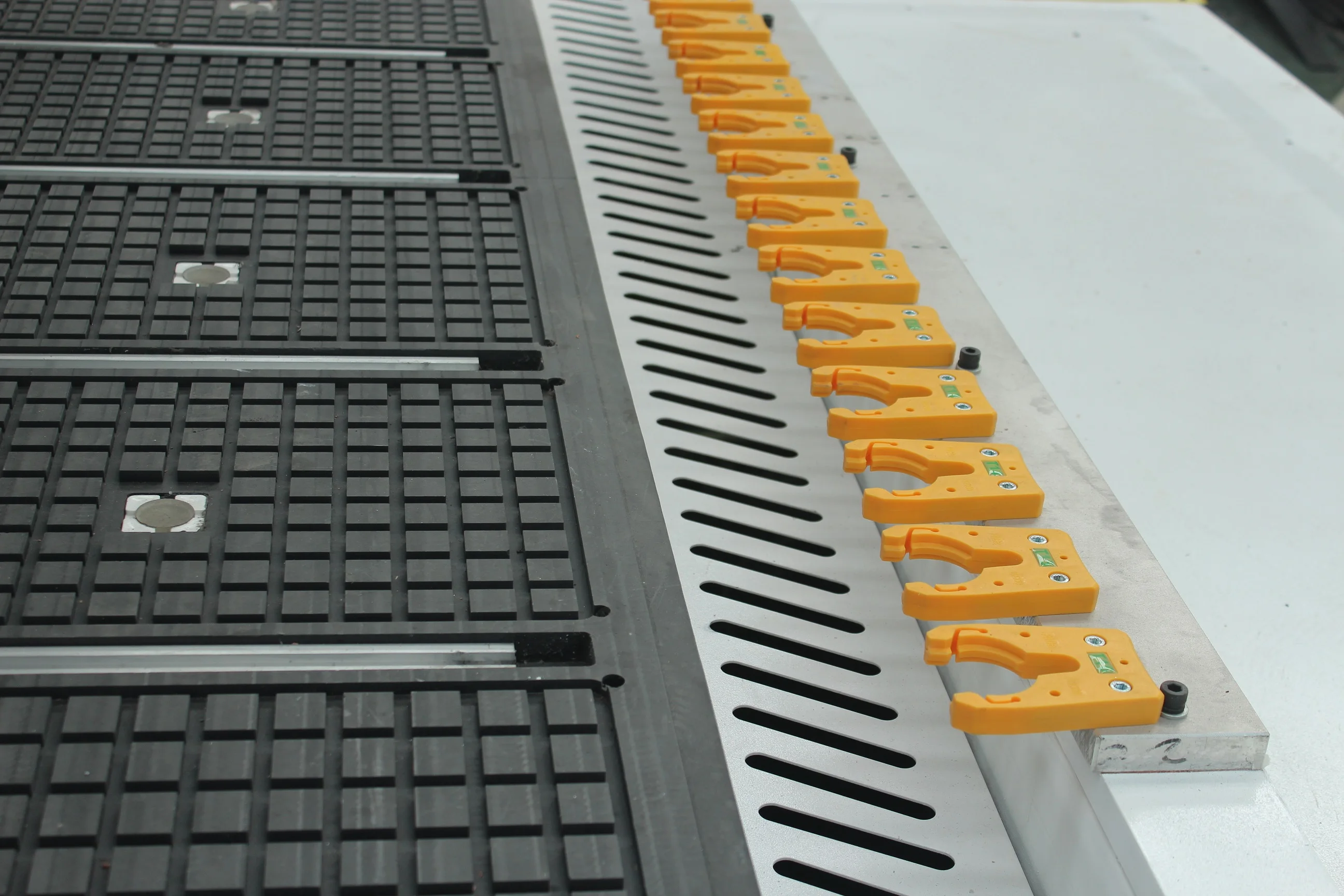

7)6 zones vaccum table, it is a professional wood door making and furniture making machine.

  performance parameter:

NO.

Discription

Parameter

1

X,Y,Z Working Area

2000X3000X200mm

2

Table Size

2140X3540mm

3

X,Y,Z Traveling Positioning Accuracy

±0.03/300mm

4

X,Y,Z Repositioning Positioning Accuracy

±0.05mm

5

Lathe Structure

Welded Strucutre

6

X, Y Structure

Gear Wheel Transmission, Shaft Linear Bearings

7

Z Structure

Ball Screw, Shaft Linear Bearings

8

Max.Consume power

20KW

9

Max.Speed

0-60000mm/min

10

Max.Working Speed

0-25000mm/min

11

Spindle Power Motor

6/9KW HSD Spindle ATC or Chinese spindle

12

Spindle Speed

0-24000RPM

13

Working Mode

Servo system

14

Working Voltage

AC380V/50/60Hz , 3PH

15

Command

G Code, *uoo, *mmg, *plt

16

Operating System

SYNTEC System

17

Interface

Internet line

18

Flash Memory

512M

19

Collet

ER32

20

X,Y Working Delicacy

<0.01mm

21

Software

Type3 software, Wentai software,Artcam software

22

Running circumstance

Temperature: 0°C~45°C,
Relative humidity: 30%~75%

23

Packing Size

4000x2250x2200 mm

24

Net Weight

2000KG

25

Gross Weight

2300KG

Training and Use

1. We will supply with the machine operation manual in English version for installing and operation.

2.Customer can come to our factory training .

3.Our engineer can go to customer's factory training.


Warranty and After service


1. Our warranty is 2 years counting from the date when the Machine arrives at the port of

destination.

2. We will supply after service 24 hours,customer can contact us any time.

3.When some problems can’t be solved by customers, our engineer can go to door to help.

 Questions and answer:

Q1.how to get the most suitable machine and best price

please tell the material you want to working on ?

How to working on it ? Engraving ? Cutting ? Or other ?

What’s the MAX size of these material ?( length ? Width ? Thickness ?)

Q2.What is the payment?

The payment is 30% or 50% T/T or Alibaba trade assurance in advance, balance after machine finished.

Q3.What is the producing time after order?

The proucing time is about 10-20 days depend on different machines.

Q4.If we don't know how to use the machine,can you teach us?

Yes,we will ,if you come to China,we will offer you free training until you can use machine freely.And if

you are busy ,we will have the special engineer to your country,but you need to bear some fee,like

tickets and hotel and meal.

Q5.How about your after-sales service?

we offer you 24 hours service phone,skype or whatsapp, our engineer also can go to door install or training.

Q6. Quality Control:

The whole production procedure will be under regular inspection and strict quality control. The

complete machine will be tested to make sure they can work very well before being out of factory.

The testing video and pictures will be available before delivery.
