H51тестер TVI CVI AHD 8MP HDMI in H51 H52 CCTV тестер наблюдения 5-в-1 5-дюймовый монитор камеры

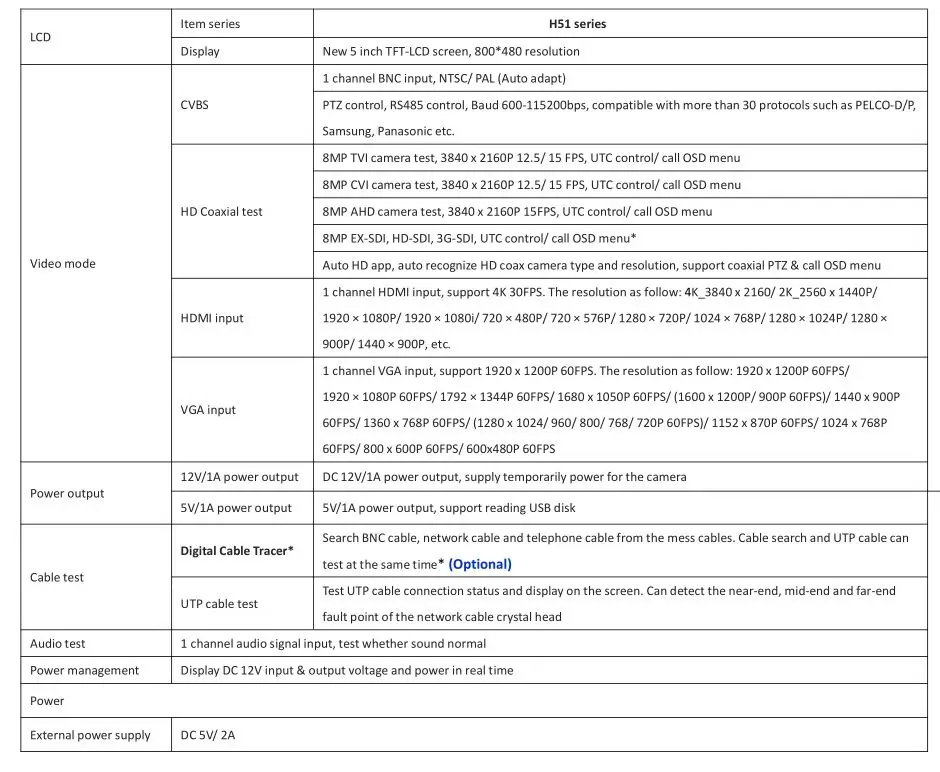

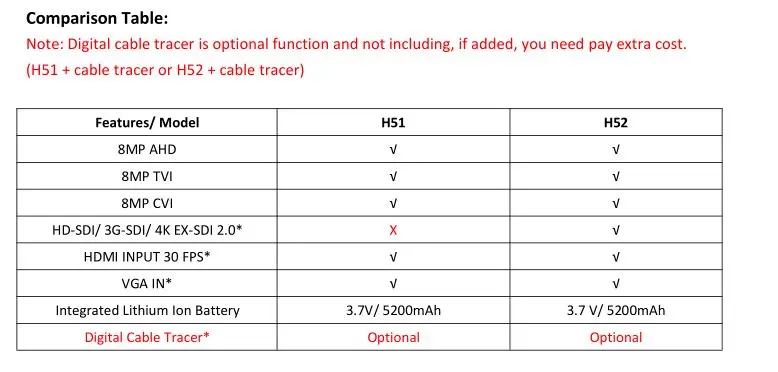

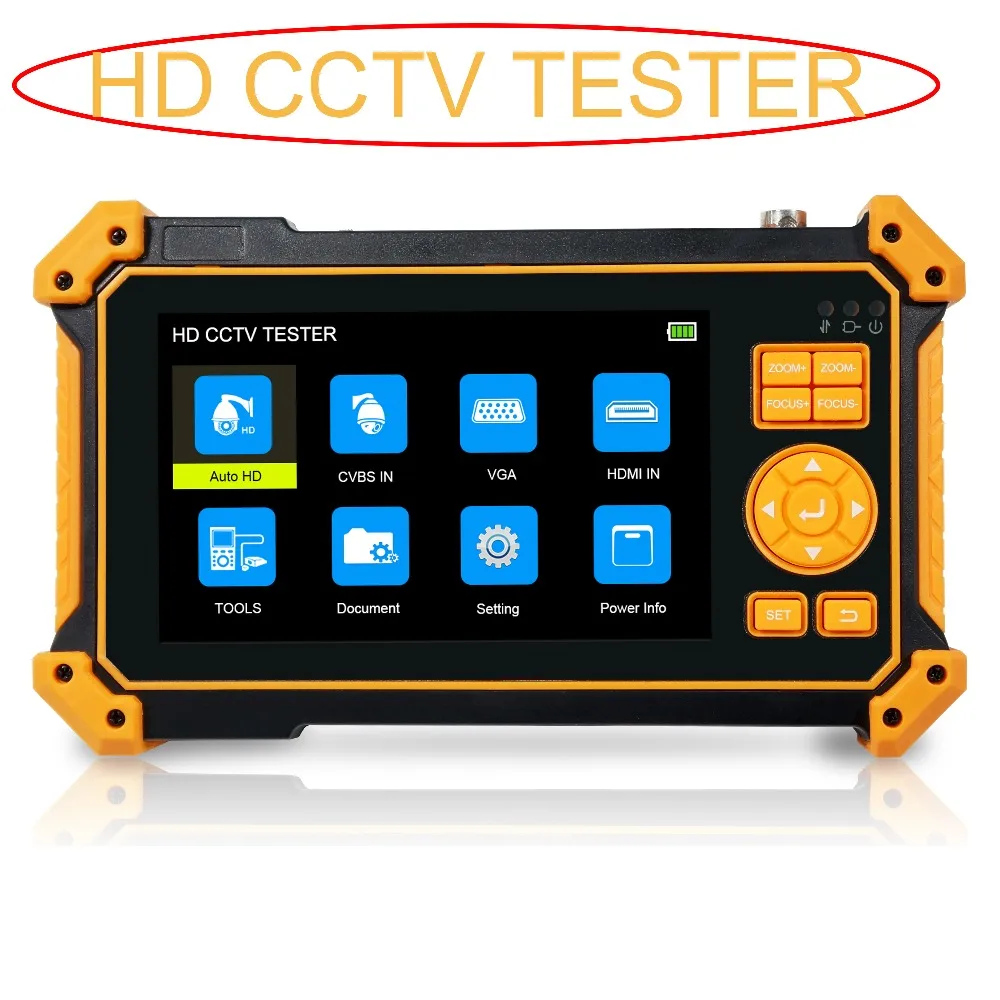

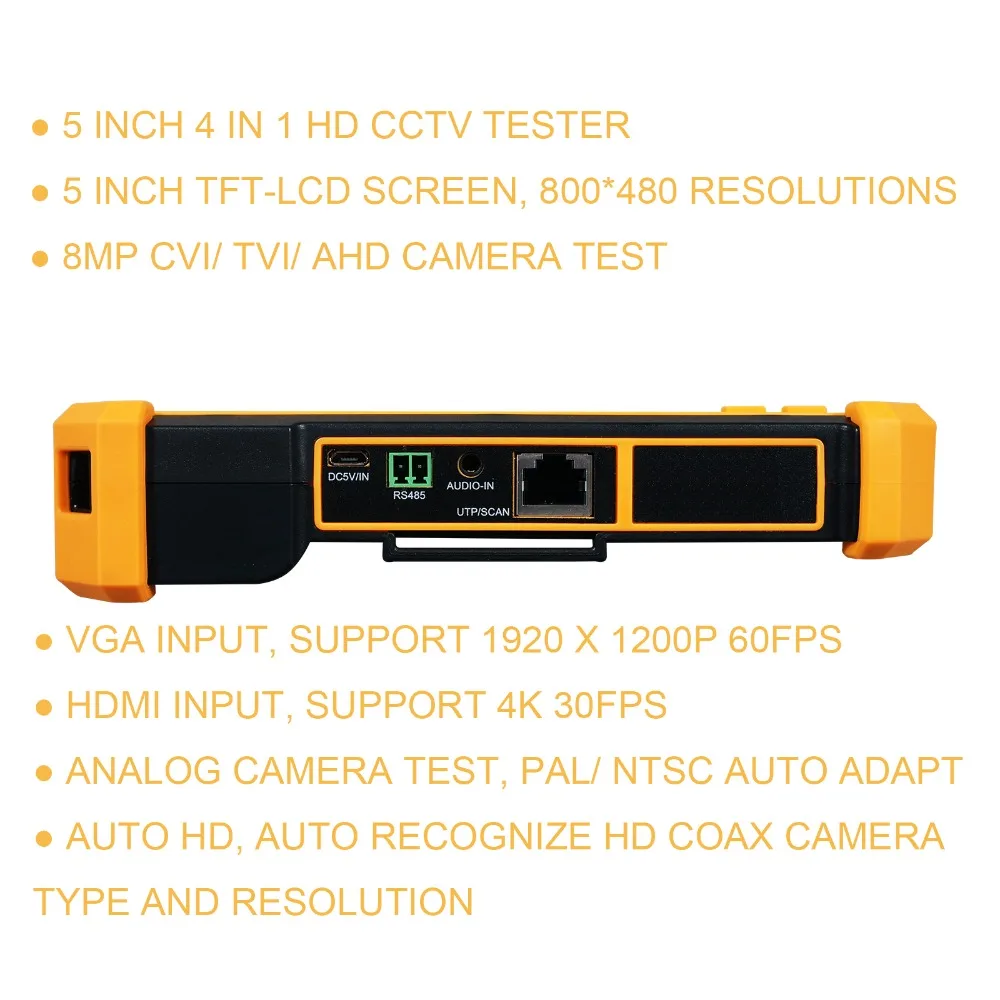

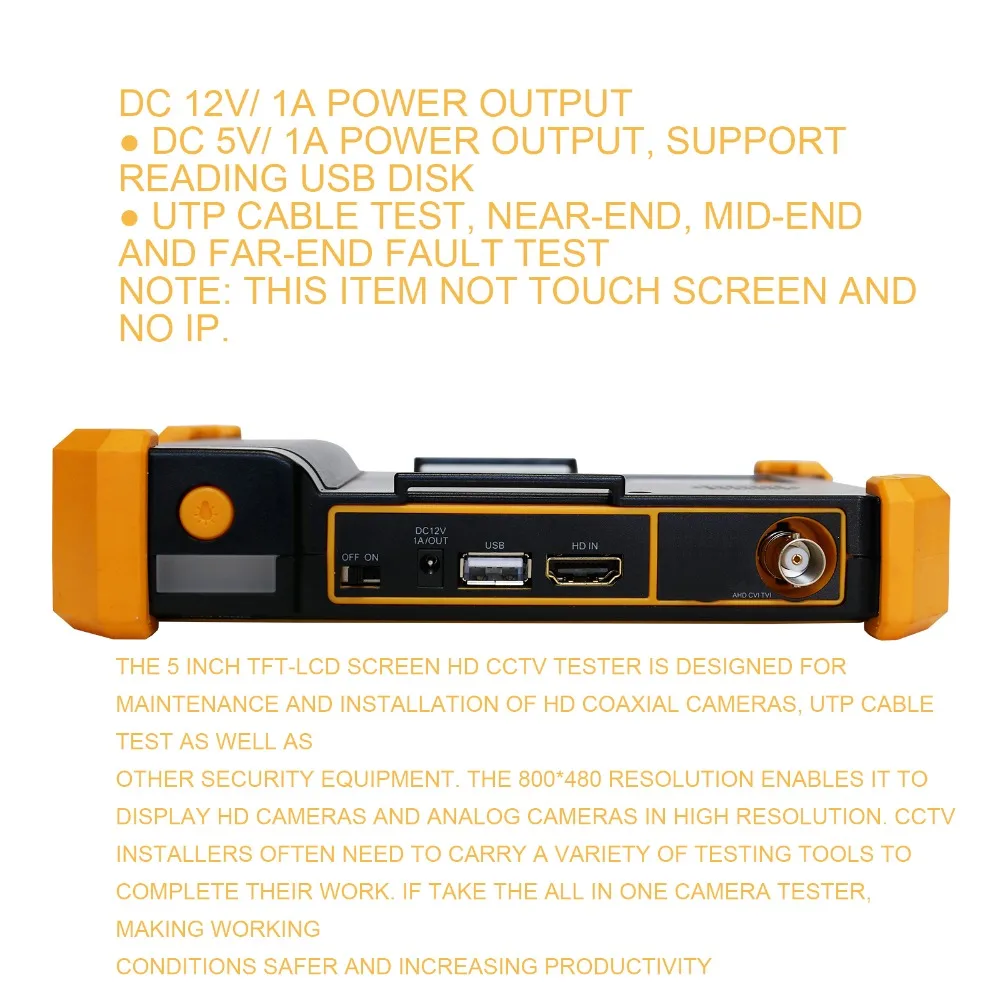

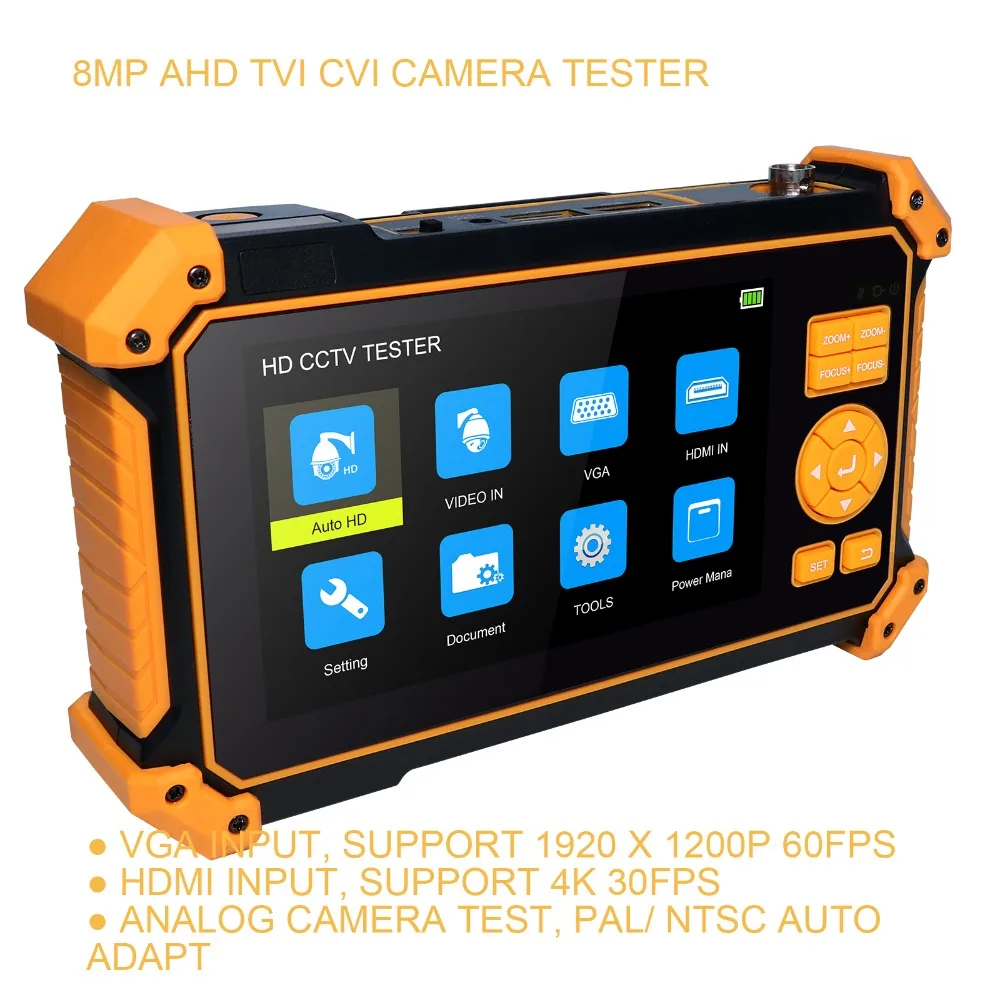

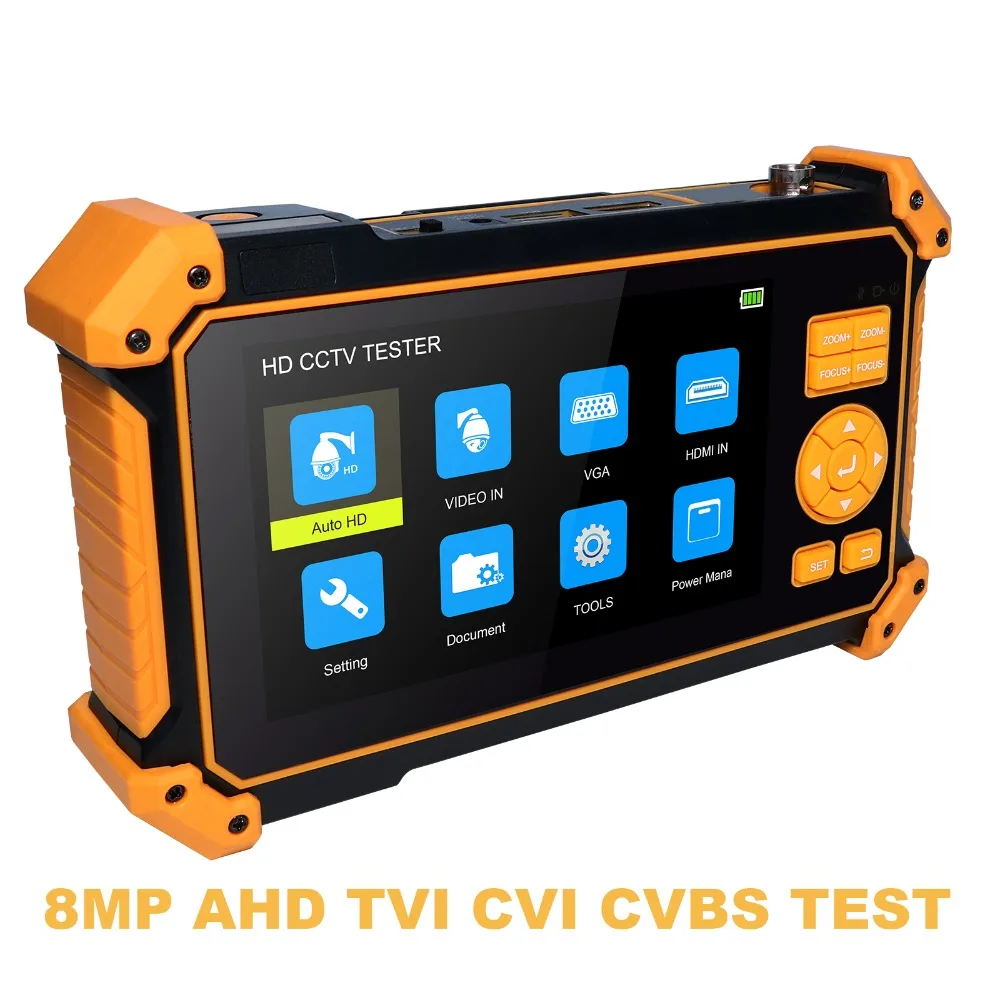

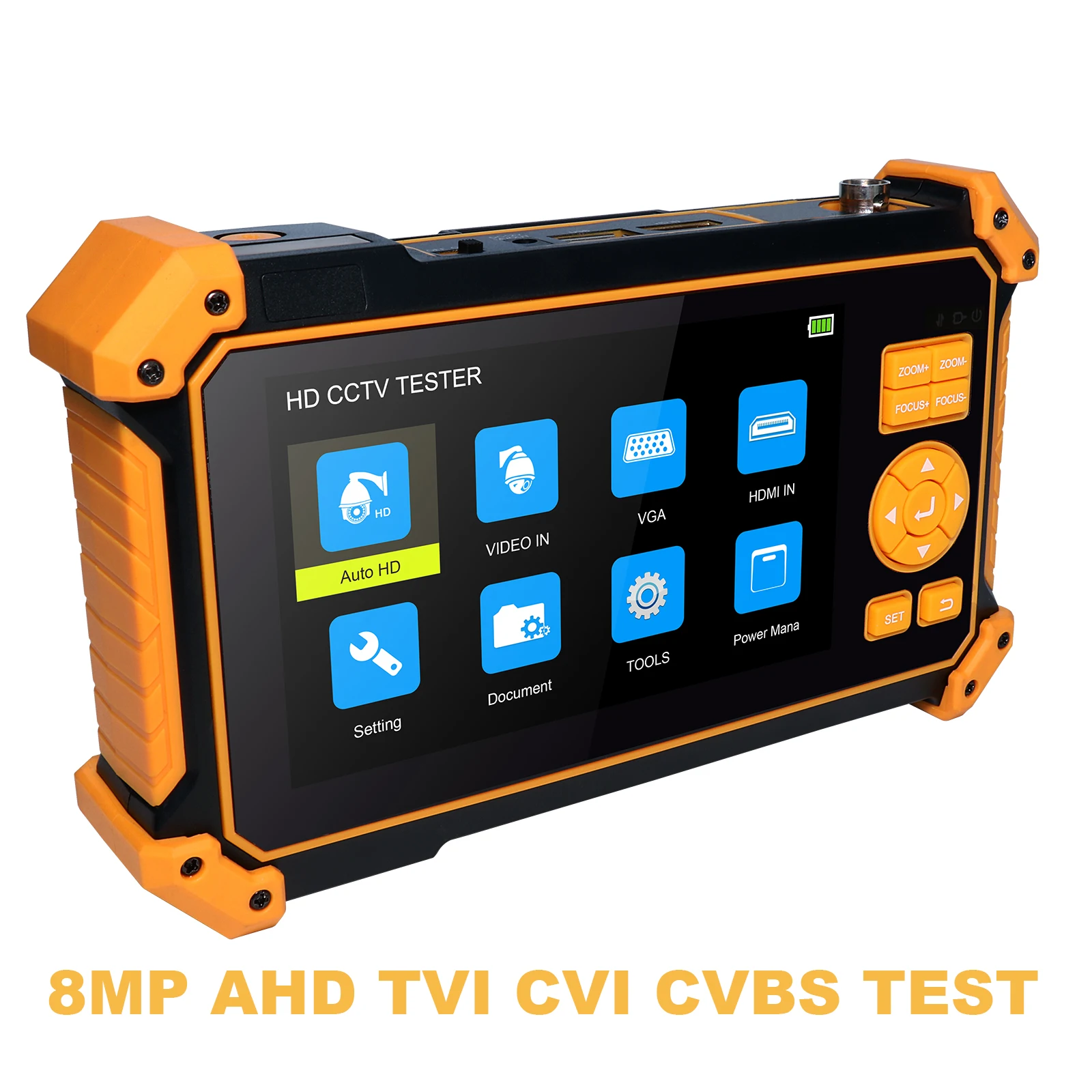

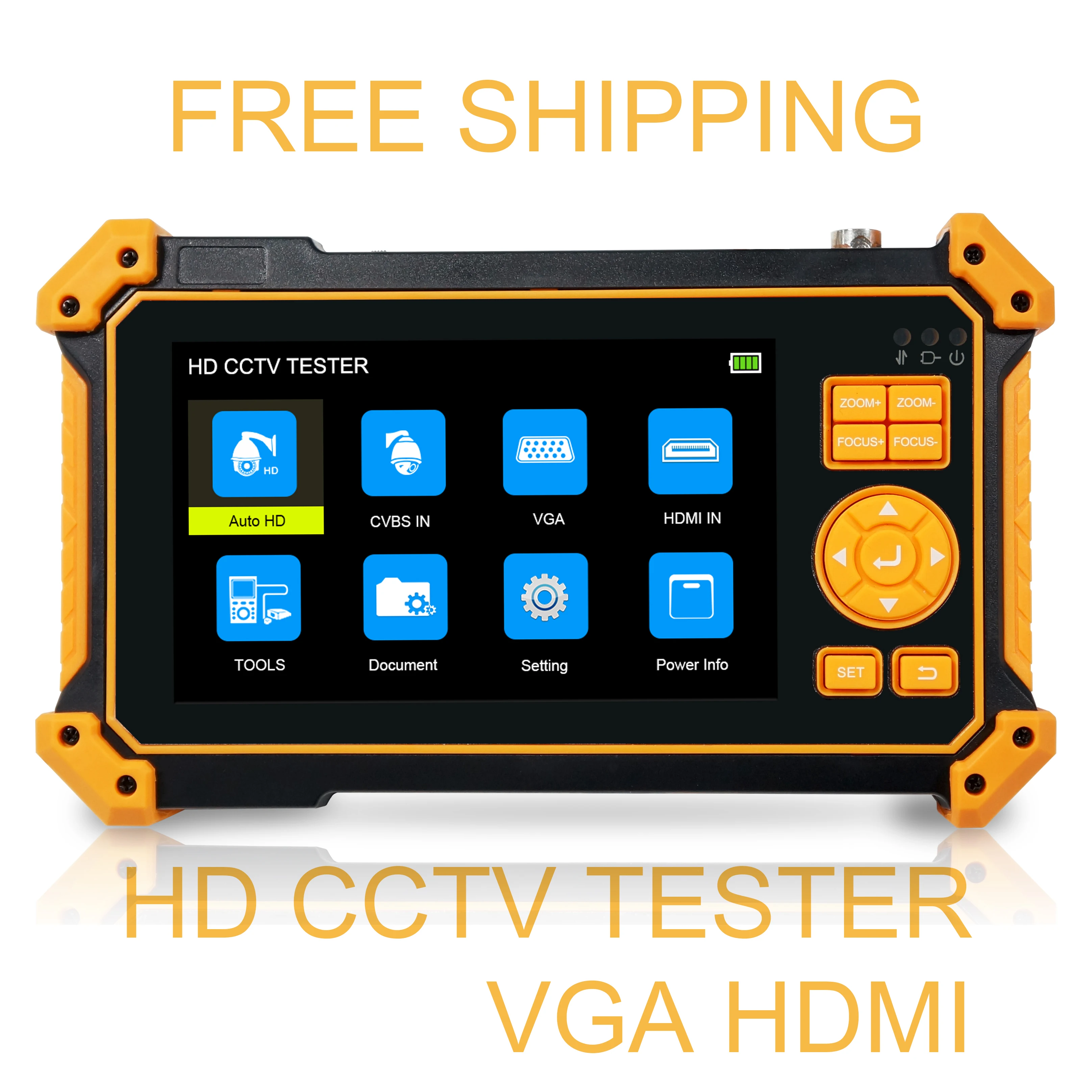

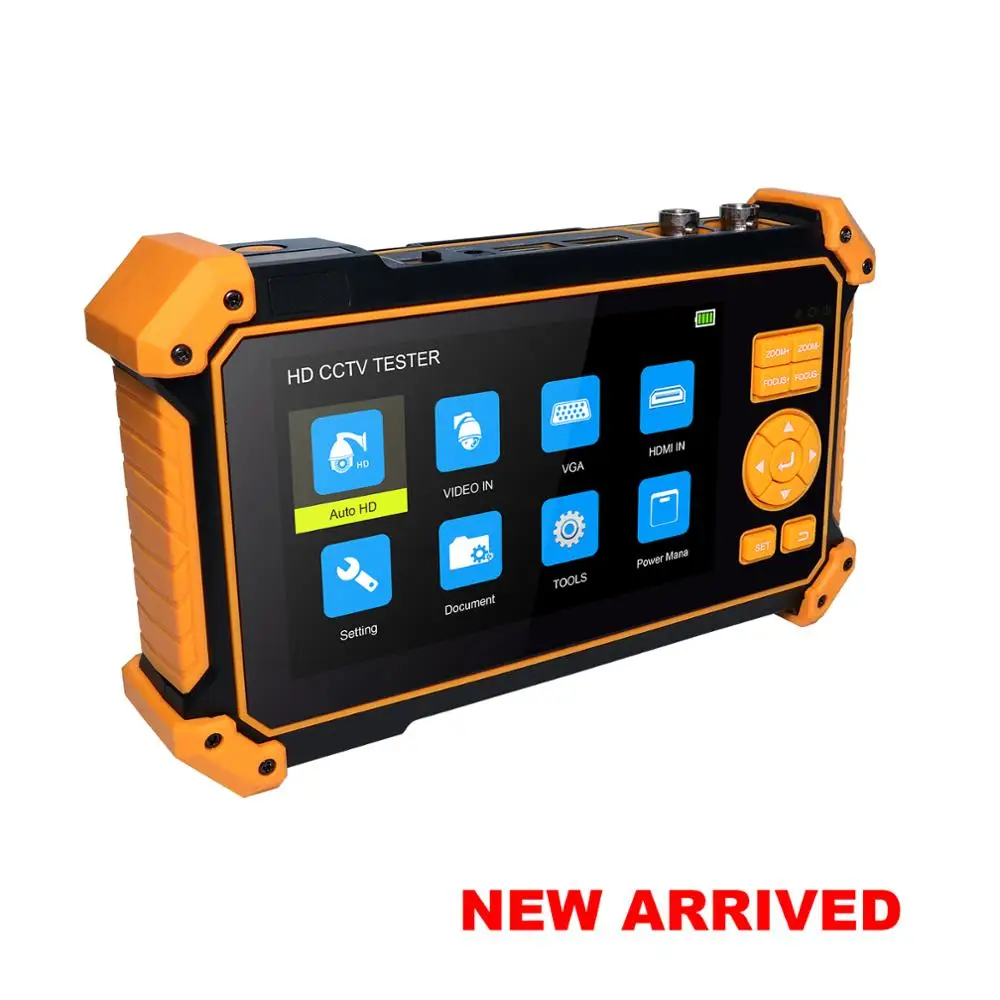

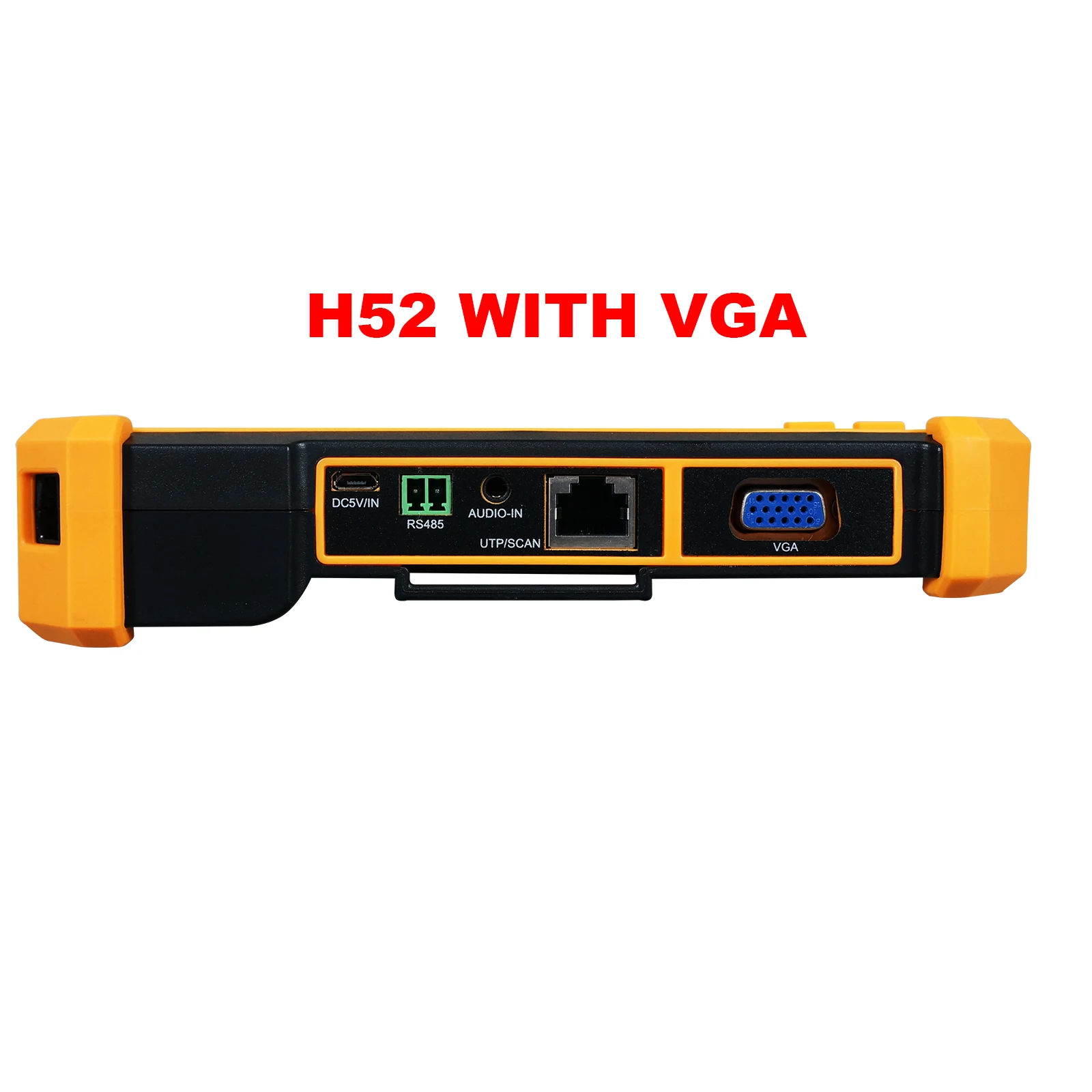

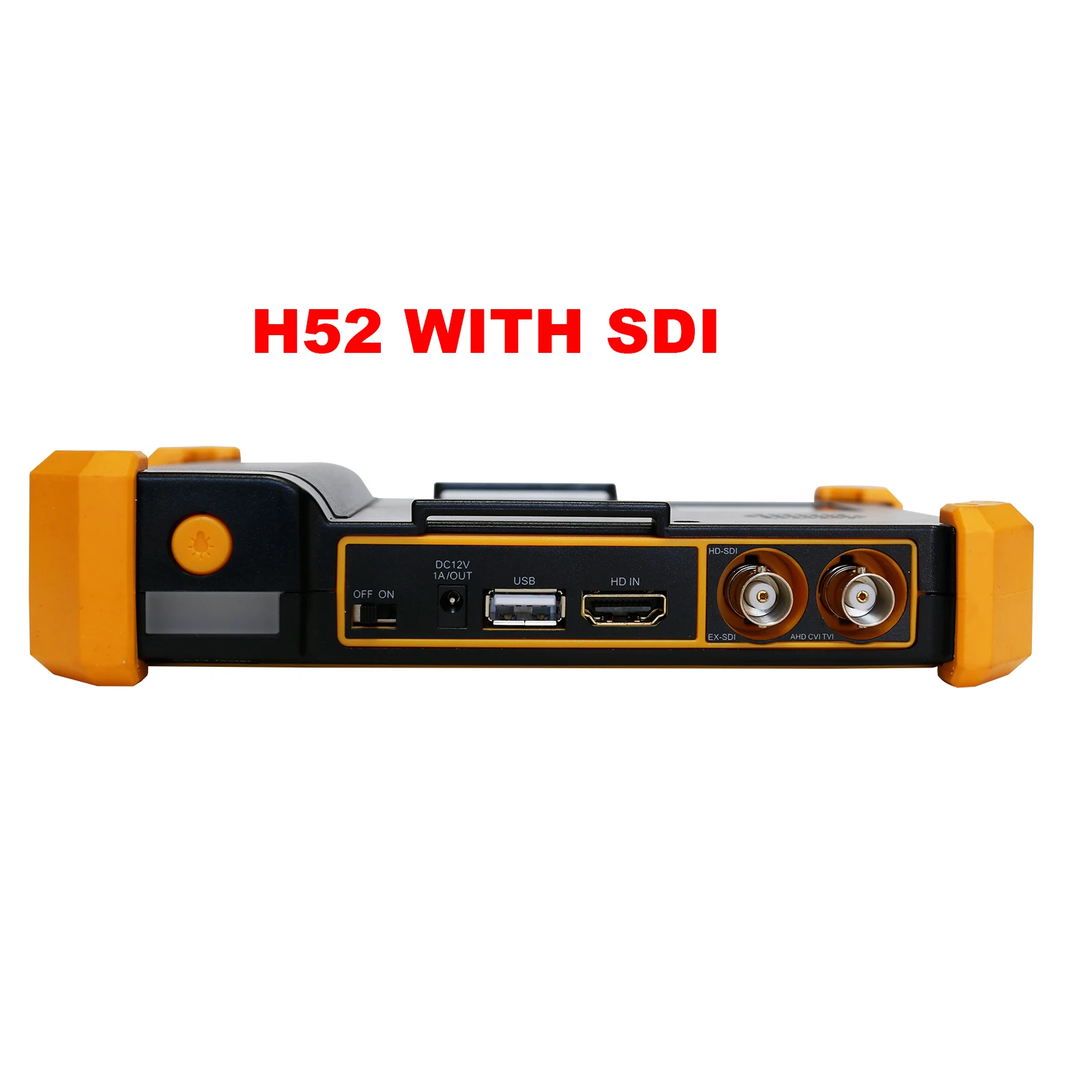

Multi-functions CCTV Tester H52 series 4K HD camera test Multi-function camera monitoring tester detection camera tool 8MP AHD TVI CVI (cable tracer optional )   ​ H52:  8MP AHD yes ​8MP TVI yes ​8MP CVI yes SDI yes HDMI yes VGA yes   if you need H51, please contact me    ● 5 inch 4 IN 1 HD CCTV Tester ● 5 inch TFT-LCD screen, 800*480 resolutions ● 8MP CVI/ TVI/ AHD camera test ● 8MP EX-SDI, HD-SDI, 3G-SDI test* (Optional) ● VGA input, support 1920 x 1200P 60FPS ● HDMI Input, support 4K 30FPS ● Analog camera test, PAL/ NTSC auto adapt ● Auto HD, auto recognize HD coax camera type and resolution ● DC 12V/ 1A power output ● DC 5V/ 1A power output, support reading USB disk ● UTP cable test, near-end, mid-end and far-end fault test Note: This item Not touch screen and No IP.   please note this tester  （NOT touch screen ,No IP ） （NOT touch screen ,No IP ）   The 5 inch TFT-LCD screen HD CCTV tester is designed for maintenance and installation of HD coaxial cameras, UTP cable test as well as other security equipment. The 800*480 resolution enables it to display HD cameras and analog cameras in high resolution. CCTV installers often need to carry a variety of testing tools to complete their work. If take the all in one camera tester, making working conditions safer and increasing productivity. CCTV system installation and maintenance Network cabling project installation and maintenance TVI CVI AHD SDI camera testing PTZ controller   Camera test: ● 5 inch TFT-LCD screen,800*480 resolutions ● 8MP TVItest,3840 x 2160P12.5/15 FPS,coaxial PTZ control & call OSD menu ● 8MP AHDtest,3840x2160P15 FPS,coaxial PTZ& call OSD menu ● 8MP CVItest, 3840 x 2160P12.5/15FPS,coaxial PTZ & call OSDmenu ● 8MP EX-SDItest,3840x 2160P25/30FPS,coaxial PTZ & call OSDmenu* (Optional) ● HD-SDItest,1920 x 1080P25/30/ 50/ 60 FPS, coaxial PTZ & call OSD menu*  (Optional) ● 3G-SDI test,1920 x 1080P50/ 60 FPS, coaxial PTZ & call OSD menu* (Optional) ● Auto HD app, autorecognize HD coaxcamera type and resolution,support coaxial PTZ & call OSDmenu ● VGA input,upto 1920 x 1200P60FPS,support snapshot,video record& playback ● HDMI Input,upto 4K 30FPS,support snapshot,video record& playback ● CVBS camera test,PTZ controller ● DC 12V/1A poweroutput, camera can be powered fromDC12 Voltage ● DC5V/ 1A power output, support reading USBdisk Features Application   Cable test: ● Improvement cable tester, UTP cable, telephone cable etc order and connectivity test, can save testing report, if special number, needcustomized. Candetect the near-end, mid-end and far-end fault point ofthe network cable crystalhead. ● Digital Cable tracer,search BNCcable,network cable and telephone cable fromthe messcables.Cable search and UTPcable can test at the same time.* (Optional) Other Functions: ● Media player, videofiles and MKV/ MP4media files play. ● With the high brightness LED lighting,convenient to work in the dark. ● Audio in,test whether sound normal. ● Power managerfunction,view 12V supply voltage and power in real time,checkwhether thevoltage and power of DC12V power output is normal. ● 3.7V/ 5200mAh Li Battery,after 4 hours charging,working time lasts 6.5hours. LCD Item series H51 series
