Features:

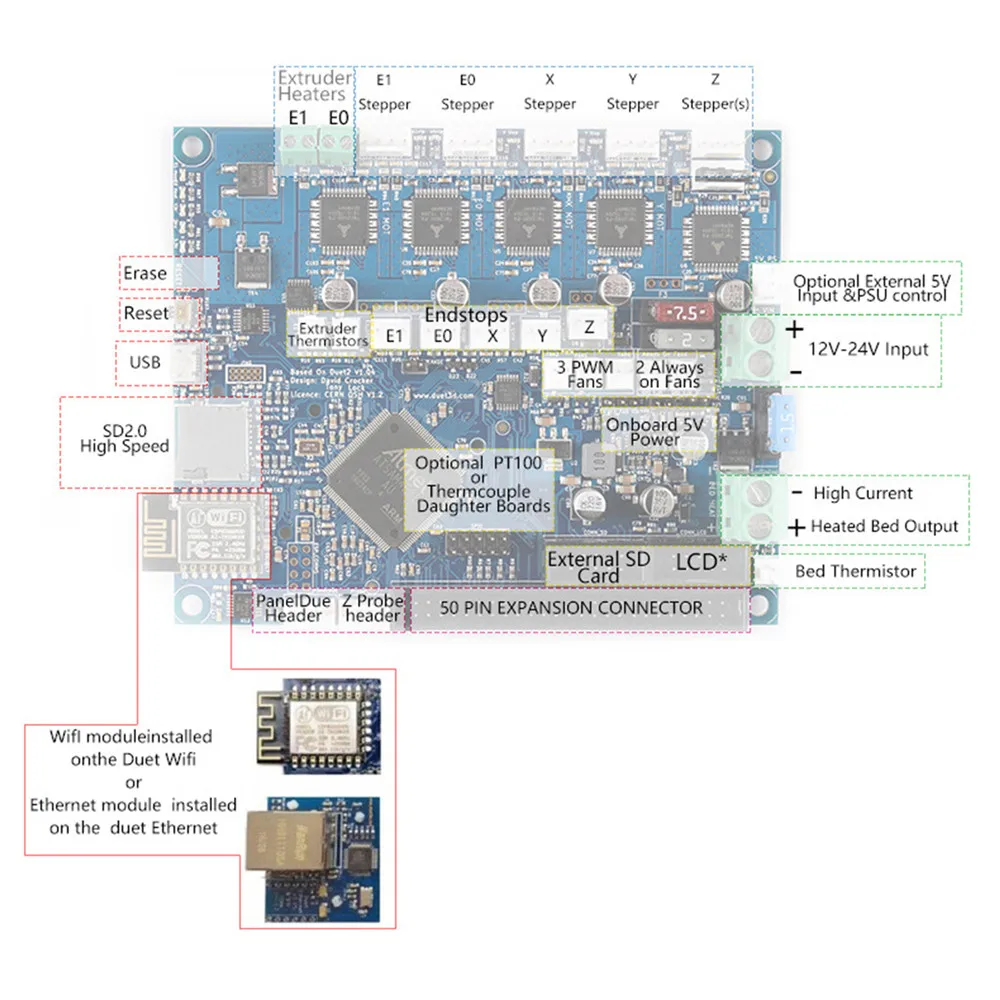

The for DuetWifi is an advanced 32 bit electronics for the control of 3D printers and other CNC machines. It has the same features as the for Duet Ethernet other than providing a WiFi connectivity rather than ethernet

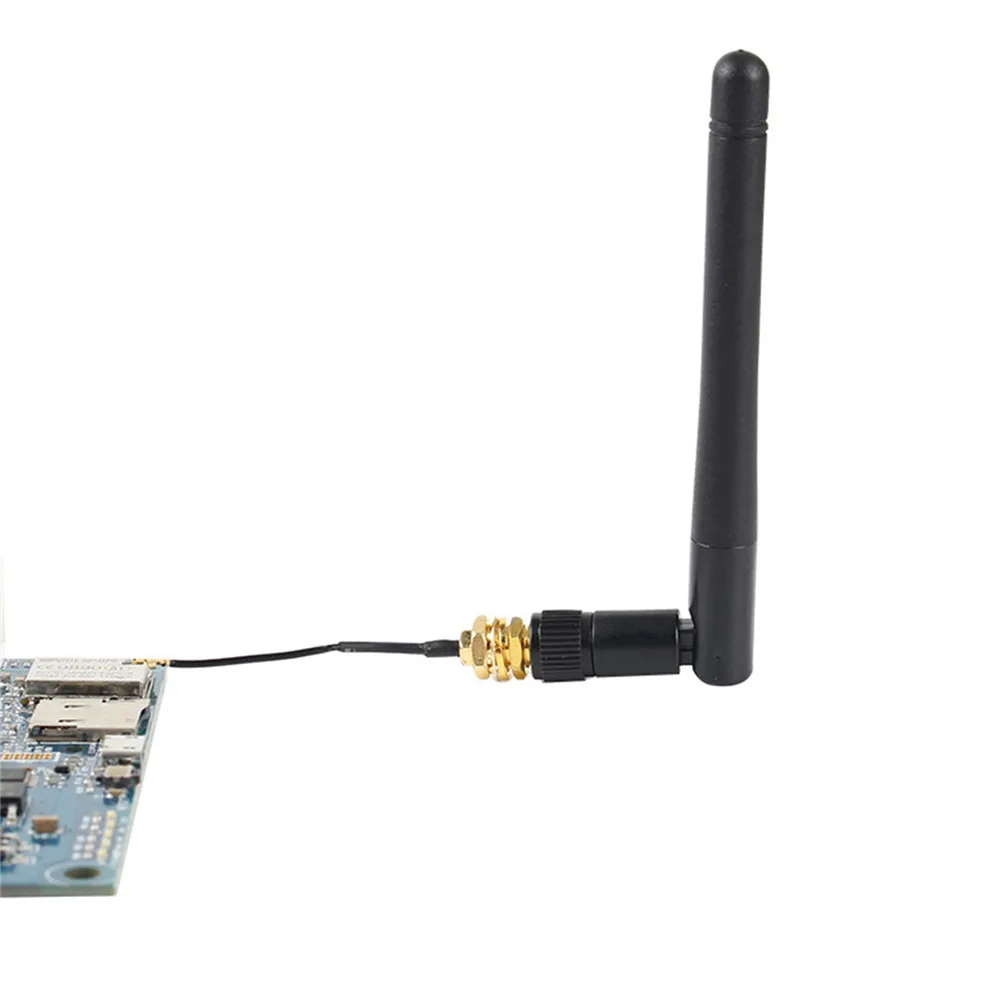

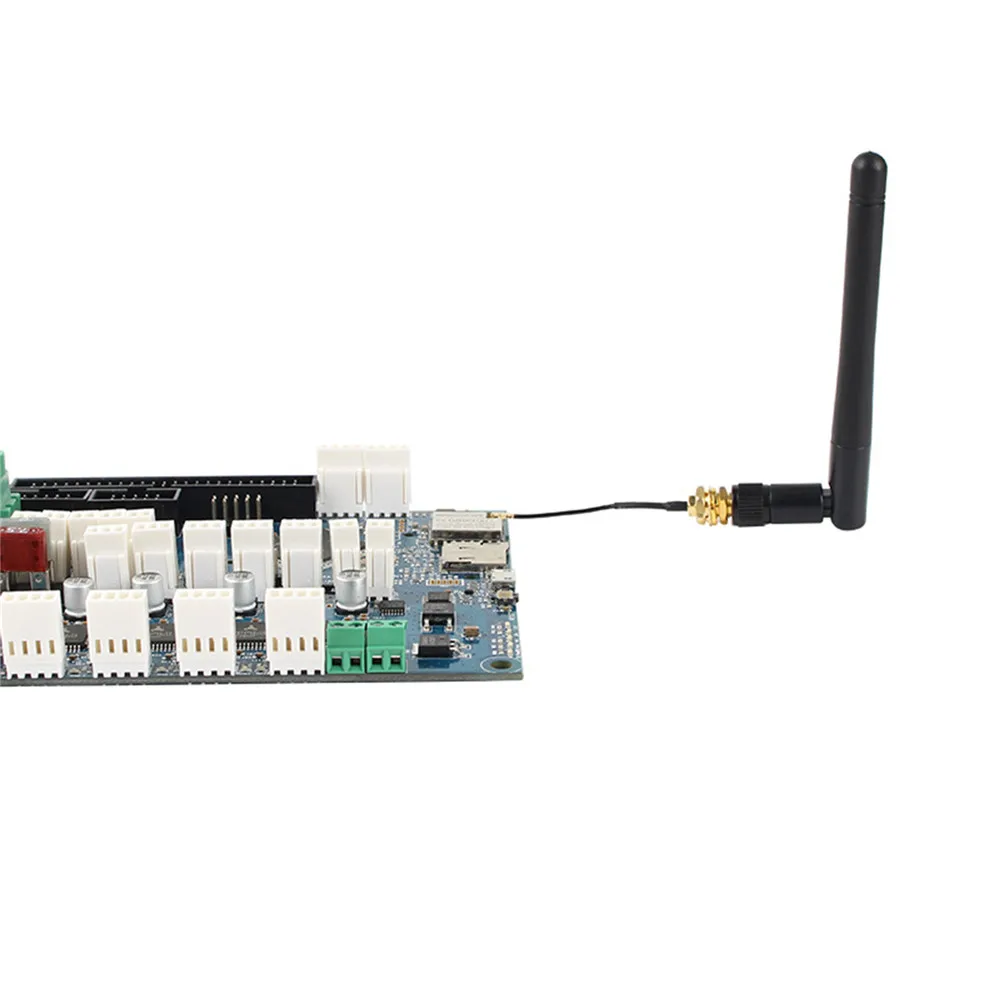

Powerful 32 Bit processor, dedicated WiFi module

Super quiet TMC2660 stepper drivers, up to 256 microstepping

High speed SD card and support for a second SD external card if required

Dual extruders on the main board, up to 5 more extruders on the expansion board

High Power rating: Each stepper driver is capable of 2.8A motor current, currently limited in software to 2.4A. The bed heater channel is specifically designed for high current (18A)

Connect via PC, tablet or smart phone on the same network to the on board web interface. Set up your printer and update the firmware through the web interface

All common 3D printer geometries are supported

Support the for PanelDue: a full colour graphic touch screen

Expandable up to 7 extruders with Firmware support for mixing nozzles and remapping axes to use high power external drivers

Provided with Molex compatible plugs and crimps as well as ferrules for power and heater terminals

Packing includes:

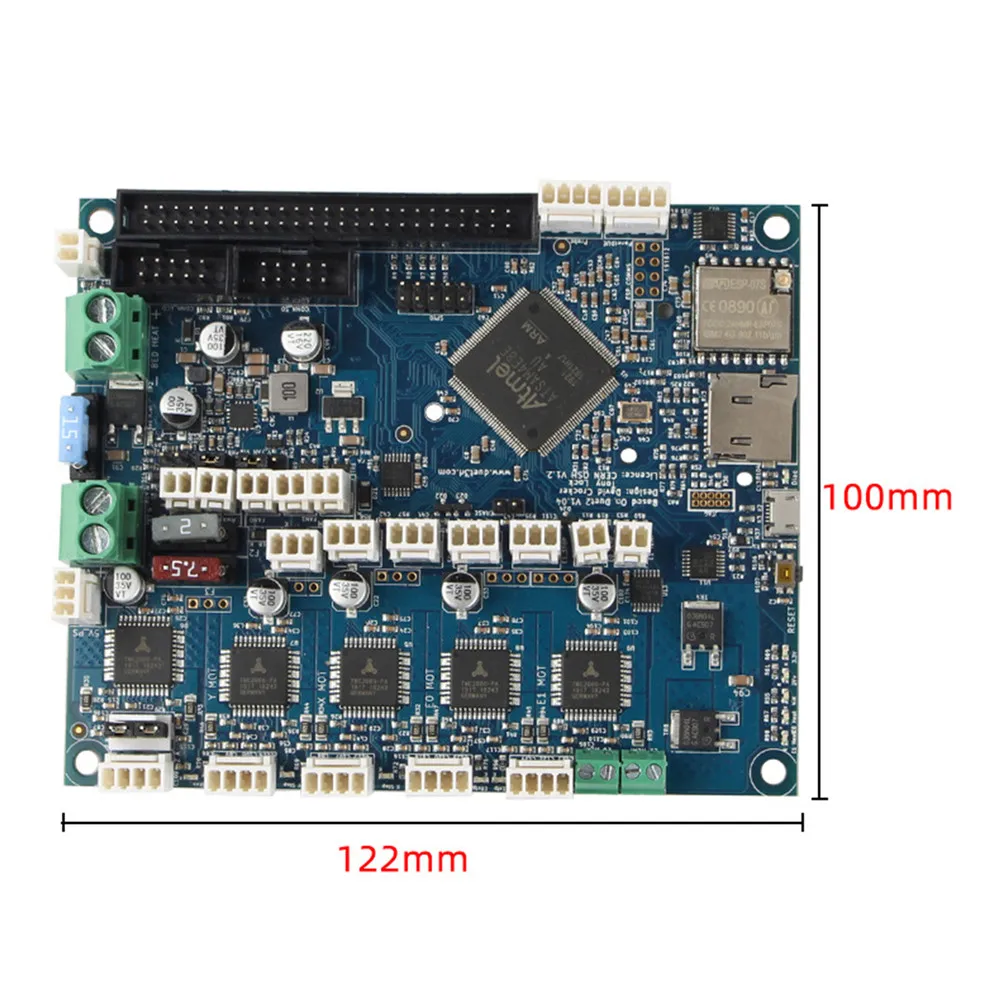

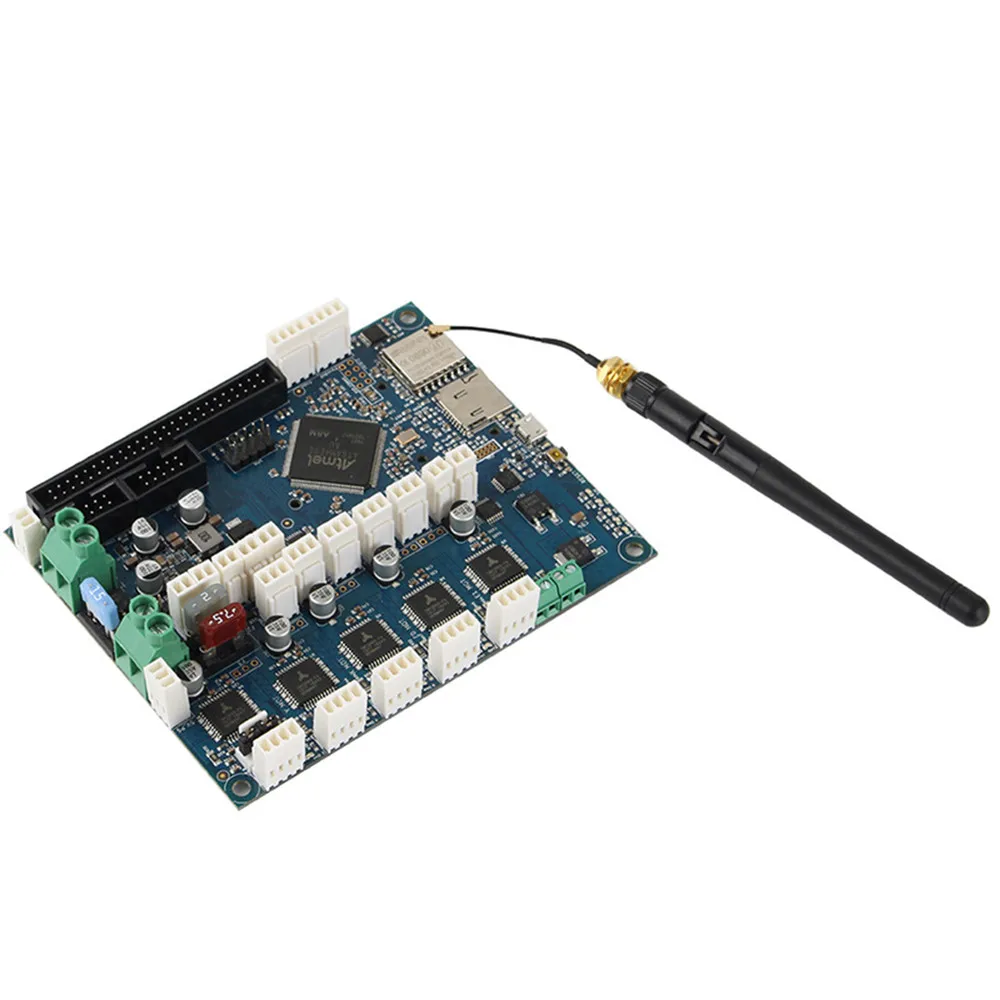

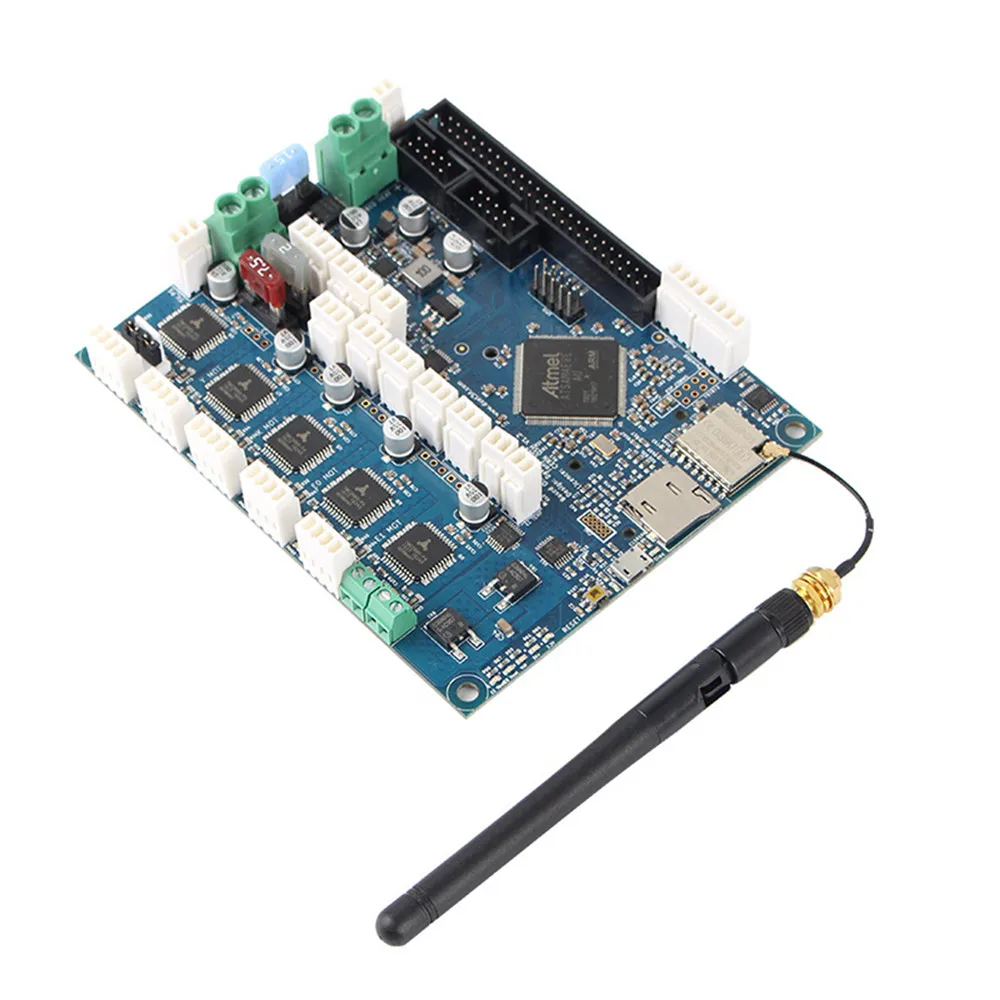

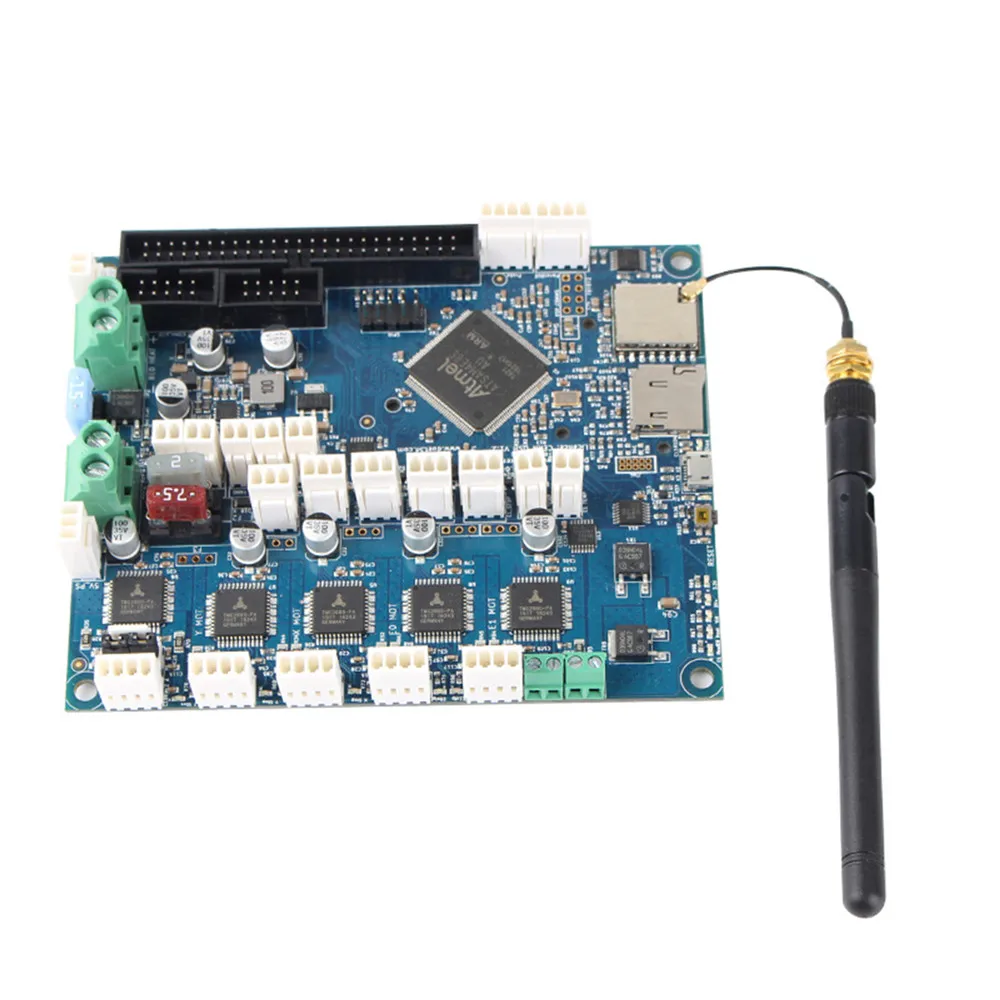

1 x Cloned for Duet2 WiFi board (PC)

1 x Cable (PC)

50 x Jumper (PCS)

8 x 4Pin plug (PCS)

6 x 3pin plug (PCS)

7 x 2pin plug (PCS)

Notes:

Do not perform any wiring operation, especially the motor, without the main board being powered off

Based on the for DuetWifi by for Think3dPrint3d and for Esher3d. This reproduction/ modification is not endorsed or supported in any way by for Think3dPrint3d or for Escher3d
