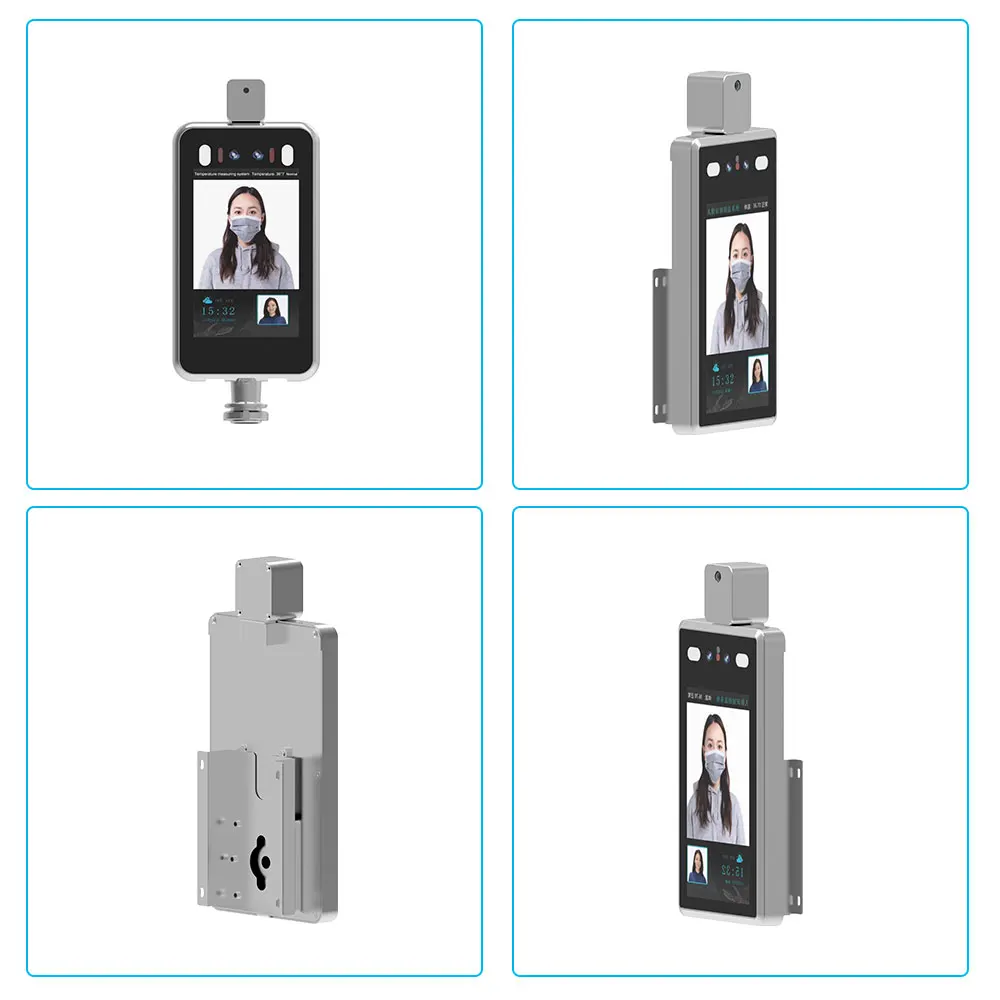

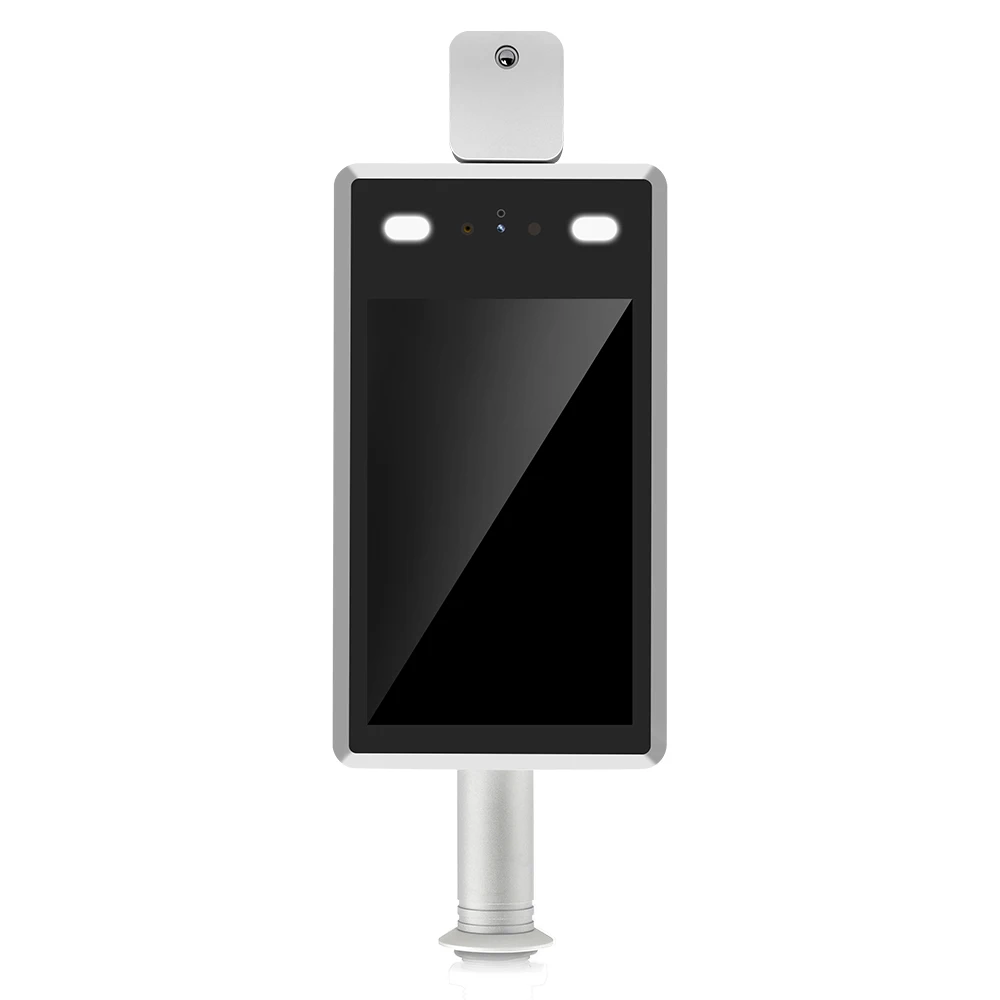

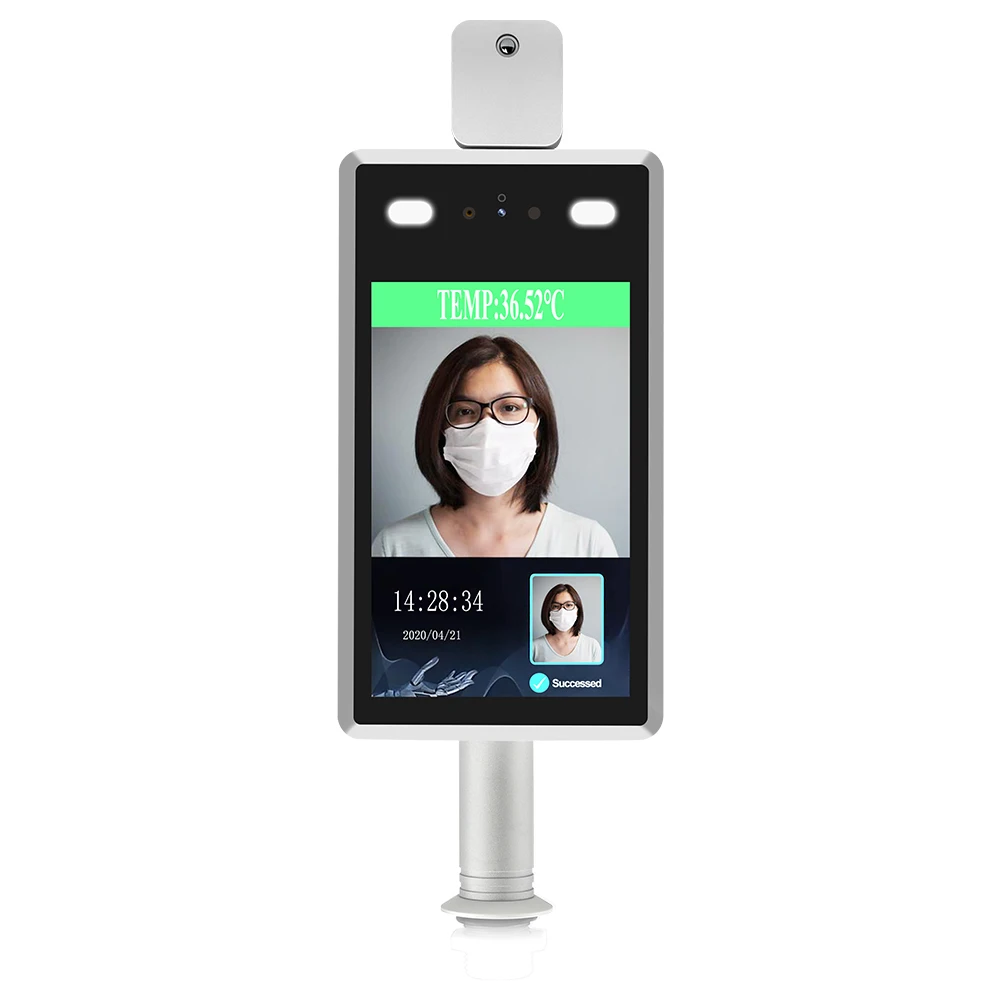

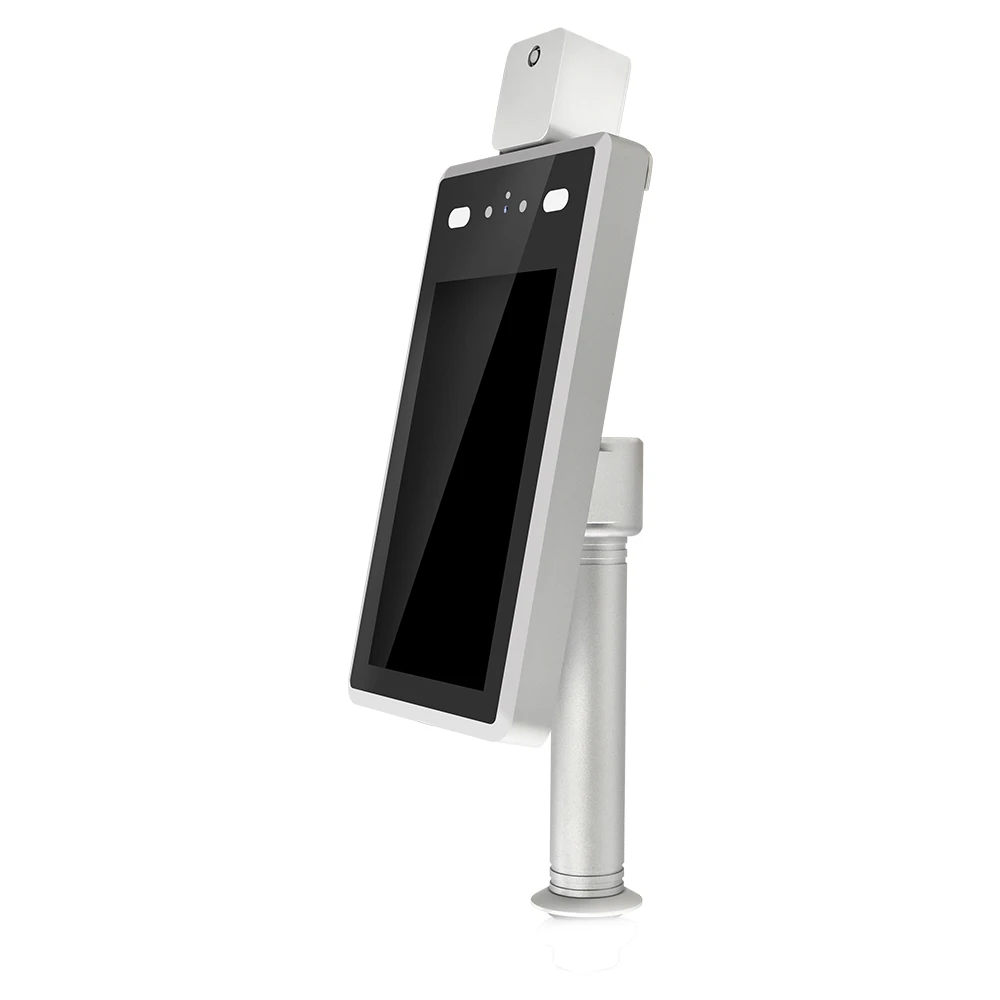

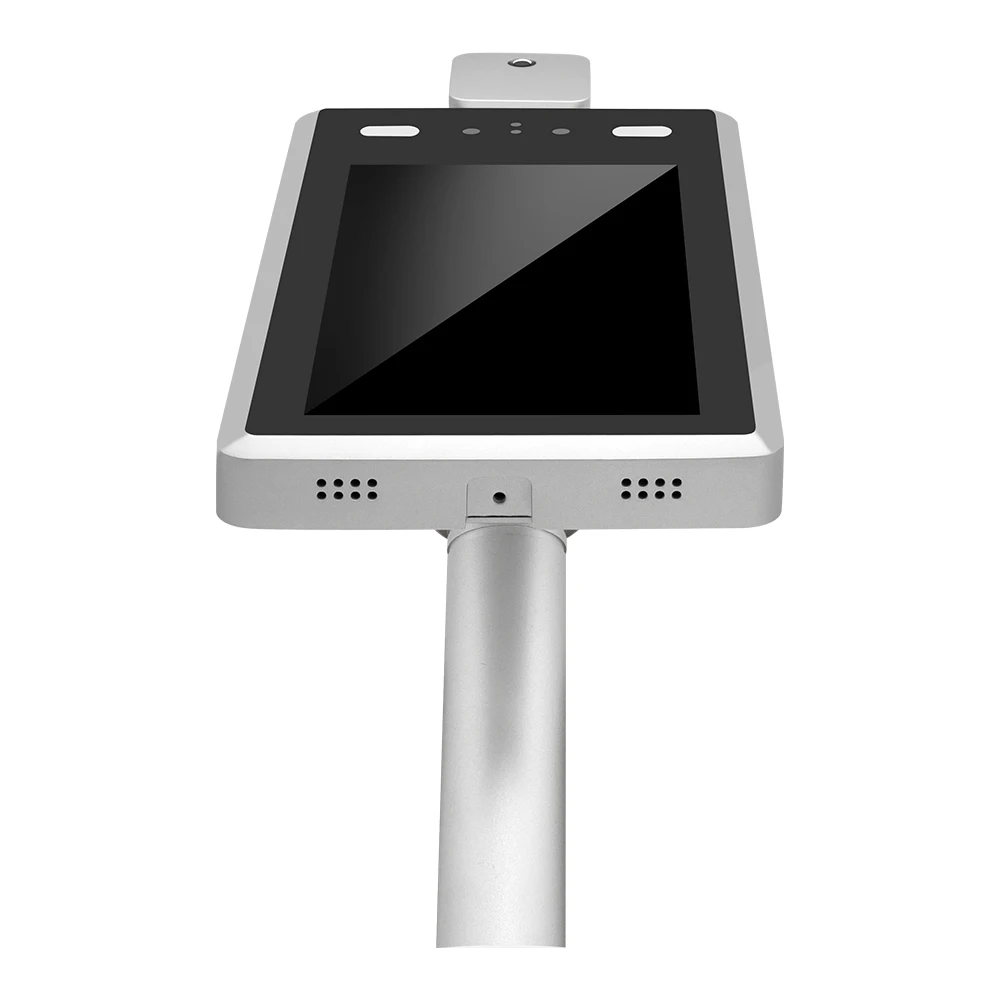

Face Recognition and Temperature Indicator HD Camera Thermal Infrared Human Body Temperature Detect Access Control Face Mask

Precautions:

1.The temperature measuring device should be used in a room with a room temperature between 10 ° -40 °. Do not install the temperature measuring device under the vent, and ensure that there is no heating source within 3 meters;

2. Personnel entering the room from a cold outdoor environment will affect the temperature measurement accuracy. The forehead temperature test should be performed after the forehead is unobstructed for three minutes and the temperature is stable;

3.The temperature read by the temperature measuring device is the temperature in the forehead area. When there is water, sweat, oil or thick makeup on the forehead or the elderly have more wrinkles, the read temperature will be lower than the actual temperature. Make sure there is no hair or clothing covering this area.

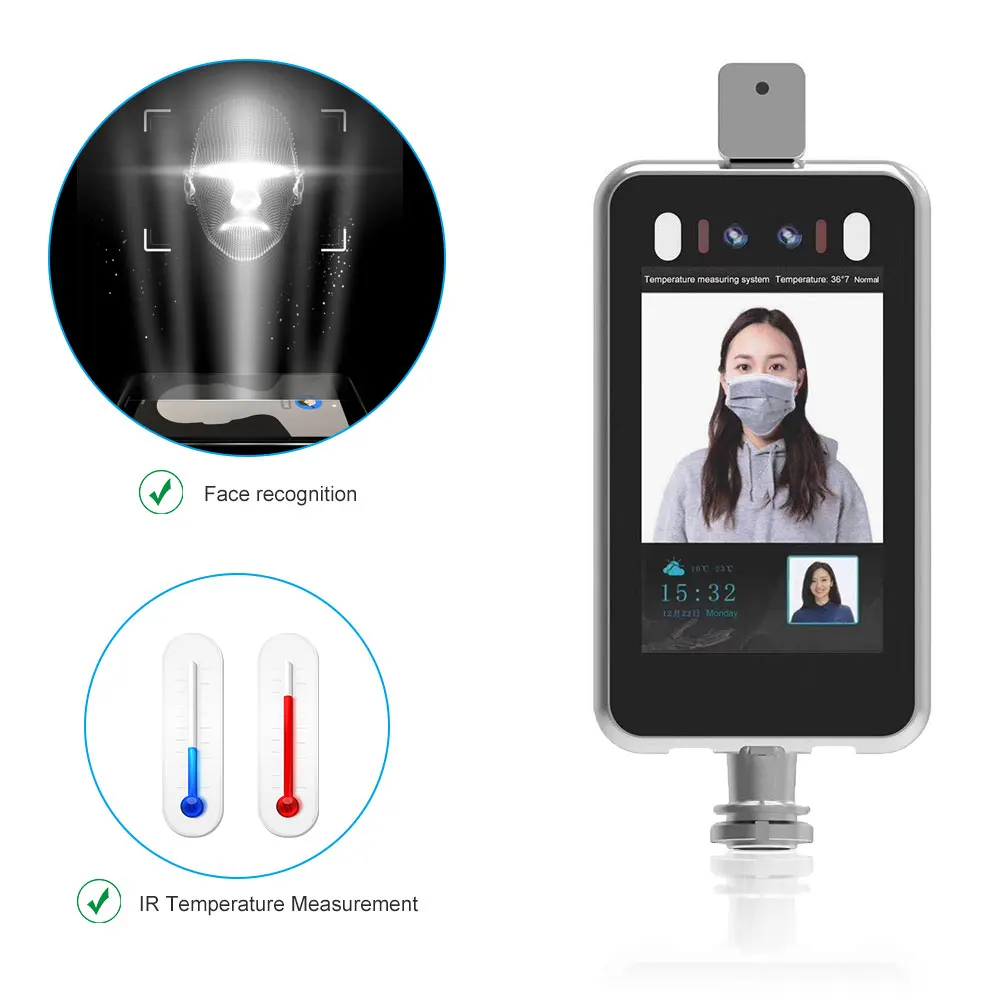

1. Non-contact automatic body temperature detection, brush human face and perform high-precision infrared human temperature acquisition at the same time, fast and high effect

2.Temperature measurement range 30-45 (°) Accuracy ± 0.5 (°)

3.Automatically identify unmasked personnel and provide real-time warning

4.Support mid-range temperature measurement and real-time warning of high temperature

5.Support temperature data SDK and HTTP protocol docking

6.Automatically register and record information, avoid manual operation, improve efficiency and reduce missing information

7.Support binocular live detection

8.Unique face recognition algorithm to accurately recognize faces, face recognition time <500ms

9. Support human motion tracking exposure in strong backlight environment, support machine vision optical wide dynamic ≥80dB

10.Adopt Linux operating system for better system stability

11. Rich interface protocols, support SDK and HTTP protocols under multiple platforms such as Windows / Linux

12. 7-inch IPS HD display

13.IP34 rated dust and water resistant

14.MTBF> 50000 H

15.Support 22400 face comparison library and 100,000 face recognition records

16.Support one Wiegand input or Wiegand output

17.Supports fog through, 3D noise reduction, strong light suppression, electronic image stabilization, and has multiple white balance modes, suitable for various fields

Scene demand

18.Support electronic voice broadcast (normal human body temperature or super high alarm, face recognition verification results)



Model

iHM42-2T07-T3-EN

Hardware

Chipset

Hi3516DV300

System

Linux operation system

RAM

16G EMMC

Image sensor

1/2.7" CMOS

Lens

4.5mm

Camera Parameters

Camera

Binocular camera supports live detection

Effective pixel

2Mega pixel,1920*1080

Min. lux

Color 0.01Lux @F1.2(ICR);B/W 0.001Lux @F1.2

SNR

≥50db(AGC OFF)

WDR

≥80db

Face Recognition

Height

1.2-2.2 M, angle adjustable

Distance

0.5-3 Meters

View angle

Vertical ±30 degree

Reco. Time

＜500ms

Function

Support 22400 faces database and 100000 records

Temperature

Range

30-45(°)

Accuracy

          ±0.3(°)  indoor

Best Distance

≤0.5m

Response time

＜300ms

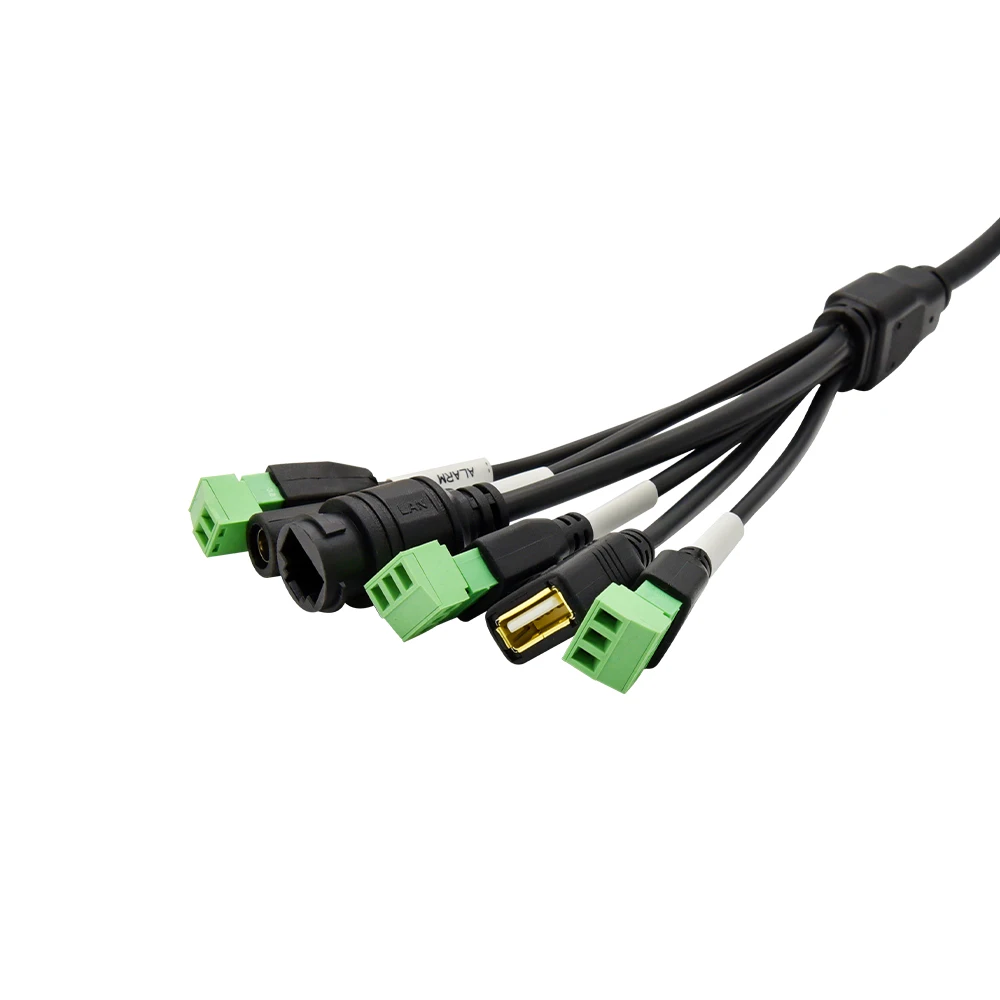

Interface

Internet interface

RJ45 10M/100M Ethernet

Weigand port

Support input/output 26 and 34

Alarm output

1channel relay output

USB port

1USB port (Can be connected to ID identifier)

General

Power input

DC 12V/3A

Power consumption

20W(MAX)

Working temperature

10° ～ +50°

Humidity

5～90%, no condense

Dimension

123.5(W) * 45.5(H) *266(L)mm

Weight

1.9 kg

Column Aperture

27mm
