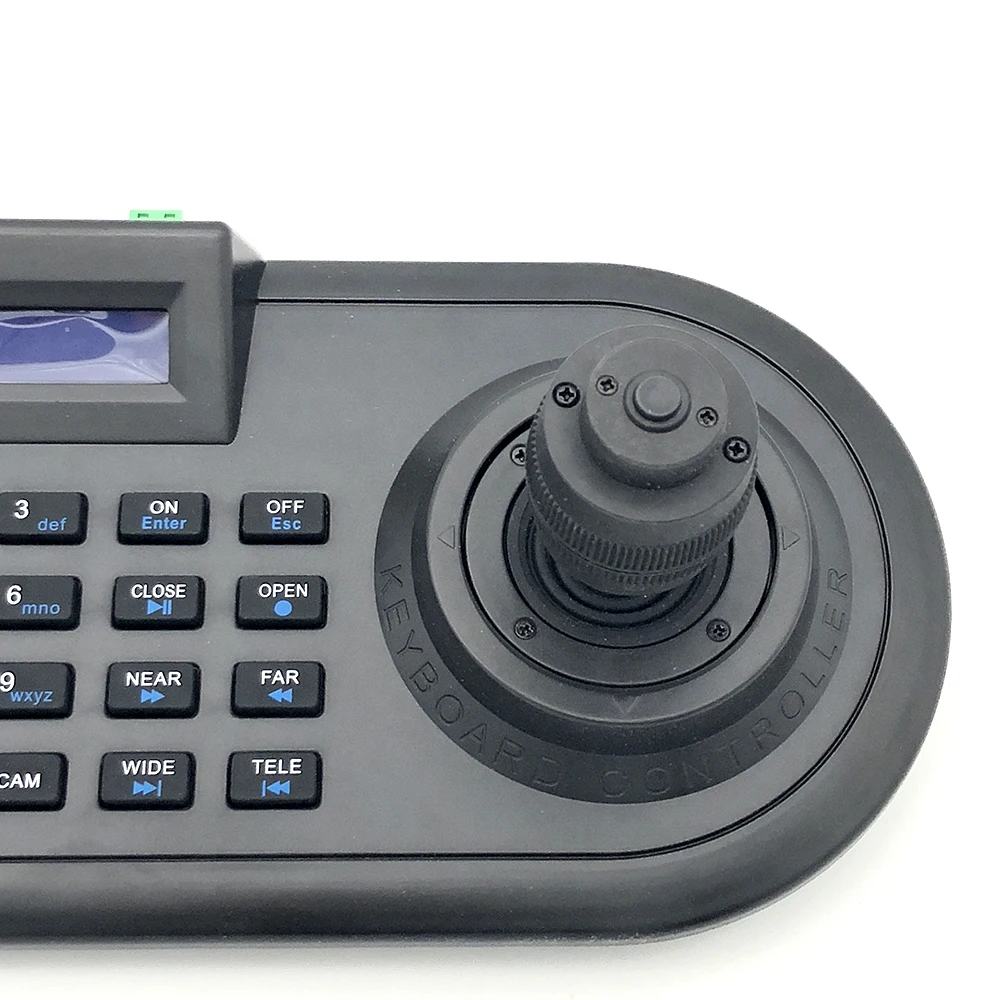

4-Axis CCTV Camera RS485 Controller For Analog AHD High Speed Dome PTZ Camera System Equipment Keyboard Controller Joystick 4KDLCD DISPLAY

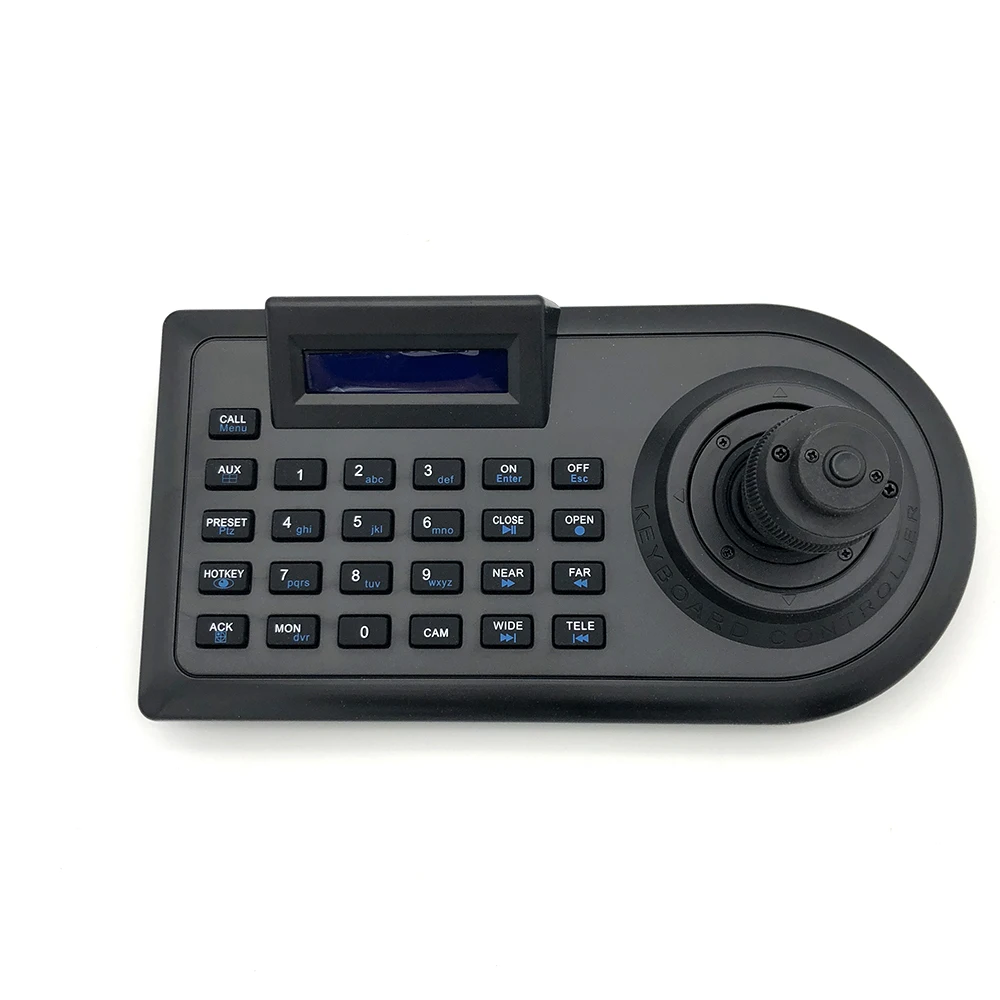

Security CCTV System Multi-function Controlling Keyboard, RS-485

The keyboard controller is designed to control and operate analog and AHD high speed dome camera and digital recorder, it has built-in multi-protocols, such as SISO, PELCO-D, PELCO-P, EREN,SAMSUNG, PANASONIC AND KALATEL, as well as digital video recorder control protocols following HIKVISION,DAHUA and DALI, the keyboard controller adopts RS-485 communication port, multi-baud rates are available.

The keyboard controller can control and operate the cradle head, lens, presets, tour, trace scanning and menu setting,the unique one-bar control could flexibly control the action of cradle head and lens.

The keyboard controller can control the operation of multi-picture monitoring, video recording, playing, play forward, play backward, information display and menu setting. The LCD of keyboard controller can display camera number and DVR number and working status, it is very convenient for user to operate it.

Important: this keyboard controller is for controlling analog and AHD PTZ cameras, it CAN NOT control network PTZ IP Cameras.

Features:

Built-in a variety of intelligent cameras, DVR control protocol, 5 commonly used control protocol for choice.

Keyboard with password management, the need to enter password to operate.

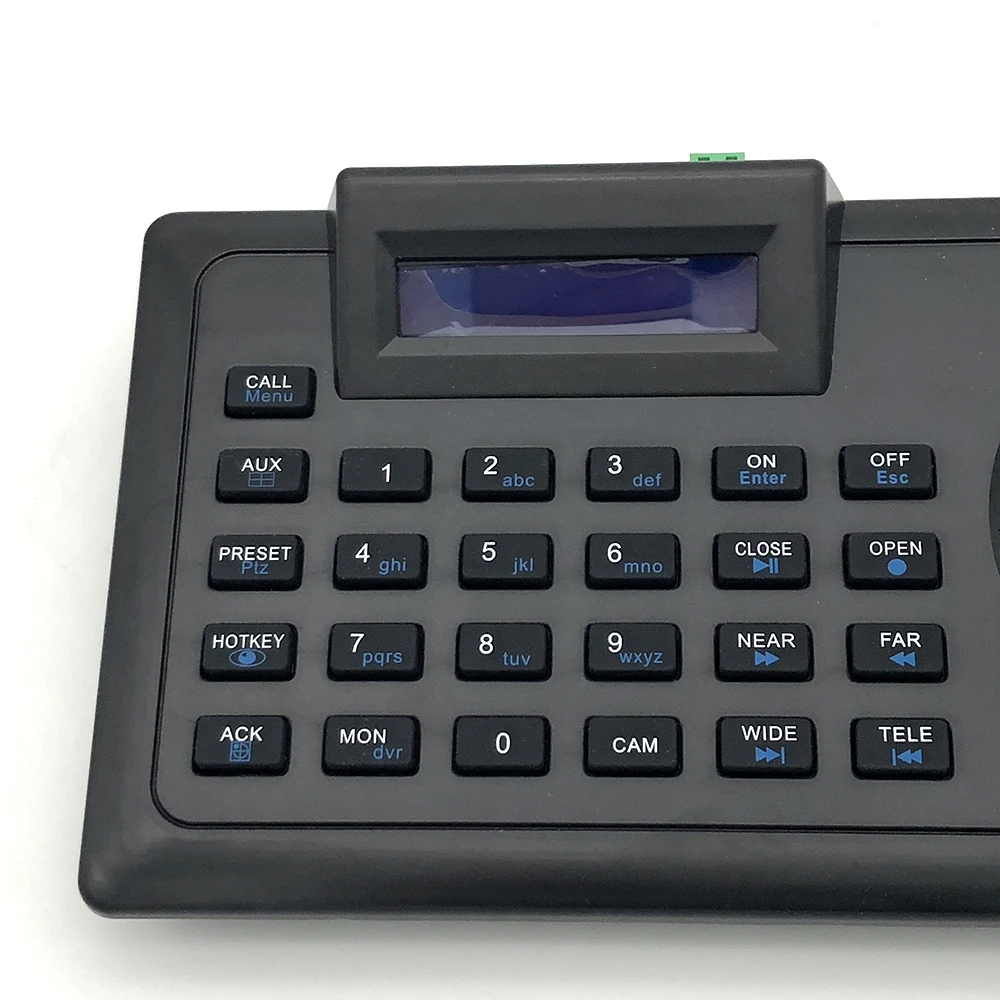

LCD display monitor number, camera number, recorder number and operating status.

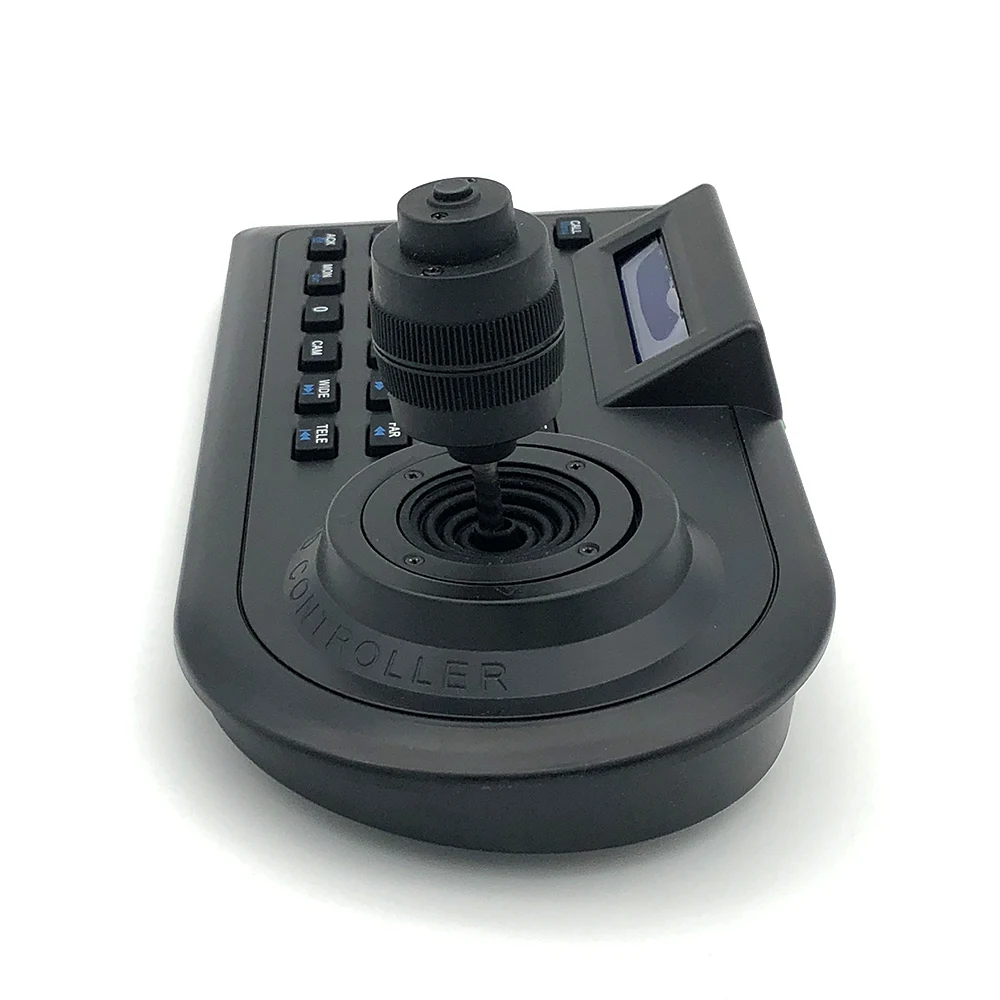

Four-dimensional vector variable speed controller with a unique control capabilities, flexible control over the full range of motion and control PTZ camera focus, zoom and aperture.

Has set up a smart camera, DVR menu functions.

With fast set, called the smart camera Presets, queues and other functions.

control of DVR with multi-screen monitoring, recording, playback, fast forward, rewind and other functions.

key tone, backlit LCD screen can be set via the keyboard menu.

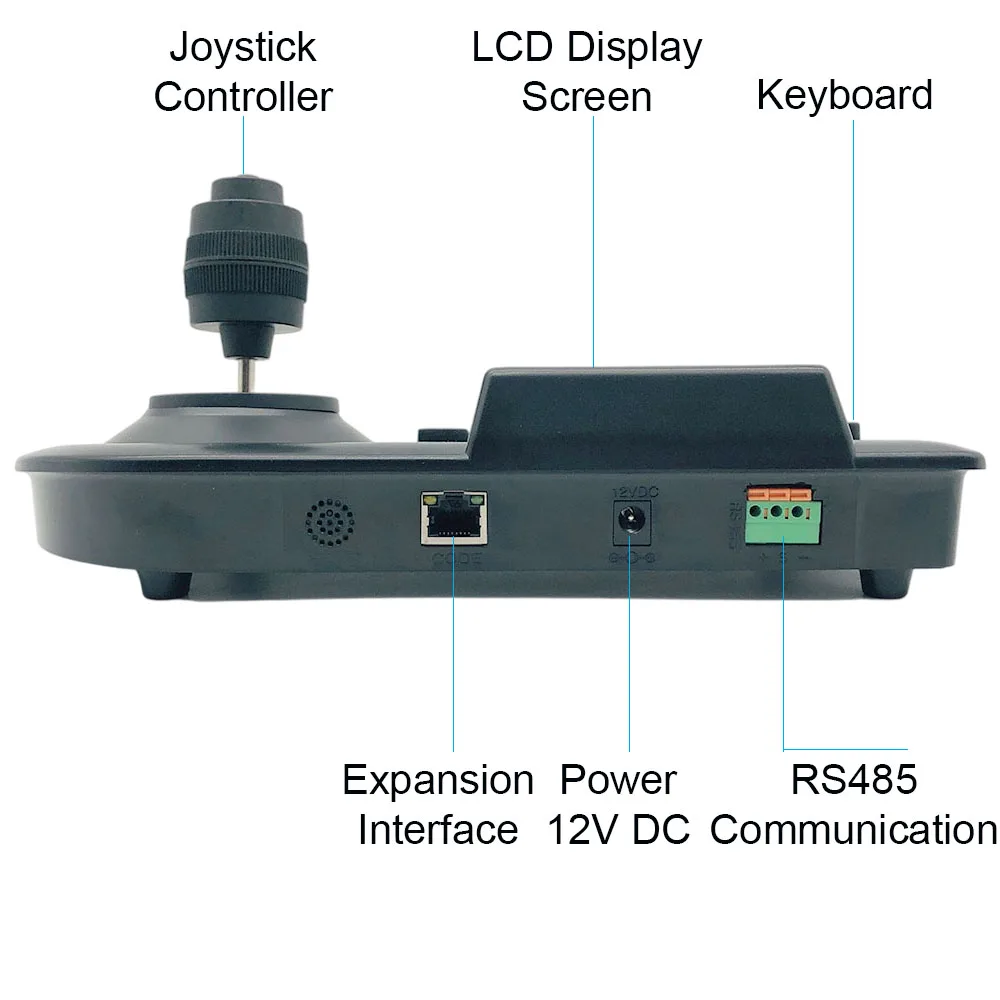

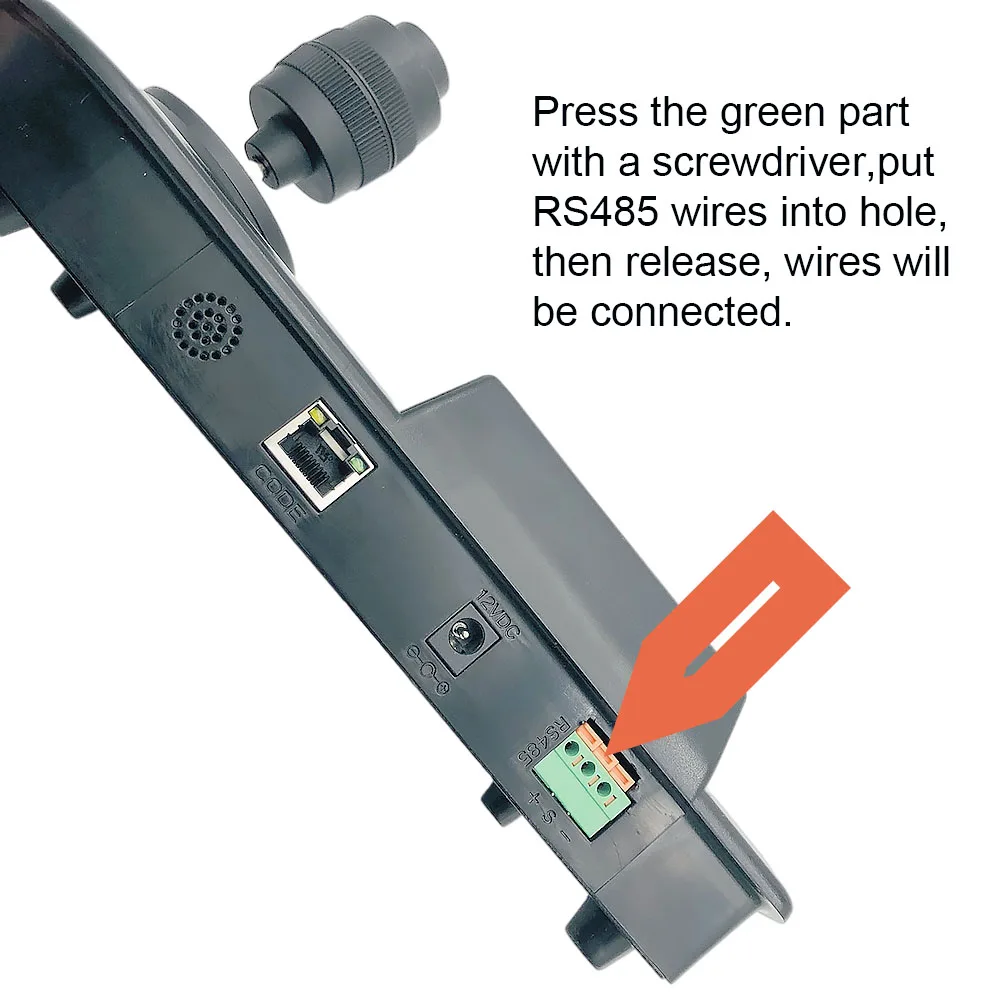

Communication using RS-485 half-duplex mode, the keyboard can be connected to control 16 to 32 intelligent camera or digital video recorder, control distance of 1,500 meters.

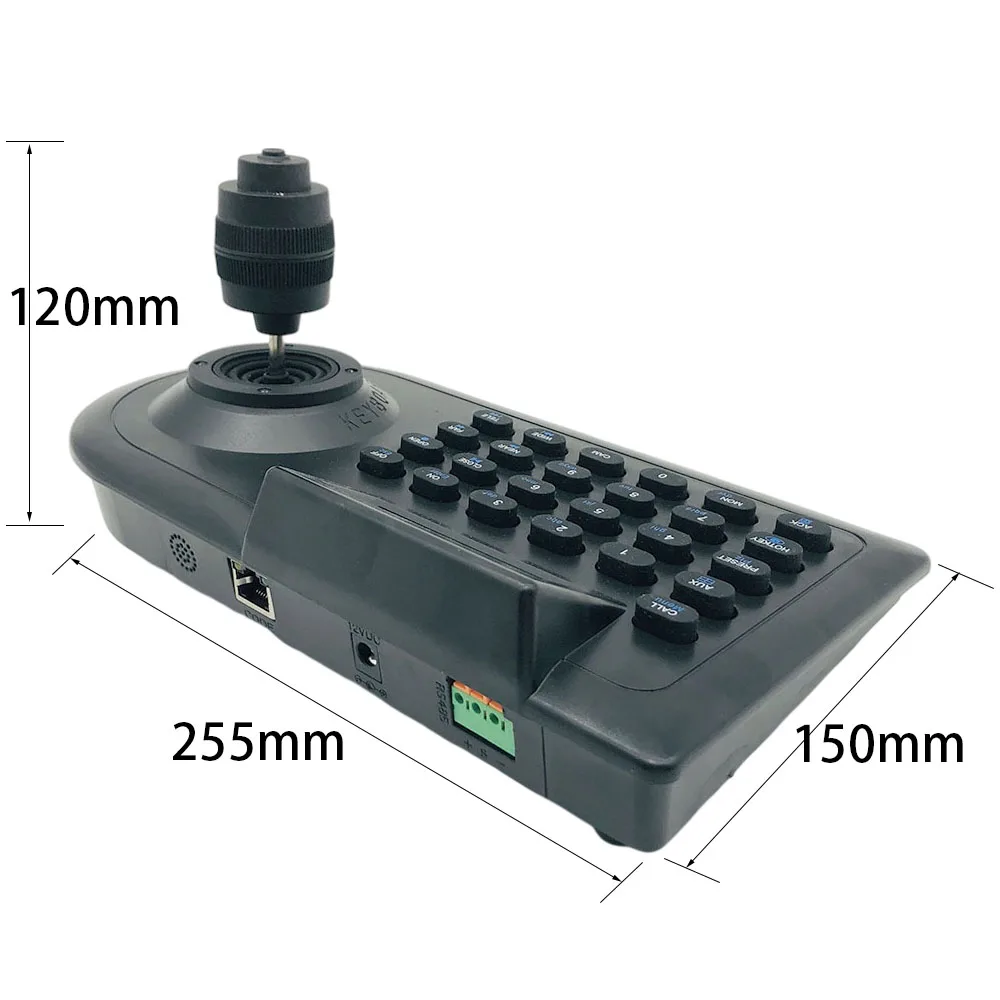

Dimension:255(W) x150(H) x120(D)mm

Weight:0.9K

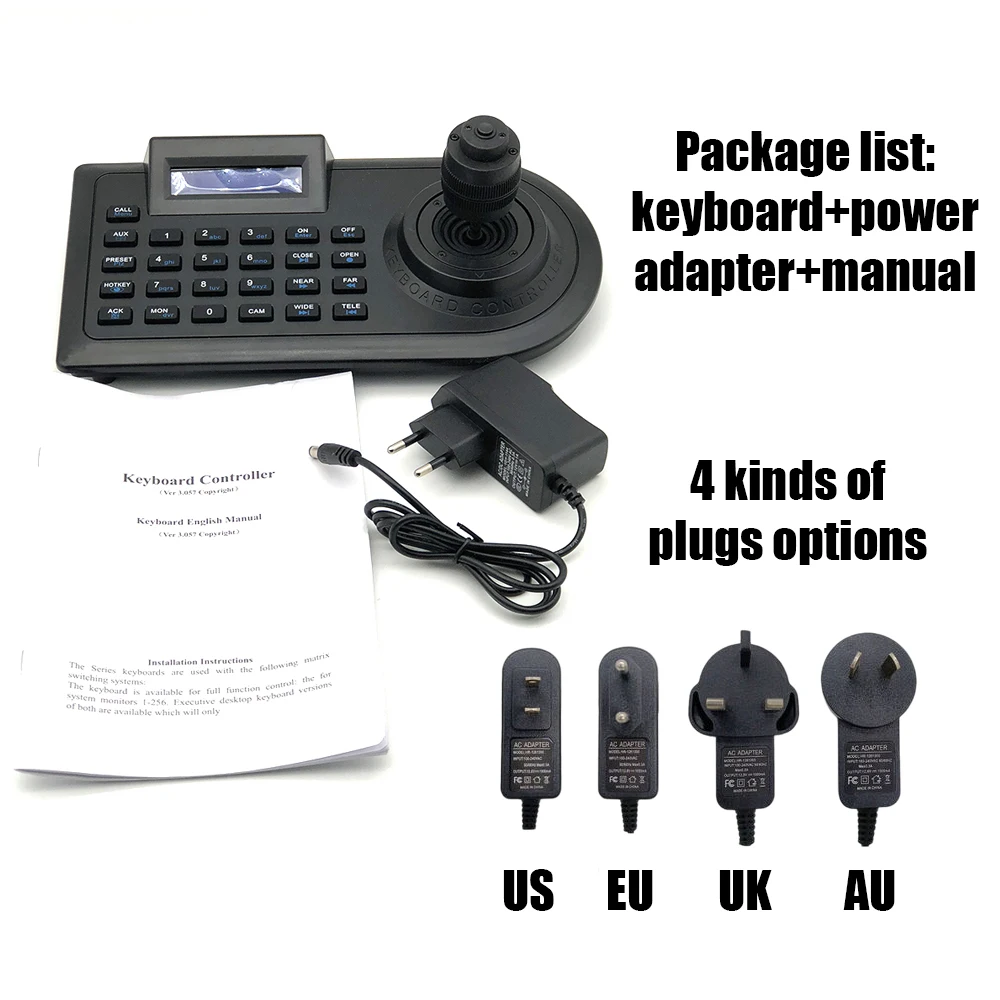

Item Package includes:

1 x CCTV System Multi-function Controlling Keyboard

1 x DC12V Power adapter (EU / UK / US / AU power plug available)

1 x English Manual
