         Z6300a Is an Ultra-Low Power Consumption, High Performance, Suitable for a Variety of 140 to 1020 MHz Wireless Applications Ook,(G)FSK RF Receiver

Hair Styler. It Is Part of Zhrfc Nextgenrftm RF Product Line, Which Includes Complete Transmitter, Receiver and Transceiver.

The. The High Integration of Z6300a Simplifies the Peripheral Materials Needed in the System Design. Sensitivity Optimization of up to +20 DBm and-121 DBM

The Link Performance of the Application Is Improved. It Supports a Variety of Data Packet Formats and Encoding and Decoding Methods, Making It Flexible to Meet Various Applications for Different Data Packets

Format and Encoding and Decoding Requirements. In Addition, Z6300a Also Supports 64-Byte TX/RX FIFO, Rich GPIO and Interrupt Configuration, Duty-Cycle

Operation Mode, Channel Listening, High Precision RSSI, Low Voltage Detection, Power-on Reset, Low Frequency Clock Output, Manual Fast Frequency Hopping, Noise Suppression Output, Etc.

Functions Make Application Design More Flexible and Realize Product Differentiation Design. Z6300a Works from 1.8V to 3.6V. When Reaching-121 DBM Spirit

Only 8.5 MA Current Is Consumed at Sensitivity, and the Ultra-Low Power Consumption Receiving Mode Can Further Reduce the Receiving Power Consumption of the Chip; the Output at 13dbm Is Only

23 Ma Emission Current Is Consumed.

   Second, Parameters:

Third, Pin Description:


、

                                                                                 Figure 1, Pin Arrangement of Z6300a

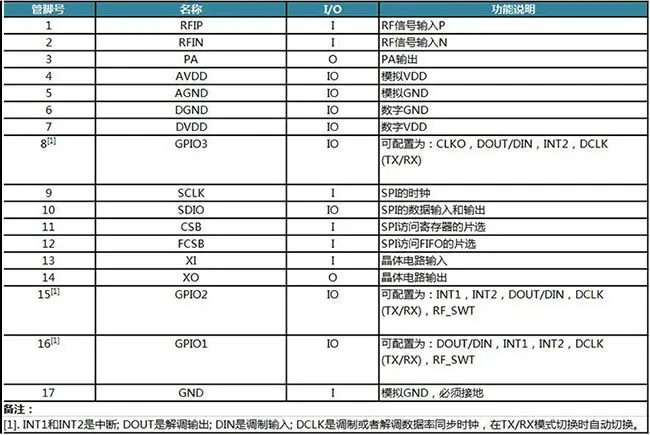

                                                                                  Table 1. Description of Z6300 Pin



   Four, Package Information:

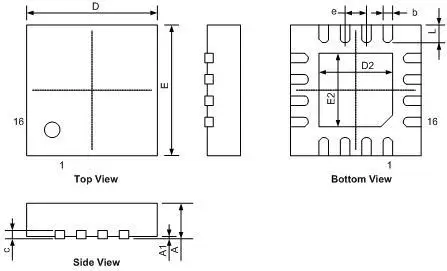

         Figure 2. 16-Pin QFN 3X3 Package

                                                                                Table 2. 16-Pin QFN 3x3 Package Size

V. Typical Application Schematic Diagram:

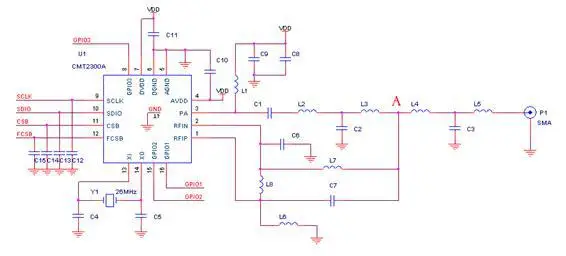

                                                                       Figure 3. Typical Application Schematic Diagram of Direct Tie


VI. Z63000a Function Description:

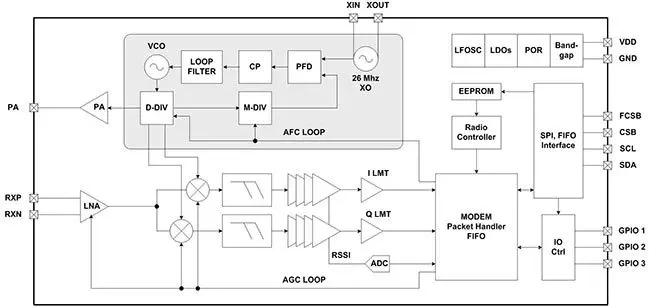

                                                                                  Figure 4. Z6300a Functional System Block Diagram

Seven, Chip Application:

1. Automatic Meter Reading
2. Home Security and Building Automation
3.ism Band Data Communication
4. Industrial Monitoring and Control
5. Remote Control and Security System
6. Remote Control Key Entry
7. Wireless Sensor Node
8. the Tag Reader-Writer

Eight, Instrument Test Data:

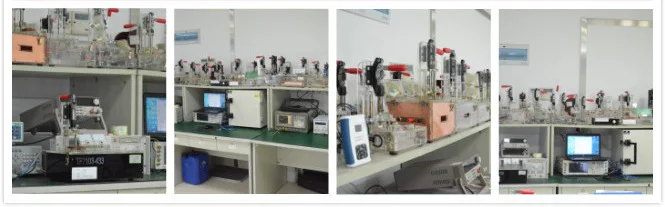

                                                                                                    Test Environment

                                                                                                    Test Data
