Maximum discharge current: less than equal 20A
Instantaneous discharge current:100A
Charging voltage: 42V
Maximum charging current: 20A
Overcharge detection voltage: 4.28±0.05V
Overcharge protection delay: 100ms
Overcharge release voltage: 4.08±0.05V
Overdischarge detection voltage: 2.55 ± 0.08V
Overdischarge detection delay: 50ms
Overdischarge release voltage: 3.0±0.1V
Overcurrent detection voltage: 150mV
Overcurrent detection delay: 15ms
Overcurrent protection current: 120±20A
Overcurrent protection release condition: disconnect load
Short circuit protection condition: external load short circuit
Short circuit detection delay: 200uS
Short circuit protection release condition: disconnect load
Main circuit conduction internal resistance: less than equal 15mΩ
Working current: less than equal 40uA
Sleep current (when the battery is over-discharged): less than equal 10uA
Temperature range: -30/+80°C
size:63*33*10mm

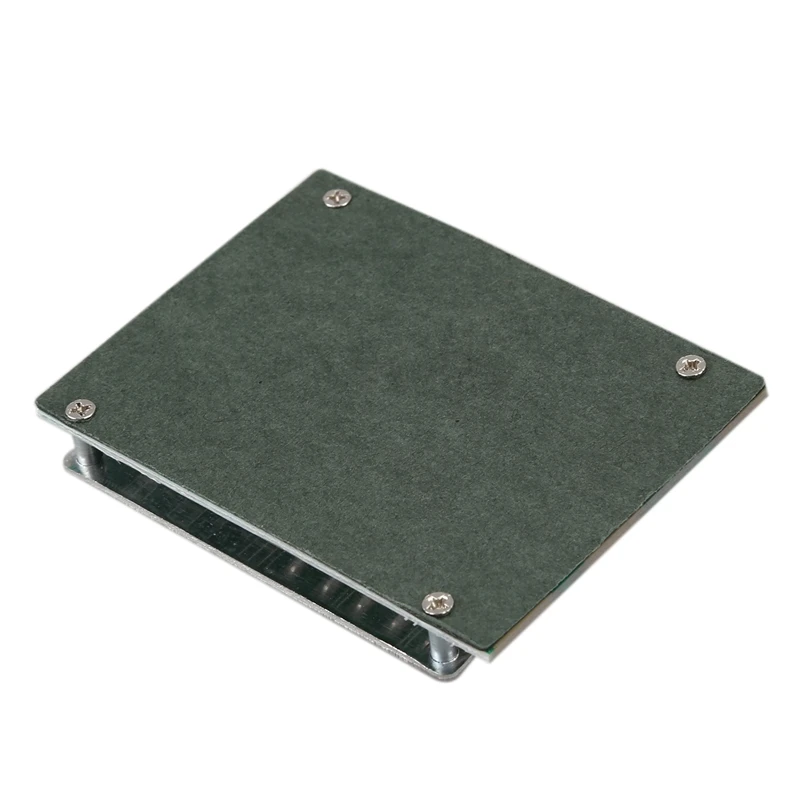

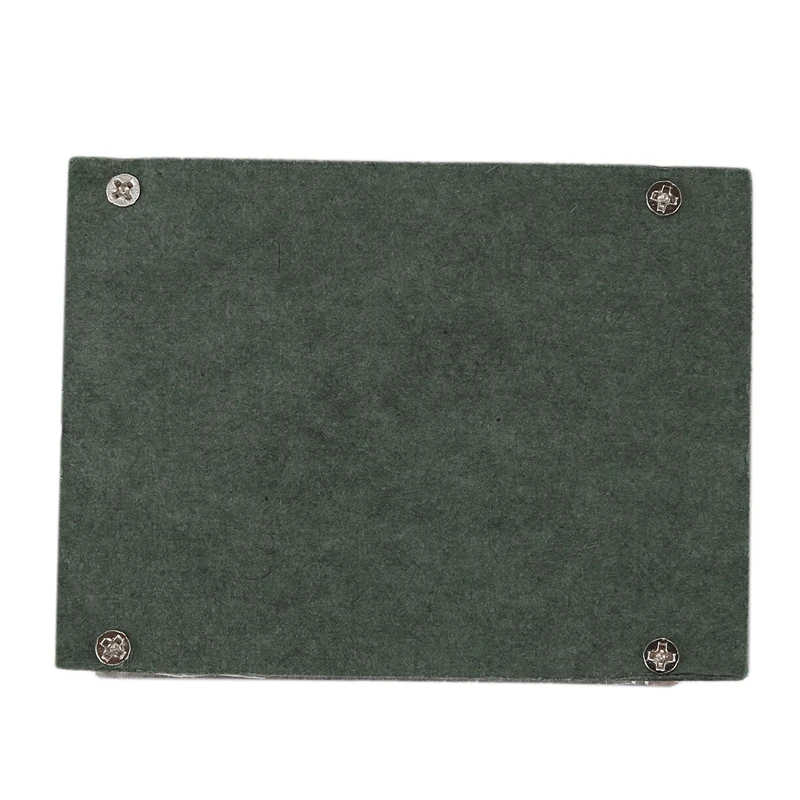

Material:Metal + PCB
colour:Silver + green
Package Contents:

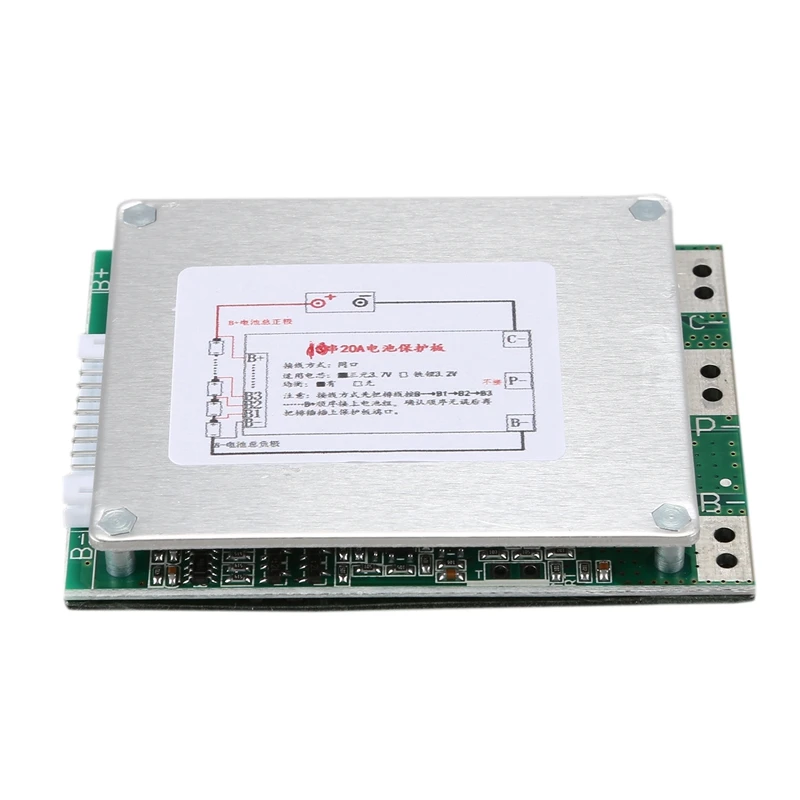

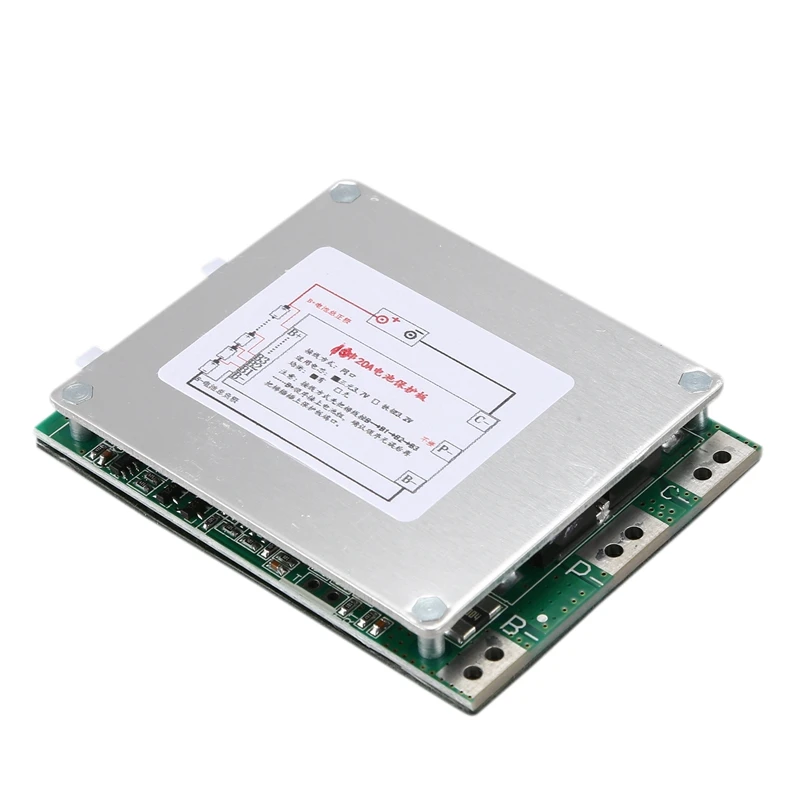

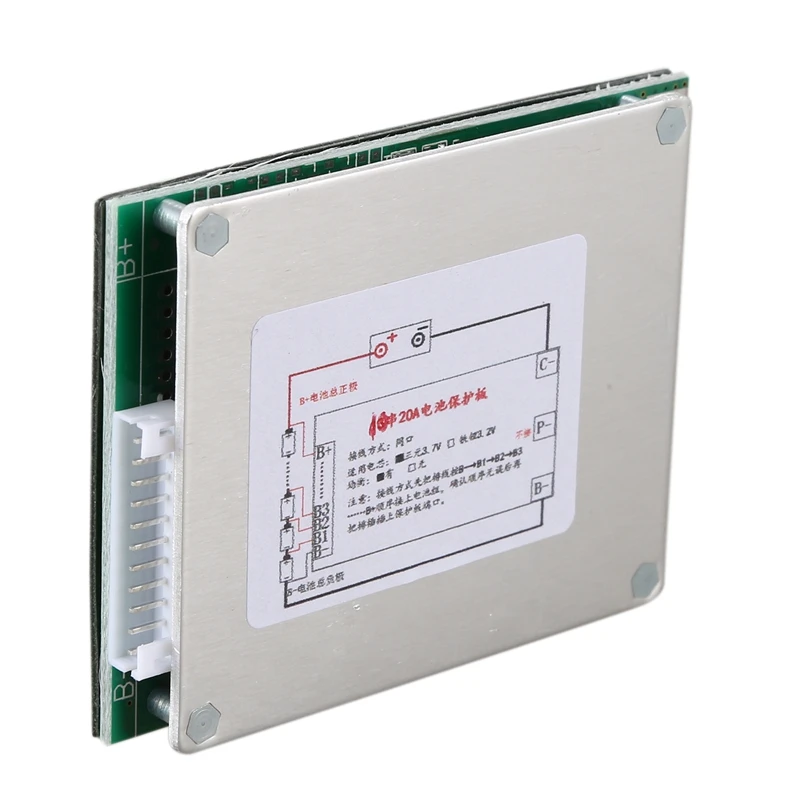

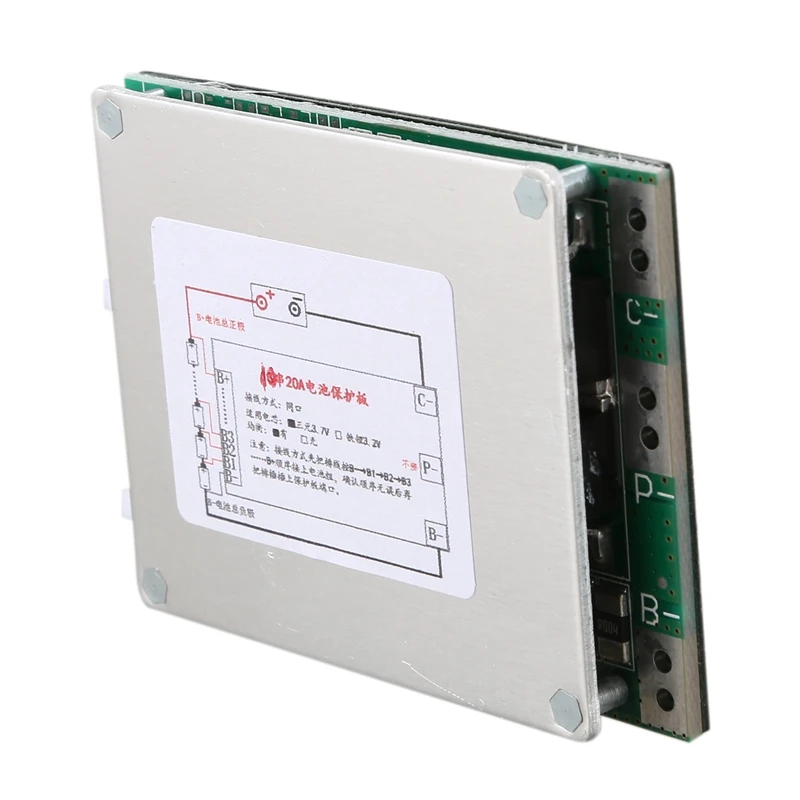

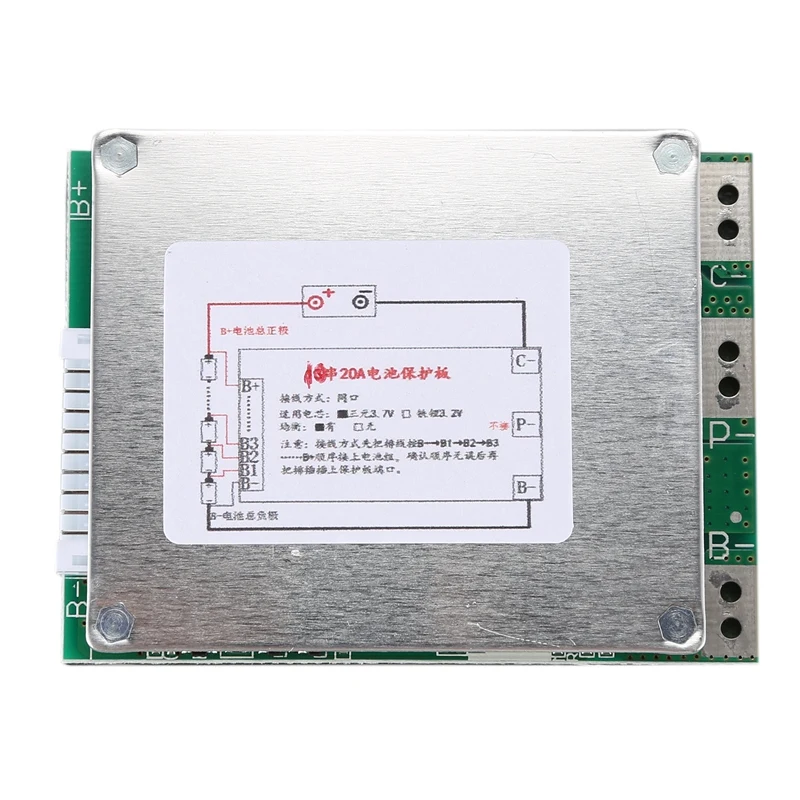

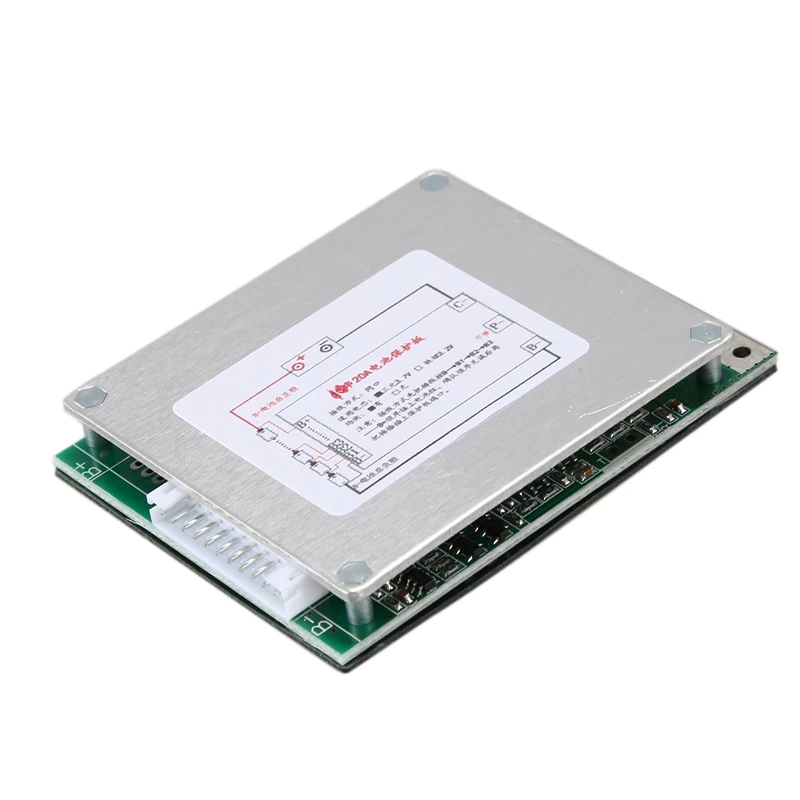

1 * Li-ion Battery Protection Board

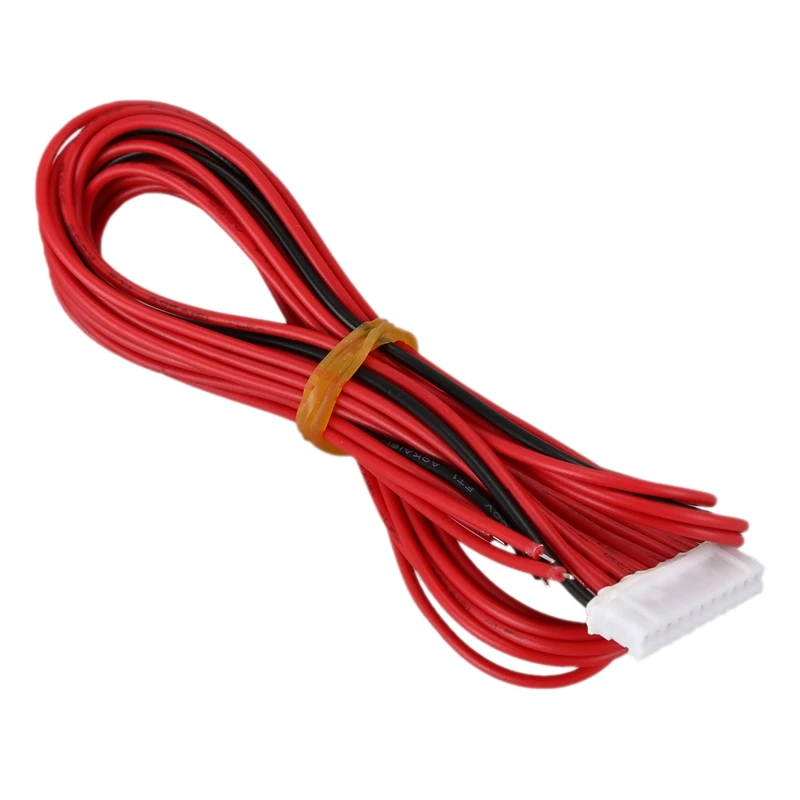

1 * Cabel wire
Only the above package content, other products are not included.
