Scope of application: Widely applicable to the rapid and convenient determination of viscosity in the coating industry Purpose: To provide paint manufacturers and paint users with a quick and close approximation of paint and similar liquids with an exit time aperture of 3.5 mm in the workshop. Material: stainless steel nickel-plated packaging carton

Steps

- Dip the immersion fluid so that the upper edge of the flow cup is below the horizontal surface of the liquid - Raise the cup vertically and press the stopwatch at the same time - Stop the stopwatch when the first break occurs on the outflow line - To be evaluated, three measurements must be taken in succession - the average of three measurements as the outflow time of the liquid

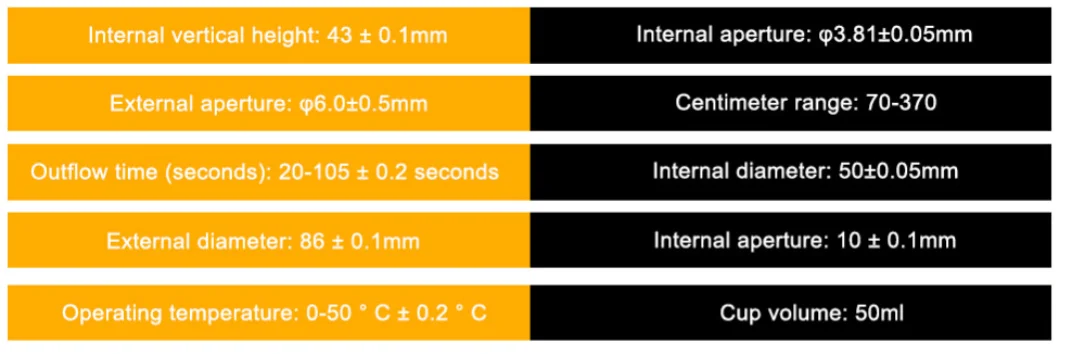

Specifications:

1. Internal vertical height: 43 is ± 0.1mm 2. Internal aperture: φ3.81±0.05 mm 3. External aperture: φ6.0±0.5 mm 4 PCT range: 70-370 5. Outflow time (seconds): 20-105 ± 0.2 seconds 6. Internal diameter: 50 ± 0.05 mm 7. External diameter: 86 is ±0.1mm 8. Internal aperture: 10 is ± 0.1mm 9. Operating temperature: 0-50 ° C ± 0.2 ° C 10. Cup volume: 50 ml
