Organic Board Hot Bending Machine Acrylic Bending Device Plastic Plates Bending Machine Light Box PVC Hot Bend Tool There is a bending machine operation video, please contact customer service

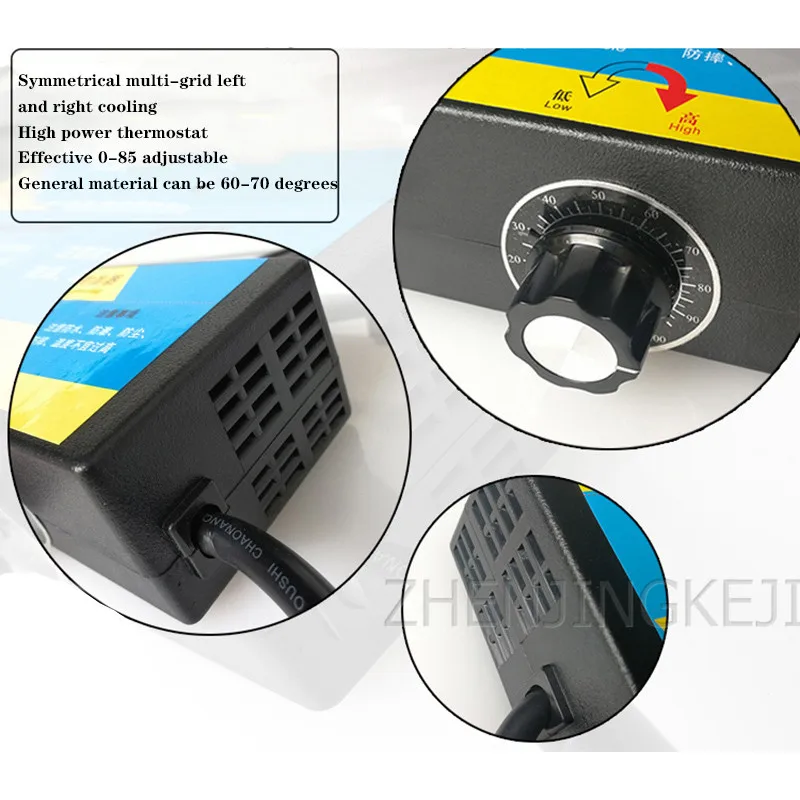

Symmetrical multi-grid left and right cooling
High power thermostat
Effective 0-85 adjustable
General material can be 60-70 degrees
Configuring high temperature resistant water pump
(1.8/2.5 meters to 1.25 meters and more power)
Imported silicone water pipe (2mm thick)

Input voltage: AC 220V
Heating peak: ZW 300 420 ° C, other 250 ° C
Heating width: 30-240cm
Bending material thickness: 1mm - 6mm

Product performance:

The product temperature is uniform, the water circulation is cooled. The temperature is adjustable, light and practical. It saves space and bends the plastic sheet of various materials. If the thickness exceeds 6 mm, two heaters can be used to heat up and down at the same time. Multiple heaters can be combined. Warm up a number of bending points; if you bend a thicker plate, the groove will be folded and the angle will be more beautiful. You can use it according to local conditions and use it flexibly.

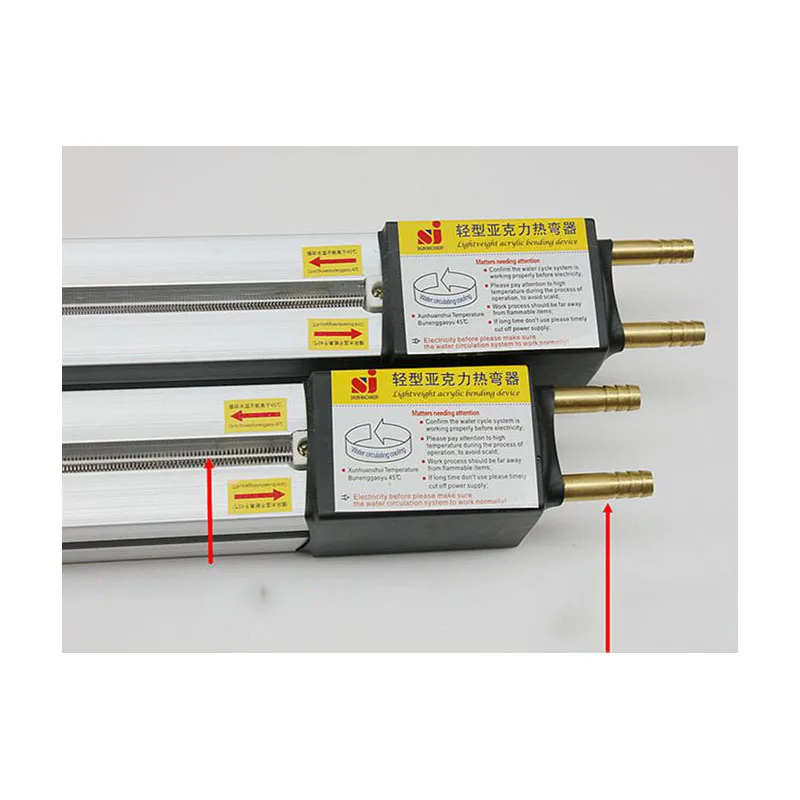

Acrylic hot bending machine, compact structure, reasonable design, can be combined with the workbench into a hot bending machine, can also be used alone, does not take up space. There is water circulation cooling on both sides of the heating pipe to ensure that there is no thermal deformation except for the part to be heated. The power supply and the water pipe are respectively connected at both ends, and the water and electricity separation is safe and intuitive, and the plugging and unloading is convenient, and the collection is convenient, and the assembly with the worktable is very convenient.

Instructions for use:

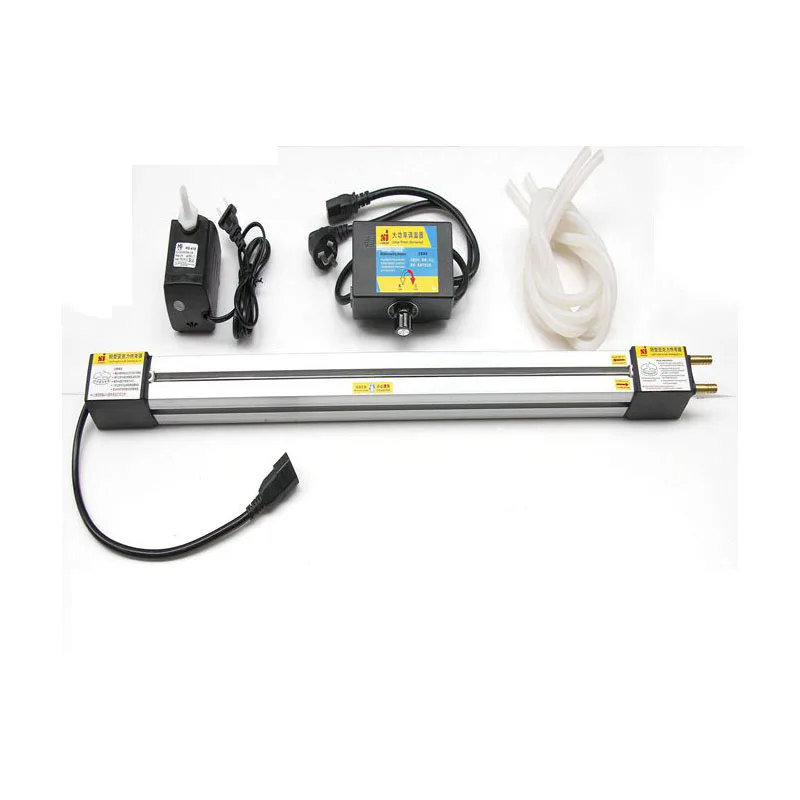

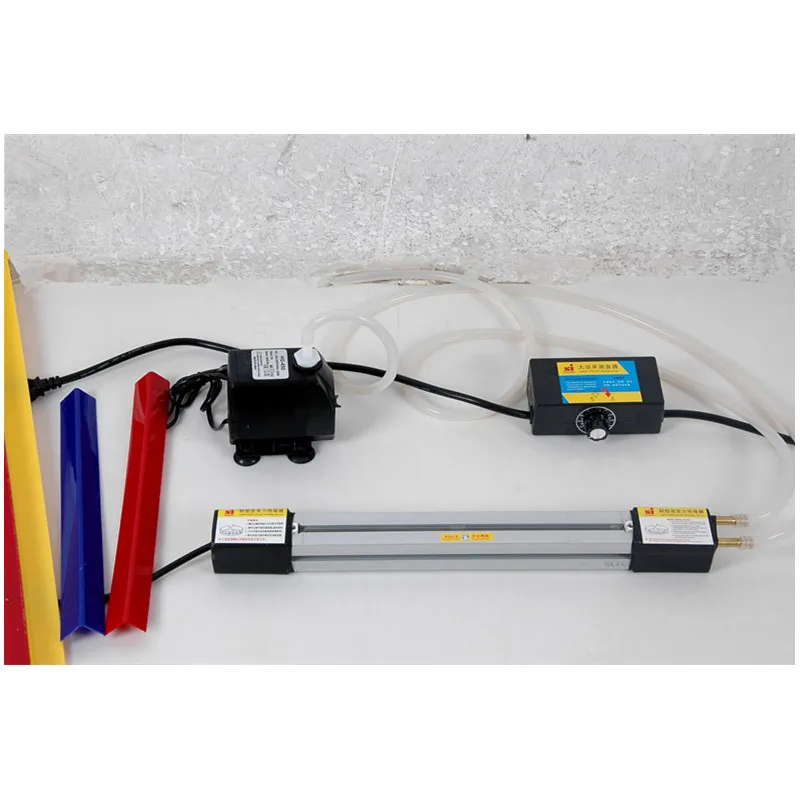

1. Bring a cooling tank (barrel) of more than 30 liters. First connect the warmer main body and the submersible pump with a silicone grease hose, place the submersible pump in the cooling water tank, turn on the water pump power supply, and wait for the water cycle to replace. (Note: The continuous working water temperature of the machine will increase continuously. Please replace the cold water with the water. The circulating water temperature should not drop suddenly. When the water temperature exceeds 50 degrees, the power of the warmer should be cut off in time, and the circulating water should be replaced later.)
2. Connect the thermostat to the hot bending machine and connect to the 220V mains. Adjust the thermostat controller knob. The clockwise direction is heating. Otherwise, the temperature is lowered. When adjusting, it should not be rotated too fast to avoid damage to the temperature regulating component. (Note: It is advisable to adjust the thermostat slowly to the heat-emitting tube. Excessive temperature will cause damage to the hot bending material and affect the replacement of the hot bending machine).

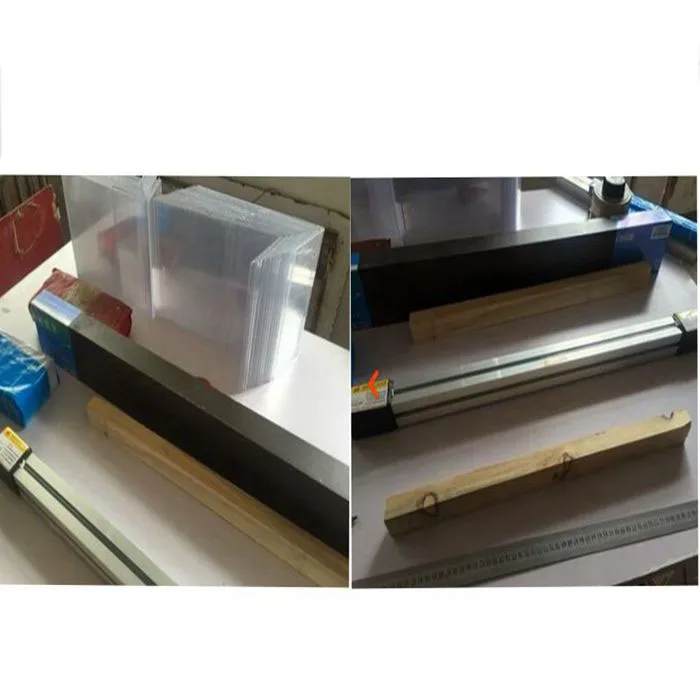

3. When the heating pipe reaches the required temperature, the plastic plate to be hot-bent can be placed on the heating tank, and when the plate is baked soft until the hand can be folded, the bending can be performed at various angles. According to the material, the setting time is different. Please determine the setting time according to the actual situation.


Precautions:
The product is heated to produce high temperatures, and the heating element should be protected from contact with human skin.
Please pay attention to the use environment, away from flammable and explosive materials.
If you do not use it for a long time
