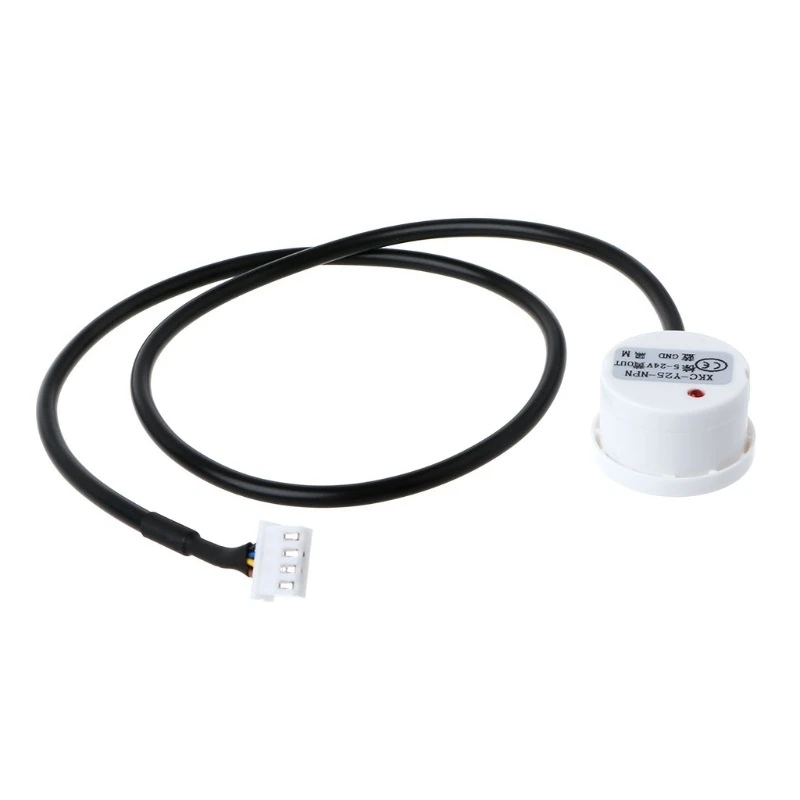

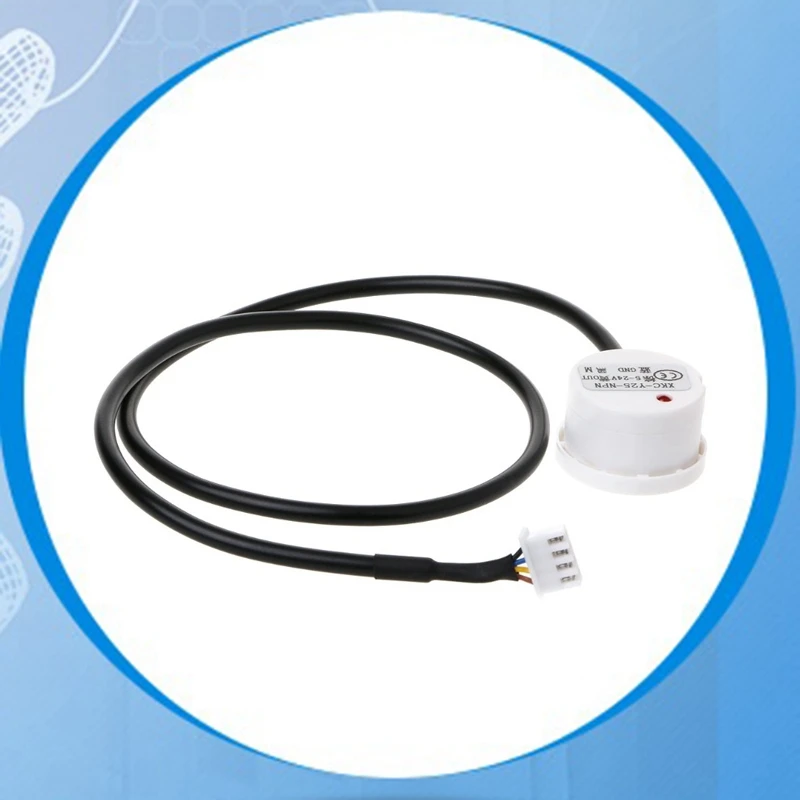

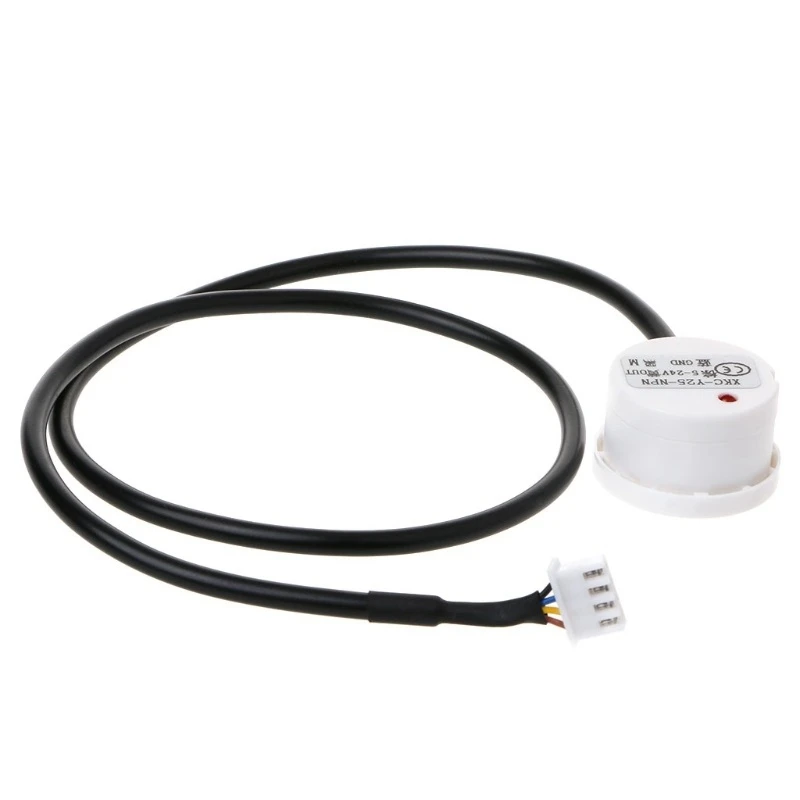

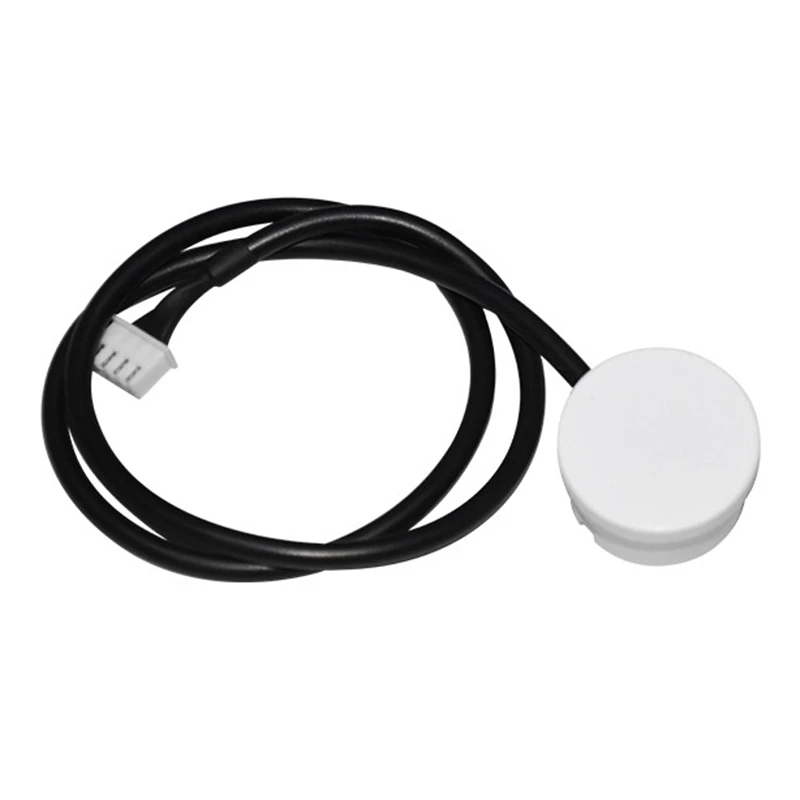

New XKC-Y25-NPN Non-Contact Liquid Level Sensor Stick Type Water Detector Switch Liquid Level Sensor

Features:

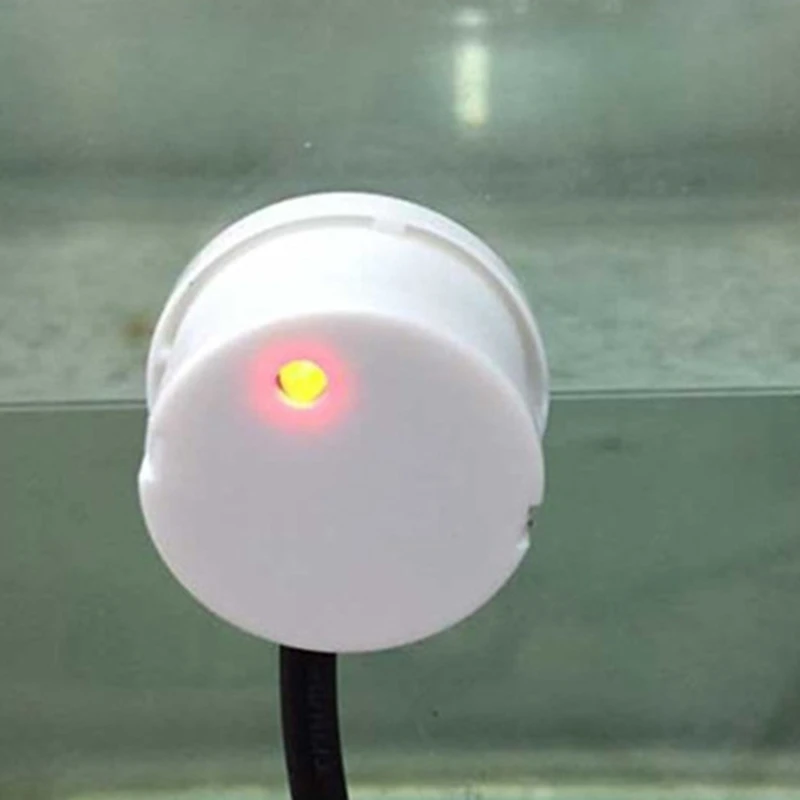

Non-contact liquid level sensor is applicable to non-metallic containers without direct contact with the liquid, not affected by scale or other impurities.
ligent liquid level benchmark adjustment and level memory function, liquid level display mode, can achieve multi-point series connection.
Electronic circuit structure rather than machinery ensures stable performance, durability and a long service life.
High stability, high sensitivity, strong anit-interference ability make sure it won't be affected by electronet, special designed to deal with power frequency interference and common mode interference.
Compatible with most 5 ~ 24V power adapter.
Strong compatibility through a variety of non-metallic material containers, such as plastic, glass, ceramics etc, with a 1m or more induction distance.
Testing is accurate and stable and boiling water level can be detected. Liquid, powder, particles can all be detected.
Adjustable sensitivity.
Specifications:
Model: XKC-Y25-NPN
Output: NPN
Input Voltage (InVCC): DC 5~24V
Current: 5mA
Output Voltage (high level): InVCC
Output Voltage (low level): 0V
Output Current: 1~100mA
Response Time: 500mS
Operating Temperature: 0~105°
Induction Thickness (sensitivity): 0~13 mm
Communication: RS485
Humidity: 5%~100%
Material: ABS
Color: white + black
Ingress Protection: IP67
Package Contents:
1 * Liquid level sensor
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
