Khadas VIM3 SBC: 12nm Amlogic A311D Soc With 5.0 TOPS NPU|2GB + 16GB(Basic Model)Support Linux Ubuntu Debian Android + Free Case

Note:

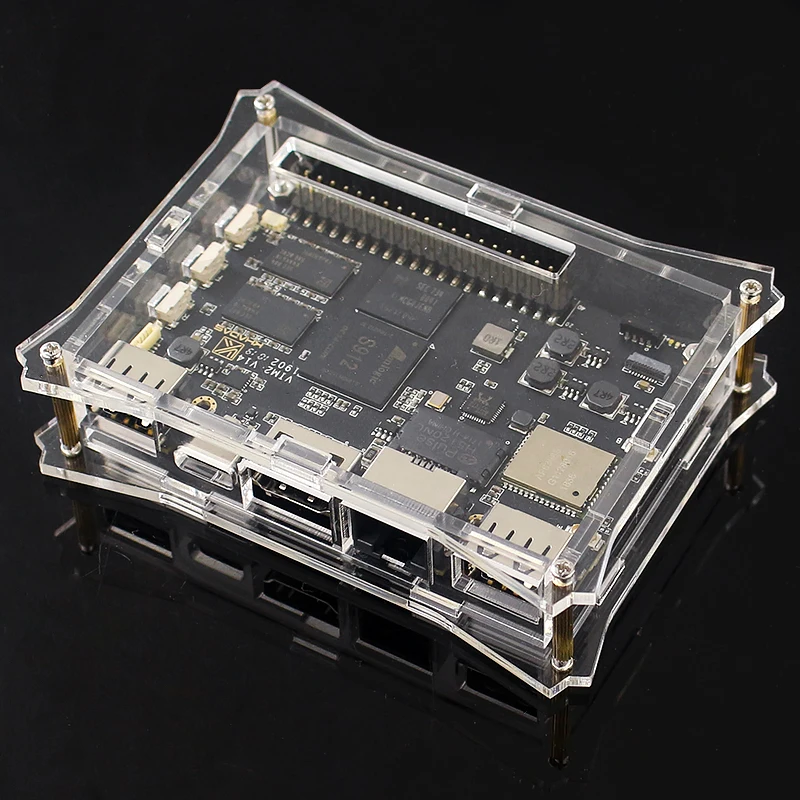

1.The case is free gift and it suit for VIM1 / VIM2 / VIM3. 2.You can get more information through the official website link: //docs.khadas.com/zh-cn/

Description

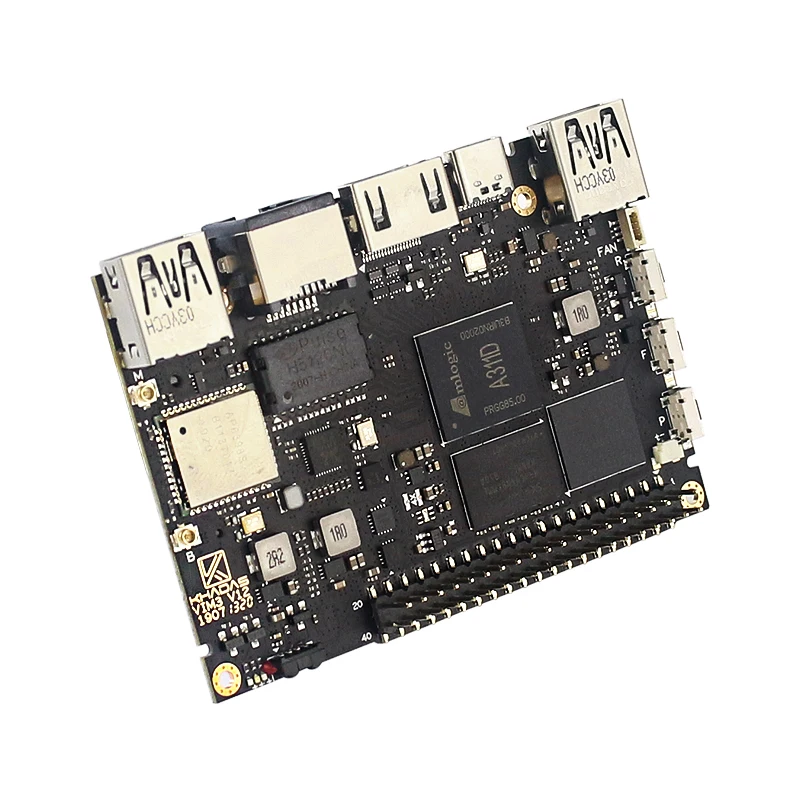

The VIM3 SBC is the latest addition to our popular Khadas VIM series. It has a powerful Amlogic A311D SoC: x4 Cortex A73 performance-cores (2.2Ghz), and x2 Cortex A53 efficiency-cores (1.8Ghz) are merged into a hexa-core configuration, and fabricated with a 12nm process to maximise performance, thermal and electrical efficiency. VIM3 is designed with the same form-factor as our popular VIM2 and VIM1. It is the size of a credit-card, and fits perfectly inside our DIY Case. Although diminutive, VIM3 is competitively-priced and fully-featured; everything you need is already built-in. Digital-signage developers will love the programmable MCU, MIPI-CSI for dual cameras, real-time clock, wake-on-lan functionality and 3-axis g-sensor to detect signage orientation. The M2X Extension Board has an NVMe SSD slot, power-over-ethernet, 100-mbit ethernet, 4G module slot, nano-sim slot, and GPIO. The new VIM3 SBC goes beyond what our original VIM models have to offer. It has an onboard 5.0 TOPS NPU for neural network applications, an M.2 slot for NVMe SSDs that can switch between PCIe and USB 3.0 via Khadas KBI commands, and a USB-C port with 5-20 volt USB power-delivery input.

Package List:

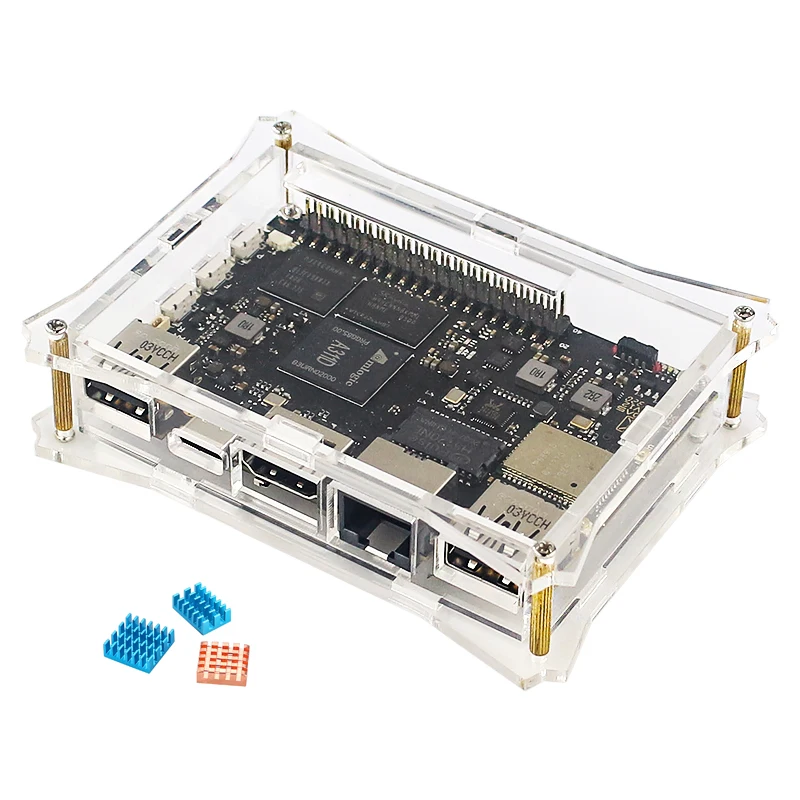

1 × Khadas VIM3 SBC 1 × Case 3 × Heatsink

Faster CPU Performance

A311D big-little architecture. x4 2.2Ghz Cortex-A73 cores, paired with x2 1.8Ghz Cortex-A53 cores.

Neural Processing Unit for A.I.

Next generation, deep-neural-network applications, at 5.0 TOPS. Download the NPU Toolkit.

Switchable PCIe and USB 3.0

Use the Khadas KBI to switch the "combo interface" to either the USB-3.0 port or PCIe interface.

USB-C Power Delivery

Wide-range of power input, from 5-20V for power-hungry applications, e.g. Microphone Array and Speakers.

Dual Independent Displays

HDMI and MIPI-DSI, with 3-axis digital accelerometer for display rotation detection.

​Dual Cameras

4 lane MIPI-CSI, up to 8MP ISP, with 30 Pin 0.5mm Pitch FPC Connector.

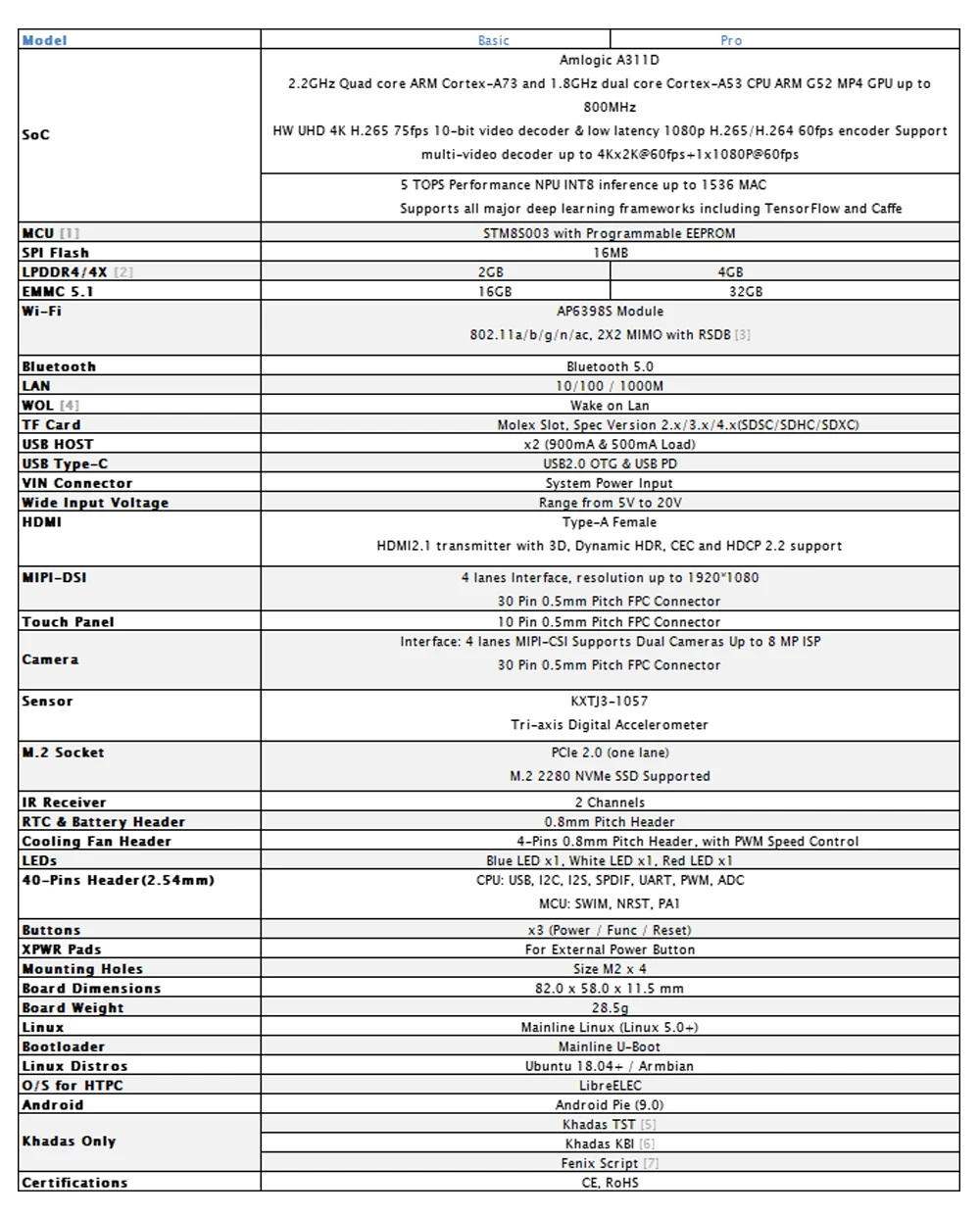

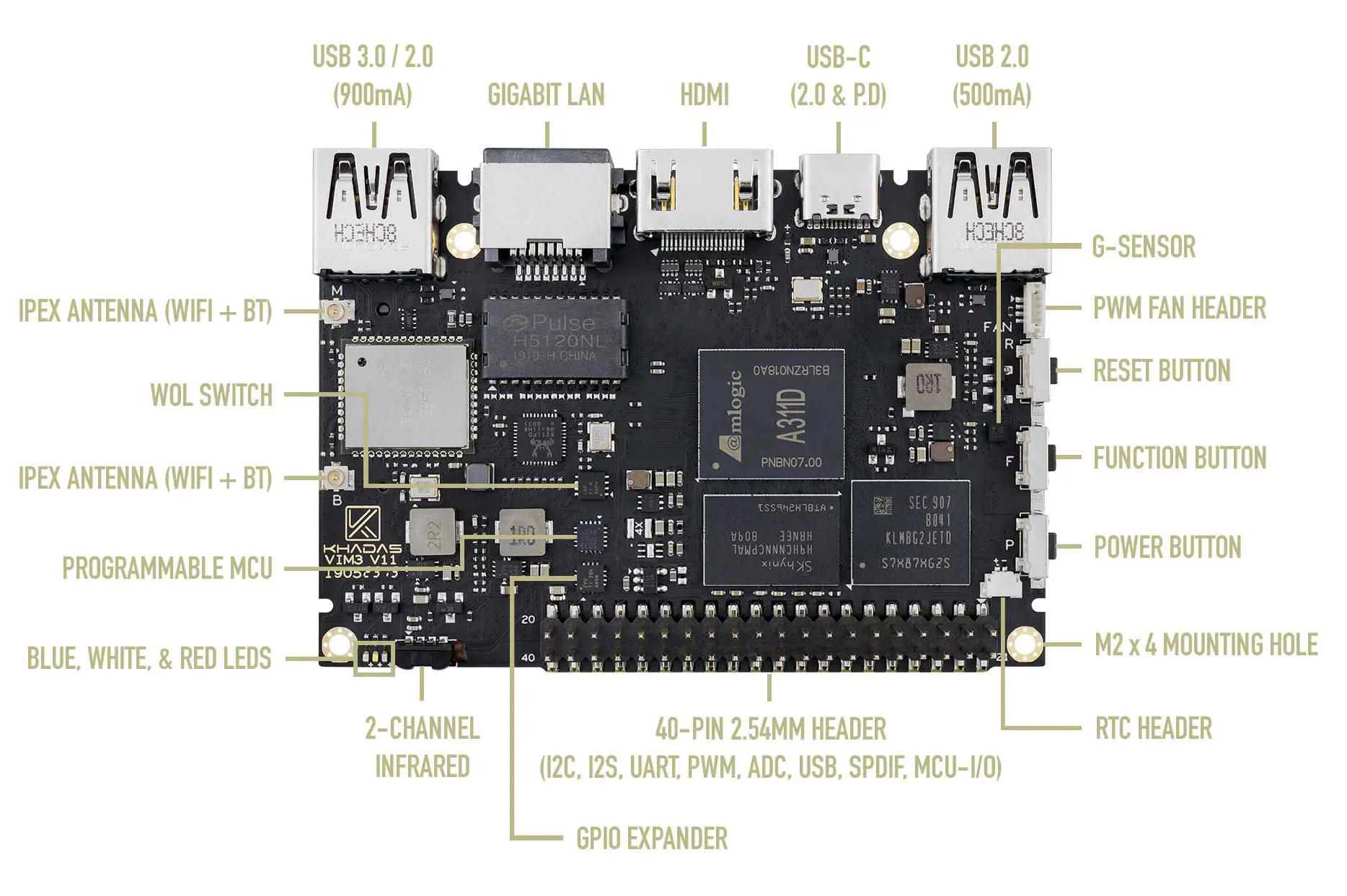

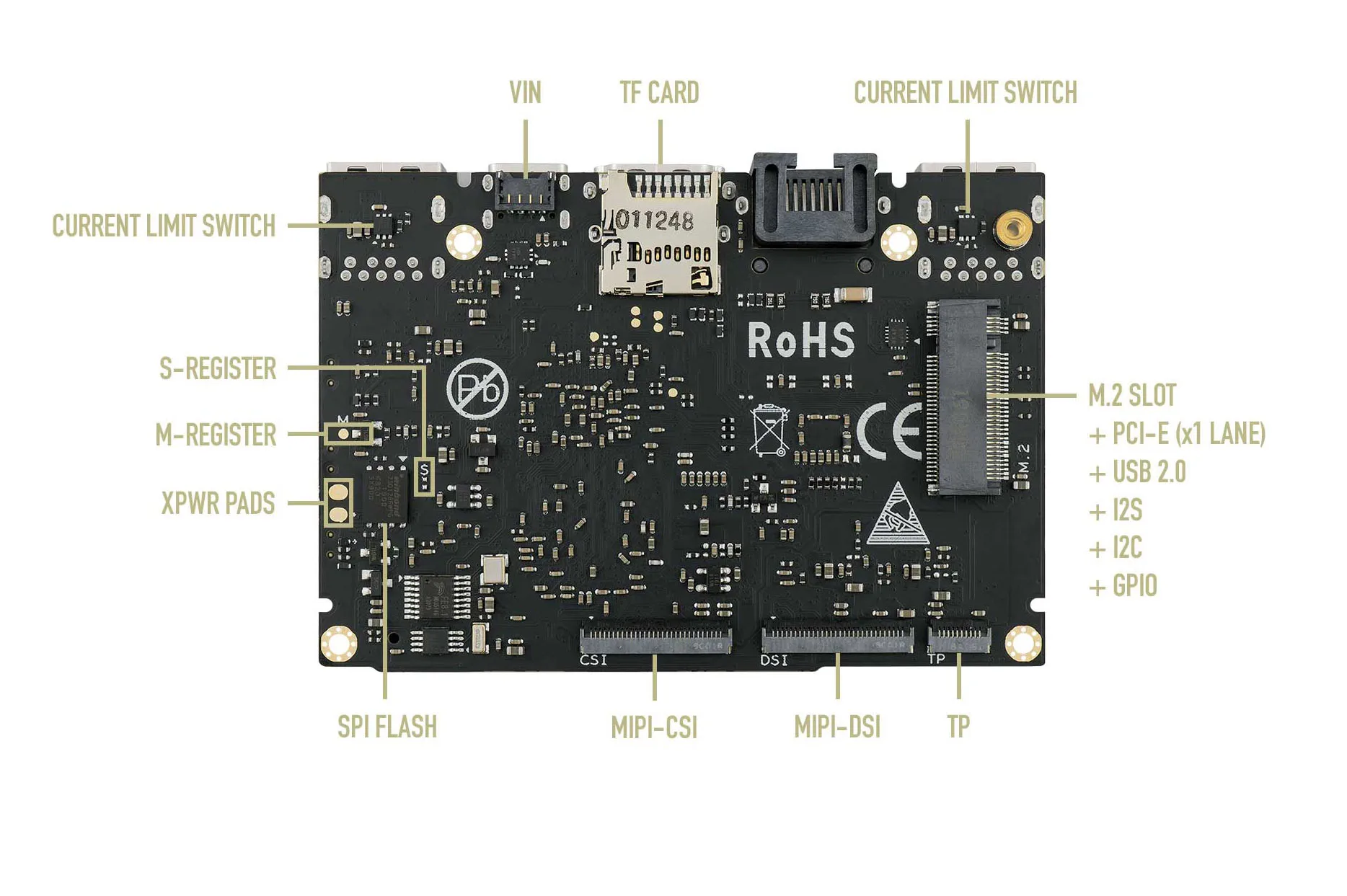

Interface :

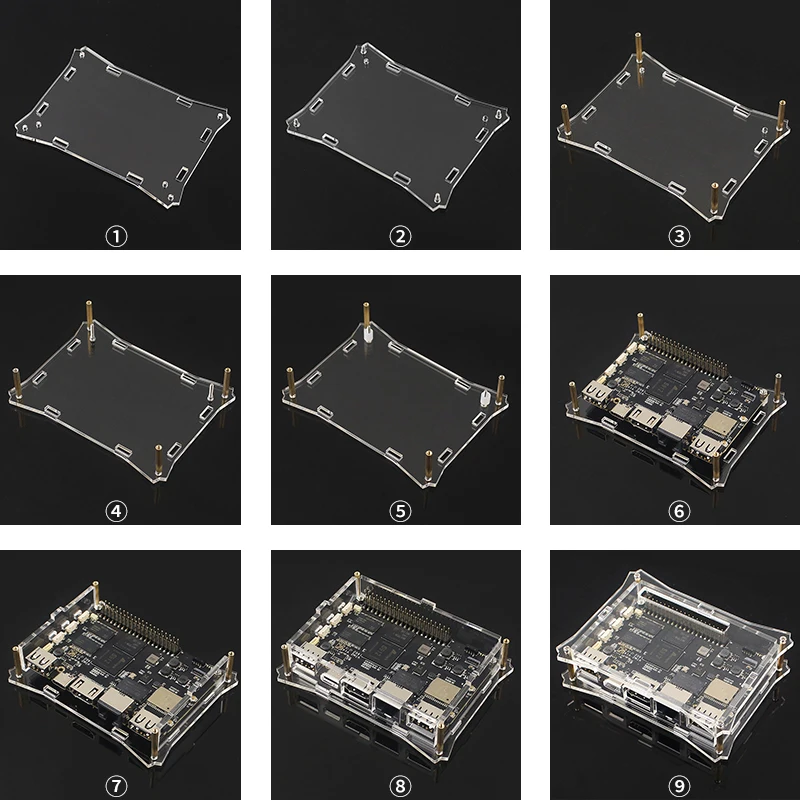

Installation Steps
